Redmine之RestApi集成方式

Posted firsttry

tags:

篇首语：本文由小常识网(cha138.com)小编为大家整理，主要介绍了Redmine之RestApi集成方式相关的知识，希望对你有一定的参考价值。

Redmine是一个较为强大的开源Ticket管理工具，这篇文章我们将会介绍一下如何使用Curl和Redmine所提供的RestApi来进行集成，将会选取Redmine中的用户进行简单的增删改查的操作。

Redmine

相关的介绍以前已经做过，在此不再赘述。详细可以参看如下文章：

文章链接
Ticket管理工具：Redmine http://blog.csdn.net/liumiaocn/article/details/52107410
Bitnami Redmine安装配置指南 http://blog.csdn.net/liumiaocn/article/details/53523604

事前准备

docker方式启动

这篇文章，我们使用easypack下已经整理好的镜像直接使用，使用方法参看如下文章：

文章链接
Ticket管理工具：Redmine http://blog.csdn.net/liumiaocn/article/details/56254955

安装之后缺省的用户名和密码为：admin/admin，登陆需要修改密码，将其修改为admin/admin123

[root@mail ~]# docker ps
CONTAINER ID        IMAGE               COMMAND                  CREATED             STATUS              PORTS                    NAMES
750f29e4deae        liumiaocn/redmine   "/docker-entrypoin..."   12 minutes ago      Up 12 minutes       0.0.0.0:3000->3000/tcp   redmine
3230aef19745        liumiaocn/mysql     "docker-entrypoint..."   16 minutes ago      Up 16 minutes       3306/tcp                 mysql
[root@mail ~]#
  • 1
  • 2
  • 3
  • 4
  • 5

启动Rest Web Service

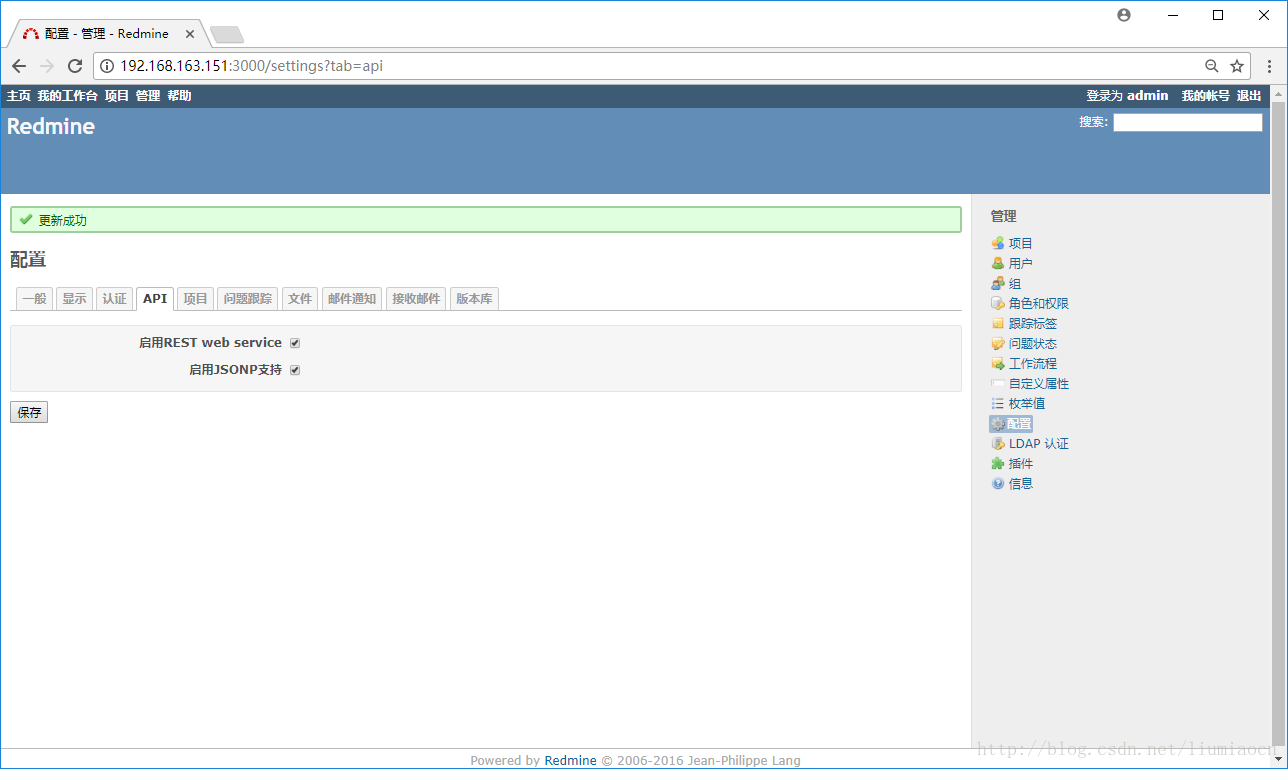

需要在Redmine中做如下设定
技术分享图片
详细可参照如下文章：

文章链接
设定方式 http://blog.csdn.net/liumiaocn/article/details/74832762

Rest api

此文中使用的redmine为版本3.3，mysql为5.7, redmine相关的restapi主要如下：

ResourceStatusAvailability
Issues Stable 1
Projects Stable 1
Project Memberships Alpha 1.4
Users Stable 1.1
Time Entries Stable 1.1
News Prototype 1.1
Issue Relations Alpha 1.3
Versions Alpha 1.3
Wiki Pages Alpha 2.2
Queries Alpha 1.3
Attachments Beta 1.3
Issue Statuses Alpha 1.3
Trackers Alpha 1.3
Enumerations Alpha 2.2
Issue Categories Alpha 1.3
Roles Alpha 1.4
Groups Alpha 2.1
Custom Fields Alpha 2.4
Search Alpha 3.3
Files Alpha 3.4

这篇文章我们选取user相关的api进行集成，可以看出该api已经是stable版本，虽然看起来还有很多Alpha版本，但是在开源领域来说，Redmine已经算是不错的选择。

Http Get：查询

首先使用Get 方法进行查询：

命令行：curl -X GET -u admin:admin123 http://192.168.163.151:3000/users.json
.json用于制定返回结果的格式
-u制定登陆的用户名和密码

[root@mail ~]# curl -X GET -u admin:admin123 http://192.168.163.151:3000/users.json
{"users":[{"id":1,"login":"admin","firstname":"Redmine","lastname":"Admin","mail":"admin@example.net","created_on":"2017-12-05T12:31:21Z","last_login_on":"2017-12-05T13:02:36Z"}],"total_count":1,"offset":0,"limit":25}[root@mail ~]#
[root@mail ~]#
  • 1
  • 2
  • 3

如果需要确认详细的信息，可以使用如下命令, 类似的信息后文不再一一验证。

curl -v -H “Content-Type: application/json” -X GET -u admin:admin123 http://192.168.163.151:3000/users.json

[[email protected] ~]# curl -v -H "Content-Type: application/json" -X GET -u admin:admin123 http://192.168.163.151:3000/users.json
* About to connect() to 192.168.163.151 port 3000 (#0)
*   Trying 192.168.163.151...
* Connected to 192.168.163.151 (192.168.163.151) port 3000 (#0)
* Server auth using Basic with user ‘admin‘
> GET /users.json HTTP/1.1
> Authorization: Basic YWRtaW46YWRtaW4xMjM=
> User-Agent: curl/7.29.0
> Host: 192.168.163.151:3000
> Accept: */*
> Content-Type: application/json
>
< HTTP/1.1 200 OK
< X-Frame-Options: SAMEORIGIN
< X-Xss-Protection: 1; mode=block
< X-Content-Type-Options: nosniff
< Content-Type: application/json; charset=utf-8
< Content-Length: 217
< Etag: W/"1e49c564bd63f382cd5b6c3697d786a3"
< Cache-Control: max-age=0, private, must-revalidate
< X-Request-Id: b3f10c08-37bd-48dd-a455-24c5944bea3d
< X-Runtime: 0.187073
< Server: WEBrick/1.3.1 (Ruby/2.3.3/2016-11-21)
< Date: Tue, 05 Dec 2017 13:06:08 GMT
< Connection: Keep-Alive
< Set-Cookie: _redmine_session=WHY1UGNwdHI4VE8wYXk5SjlRTk15YkYyU2RSZXUrZDRPMllnVFBReExoTGxBN0lhRnF6ZVI2WDR4YkI2Z0Y4M3N2Uk1OOURBYVJTNmQ0YVhLV2F1aGdxdjdTcE5MQUhRNFdQRXpLMTdmVU1UK2RaTkY0L0F4WEk0WldaRjAxVW5WTHNOQ2FQNElYeURkNlA0bTYzaGNRPT0tLUVSQ3RNMmtHYXhhdE44TzdxbmM0VWc9PQ%3D%3D--cbb59aa7ef006f47dbefe320b6121e2605e43f66; path=/; HttpOnly
<
* Connection #0 to host 192.168.163.151 left intact
{"users":[{"id":1,"login":"admin","firstname":"Redmine","lastname":"Admin","mail":"[email protected]","created_on":"2017-12-05T12:31:21Z","last_login_on":"2017-12-05T13:06:08Z"}],"total_count":1,"offset":0,"limit":25}[[email protected] ~]#
  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  • 8
  • 9
  • 10
  • 11
  • 12
  • 13
  • 14
  • 15
  • 16
  • 17
  • 18
  • 19
  • 20
  • 21
  • 22
  • 23
  • 24
  • 25
  • 26
  • 27
  • 28
  • 29

Http Post : 新增用户

使用命令：curl -v -H “Content-Type: application/json” -X POST –data-binary “@liumiaocn.json” -u admin:admin123 http://192.168.163.151:3000/users.json

使用json文件方式创建用户，创建用户的json文件信息如下：

[root@mail ~]# cat liumiaocn.json
{
    "user": {
        "login": "liumiaocn",
        "firstname": "miao",
        "lastname": "liu",
        "mail": "liumiaocn@outlook.com",
        "password": "hello123"
    }
}
[root@mail ~]#
  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  • 8
  • 9
  • 10
  • 11

执行结果如下，建议打开-v，这样能看到更多信息已进行排错。

[[email protected] ~]# curl -v -H "Content-Type: application/json" -X POST --data-binary "@liumiaocn.json" -u admin:admin123 http://192.168.163.151:3000/users.json
* About to connect() to 192.168.163.151 port 3000 (#0)
*   Trying 192.168.163.151...
* Connected to 192.168.163.151 (192.168.163.151) port 3000 (#0)
* Server auth using Basic with user ‘admin‘
> POST /users.json HTTP/1.1
> Authorization: Basic YWRtaW46YWRtaW4xMjM=
> User-Agent: curl/7.29.0
> Host: 192.168.163.151:3000
> Accept: */*
> Content-Type: application/json
> Content-Length: 183
>
* upload completely sent off: 183 out of 183 bytes
< HTTP/1.1 201 Created
< X-Frame-Options: SAMEORIGIN
< X-Xss-Protection: 1; mode=block
< X-Content-Type-Options: nosniff
< Location: http://192.168.163.151:3000/users/5
< Content-Type: application/json; charset=utf-8
< Content-Length: 204
< Etag: W/"7cbd19185b3fd02c67cc3e22ec9ab1d7"
< Cache-Control: max-age=0, private, must-revalidate
< X-Request-Id: 458e9f6e-e9c3-41ff-95a6-fefeb262ab9d
< X-Runtime: 0.736546
< Server: WEBrick/1.3.1 (Ruby/2.3.3/2016-11-21)
< Date: Tue, 05 Dec 2017 13:28:53 GMT
< Connection: Keep-Alive
<
* Connection #0 to host 192.168.163.151 left intact
{"user":{"id":5,"login":"liumiaocn","firstname":"miao","lastname":"liu","mail":"[email protected]","created_on":"2017-12-05T13:28:53Z","api_key":"4a075c22d3a89bd9ca7c2c0999538a86768ecae3","status":1}}[[email protected] ~]#
  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  • 8
  • 9
  • 10
  • 11
  • 12
  • 13
  • 14
  • 15
  • 16
  • 17
  • 18
  • 19
  • 20
  • 21
  • 22
  • 23
  • 24
  • 25
  • 26
  • 27
  • 28
  • 29
  • 30
  • 31

再次确认，信息已经得到保存：

[root@mail ~]# curl -X GET -u admin:admin123 http://192.168.163.151:3000/users.json
{"users":[{"id":1,"login":"admin","firstname":"Redmine","lastname":"Admin","mail":"admin@example.net","created_on":"2017-12-05T12:31:21Z","last_login_on":"2017-12-05T13:31:47Z"},{"id":5,"login":"liumiaocn","firstname":"miao","lastname":"liu","mail":"liumiaocn@outlook.com","created_on":"2017-12-05T13:28:53Z"}],"total_count":2,"offset":0,"limit":25}[root@mail ~]#
  • 1
  • 2

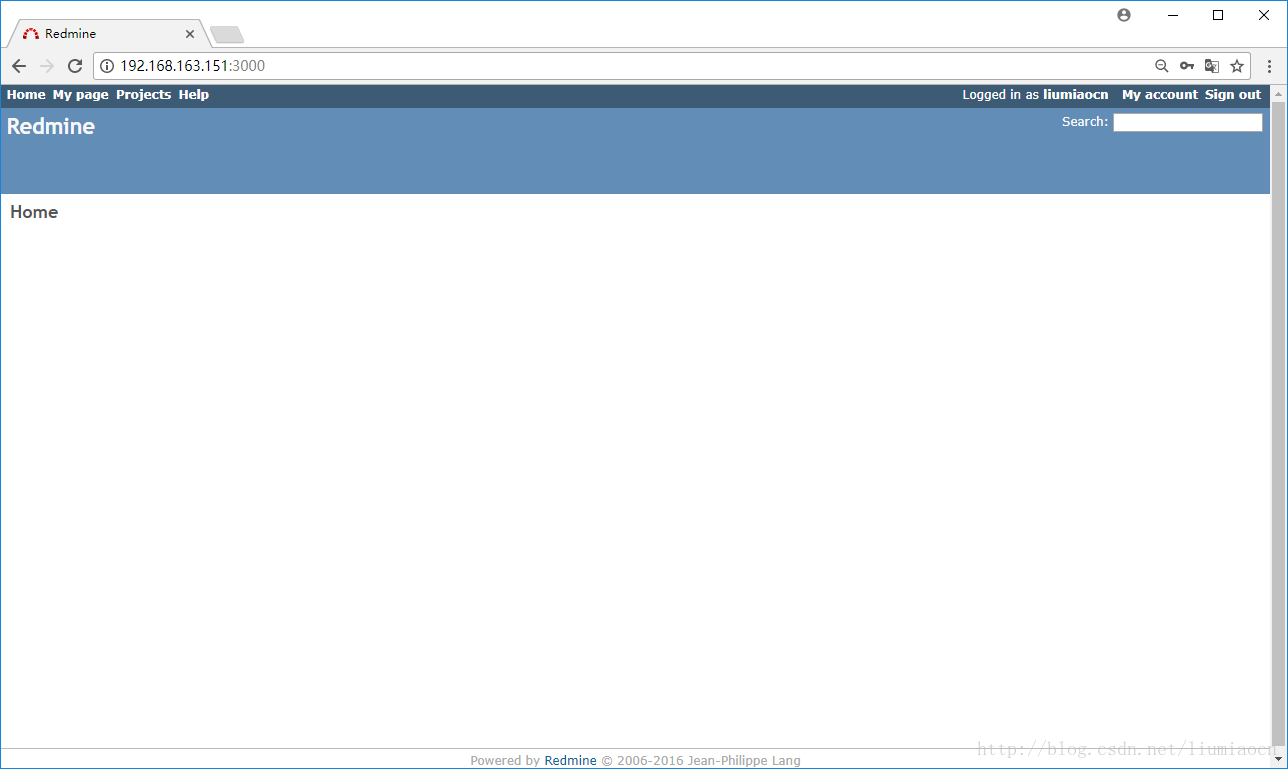

另外使用刚刚创建的liumiaocn用户也可以进行登陆了
技术分享图片

Http Put : 用户修改

使用命令：curl -v -H “Content-Type: application/json” -X PUT –data-binary “@liumiaocn.json” -u admin:admin123 http://192.168.163.151:3000/users/5.json
其中5为用户id, 我们接下来会使用Put方法将firstname从miao改成miaocn。

事前确认

[root@mail ~]# curl -X GET -u admin:admin123 http://192.168.163.151:3000/users.json 2>/dev/null |grep liumiaocn
{"users":[{"id":1,"login":"admin","firstname":"Redmine","lastname":"Admin","mail":"admin@example.net","created_on":"2017-12-05T12:31:21Z","last_login_on":"2017-12-05T13:39:16Z"},{"id":5,"login":"liumiaocn","firstname":"miao","lastname":"liu","mail":"liumiaocn@outlook.com","created_on":"2017-12-05T13:28:53Z","last_login_on":"2017-12-05T13:33:47Z"}],"total_count":2,"offset":0,"limit":25}
[root@mail ~]#
  • 1
  • 2
  • 3

修改对象内容

修改内容为firstname

[root@mail ~]# cat liumiaocn.json
{
    "user": {
        "login": "liumiaocn",
        "firstname": "miaocn"
    }
}
[root@mail ~]#
  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  • 8

执行更新

[[email protected] ~]# curl -v -H "Content-Type: application/json" -X PUT --data-binary "@liumiaocn.json" -u admin:admin123 http://192.168.163.151:3000/users/5.json
* About to connect() to 192.168.163.151 port 3000 (#0)
*   Trying 192.168.163.151...
* Connected to 192.168.163.151 (192.168.163.151) port 3000 (#0)
* Server auth using Basic with user ‘admin‘
> PUT /users/5.json HTTP/1.1
> Authorization: Basic YWRtaW46YWRtaW4xMjM=
> User-Agent: curl/7.29.0
> Host: 192.168.163.151:3000
> Accept: */*
> Content-Type: application/json
> Content-Length: 84
>
* upload completely sent off: 84 out of 84 bytes
< HTTP/1.1 200 OK
< X-Frame-Options: SAMEORIGIN
< X-Xss-Protection: 1; mode=block
< X-Content-Type-Options: nosniff
< Content-Type: application/json; charset=utf-8
< Content-Length: 0
< Cache-Control: no-cache
< X-Request-Id: 690f8890-5651-4c11-bad3-d854a10c926e
< X-Runtime: 0.175155
< Server: WEBrick/1.3.1 (Ruby/2.3.3/2016-11-21)
< Date: Tue, 05 Dec 2017 13:39:43 GMT
< Connection: Keep-Alive
<
* Connection #0 to host 192.168.163.151 left intact
[[email protected] ~]#
  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  • 8
  • 9
  • 10
  • 11
  • 12
  • 13
  • 14
  • 15
  • 16
  • 17
  • 18
  • 19
  • 20
  • 21
  • 22
  • 23
  • 24
  • 25
  • 26
  • 27
  • 28
  • 29

结果确认

[root@mail ~]# curl -X GET -u admin:admin123 http://192.168.163.151:3000/users.json 2>/dev/null |grep liumiaocn
{"users":[{"id":1,"login":"admin","firstname":"Redmine","lastname":"Admin","mail":"admin@example.net","created_on":"2017-12-05T12:31:21Z","last_login_on":"2017-12-05T13:39:56Z"},{"id":5,"login":"liumiaocn","firstname":"miaocn","lastname":"liu","mail":"liumiaocn@outlook.com","created_on":"2017-12-05T13:28:53Z","last_login_on":"2017-12-05T13:33:47Z"}],"total_count":2,"offset":0,"limit":25}
[root@mail ~]#
  • 1
  • 2
  • 3

Http Delete

使用命令：curl -v -H “Content-Type: application/json” -X DELETE –data-binary “@liumiaocn.json” -u admin:admin123 http://192.168.163.151:3000/users/5.json
其中5为用户id, 我们接下来会删除此用户

事前确认

[root@mail ~]# curl -X GET -u admin:admin123 http://192.168.163.151:3000/users.json 2>/dev/null |grep liumiaocn
{"users":[{"id":1,"login":"admin","firstname":"Redmine","lastname":"Admin","mail":"admin@example.net","created_on":"2017-12-05T12:31:21Z","last_login_on":"2017-12-05T13:43:29Z"},{"id":5,"login":"liumiaocn","firstname":"miaocn","lastname":"liu","mail":"liumiaocn@outlook.com","created_on":"2017-12-05T13:28:53Z","last_login_on":"2017-12-05T13:33:47Z"}],"total_count":2,"offset":0,"limit":25}
[root@mail ~]#
  • 1
  • 2
  • 3

修改对象内容

修改内容为firstname

[root@mail ~]# cat liumiaocn.json
{
    "user": {
        "login": "liumiaocn",
        "firstname": "miaocn"
    }
}
[root@mail ~]#
  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  • 8

执行删除

[[email protected] ~]# curl -v -H "Content-Type: application/json" -X DELETE --data-binary "@liumiaocn.json" -u admin:admin123 http://192.168.163.151:3000/users/5.json
* About to connect() to 192.168.163.151 port 3000 (#0)
*   Trying 192.168.163.151...
* Connected to 192.168.163.151 (192.168.163.151) port 3000 (#0)
* Server auth using Basic with user ‘admin‘
> DELETE /users/5.json HTTP/1.1
> Authorization: Basic YWRtaW46YWRtaW4xMjM=
> User-Agent: curl/7.29.0
> Host: 192.168.163.151:3000
> Accept: */*
> Content-Type: application/json
> Content-Length: 84
>
* upload completely sent off: 84 out of 84 bytes
< HTTP/1.1 200 OK
< X-Frame-Options: SAMEORIGIN
< X-Xss-Protection: 1; mode=block
< X-Content-Type-Options: nosniff
< Content-Type: application/json; charset=utf-8
< Content-Length: 0
< Cache-Control: no-cache
< X-Request-Id: 016ec5d3-eef4-4db9-8813-28a21d0aa8c2
< X-Runtime: 0.453139
< Server: WEBrick/1.3.1 (Ruby/2.3.3/2016-11-21)
< Date: Tue, 05 Dec 2017 13:43:49 GMT
< Connection: Keep-Alive
<
* Connection #0 to host 192.168.163.151 left intact
[[email protected] ~]#
  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  • 8
  • 9
  • 10
  • 11
  • 12
  • 13
  • 14
  • 15
  • 16
  • 17
  • 18
  • 19
  • 20
  • 21
  • 22
  • 23
  • 24
  • 25
  • 26
  • 27
  • 28
  • 29

结果确认

[root@mail ~]# curl -X GET -u admin:admin123 http://192.168.163.151:3000/users.json 2>/dev/null |grep liumiaocn
[root@mail ~]#
  • 1
  • 2

总结

这篇文章我们学习了如何使用curl和restapi以命令行的方式进行集成。

参考文章

http://www.redmine.org/projects/redmine/wiki/Rest_Users
http://www.redmine.org/projects/redmine/wiki/Rest_api_with_curl
