zipkin概要信息

项目说明
官方网站 https://zipkin.io/
开源/闭源 开源
License类别 Apache License 2.0
代码管理地址 https://github.com/openzipkin/zipkin/
开发语言 Java,javascript
支持平台 可运行于Linux/Windows/MacOS等多种操作系统,并提供docker标准镜像
当前版本 2.9.1 (2018/06/11)
更新频度 平均每月数次

使用zipkin

使用docker方式,使用如下方法,可以最简单快速地启动zipkin

docker run –name zipkin -d -p 9411:9411 openzipkin/zipkin

[[email protected] ~]# docker pull openzipkin/zipkin
Using default tag: latest
Trying to pull repository docker.io/openzipkin/zipkin ...
latest: Pulling from docker.io/openzipkin/zipkin
3a9e9033596c: Pull complete
187e634e5a8a: Pull complete
fdcad99cc6cd: Pull complete
Digest: sha256:8b6d9da454dcd38ed8c34f11d4a9008d9ad664d913748ebc9b13c247596e7e6c
Status: Downloaded newer image for docker.io/openzipkin/zipkin:latest
[[email protected] ~]#
[[email protected] ~]#docker run --name zipkin -d -p 9411:9411 openzipkin/zipkin
6a752c4fef6283712908070661ca8e2d6e3d96c535432d04a66a24233ce81949
[[email protected] ~]#
  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  • 8
  • 9
  • 10
  • 11
  • 12
  • 13

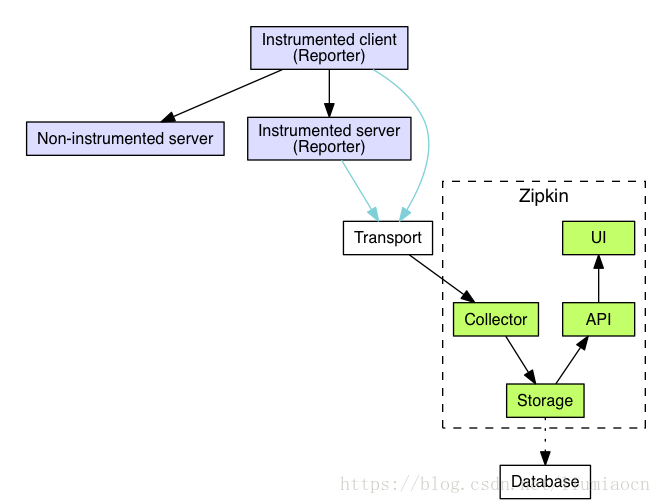

zipkin架构

技术分享图片
zipkin由图示的四个部分组成:

  • collector
  • storage
  • API
  • web UI

Python项目依赖

为了在Python项目中使用zipkin,需要py_zipkin/pyramid/pyramid_zipkin 。在CentOS系Linux发行版上命令如下:

yum install python-devel
pip install –trusted-host pypi.org –trusted-host files.pythonhosted.org py_zipkin pyramid pyramid_zipkin

模拟dapper论文的调用链

在这篇文章中我们将会模拟在Python项目中如何跟中dapper论文中的三层架构的例子:
技术分享图片

层次服务名称父span调用顺序
前端 Frontend:A 1
中间 MiddleTier:B A 2
中间 MiddleTier:C A 3
后端 Backend:D C 4
后端 Backend:E C 5

这样的一个树形结构,表现出来的调用顺序则是:A->B->C->D->E。

模拟五个服务

使用python简单地模拟如上地A-E等五个服务,其中A和C为调用节点,而B/D/E为终端节点,A会调用B和C,其示例代码如下,C与之类似:

[root@kong python]# ls
A.py  B.py  C.py  D.py  E.py  test_zipkin.sh
[root@kong python]# cat A.py
import requests
import datetime
from pyramid.response import Response
from pyramid.view import view_config
from pyramid.config import Configurator
from py_zipkin.zipkin import create_http_headers_for_new_span
from wsgiref.simple_server import make_server

class ZipkinNode:
  #properties:
  connect_url=‘http://www.yingka178.com localhost:9001/api‘
  zipkin_url=‘http://localhost:9411‘
  zipkin_span_api=zipkin_url+‘/api/v1/spans‘
  zipkin_service_name=‘default_service_name‘
  config=None

  #function: zikpin callback handler
  def zipkin_handler(self,stream_name, encoded_span):
    requests.post(
        self.zipkin_span_api,
        data=encoded_span,
        headers={‘Content-Type‘: ‘application/x-thrift‘},
    )

  #function:
  def init_zipkin_settings(self,service_name):
    settings = {}
    settings[‘service_name‘] = service_name
    self.zipkin_service_name=service_name
    settings[‘zipkin.transport_handler‘] = self.zipkin_handler
    settings[‘zipkin.tracing_www.lgzx520.cn/ percent‘] = 100.0

    self.config = Configurator(settings=settings)
    self.config.include(‘pyramid_zipkin‘)

  #function: add route
  def add_router(self,router_type,router_url):
    self.config.add_route(router_type, router_url)
    self.config.scan(www.yigouylpt2.cn)

  #function:
  def invoke_wsgi_service(self,host_port):
    app = self.config.make_wsgi_app(www.douniu1956.com/)
    server = make_server(‘0.0.0.0‘, host_port, app)
    print(‘service ‘+self.zipkin_service_name+www.yongxinzaixian.cn‘ listening : http://www.yongshiyule178.com‘+str(host_port))
    server.serve_forever(www.chaoyueyule.net)

#function: connector node callback function
@view_config(route_name=‘invoke_service‘)
def invoke_service(www.cmeidi.cn/ equest):
  headers = {}
  headers.update(create_http_headers_for_new_span())
  nextend_response = requests.get(
      ‘http://localhost:9002/apib‘,
      headers=headers,
  )
  headers = {}
  headers.update(create_http_headers_for_new_span())
  nextend_response = requests.get(
      ‘http://localhost:9003/api‘,
      headers=headers,
  )
  return Response(nextend_response.text)

node=ZipkinNode(www.tiaotiaoylzc.com)
node.init_zipkin_settings(‘Service_A‘)
node.add_router(‘invoke_service‘,‘/api‘)
node.invoke_wsgi_service(9001)
[root@kong python]#

服务B的代码如下,D与E与之类似:

[root@kong python]# cat B.py
import requests
import datetime
from pyramid.response import Response
from pyramid.view import view_config
from pyramid.config import Configurator
from py_zipkin.zipkin import create_http_headers_for_new_span
from wsgiref.simple_server import make_server

class ZipkinNode:
  #properties:
  connect_url=‘http://localhost:9001/api‘
  zipkin_url=‘http://localhost:9411‘
  zipkin_span_api=zipkin_url+‘/api/v1/spans‘
  zipkin_service_name=‘default_service_name‘
  config=None

  #function: zikpin callback handler
  def zipkin_handler(self,stream_name, encoded_span):
    requests.post(
        self.zipkin_span_api,
        data=encoded_span,
        headers={‘Content-Type‘: ‘application/x-thrift‘},
    )

  #function:
  def init_zipkin_settings(self,service_name):
    settings = {}
    settings[‘service_name‘] = service_name
    self.zipkin_service_name=service_name
    settings[‘zipkin.transport_handler‘] = self.zipkin_handler
    settings[‘zipkin.tracing_percent‘] = 100.0

    self.config = Configurator(settings=settings)
    self.config.include(‘pyramid_zipkin‘)

  #function: add route
  def add_router(self,router_type,router_url):
    self.config.add_route(router_type, router_url)

  #function:
  def invoke_wsgi_service(self,host_port):
    self.config.scan()
    app = self.config.make_wsgi_app()
    server = make_server(‘0.0.0.0‘, host_port, app)
    print(‘service ‘+self.zipkin_service_name+‘ listening : http://localhost:‘+str(host_port))
    server.serve_forever()

#function: end node callback function
@view_config(route_name=‘show_time‘)
def show_time(request):
    return Response(str(datetime.datetime.now()))

node=ZipkinNode()
node.init_zipkin_settings(‘Service_B‘)
node.add_router(‘show_time‘,‘/apib‘)
node.invoke_wsgi_service(9002)
[root@kong python]#



为了模拟zipkin,此处还提供了一个脚本用于对A到E的启动/停止/重启/状态确认进行操作

[root@kong python]# sh test_zipkin.sh
Usage: test_zipkin.sh ACTION
       ACTION: start|stop|restart|status

[root@kong python]#



代码地址

代码上传到了github上,可参看:https://github.com/liumiaocn/easypack/tree/master/zipkin/python

事前准备&确认

事前pull完毕zipkin的镜像,如果没有,在实验的时候也会自行pull

[root@kong python]# docker images |grep zipkin
docker.io/openzipkin/zipkin                              latest              a62fb9056a9a        8 days ago               181 MB
[root@kong python]#



启动zipkin和服务

[[email protected] python]# sh test_zipkin.sh start

## Operation: start
## start begins ...
## start zipkin service
2afd09f3ee50e4766702a70ea6cfaf0645e9c4aa5d609911bca2763b890f7f20
## before start action

## Operation: status
## status begins ...
demo process: A.py
demo process: B.py
demo process: C.py
demo process: D.py
demo process: E.py
## status ends...
## after start action

## Operation: status
## status begins ...
demo process: A.py
root      7988  7911  7 00:32 pts/1    00:00:00 python A.py
demo process: B.py
service Service_A listening : http://localhost:9001
service Service_C listening : http://localhost:9003
root      7989  7911  7 00:32 pts/1    00:00:00 python B.py
demo process: C.py
root      7990  7911  7 00:32 pts/1    00:00:00 python C.py
demo process: D.py
root      7991  7911  7 00:32 pts/1    00:00:00 python D.py
demo process: E.py
root      7992  7911  7 00:32 pts/1    00:00:00 python E.py
## status ends...
## start ends...
[[email protected] python]#

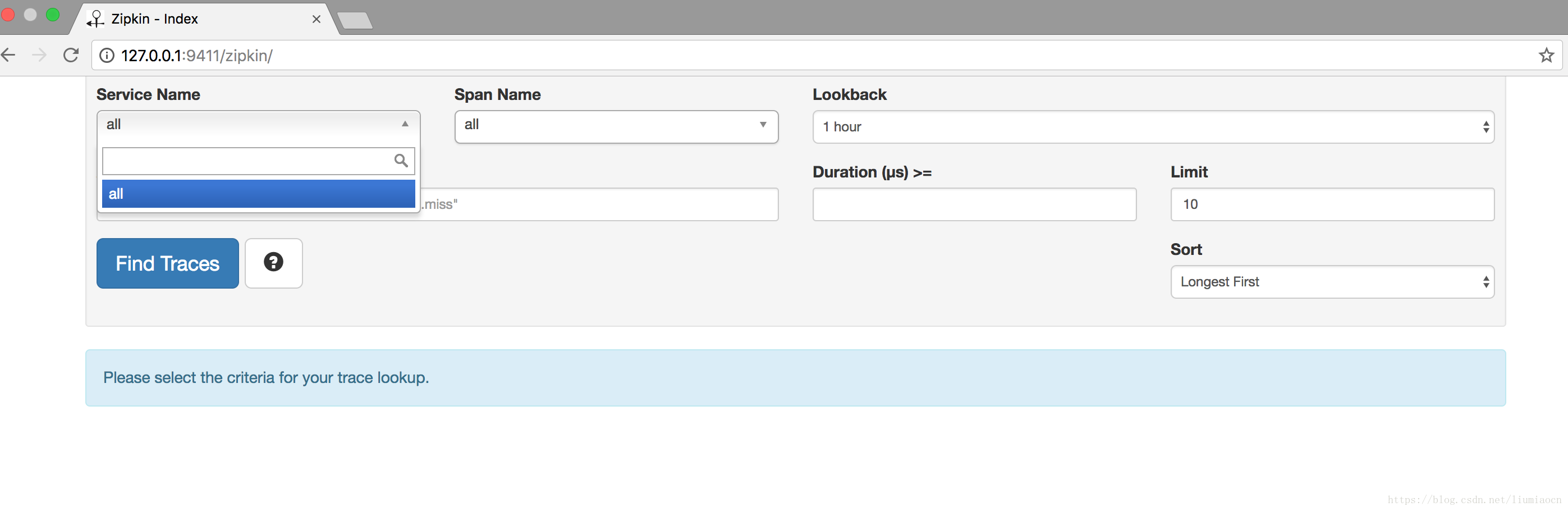

确认zipkin

技术分享图片

访问入口服务

[root@kong python]# curl http://localhost:9001/api
127.0.0.1 - - [30/May/2018 00:36:35] "GET /apib HTTP/1.1" 200 26
127.0.0.1 - - [30/May/2018 00:36:35] "GET /api HTTP/1.1" 200 26
127.0.0.1 - - [30/May/2018 00:36:40] "GET /api HTTP/1.1" 200 26
127.0.0.1 - - [30/May/2018 00:36:40] "GET /api HTTP/1.1" 200 26
127.0.0.1 - - [30/May/2018 00:36:40] "GET /api HTTP/1.1" 200 26
2018-05-30 00:36:40.788249[root@kong python]#
[root@kong python]#
  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  • 8

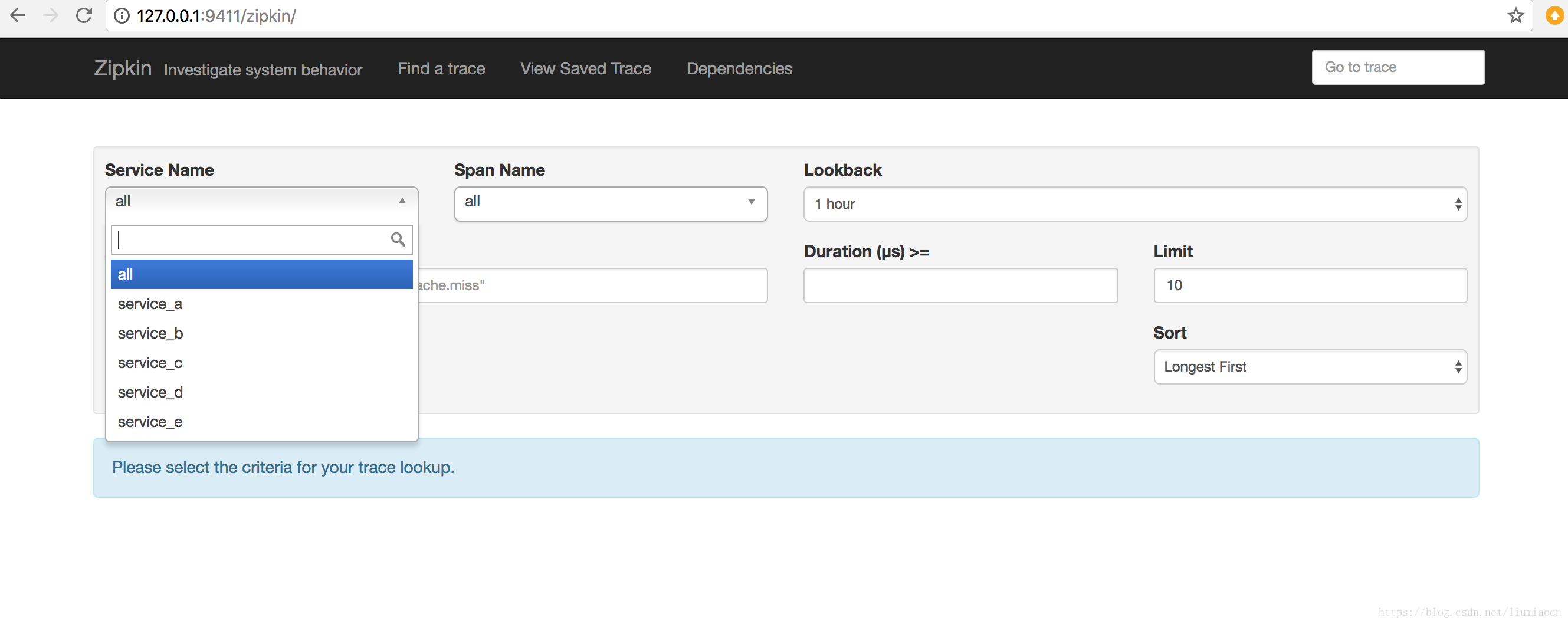

确认:服务个数

再次刷新zipkin,即可看到service name发生变化
技术分享图片

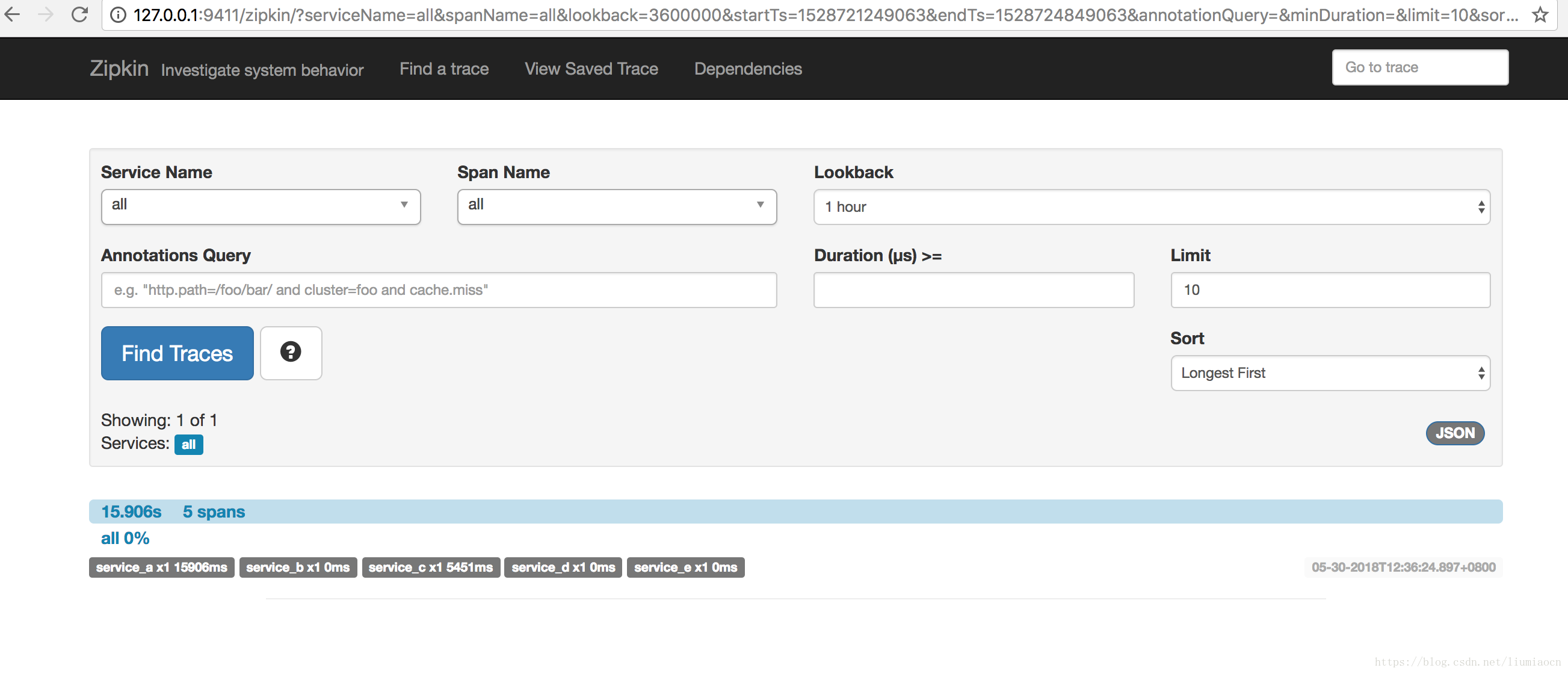

确认:trace信息

点击find trace即可看到含有5个span的如下信息
技术分享图片

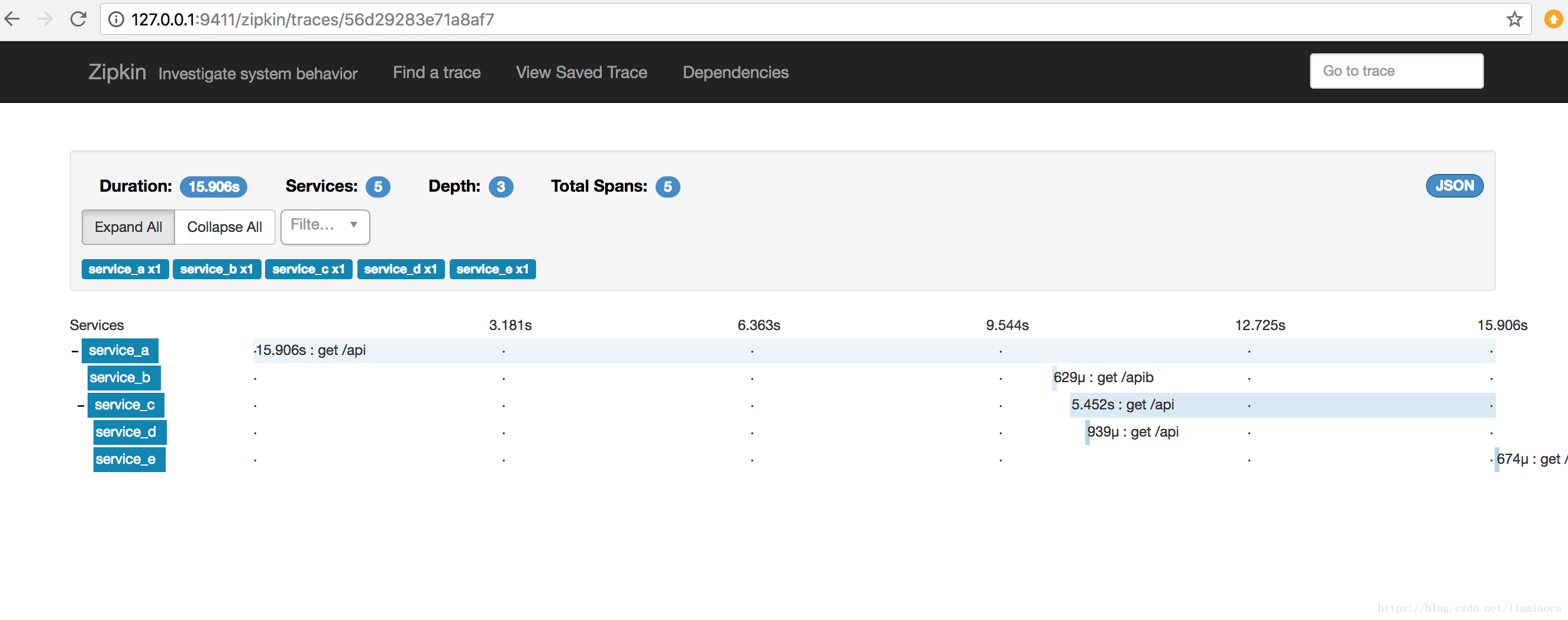

调用栈

技术分享图片

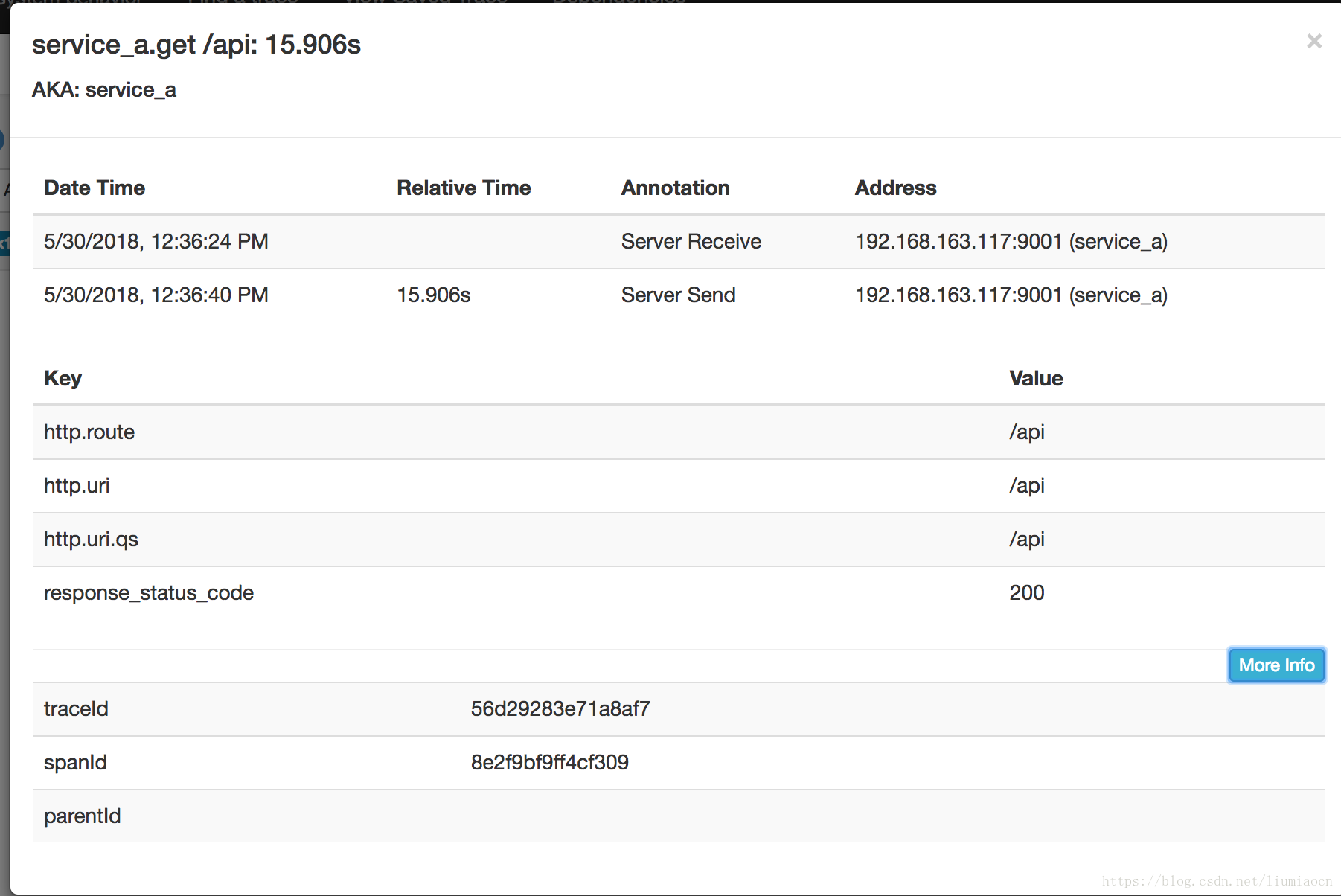

服务A详细

技术分享图片

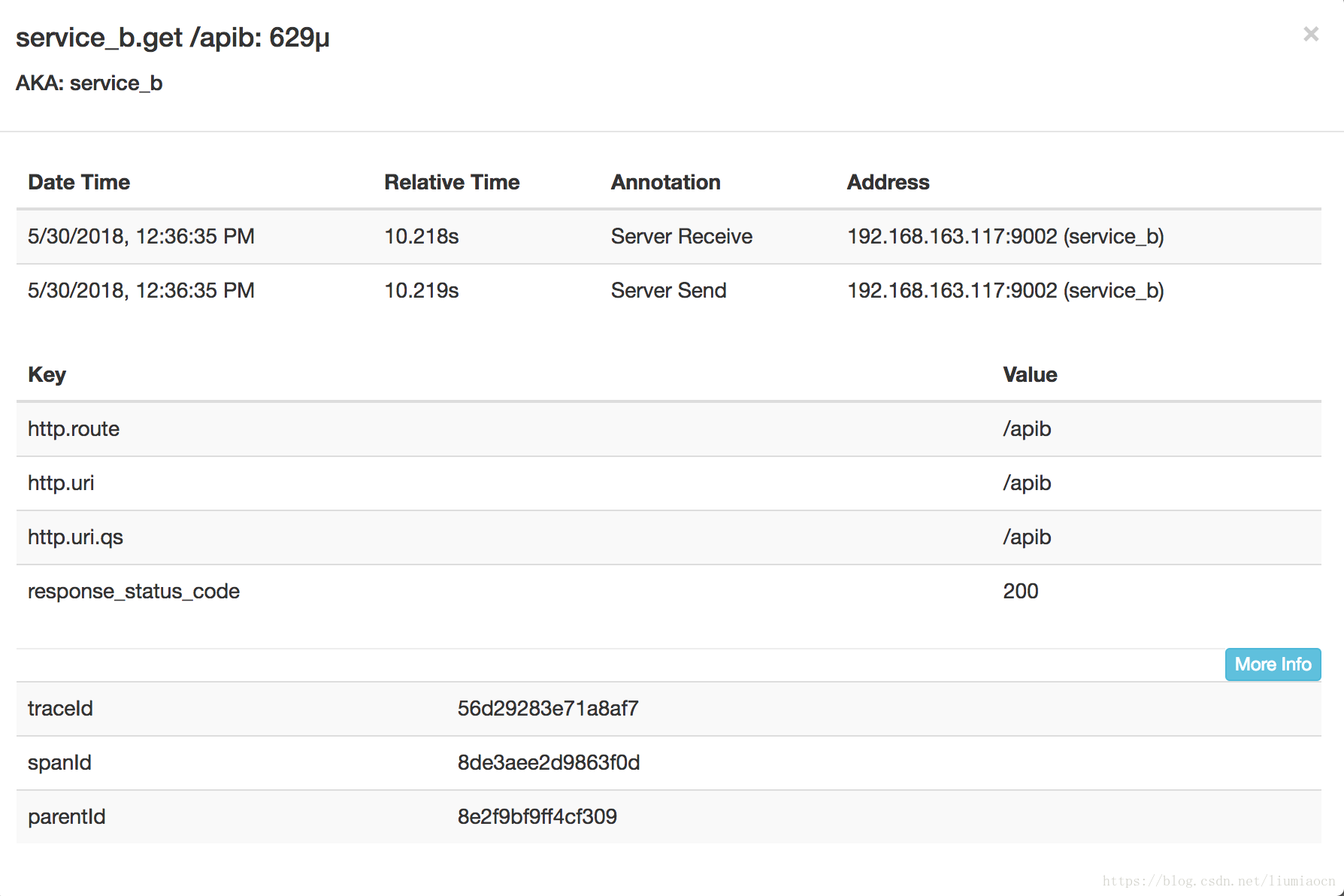

服务B详细

技术分享图片

服务C详细

技术分享图片

服务D详细

技术分享图片

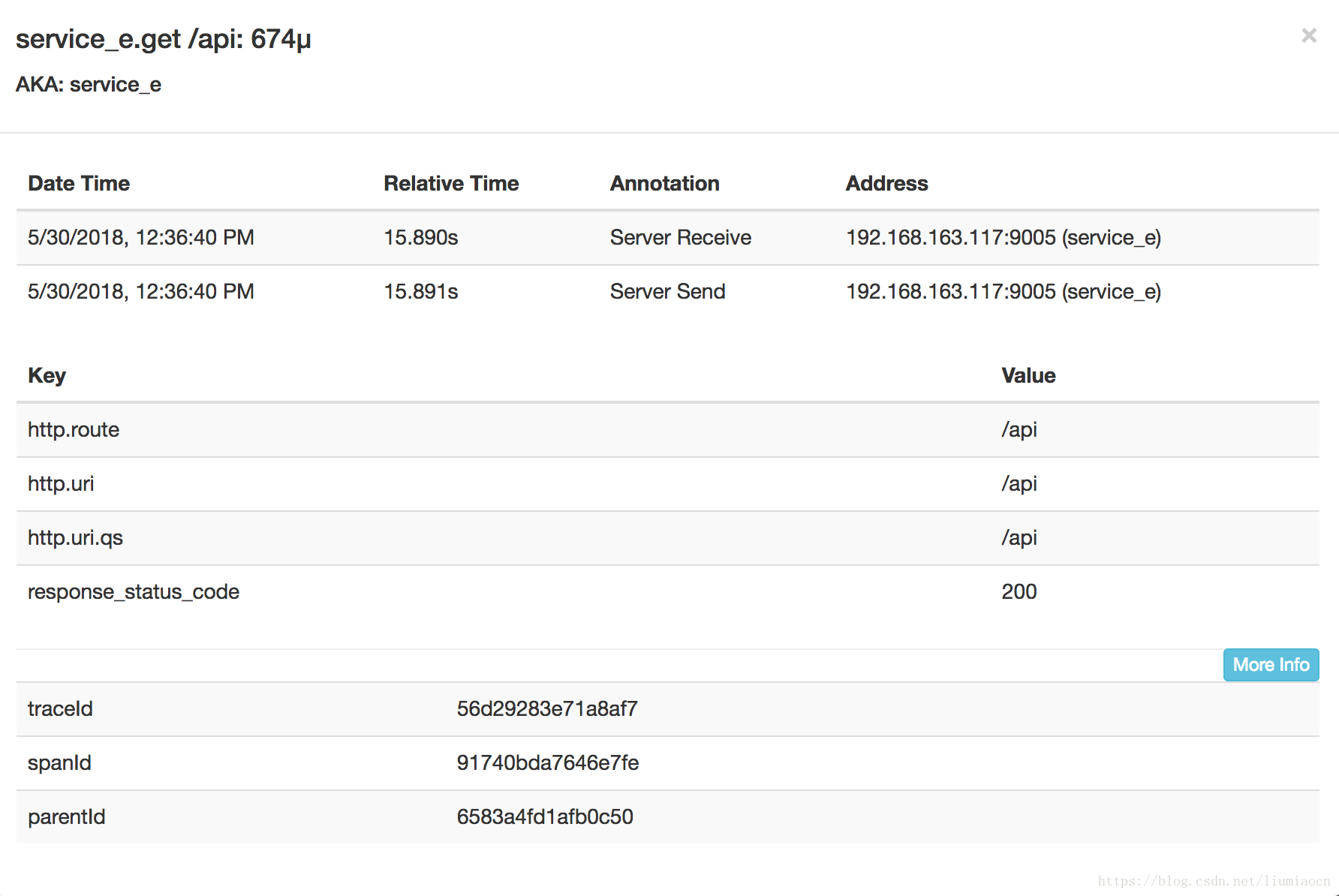

服务E详细

技术分享图片

依赖关系
