ActiveMQ队列消息过期时间设置和自动清除解决方案

Posted jpfss

tags:

篇首语：本文由小常识网(cha138.com)小编为大家整理，主要介绍了ActiveMQ队列消息过期时间设置和自动清除解决方案相关的知识，希望对你有一定的参考价值。

版本 apache-activemq-5.15.3

1、消息过期设置

参数详情

1）message过期则客户端不能接收

2）ttlCeiling：表示过期时间上限（程序写的过期时间不能超过此时间，超过则以此时间为准）

3）zeroExpirationOverride：表示过期时间（给未分配过期时间的消息分配过期时间）

配置示例

  1.  <broker>
  2.      ...
  3.      <plugins>
  4.          <!-- 86,400,000ms = 1 day -->
  5.          <timeStampingBrokerPluginttlCeiling="30000" zeroExpirationOverride="30000" />
  6.      </plugins>
  7.      ...
  8.  </broker>

2、死信队列设置

消息过期后会进入死信队列，如不想抛弃死信队列，默认进入ACTIVEMQ.DLQ队列，且不会自动清除；对于过期的消息进入死信队列还有一些可选的策略:放入各自的死信通道、保存在一个共享的队列（默认），且可以设置是否将过期消息放入队列的开关以及死信队列消息过期时间。

1）直接抛弃死信队列

AcitveMQ提供了一个便捷的插件：DiscardingDLQBrokerPlugin，来抛弃DeadLetter。如果开发者不需要关心DeadLetter，可以使用此策略。

配置示例

  1. <broker>
  2. ...
  3. <plugins>
  4.     <!-- 丢弃所有死信-->
  5.     <discardingDLQBrokerPlugindropAll="true"  dropTemporaryTopics="true" dropTemporaryQueues="true" />
  6.     <!-- 丢弃指定死信-->
  7.     <!-- <discardingDLQBrokerPlugindropOnly="MY.EXAMPLE.TOPIC.29 MY.EXAMPLE.QUEUE.87" reportInterval="1000" />-->
  8.     <!--使用丢弃正则匹配到死信-->
  9.     <!--<discardingDLQBrokerPlugindropOnly="MY.EXAMPLE.TOPIC.[0-9]{3} MY.EXAMPLE.QUEUE.[0-9]{3}" reportInterval="3000"/>-->
  10.     </plugins>
  11.     ...
  12.  </broker>

2）定时抛弃死信队列

默认情况下，ActiveMQ永远不会过期发送到DLQ的消息。但是，从ActiveMQ 5.12开始，deadLetterStrategy支持expiration属性，其值以毫秒为单位。

配置示例

  1. <policyEntryqueue=">"…>
  2. ...
  3. <deadLetterStrategy>
  4.     <sharedDeadLetterStrategy processExpired="true" expiration="30000"/>
  5. </deadLetterStrategy>
  6.    ...
  7. </policyEntry>

3、慢消费者策略设置

Broker将会启动一个后台线程用来检测所有的慢速消费者，并定期关闭关闭它们;中断慢速消费者，慢速消费将会被关闭。abortConnection是否关闭连接;如果慢速消费者最后一个ACK距离现在的时间间隔超过阀maxTimeSinceLastAck，则中断慢速消费者。

配置示例

  1. <policyEntryqueue=">"…>
  2.      …
  3.     <slowConsumerStrategy>
  4.         <abortSlowConsumerStrategyabortConnection="false"/>  <!--不关闭底层链接-->
  5.     </slowConsumerStrategy>
  6.     …
  7. </policyEntry>

4、测试

1）配置activemq.xml；

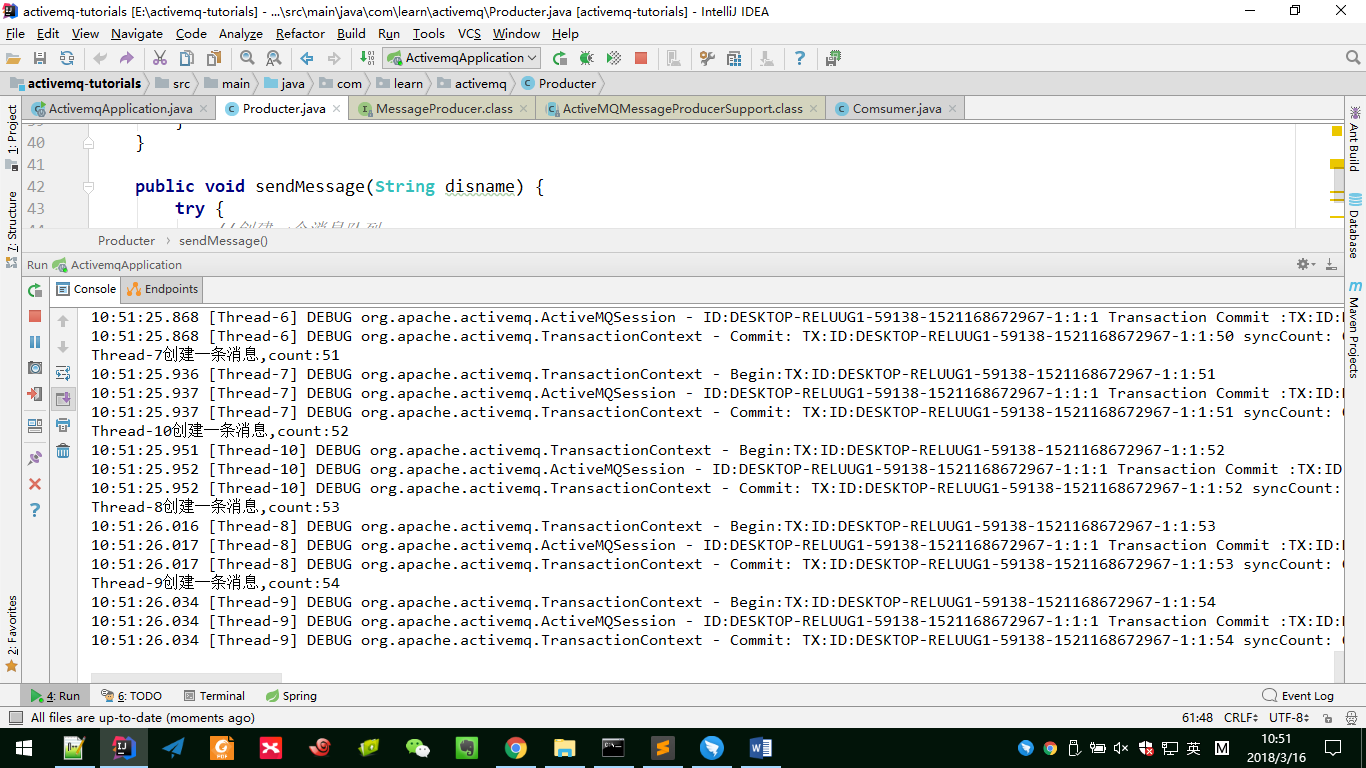

2）批量消息发送；

技术图片

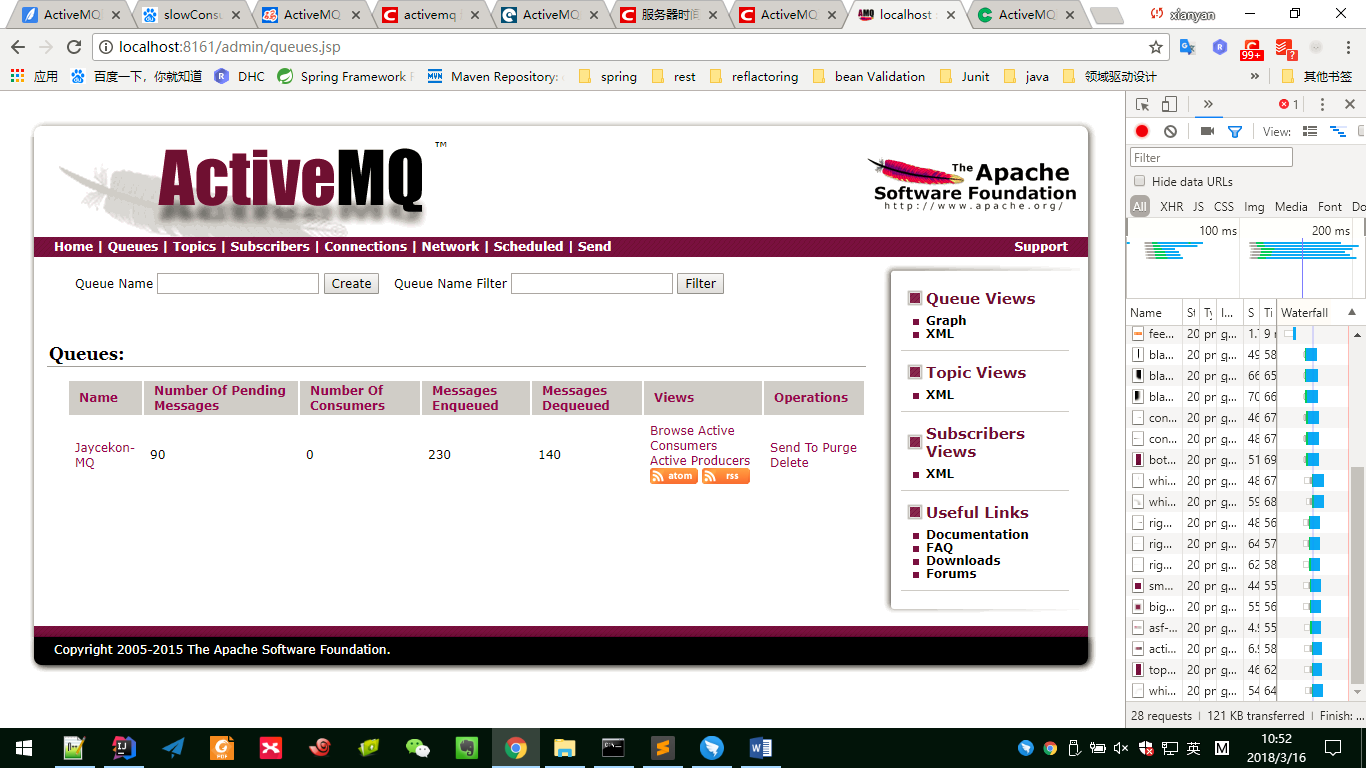

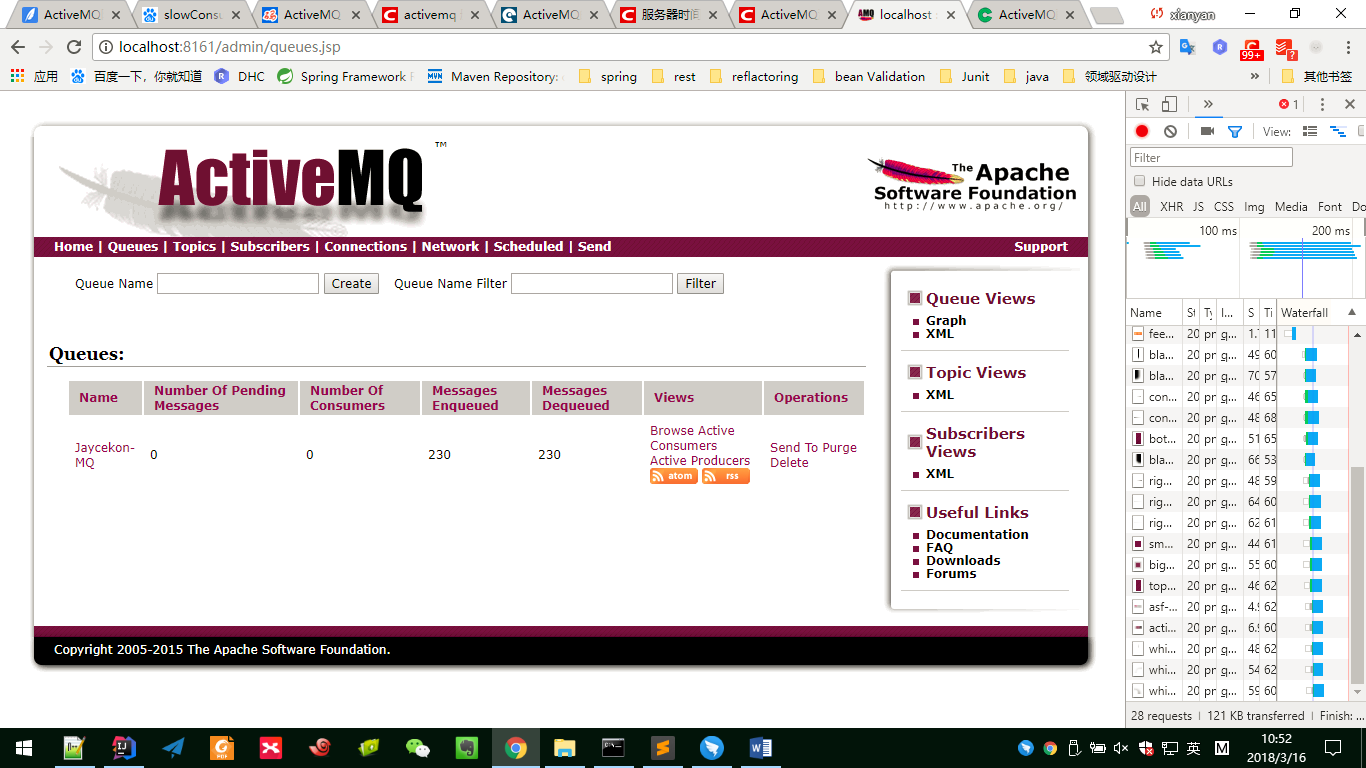

3）等待若干秒，消息减少；

技术图片

技术图片

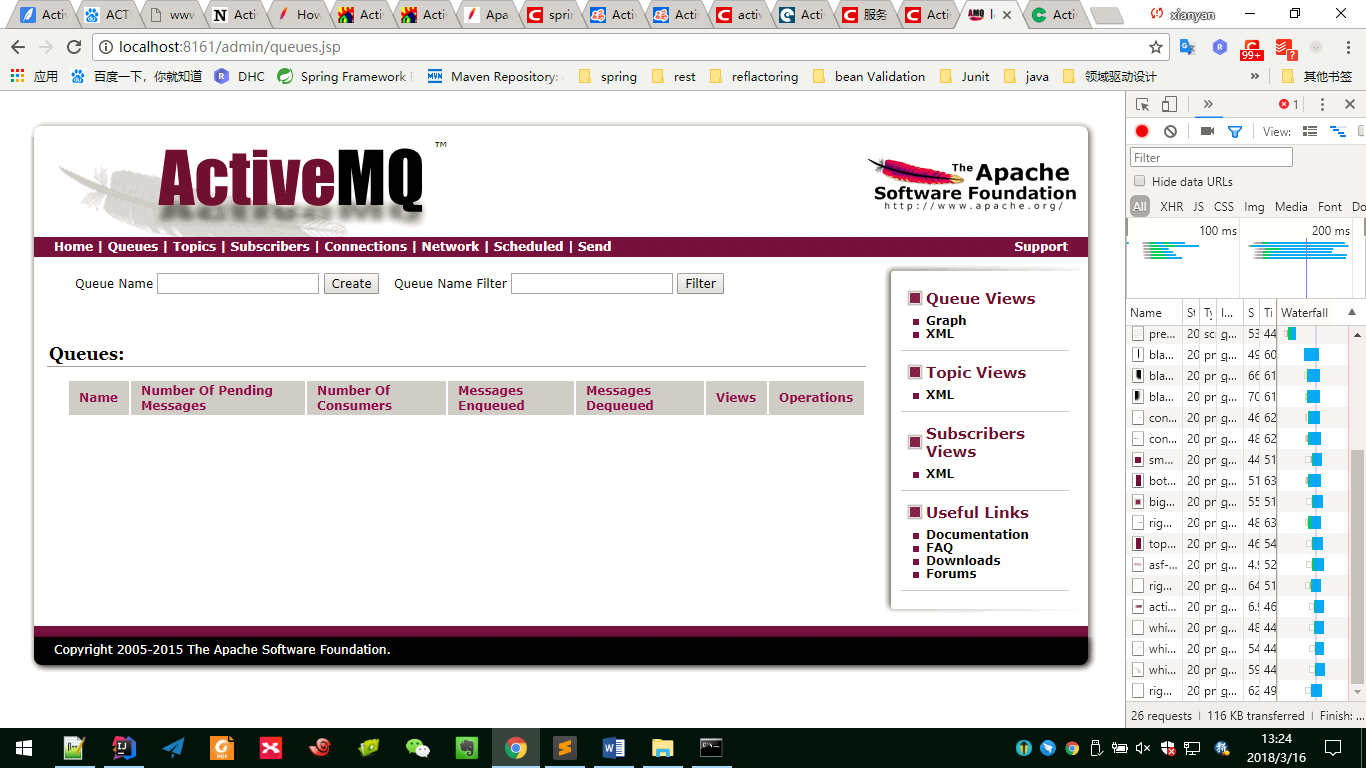

4）等待若干秒，消息队列清除（设置了抛弃死信队列）；

技术图片

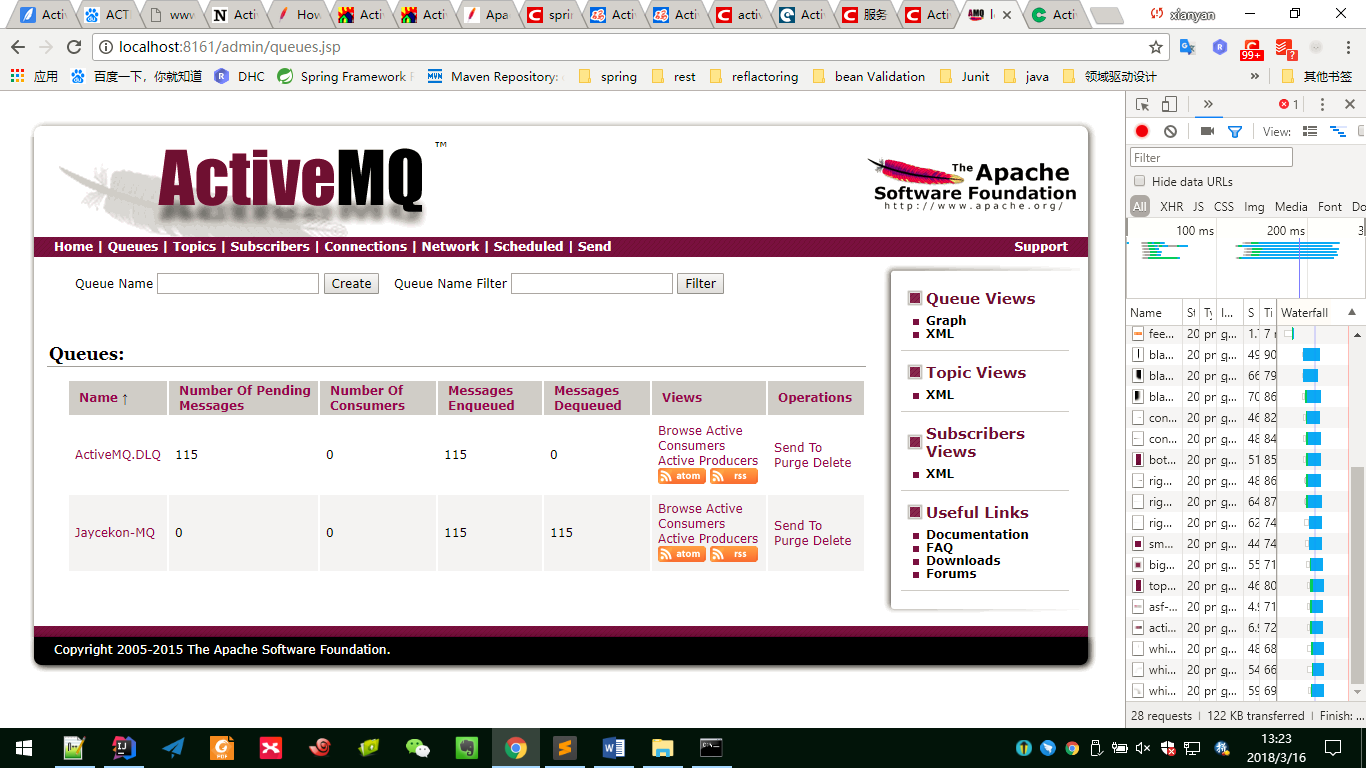

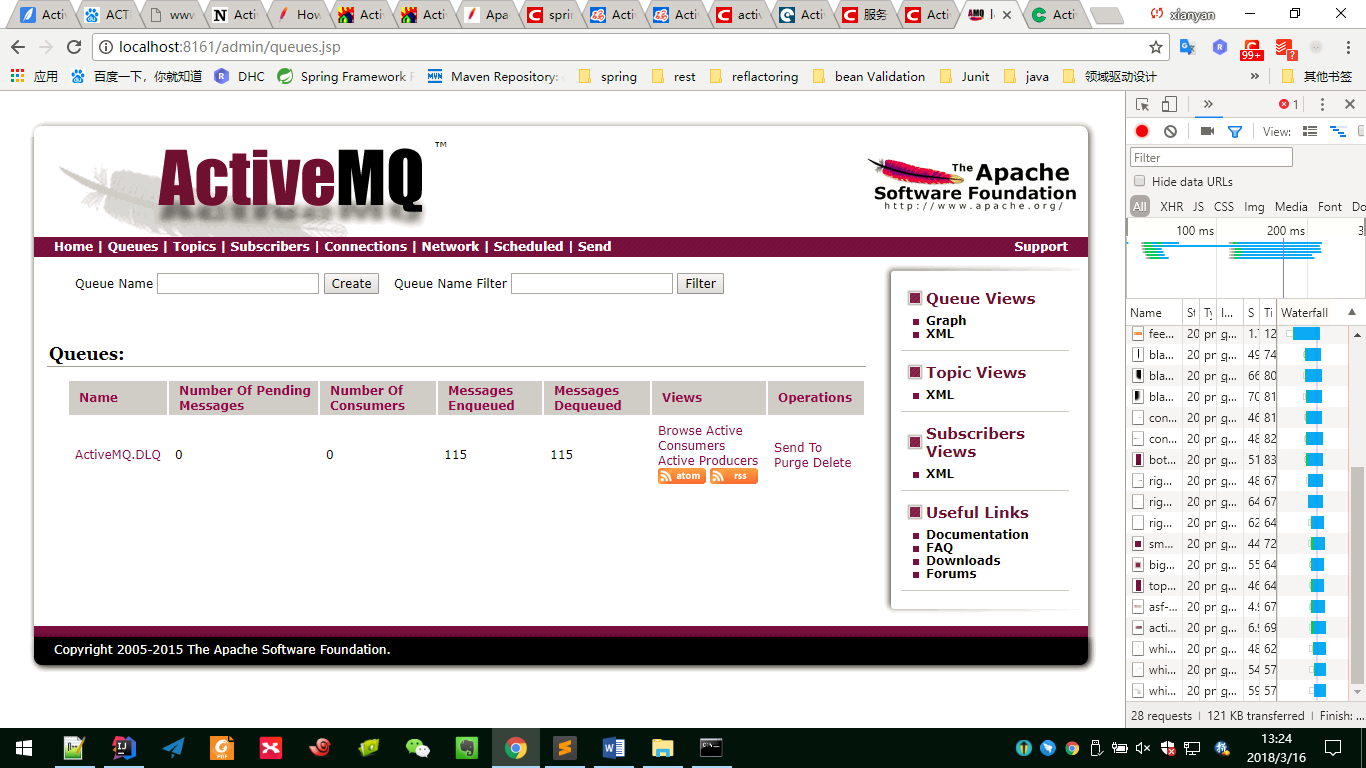

5）等待若干秒，消息队列清除（未设置抛弃死信队列，设置了死信队列过期时间）；

技术图片

技术图片

技术图片

技术图片

6）等待若干秒，消息队列清除（不抛弃死信队列，死信队列不过期）；

技术图片

技术图片

5、参考网址

https://my.oschina.net/coderedrain/blog/724943?utm_source=tuicool&utm_medium=referral

http://ask.csdn.net/questions/376817

http://activemq.apache.org/message-redelivery-and-dlq-handling.html

完整配置

  1. <!--
  2.     Licensed to the Apache Software Foundation (ASF) under one or more
  3.     contributor license agreements.  See the NOTICE file distributed with
  4.     this work for additional information regarding copyright ownership.
  5.     The ASF licenses this file to You under the Apache License, Version 2.0
  6.     (the "License"); you may not use this file except in compliance with
  7.     the License.  You may obtain a copy of the License at
  9.     http://www.apache.org/licenses/LICENSE-2.0
  11.     Unless required by applicable law or agreed to in writing, software
  12.     distributed under the License is distributed on an "AS IS" BASIS,
  13.     WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
  14.     See the License for the specific language governing permissions and
  15.     limitations under the License.
  16. -->
  17. <!-- START SNIPPET: example -->
  18. <beans
  19.   xmlns="http://www.springframework.org/schema/beans"
  20.   xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
  21.   xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd
  22.   http://activemq.apache.org/schema/core http://activemq.apache.org/schema/core/activemq-core.xsd">
  23.
  24.     <!-- Allows us to use system properties as variables in this configuration file -->
  25.     <bean class="org.springframework.beans.factory.config.PropertyPlaceholderConfigurer">
  26.         <property name="locations">
  27.             <value>file:${activemq.conf}/credentials.properties</value>
  28.         </property>
  29.     </bean>
  30.
  31.    <!-- Allows accessing the server log -->
  32.     <bean id="logQuery" class="io.fabric8.insight.log.log4j.Log4jLogQuery"
  33.           lazy-init="false" scope="singleton"
  34.           init-method="start" destroy-method="stop">
  35.     </bean>
  36.
  37.     <!--
  38.         The <broker> element is used to configure the ActiveMQ broker.
  39.     -->
  40.     <broker xmlns="http://activemq.apache.org/schema/core" brokerName="localhost" dataDirectory="${activemq.data}" schedulePeriodForDestinationPurge="10000">
  41.         <destinationPolicy>
  42.             <policyMap>
  43.               <policyEntries>
  44.              <policyEntry queue=">" gcInactiveDestinations="true" inactiveTimoutBeforeGC="30000">
  45.                 <deadLetterStrategy>
  46.                  <sharedDeadLetterStrategy processExpired="true"  expiration="30000"/>
  47.                 </deadLetterStrategy>
  48.               </policyEntry>
  49.                 <policyEntry topic=">" >
  50.                     <!-- The constantPendingMessageLimitStrategy is used to prevent
  51.                          slow topic consumers to block producers and affect other consumers
  52.                          by limiting the number of messages that are retained
  53.                          For more information, see:
  54.                          http://activemq.apache.org/slow-consumer-handling.html
  55.                     -->
  56.                   <pendingMessageLimitStrategy>
  57.                     <constantPendingMessageLimitStrategy limit="1000"/>
  58.                   </pendingMessageLimitStrategy>
  59.                 </policyEntry>
  60.               </policyEntries>
  61.             </policyMap>
  62.         </destinationPolicy>
  63.
  64.         <!--
  65.             The managementContext is used to configure how ActiveMQ is exposed in
  66.             JMX. By default, ActiveMQ uses the MBean server that is started by
  67.             the JVM. For more information, see:
  68.             http://activemq.apache.org/jmx.html
  69.         -->
  70.         <managementContext>
  71.             <managementContext createConnector="false"/>
  72.         </managementContext>
  73.
  74.         <!--
  75.             Configure message persistence for the broker. The default persistence
  76.             mechanism is the KahaDB store (identified by the kahaDB tag).
  77.             For more information, see:
  79.             http://activemq.apache.org/persistence.html
  80.         -->
  81.         <persistenceAdapter>
  82.             <kahaDB directory="${activemq.data}/kahadb"/>
  83.         </persistenceAdapter>
  84.           <!--
  85.             The systemUsage controls the maximum amount of space the broker will
  86.             use before disabling caching and/or slowing down producers. For more information, see:
  87.             http://activemq.apache.org/producer-flow-control.html
  88.           -->
  89.           <systemUsage>
  90.             <systemUsage>
  91.                 <memoryUsage>
  92.                     <memoryUsage percentOfJvmHeap="70" />
  93.                 </memoryUsage>
  94.                 <storeUsage>
  95.                     <storeUsage limit="100 gb"/>
  96.                 </storeUsage>
  97.                 <tempUsage>
  98.                     <tempUsage limit="50 gb"/>
  99.                 </tempUsage>
  100.             </systemUsage>
  101.         </systemUsage>
  102.
  103.         <!--
  104.             The transport connectors expose ActiveMQ over a given protocol to
  105.             clients and other brokers. For more information, see:
  106.             http://activemq.apache.org/configuring-transports.html
  107.         -->
  108.         <transportConnectors>
  109.             <!-- DOS protection, limit concurrent connections to 1000 and frame size to 100MB -->
  110.             <transportConnector name="openwire" uri="tcp://0.0.0.0:61616?maximumConnections=1000&wireFormat.maxFrameSize=104857600"/>
  111.             <transportConnector name="amqp" uri="amqp://0.0.0.0:5672?maximumConnections=1000&wireFormat.maxFrameSize=104857600"/>
  112.             <transportConnector name="stomp" uri="stomp://0.0.0.0:61613?maximumConnections=1000&wireFormat.maxFrameSize=104857600"/>
  113.             <transportConnector name="mqtt" uri="mqtt://0.0.0.0:1883?maximumConnections=1000&wireFormat.maxFrameSize=104857600"/>
  114.             <transportConnector name="ws" uri="ws://0.0.0.0:61614?maximumConnections=1000&wireFormat.maxFrameSize=104857600"/>
  115.         </transportConnectors>
  116.
  117.         <!-- destroy the spring context on shutdown to stop jetty -->
  118.         <shutdownHooks>
  119.             <bean xmlns="http://www.springframework.org/schema/beans" class="org.apache.activemq.hooks.SpringContextHook" />
  120.         </shutdownHooks>
  121.
  122.         <plugins>
  123.             <!-- 86,400,000ms = 1 day -->
  124.             <timeStampingBrokerPlugin ttlCeiling="30000"      zeroExpirationOverride="30000" />
  125.             <!-- <discardingDLQBrokerPlugin dropAll="true" dropTemporaryTopics="true" dropTemporaryQueues="true" />-->
  126.         </plugins>
  127.     </broker>
  128.
  129.     <!--
  130.         Enable web consoles, REST and Ajax APIs and demos
  131.         The web consoles requires by default login, you can disable this in the jetty.xml file
  132.         Take a look at ${ACTIVEMQ_HOME}/conf/jetty.xml for more details
  133.     -->
  134.     <import resource="jetty.xml"/>
  135. </beans>
  136. <!-- END SNIPPET: example -->
