红黑树删除操作

Posted 2021-01-02 jayinnn

红黑树删除操作

实验目的

实现红黑树的删除操作：基于之前建立的红黑树，编写红黑树删除程序删除给定的一个结点。



实验原理

与n个结点的红黑树上的其他基本操作一样，删除一个结点要花费O(lgn)时间。当要删除一个结点z时，可以分为两种情况：(1)当z的子结点少于2个时，z从树中删除，并让y成为z；(2)当z有两个子结点时，y应该是z的后继，并且y将移至树中的z位置，在结点被移除或者在树中移动之前，必须记住y的颜色，并且记录结点x的踪迹，将x移至树中y的原来位置，因为结点x也可能引起红黑性质的破坏。删除结点z之后，需要调用RB-DELETE-FIXUP来对使删除后的树满足红黑树的性质。



实验过程

RB-TRANSPLANT(T, u,v)

1 if u.p == T.nil

2     T.root = v

3 else if u ==u.p.left

4     u.p.left = v

5 else u.p.right =v

6 v.p = u.p





RB-DELETE(T, z)

1 y = z

2 y-original-color= y.color

3 if z.left == T.nil

4     x = z.right

5     RB-TRANSPLANT(T, z, z.right)

6 elseif z.right== T.nil

7     x = z.left

8     RB-TRANSPLANT(T, z, z.left)

9 else y =TREE-MINIMUM(z.right)

10    y-original-color = y.color

11    x = y.right

12    if y.p == z

13        x.p = y

14    else RB-TRANSPLANT(T, y, y.right)

15        y.right = z.right

16        y.right.p = y

17    RB-TRANSPLANT(T, z, y)

18     y.left = z.left

19     y.left.p = y

20     y.color = z.color

21   if y-original-color == BLACK

22        RB-DELETE-FIXUP(T, x)





RB-DELETE-FIXUP(T,x)

1  while x != T.root and x.color == BLACK

2       if x == x.p.left

3            w = x.p.right

4            if w.color == RED

5                 w.color = BLACK

6                 x.p.color = RED

7                LEFT-ROTATE(T, x, p)

8                 w = x.p.right

9            if w.left.color == BLACK andw.right.color == BLACK

10                w.color = RED

11                x = x.p

12           else if w.right.color == BLACK

13                   w.left.color = BLACK

14                   w.color = RED

15                   RIGHT-ROTATE(T, w)

16                   w = x.p.right

17              w.color = x.p.color

18              x.p.color = BLACK

19              w.right.color = BLACK

20              LEFT-ROTATE(T, x, p)

21              x = T.root

22       else(same as then clause with “right”and “left” exchanged)

23    x.color = BLACK

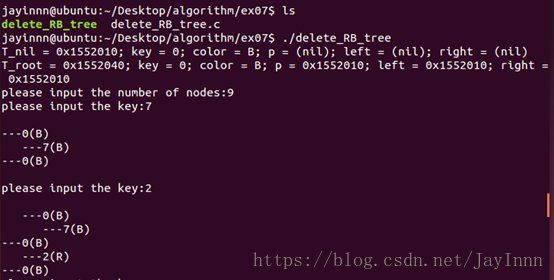

首先构建一个有9个结点的红黑树，树根结点的key值为7：

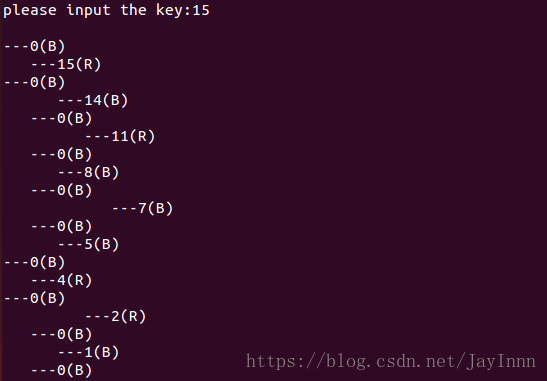

构建的9个结点的红黑树，最后一个元素是15：

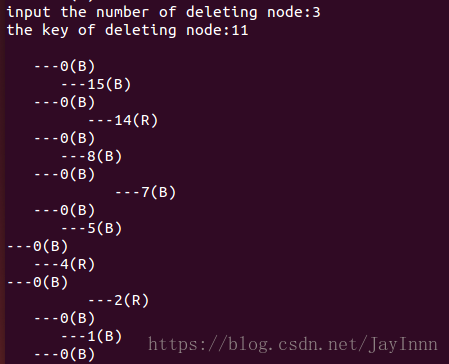

对于构建好的9个结点的红黑树，对其进行删除，删除3个结点，首先删除的结点的key值为11：

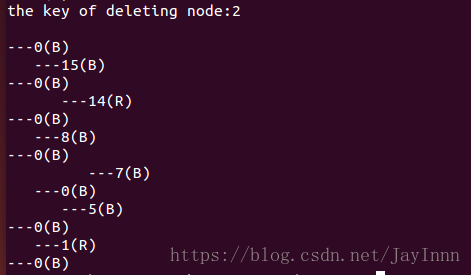

删除三个结点（key = 11, 4, 2）后的红黑树：





实验总结

（一）整个红黑树实验结束，关于红黑树的插入和删除操作，相对于二叉搜索树而言，对于key的处理相似，只是红黑树操作过程中，必须保证红黑树在操作前后满足红黑树的五个性质，因此红黑树较复杂，也就是一种trade off，即通过增加树的其他性质，来保证树高能近似于O(lgn)；

（二）在实现红黑树算法的过程中，一定要先去理解红黑树的算法原理，这样才能在调试的过程中，很轻松地发现出现问题的代码；在实现红黑树的插入算法过程中，也发现了书中的一个小错误：《算法导论》第三版，机械工业出版社，在书中P179实现RB-INSERT-FIXUP(T, z)算法的12行，处理case3时应该加一个else，因为case1、2、3是三种独立的情况，理解原理后很容易区分出来。

（三）独立处理完之前的几个算法实验后，感觉对于数据结构以及算法优化有了一点点感觉，且行且学习吧！





附录（代码）

  1 #include <stdio.h>
  2
  3 #include <stdlib.h>
  4
  5
  6
  7 typedef  structnode *tree_pointer;
  8
  9 typedef struct node {
 10
 11     int  key;
 12
 13     char color;       //R represents red; B represents black
 14
 15     tree_pointerp;
 16
 17     tree_pointerleft;
 18
 19     tree_pointerright;
 20
 21 } *tree_pointer;
 22
 23
 24
 25 void RB_insert(tree_pointer T_nil, tree_pointerT_root, tree_pointer z);
 26
 27 void left_rotate(tree_pointer T_nil, tree_pointerT_root, tree_pointer x);
 28
 29 void right_rotate(tree_pointer T_nil, tree_pointerT_root, tree_pointer x);
 30
 31 void RB_insert_fixup(tree_pointer T_nil, tree_pointerT_root, tree_pointer z);
 32
 33 void print_tree(tree_pointer T_root, int n);
 34
 35 void RB_transplant(tree_pointer T_nil, tree_pointerT_root, tree_pointer u, tree_pointer v);
 36
 37 void RB_delete(tree_pointer T_nil, tree_pointerT_root, tree_pointer z);
 38
 39 void RB_delete_fixup(tree_pointer T_nil, tree_pointerT_root, tree_pointer x);
 40
 41
 42
 43 int get_tree_height(tree_pointer T_root);
 44
 45
 46
 47 struct node * creat_node(tree_pointer T, int key);
 48
 49 struct node * tree_minimum(tree_pointer T_nil,tree_pointer x);
 50
 51 struct node * tree_search(tree_pointer T_nil,tree_pointer x, int k);
 52
 53
 54
 55 int main(){
 56
 57     inti,num,key,tree_height;
 58
 59
 60
 61     tree_pointernew_node = NULL;
 62
 63     tree_pointerT_root   = NULL;
 64
 65     tree_pointerT_nil    = NULL;
 66
 67     T_nil =(struct node *)malloc(sizeof(struct node));
 68
 69     T_nil->color= ‘B‘;
 70
 71
 72
 73     T_root =(struct node *)malloc(sizeof(struct node));
 74
 75     T_root->color= ‘B‘;
 76
 77     T_root->p     = T_nil;
 78
 79     T_root->left  = T_nil;
 80
 81     T_root->right= T_nil;
 82
 83
 84
 85     printf("T_nil= %p; key = %d; color = %c; p = %p; left = %p; right = %p
",T_nil,T_nil->key, T_nil->color, T_nil->p, T_nil->left, T_nil->right);
 86
 87     printf("T_root= %p; key = %d; color = %c; p = %p; left = %p; right = %p
",T_root,T_root->key, T_root->color, T_root->p, T_root->left,T_root->right);
 88
 89
 90
 91     printf("pleaseinput the number of nodes:");
 92
 93     scanf("%d",&num);
 94
 95     printf("pleaseinput the key:");
 96
 97     scanf("%d",&key);
 98
 99     T_root->key= key;
100
101     printf("
");
102
103     tree_height =get_tree_height(T_root);
104
105     print_tree(T_root,tree_height);
106
107
108
109     printf("
");
110
111     for(i = 0; i< num-1; i++){
112
113        printf("pleaseinput the key:");
114
115        scanf("%d",&key);
116
117        printf("
");
118
119        new_node =creat_node(T_nil, key);
120
121        RB_insert(T_nil,T_root, new_node);
122
123 //     tree_height= get_tree_height(T_root);
124
125 //     print_tree(T_root,tree_height);
126
127 //     printf("
666666666666666666666666
");
128
129     }
130
131
132
133
134
135     tree_pointerdelete_node;
136
137     printf("inputthe number of deleting node:");
138
139     scanf("%d",&num);
140
141     for(i = 0; i< num; i++){
142
143        printf("thekey of deleting node:");
144
145        scanf("%d",&key);
146
147        printf("
");
148
149        delete_node= tree_search(T_nil, T_root, key);
150
151        RB_delete(T_nil,T_root, delete_node);
152
153     //  tree_height = get_tree_height(T_root);
154
155     //  print_tree(T_root, tree_height);
156
157     }
158
159 }
160
161
162
163 struct node * tree_search(tree_pointer T_nil,tree_pointer x, int k){
164
165     if(x == T_nil|| k == x->key)
166
167        return x;
168
169     if(k <x->key)
170
171        returntree_search(T_nil, x->left, k);
172
173     else
174
175        returntree_search(T_nil, x->right, k);
176
177 }
178
179
180
181 struct node * creat_node(tree_pointer T, int key){
182
183     tree_pointernew = NULL;
184
185     new = (structnode *)malloc(sizeof(struct node));
186
187     new->key   = key;
188
189     new->color= ‘R‘;
190
191     new->p     = T;
192
193     new->left  = T;
194
195     new->right= T;
196
197     return new;
198
199 }
200
201
202
203 void RB_insert(tree_pointer T_nil, tree_pointerT_root, tree_pointer z){
204
205     tree_pointerx = NULL;
206
207     tree_pointery = NULL;
208
209     y = T_nil;
210
211     x = T_root;
212
213
214
215     //printf("
nowRB_insert is running!
");
216
217
218
219     while(x !=T_nil){
220
221        y = x;
222
223        if(z->key< x->key)
224
225            x =x->left;
226
227        else
228
229            x =x->right;
230
231     }
232
233
234
235     z->p = y;
236
237     if(y ==T_nil)
238
239        T_root   = z;
240
241     elseif(z->key < y->key)
242
243        y->left  = z;
244
245     else
246
247        y->right= z;
248
249
250
251     z->left  = T_nil;
252
253     z->right =T_nil;
254
255     z->color =‘R‘;
256
257
258
259
260
261
262
263     RB_insert_fixup(T_nil,T_root, z);
264
265
266
267 //  printf("
nowRB_insert is over!
");
268
269 }
270
271
272
273 void RB_insert_fixup(tree_pointer T_nil, tree_pointerT_root, tree_pointer z){
274
275     tree_pointery = NULL;
276
277
278
279 //  printf("
nowRB_insert_fixup is running!
");
280
281
282
283     while(z->p->color== ‘R‘){
284
285        if(z->p== z->p->p->left){
286
287            y =z->p->p->right;
288
289
290
291            if(y->color== ‘R‘){
292
293               z->p->color    = ‘B‘;
294
295               y->color       = ‘B‘;
296
297               z->p->p->color= ‘R‘;
298
299               z =z->p->p;
300
301            }
302
303            elseif(z == z->p->right){
304
305               z =z->p;
306
307               left_rotate(T_nil,T_root, z);
308
309            }
310
311            else{
312
313               z->p->color    = ‘B‘;
314
315               z->p->p->color= ‘R‘;
316
317               right_rotate(T_nil,T_root, z->p->p);
318
319
320
321            }
322
323        }
324
325        //////////////////////////////////
326
327        elseif(z->p = z->p->p->right){
328
329            y =z->p->p->left;
330
331
332
333            if(y->color== ‘R‘){
334
335               z->p->color    = ‘B‘;
336
337               y->color       = ‘B‘;
338
339               z->p->p->color= ‘R‘;
340
341               z =z->p->p;
342
343            }
344
345            elseif(z == z->p->left){
346
347               z =z->p;
348
349               right_rotate(T_nil,T_root, z);
350
351            }
352
353            else{
354
355               z->p->color    = ‘B‘;
356
357               z->p->p->color= ‘R‘;
358
359               left_rotate(T_nil,T_root, z->p->p);
360
361            }
362
363        }
364
365        T_root->color= ‘B‘;
366
367     }
368
369
370
371 //  printf("
nowRB_insert_fixup is over!
");
372
373     int tree_height;
374
375     if(T_root->p== T_nil){
376
377        tree_height= get_tree_height(T_root);
378
379        print_tree(T_root,tree_height);
380
381     }
382
383     else{
384
385        tree_height= get_tree_height(T_root);
386
387        print_tree(T_root->p,tree_height);
388
389     }
390
391 }
392
393
394
395
396
397 void left_rotate(tree_pointer T_nil, tree_pointer T_root,tree_pointer x){
398
399     tree_pointery = NULL;
400
401     y =x->right;
402
403
404
405     x->right =y->left;
406
407     if(y->left!= T_nil)
408
409        y->left->p= x;
410
411
412
413     y->p =x->p;
414
415     if(x->p ==T_nil)
416
417        T_root =y;
418
419     else if(x ==x->p->left)
420
421        x->p->left= y;
422
423     else
424
425        x->p->right= y;
426
427
428
429     y->left =x;
430
431     x->p    = y;
432
433 }
434
435
436
437 void right_rotate(tree_pointer T_nil, tree_pointerT_root, tree_pointer x){
438
439     tree_pointery = NULL;
440
441     y =x->left;
442
443
444
445     x->left =y->right;
446
447     if(y->right!= T_nil)
448
449        y->right->p= x;
450
451
452
453     y->p =x->p;
454
455     if(x->p ==T_nil)
456
457        T_root =y;
458
459     else if(x ==x->p->right)
460
461        x->p->right= y;
462
463     else
464
465        x->p->left= y;
466
467
468
469     y->right =x;
470
471     x->p = y;
472
473 }
474
475
476
477 int get_tree_height(tree_pointer T_root){
478
479     if(!T_root)
480
481        return 0;
482
483     intleft_height,right_height;
484
485     left_height  = get_tree_height(T_root->left);
486
487     right_height= get_tree_height(T_root->right);
488
489     return(left_height < right_height)?(right_height+1):(left_height+1);
490
491 }
492
493
494
495 void print_tree(tree_pointer T_root, int n){
496
497     int i;
498
499     if(T_root ==NULL)
500
501        return;
502
503     print_tree(T_root->right,n-1);
504
505
506
507     for(i = 0; i< n-1; i++)
508
509         printf("   ");
510
511     if(n > 0){
512
513        printf("---");
514
515        printf("%d(%c)
",T_root->key,T_root->color);
516
517     }
518
519
520
521     print_tree(T_root->left,n-1);
522
523 }
524
525
526
527
528

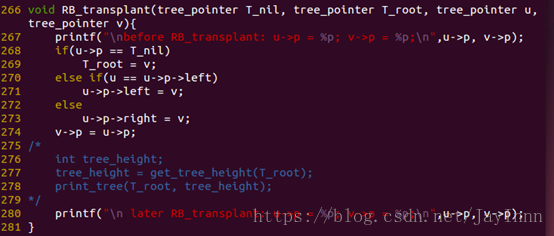

529 void RB_transplant(tree_pointer T_nil, tree_pointerT_root, tree_pointer u, tree_pointer v){
530
531 //  printf("
beforeRB_transplant: u->p = %p; v->p = %p;
",u->p, v->p);
532
533     if(u->p ==T_nil)
534
535        T_root =v;
536
537     else if(u ==u->p->left)
538
539        u->p->left= v;
540
541     else
542
543        u->p->right= v;
544
545     v->p =u->p;
546
547 /*
548
549     inttree_height;
550
551     tree_height =get_tree_height(T_root);
552
553     print_tree(T_root,tree_height);
554
555 */
556
557 //  printf("
later RB_transplant: u->p = %p; v->p = %p;
",u->p, v->p);
558
559 }
560
561
562
563 void RB_delete(tree_pointer T_nil, tree_pointerT_root, tree_pointer z){
564
565     tree_pointery = NULL;
566
567     tree_pointerx = NULL;
568
569     chary_original_color;
570
571
572
573     y = z;
574
575     y_original_color= y->color;
576
577
578
579     if(z->left== T_nil){
580
581 //     printf("
z->left== T_nil !!!!!!!!!!
");
582
583 //     printf("beforez = %p; z->right = %p
", z, z->right);
584
585        x =z->right;
586
587        RB_transplant(T_nil,T_root, z, z->right);
588
589 //     printf("later z = %p; z->p->right = %p
", z, z->p->right);
590
591     }
592
593     elseif(z->right == T_nil){
594
595        x =z->left;
596
597        RB_transplant(T_nil,T_root, z, z->left);
598
599     }
600
601     else{
602
603        y =tree_minimum(T_nil, z->right);
604
605 //     printf("
TREE_MINIMUM!!!!!!!!!!!!!!!
");
606
607 //     printf("y->key= %d
",y->key);
608
609        y_original_color= y->color;
610
611        x =y->right;
612
613
614
615        if(y->p== z)
616
617            x->p= y;
618
619        else{
620
621            RB_transplant(T_nil,T_root, y, y->right);
622
623            y->right= z->right;
624
625            y->right->p= y;
626
627        }
628
629        RB_transplant(T_nil,T_root, z, y);
630
631        y->left= z->left;
632
633        y->left->p= y;
634
635        y->color= z->color;
636
637     //  printf("
NNNNNNNNNNNNNNNNNNNNNNNNNN
");
638
639     }
640
641     if(y_original_color== ‘B‘)
642
643        RB_delete_fixup(T_nil,T_root, x);
644
645     else{
646
647        inttree_height;
648
649        tree_height= get_tree_height(T_root);
650
651        print_tree(T_root,tree_height);
652
653     }
654
655 }
656
657
658
659 struct node * tree_minimum(tree_pointer T_nil,tree_pointer x){
660
661     while(x->left!= T_nil)
662
663        x =x->left;
664
665     return x;
666
667 }
668
669
670
671 void RB_delete_fixup(tree_pointer T_nil, tree_pointerT_root, tree_pointer x){
672
673     tree_pointerw = NULL;
674
675     w = (structnode *)malloc(sizeof(struct node));
676
677
678
679     while(x != T_root&& x->color == ‘B‘){
680
681        if(x ==x->p->left){
682
683            w =x->p->right;
684
685            if(w->color== ‘R‘){
686
687               w->color= ‘B‘;
688
689               x->p->color= ‘R‘;
690
691               left_rotate(T_nil,T_root, x->p);
692
693               w =x->p->right;
694
695            }
696
697            if(w->left->color== ‘B‘ && w->right->color == ‘B‘){
698
699               w->color= ‘R‘;
700
701               x =x->p;
702
703            }
704
705            elseif(w->right->color == ‘B‘){
706
707               w->left->color= ‘B‘;
708
709               w->color= ‘R‘;
710
711               right_rotate(T_nil,T_root, w);
712
713               w =x->p->right;
714
715            }
716
717            else{
718
719               w->color= x->p->color;
720
721               x->p->color= ‘B‘;
722
723               w->right->color= ‘B‘;
724
725               left_rotate(T_nil,T_root, x->p);
726
727               x =T_root;
728
729            }
730
731
732
733        }
734
735        else{
736
737            w =x->p->left;
738
739            if(w->color== ‘R‘){
740
741               w->color= ‘B‘;
742
743               x->p->color= ‘R‘;
744
745               right_rotate(T_nil,T_root, x->p);
746
747               w =x->p->left;
748
749            }
750
751            if(w->right->color== ‘B‘ && w->left->color == ‘B‘){
752
753               w->color = ‘R‘;
754
755               x = x->p;
756
757            }
758
759            elseif(w->left->color == ‘B‘){
760
761               w->right->color= ‘B‘;
762
763               w->color= ‘R‘;
764
765               left_rotate(T_nil,T_root, w);
766
767               w =x->p->left;
768
769            }
770
771            else{
772
773               w->color= x->p->color;
774
775               x->p->color= ‘B‘;
776
777               w->left->color= ‘B‘;
778
779               right_rotate(T_nil,T_root, x->p);
780
781               x =T_root;
782
783            }
784
785        }
786
787     }
788
789     x->color =‘B‘;
790
791
792
793     inttree_height;
794
795     tree_height =get_tree_height(T_root);
796
797     print_tree(T_root,tree_height);
798
799 }

View Code
