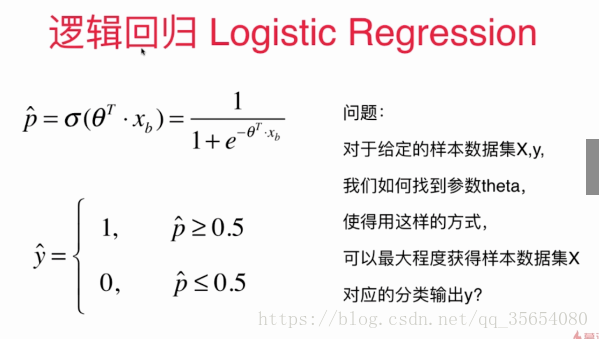

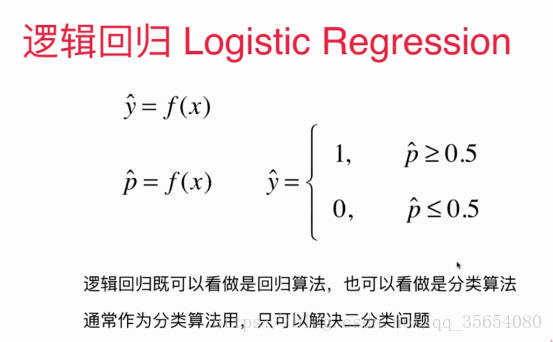

机器学习之逻辑回归(Logistic Regression)

Posted 2021-01-02 kekexuanxaun

1.

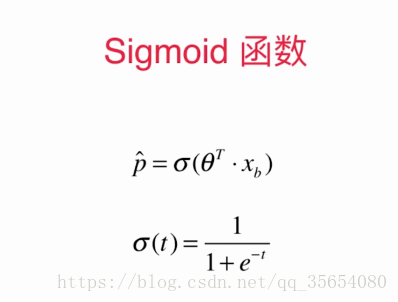

   """逻辑回归中的Sigmoid函数"""
2.
   import numpy as np
3.
   import matplotlib.pyplot as plt
4.

5.
   def sigmoid(t):
6.
   return 1/(1+np.exp(-t))
7.

8.
   x=np.linspace(-10,10,500)
9.
   y=sigmoid(x)
10.

11.
    plt.plot(x,y)
12.
    plt.show()

 结果：

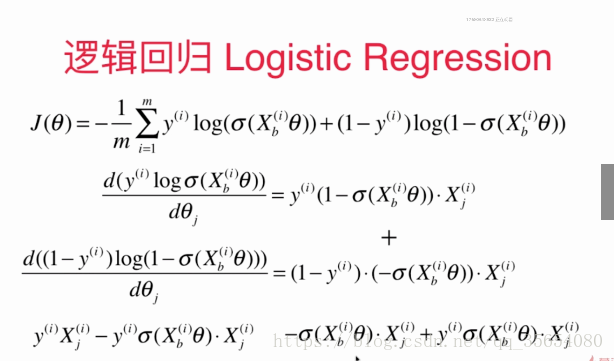

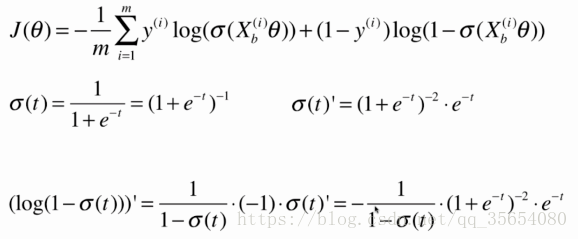

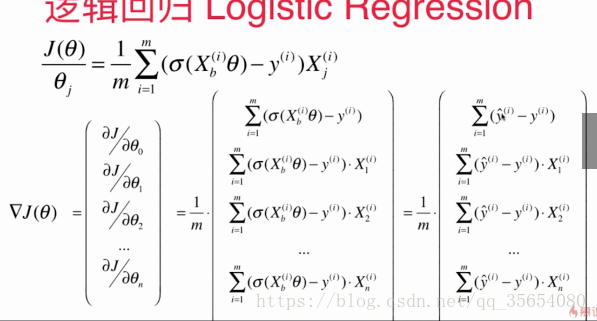

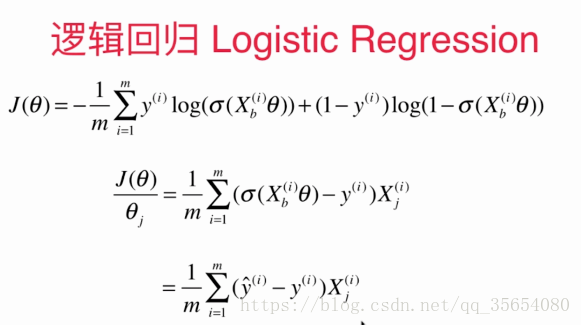

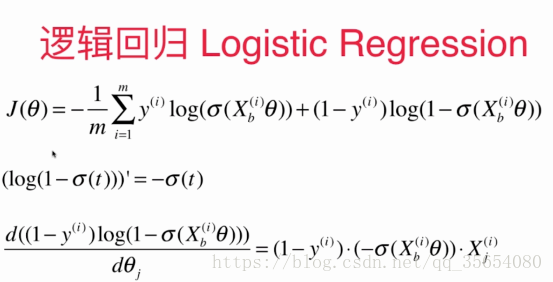

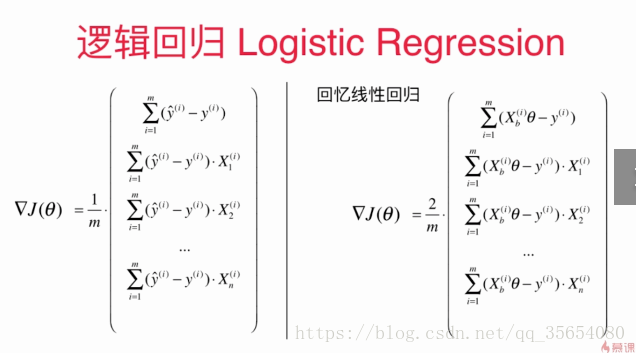

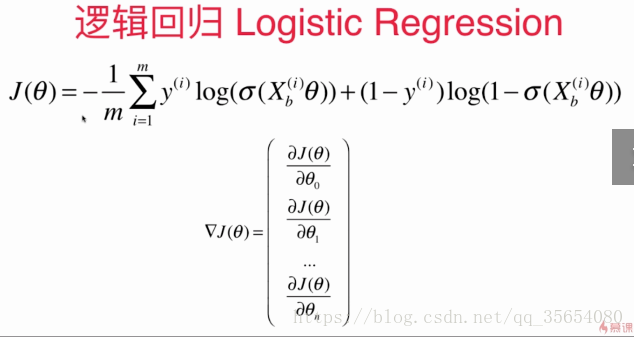

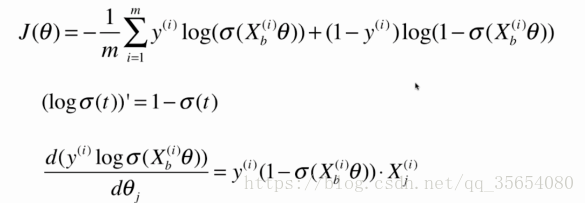

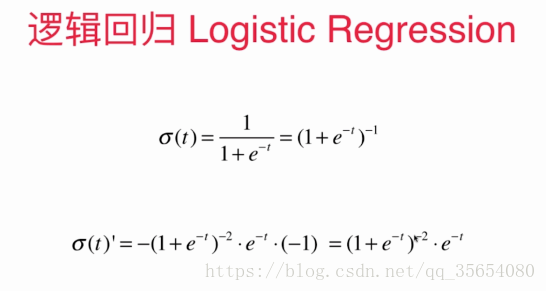

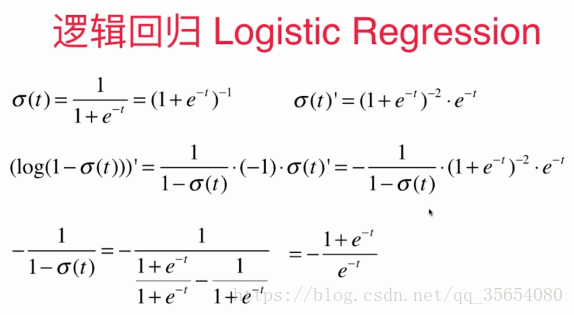

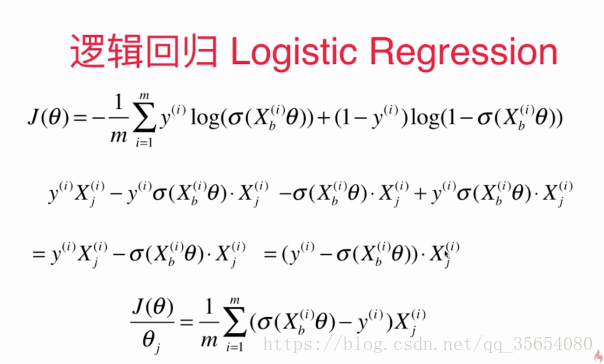

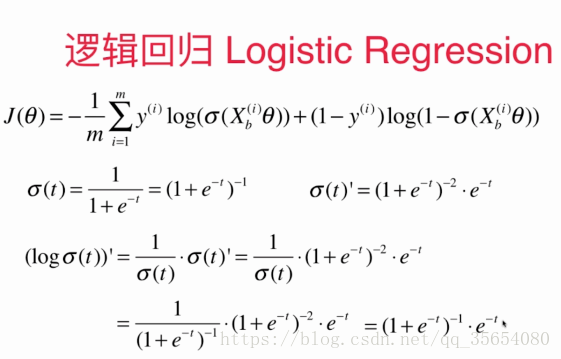

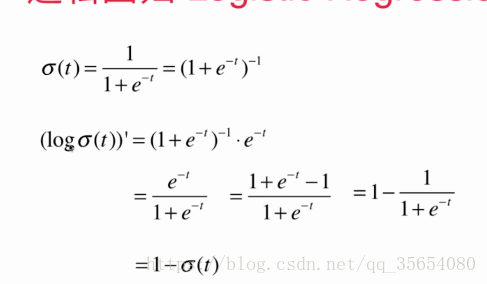

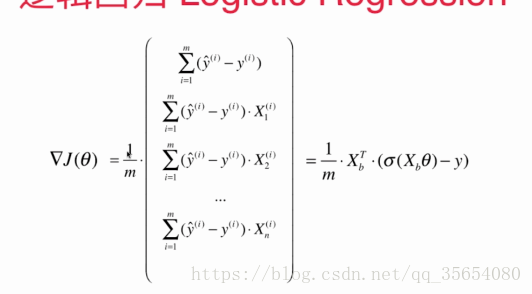

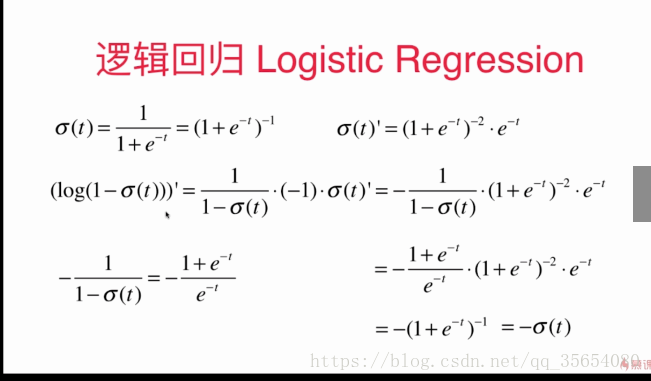

 逻辑回归损失函数的梯度：



















逻辑回归算法：

1.
   import numpy as np
2.
   from metrics import accuracy_score
3.

4.
   class LogisticRegression:
5.

6.
   def __init__(self):
7.
   """初始化Logistic Regression模型"""
8.
   self.coef_ = None
9.
   self.intercept_ = None
10.
    self._theta = None
11.

12.
    def _sigmoid(self,t):
13.
    return 1. / (1. + np.exp(-t))
14.

15.
    def fit(self, X_train, y_train, eta=0.01, n_iters=1e4):
16.
    """根据训练数据集X_train, y_train, 使用梯度下降法训练Linear Regression模型"""
17.
    assert X_train.shape[0] == y_train.shape[0],
18.
    "the size of X_train must be equal to the size of y_train"
19.

20.

21.

22.
    def J(theta, X_b, y):
23.
    """求损失函数"""
24.
    y_hat=self._sigmoid(X_b.dot(theta))
25.
    try:
26.
    return -np.sum(y*np.log(y_hat) + (1-y)*np.log(1-y_hat))/ len(y)
27.
    except:
28.
    return float(‘inf‘)
29.

30.
    def dJ(theta, X_b, y):
31.
    """求梯度"""
32.
    # res = np.empty(len(theta))
33.
    # res[0] = np.sum(X_b.dot(theta) - y)
34.
    # for i in range(1, len(theta)):
35.
    # res[i] = (X_b.dot(theta) - y).dot(X_b[:, i])
36.
    # return res * 2 / len(X_b)
37.
    return X_b.T.dot(self._sigmoid(X_b.dot(theta)) - y) / len(X_b)
38.

39.
    def gradient_descent(X_b, y, initial_theta, eta, n_iters=1e4, epsilon=1e-8):
40.
    """使用批量梯度下降法寻找theta"""
41.
    theta = initial_theta
42.
    cur_iter = 0
43.

44.
    while cur_iter < n_iters:
45.
    gradient = dJ(theta, X_b, y)
46.
    last_theta = theta
47.
    theta = theta - eta * gradient
48.
    if (abs(J(theta, X_b, y) - J(last_theta, X_b, y)) < epsilon):
49.
    break
50.

51.
    cur_iter += 1
52.

53.
    return theta
54.

55.
    X_b = np.hstack([np.ones((len(X_train), 1)), X_train])
56.
    initial_theta = np.zeros(X_b.shape[1])
57.
    self._theta = gradient_descent(X_b, y_train, initial_theta, eta, n_iters)
58.

59.
    self.intercept_ = self._theta[0]
60.
    self.coef_ = self._theta[1:]
61.

62.
    return self
63.

64.
    def predict_proba(self, X_predict):
65.
    """给定待预测数据集X_predict，返回表示X_predict的结果概率向量"""
66.
    assert self.intercept_ is not None and self.coef_ is not None,
67.
    "must fit before predict!"
68.
    assert X_predict.shape[1] == len(self.coef_),
69.
    "the feature number of X_predict must be equal to X_train"
70.

71.
    X_b = np.hstack([np.ones((len(X_predict), 1)), X_predict])
72.
    return self._sigmoid(X_b.dot(self._theta))
73.

74.
    def predict(self, X_predict):
75.
    """给定待预测数据集X_predict，返回表示X_predict的结果向量"""
76.
    assert self.intercept_ is not None and self.coef_ is not None,
77.
    "must fit before predict!"
78.
    assert X_predict.shape[1] == len(self.coef_),
79.
    "the feature number of X_predict must be equal to X_train"
80.

81.
    proba=self.predict_proba(X_predict)
82.
    return np.array(proba>=0.5,dtype=‘int‘)
83.

84.
    def score(self, X_test, y_test):
85.
    """根据测试数据集 X_test 和 y_test 确定当前模型的准确度"""
86.

87.
    y_predict = self.predict(X_test)
88.
    return accuracy_score(y_test, y_predict)
89.

90.
    def __repr__(self):
91.
    return "LogisticRegression()"

1.
   """实现逻辑回归"""
2.
   import numpy as np
3.
   import matplotlib.pyplot as plt
4.
   from sklearn import datasets
5.

6.
   iris=datasets.load_iris()
7.
   X=iris.data
8.
   y=iris.target
9.

10.
    X=X[y<2,:2]
11.
    y=y[y<2]
12.

13.
    plt.scatter(X[y==0,0],X[y==0,1],color=‘red‘)
14.
    plt.scatter(X[y==1,0],X[y==1,1],color=‘blue‘)
15.
    plt.show()
16.

17.
    """使用逻辑回归"""
18.
    from model_selection import train_test_split
19.
    from LogisticRegression import LogisticRegression
20.

21.
    X_train,X_test,y_train,y_test=train_test_split(X,y,seed=666)
22.
    log_reg=LogisticRegression()
23.
    log_reg.fit(X_train,y_train)
24.
    print(log_reg.score(X_test,y_test))
25.
    print(log_reg.predict_proba(X_test))

 结果：

1.
   E:pythonspaceKNN_functionvenvScriptspython.exe E:/pythonspace/KNN_function/try.py
2.
   1.0
3.
   [0.92972035 0.98664939 0.14852024 0.17601199 0.0369836 0.0186637
4.
   0.04936918 0.99669244 0.97993941 0.74524655 0.04473194 0.00339285
5.
   0.26131273 0.0369836 0.84192923 0.79892262 0.82890209 0.32358166
6.
   0.06535323 0.20735334]
7.

8.
   Process finished with exit code 0

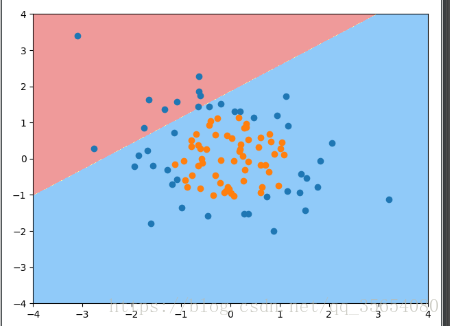

逻辑回归中的决策边界和添加多项式特征：

1.
   """在逻辑回归中添加多项式特征"""
2.
   import numpy as np
3.
   import matplotlib.pyplot as plt
4.

5.
   np.random.seed(666)
6.
   X=np.random.normal(0,1,size=(100,2))
7.
   y=np.array(X[:,0]**2+X[:,1]**2<1.5,dtype=‘int‘)
8.

9.

10.
    """使用逻辑回归"""
11.
    from LogisticRegression import LogisticRegression
12.

13.
    log_reg=LogisticRegression()
14.
    log_reg.fit(X,y)
15.

16.
    """绘制思路"""
17.
    def plot_decision_boundary(model,axis):
18.
    x0,x1 = np.meshgrid(
19.
    np.linspace(axis[0],axis[1],int((axis[1]-axis[0])*100)),
20.
    np.linspace(axis[2],axis[3],int((axis[3]-axis[2])*100))
21.
    )
22.
    X_new = np.c_[x0.ravel(),x1.ravel()]
23.
    y_predict = model.predict(X_new)
24.
    zz = y_predict.reshape(x0.shape)
25.
    from matplotlib.colors import ListedColormap
26.
    custom_cmap = ListedColormap([‘#EF9A9A‘,‘#FFF59D‘,‘#90CAF9‘])
27.
    plt.contourf(x0,x1,zz,linewidth=5,cmap=custom_cmap)
28.

29.
    plot_decision_boundary(log_reg,axis=[-4,4,-4,4])
30.
    plt.scatter(X[y==0,0],X[y==0,1])
31.
    plt.scatter(X[y==1,0],X[y==1,1])
32.
    plt.show()
33.

34.

35.

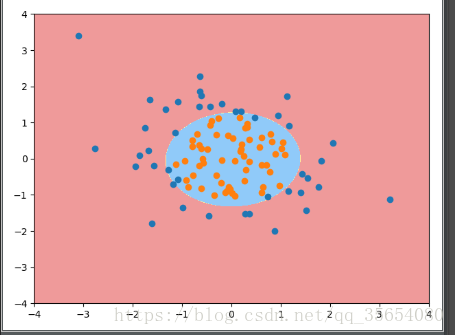

    """添加特征值，即升维"""
36.
    from sklearn.preprocessing import PolynomialFeatures
37.
    from sklearn.preprocessing import StandardScaler
38.
    from sklearn.pipeline import Pipeline
39.
    def PolynomialLogisticRegression(degree):
40.
    return Pipeline([
41.
    (‘Poly‘,PolynomialFeatures(degree=degree)),
42.
    (‘std_scaler‘,StandardScaler()),
43.
    (‘Logistic‘,LogisticRegression())
44.
    ])
45.
    poly_log_reg = PolynomialLogisticRegression(degree=2)
46.
    poly_log_reg.fit(X,y)
47.
    plot_decision_boundary(poly_log_reg,axis=[-4,4,-4,4])
48.
    plt.scatter(X[y==0,0],X[y==0,1])
49.
    plt.scatter(X[y==1,0],X[y==1,1])
50.
    plt.show()

 结果：





1.
   """逻辑回归中使用正则化"""
2.
   import numpy as np
3.
   import matplotlib.pyplot as plt
4.
   from sklearn.model_selection import train_test_split
5.
   from sklearn.linear_model import LogisticRegression
6.
   from sklearn.preprocessing import StandardScaler
7.
   from sklearn.pipeline import Pipeline
8.
   from sklearn.preprocessing import PolynomialFeatures
9.

10.
    np.random.seed(666)
11.
    X=np.random.normal(0,1,size=(200,2))
12.
    y=np.array(X[:,0]**2+X[:,1]<1.5,dtype=‘int‘)
13.
    for _ in range(20):
14.
    y[np.random.randint(200)] = 1
15.
    plt .scatter(X[y==0,0],X[y==0,1])
16.
    plt .scatter(X[y==1,0],X[y==1,1])
17.
    plt.show()
18.

19.
    X_train,X_test,y_train,y_test=train_test_split(X,y)
20.
    log_reg=LogisticRegression()
21.
    log_reg.fit(X,y)
22.
    def plot_decision_boundary(model,axis):
23.
    x0,x1 = np.meshgrid(
24.
    np.linspace(axis[0],axis[1],int((axis[1]-axis[0])*100)),
25.
    np.linspace(axis[2],axis[3],int((axis[3]-axis[2])*100))
26.
    )
27.
    X_new = np.c_[x0.ravel(),x1.ravel()]
28.
    y_predict = model.predict(X_new)
29.
    zz = y_predict.reshape(x0.shape)
30.
    from matplotlib.colors import ListedColormap
31.
    custom_cmap = ListedColormap([‘#EF9A9A‘,‘#FFF59D‘,‘#90CAF9‘])
32.
    plt.contourf(x0,x1,zz,linewidth=5,cmap=custom_cmap)
33.

34.
    def PolynomialLogisticRegression(degree,C=1.0,penalty=‘l2‘):
35.
    return Pipeline([
36.
    (‘Poly‘,PolynomialFeatures(degree=degree)),
37.
    (‘std_scaler‘,StandardScaler()),
38.
    (‘Logistic‘,LogisticRegression(C=C,penalty=penalty))
39.
    ])
40.
    poly_log_reg = PolynomialLogisticRegression(degree=20,C=0.1,penalty=‘l1‘)
41.
    poly_log_reg.fit(X_train,y_train)
42.

43.
    plot_decision_boundary(poly_log_reg,axis=[-4,4,-4,4])
44.
    plt.scatter(X[y==0,0],X[y==0,1])
45.
    plt.scatter(X[y==1,0],X[y==1,1])
46.
    plt.show()

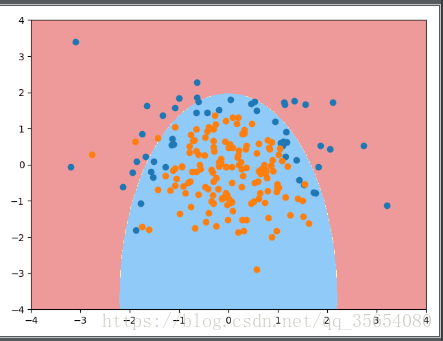

 结果

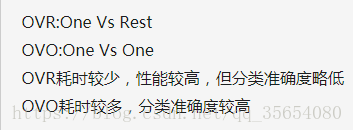

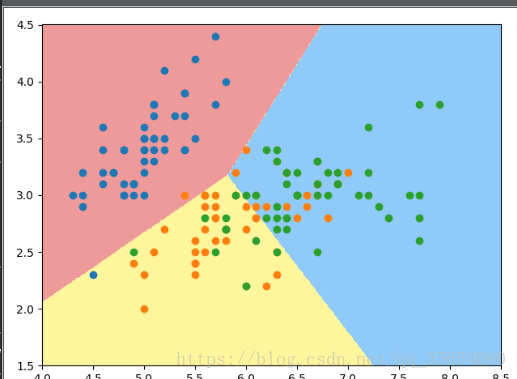

应用OVR和OVO使逻辑回归处理多分类问题


1.
   """OVR和OVO"""
2.
   #为了数据可视化方便，我们只使用鸢尾花数据集的前两列特征
3.
   from sklearn import datasets
4.
   from sklearn.linear_model import LogisticRegression
5.
   from sklearn.model_selection import train_test_split
6.
   import matplotlib.pyplot as plt
7.
   import numpy as np
8.

9.
   iris = datasets.load_iris()
10.
    X = iris[‘data‘][:,:2]
11.
    y = iris[‘target‘]
12.
    X_train,X_test,y_train,y_test=train_test_split(X,y,random_state=666)
13.

14.

15.
    #log_reg = LogisticRegression(multi_class=‘ovr‘) #传入multi_class参数可以指定使用ovr或ovo，默认ovr #由于只使用前两列特征，导致分类准确度较低
16.
    log_reg = LogisticRegression(multi_class=‘ovr‘,solver=‘newton-cg‘)
17.
    log_reg.fit(X_train,y_train)
18.
    log_reg.score(X_test,y_test)
19.
    def plot_decision_boundary(model,axis):
20.
    x0,x1 = np.meshgrid(
21.
    np.linspace(axis[0],axis[1],int((axis[1]-axis[0])*100)),
22.
    np.linspace(axis[2],axis[3],int((axis[3]-axis[2])*100))
23.
    )
24.
    X_new = np.c_[x0.ravel(),x1.ravel()]
25.
    y_predict = model.predict(X_new)
26.
    zz = y_predict.reshape(x0.shape)
27.
    from matplotlib.colors import ListedColormap
28.
    custom_cmap = ListedColormap([‘#EF9A9A‘,‘#FFF59D‘,‘#90CAF9‘])
29.
    plt.contourf(x0,x1,zz,linewidth=5,cmap=custom_cmap)
30.

31.
    plot_decision_boundary(log_reg,axis=[4,8.5,1.5,4.5])
32.
    plt.scatter(X[y==0,0],X[y==0,1])
33.
    plt.scatter(X[y==1,0],X[y==1,1])
34.
    plt.scatter(X[y==2,0],X[y==2,1])
35.
    plt.show()
36.

37.

38.

39.
    """使用全部数据 OVR and OVO"""
40.
    from sklearn.multiclass import OneVsOneClassifier
41.
    from sklearn.multiclass import OneVsRestClassifier
42.

43.
    from sklearn import datasets
44.
    from sklearn.linear_model import LogisticRegression
45.
    from sklearn.model_selection import train_test_split
46.
    iris = datasets.load_iris()
47.
    X = iris.data
48.
    y = iris.target
49.
    X_train,X_test,y_train,y_test=train_test_split(X,y,random_state=666)
50.

51.
    ovr = OneVsRestClassifier(log_reg) #参数为二分类器
52.
    ovr.fit(X_train,y_train)
53.
    print(ovr.score(X_test,y_test))
54.
    ovo = OneVsOneClassifier(log_reg)
55.
    ovo.fit(X_train,y_train)
56.
    print(ovo.score(X_test,y_test))

结果：

1.
   E:pythonspaceKNN_functionvenvScriptspython.exe E:/pythonspace/KNN_function/try.py
2.
   E:pythonspaceKNN_functionvenvlibsite-packagesmatplotlibcontour.py:960: UserWarning: The following kwargs were not used by contour: ‘linewidth‘
3.
   s)
4.
   0.9736842105263158
5.
   1.0
6.

7.
   Process finished with exit code 0
