1 目的

记录Spark集群框架搭建及实验自学心得。

2 准备工作

  1. VMware 15 Pro
  2. Centos7
  3. JDK 1.8
  4. Hadoop 2.7.2
  5. SecureCRT version 8.5
  6. Scala 2.12.7
  7. Spark 2.3.1
  8. Zookeeper 3.4.10
  9. HBase 2.0.2
  10. Hive 2.3.4

3 安装过程

3.1 在虚拟机中安装CentOS7

3.1.1 虚拟机设置

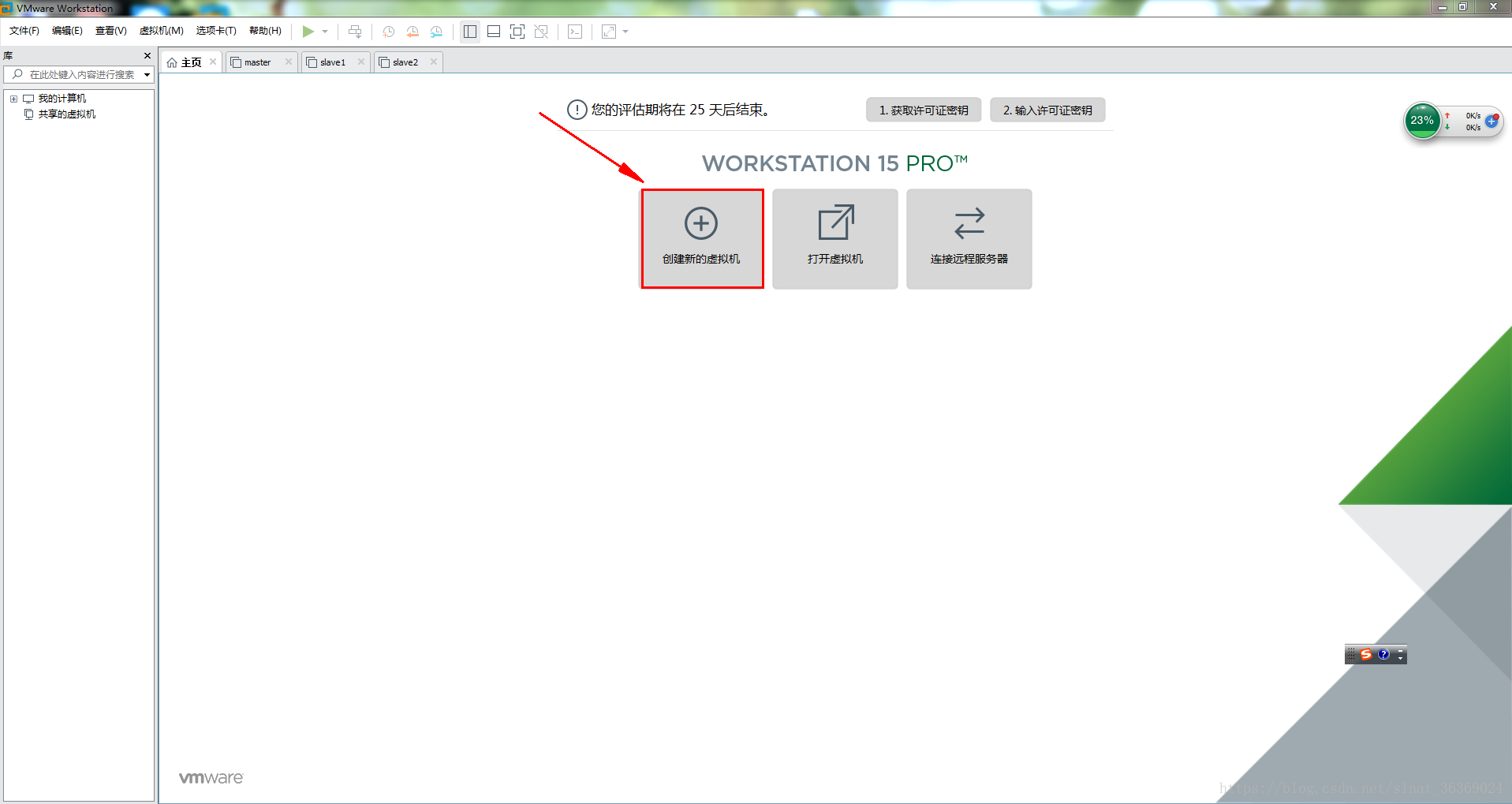

1)打开VMware15Pro,并创建虚拟机
技术图片

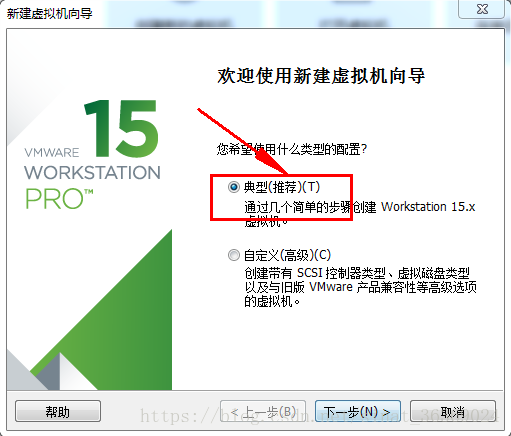

2)选择典型安装
技术图片

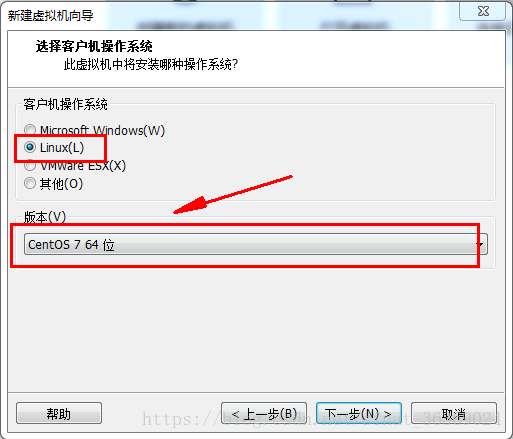

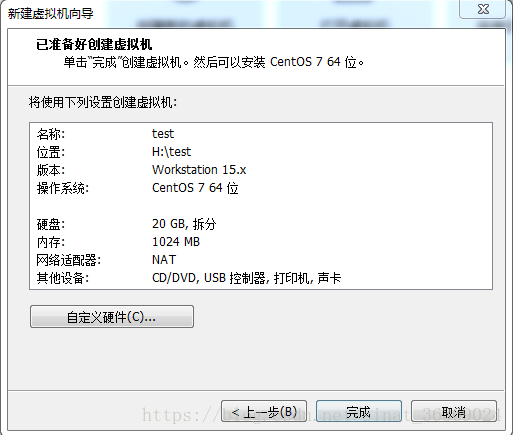

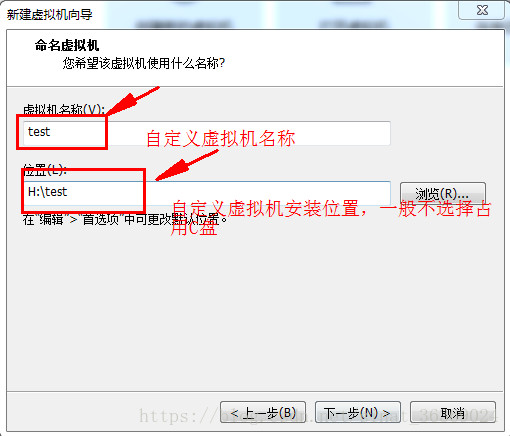

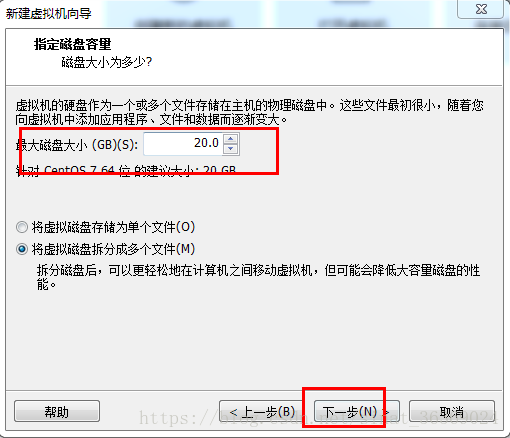

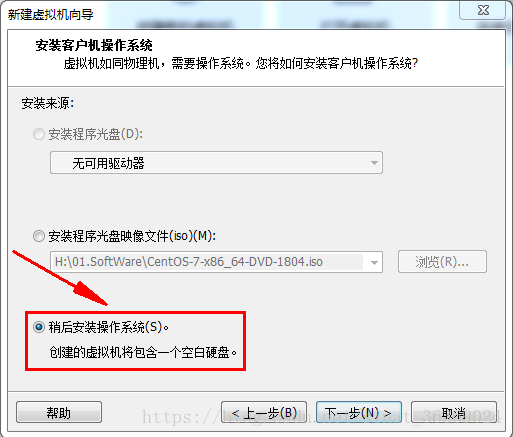

3)设定稍后安装本地已下载好的Centos7系统。
技术图片
技术图片
技术图片
技术图片
技术图片

3.1.2 安装Linux系统

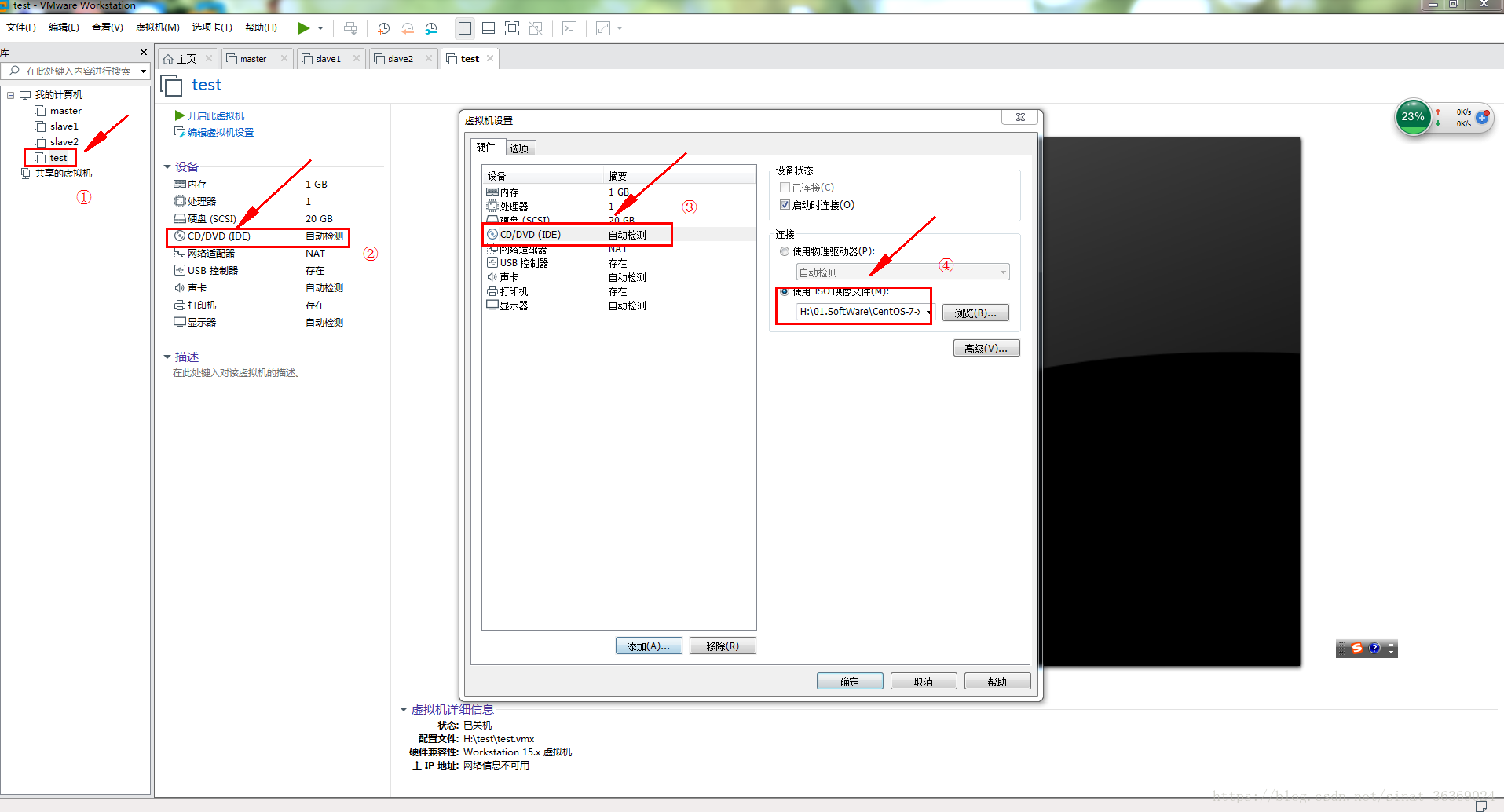

1)载入CentOS7安装文件
技术图片

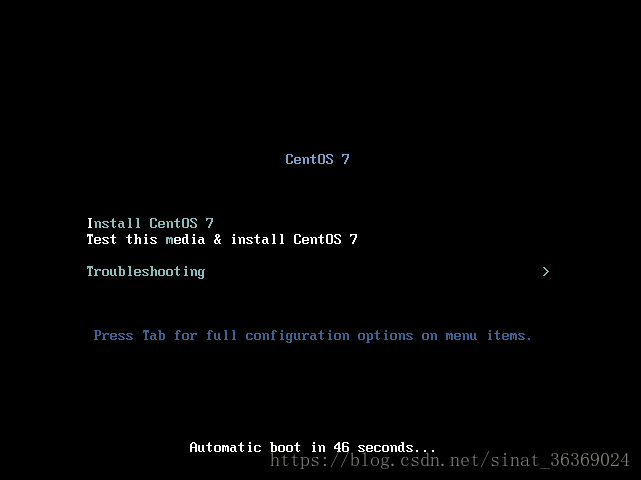

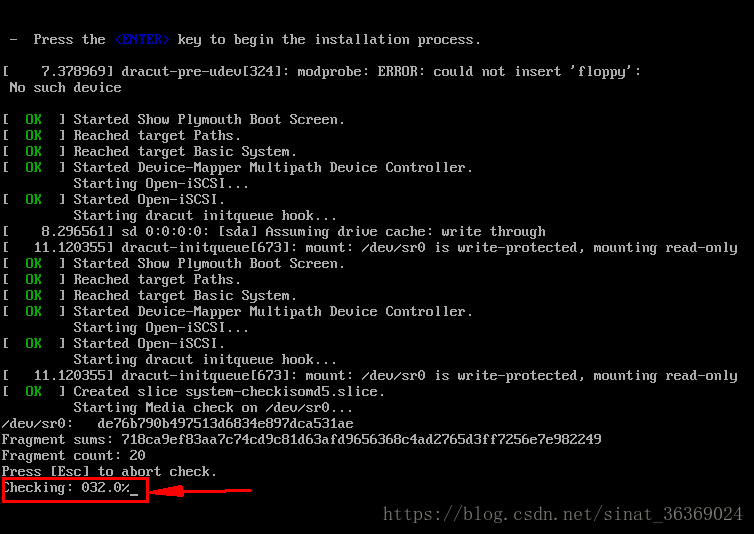

2)开启此虚拟机,系统文件自动导入
技术图片
技术图片

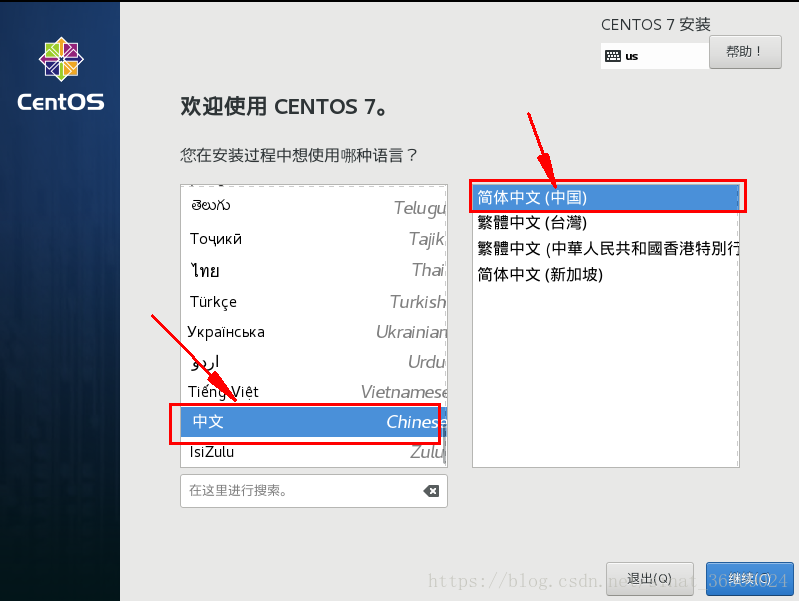

3)CentOS7系统安装设置
技术图片
技术图片

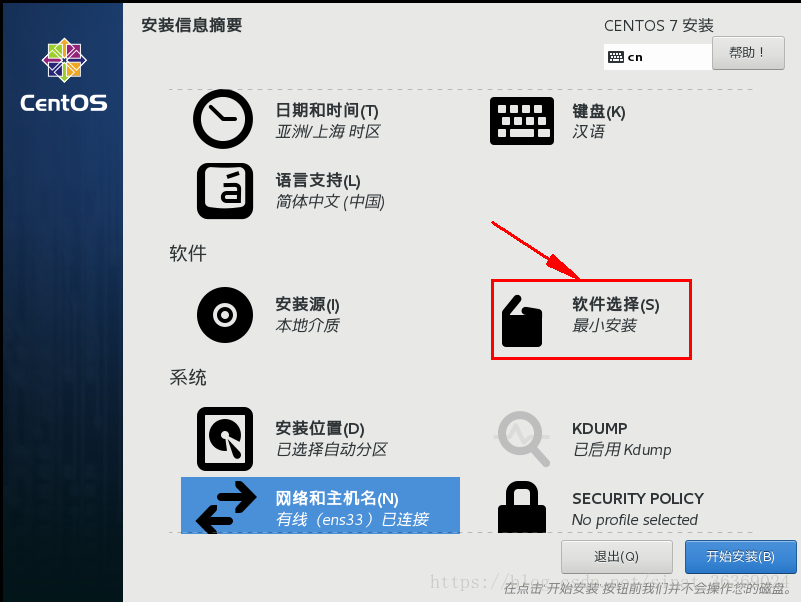

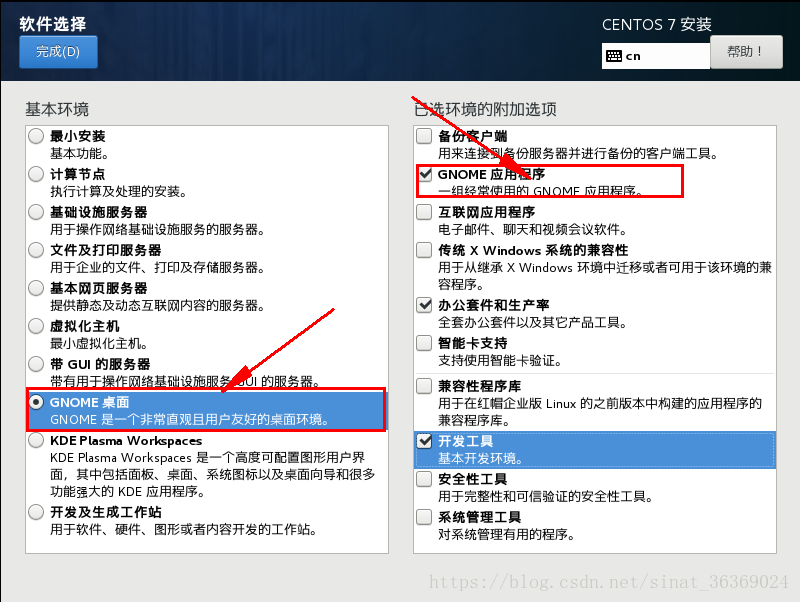

4)考虑到默认安装软件选择是“最小安装”,该方式安装后需要手动添加资源较多,将其更替为“GNOME桌面
技术图片

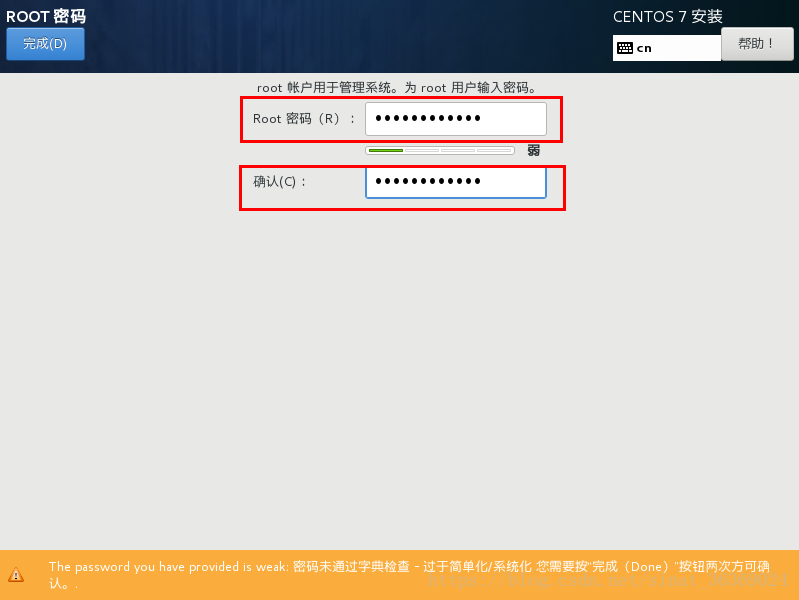

5)用户设置,为了避免后期hadoop集群环境搭建时候反复切换权限用户,可以选择只建立root账户
技术图片
技术图片

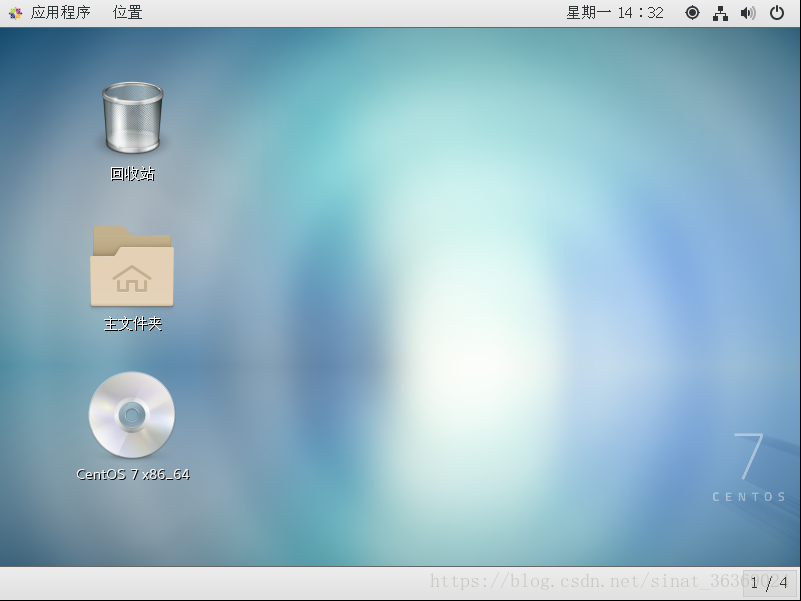

6)完成安装
技术图片

3.2 JAVA环境

3.2.1 卸载Linux自带的jdk

1)查看系统自带的jdk

[root@master ~]# java -version
openjdk version "1.8.0_161"
OpenJDK Runtime Environment (build 1.8.0_161-b14)
OpenJDK 64-Bit Server VM (build 25.161-b14, mixed mode)

2)查询系统自带的java文件,根据不同的系统版本,输入rpm -qa | grep jdk或者rpm -qa | grep java

[root@master ~]# rpm -qa | grep jdk
java-1.7.0-openjdk-headless-1.7.0.171-2.6.13.2.el7.x86_64
java-1.8.0-openjdk-headless-1.8.0.161-2.b14.el7.x86_64
java-1.7.0-openjdk-1.7.0.171-2.6.13.2.el7.x86_64
java-1.8.0-openjdk-1.8.0.161-2.b14.el7.x86_64
copy-jdk-configs-3.3-2.el7.noarch

3)删除noarch文件以外的其他文件,输入rpm -e --nodeps 需要卸载的安装文件名

[root@master ~]# rpm -e --nodeps java-1.7.0-openjdk-headless-1.7.0.171-2.6.13.2.el7.x86_64
[root@master ~]# rpm -e --nodeps java-1.8.0-openjdk-headless-1.8.0.161-2.b14.el7.x86_64
[root@master ~]# rpm -e --nodeps java-1.7.0-openjdk-1.7.0.171-2.6.13.2.el7.x86_64
[root@master ~]# rpm -e --nodeps java-1.8.0-openjdk-1.8.0.161-2.b14.el7.x86_64

4)查看是否已经删除完毕

[root@master ~]# java -version
bash: /usr/bin/java: 没有那个文件或目录

3.2.2 下载并安装最新版本的jdk

jdk下载可分成两种情况:

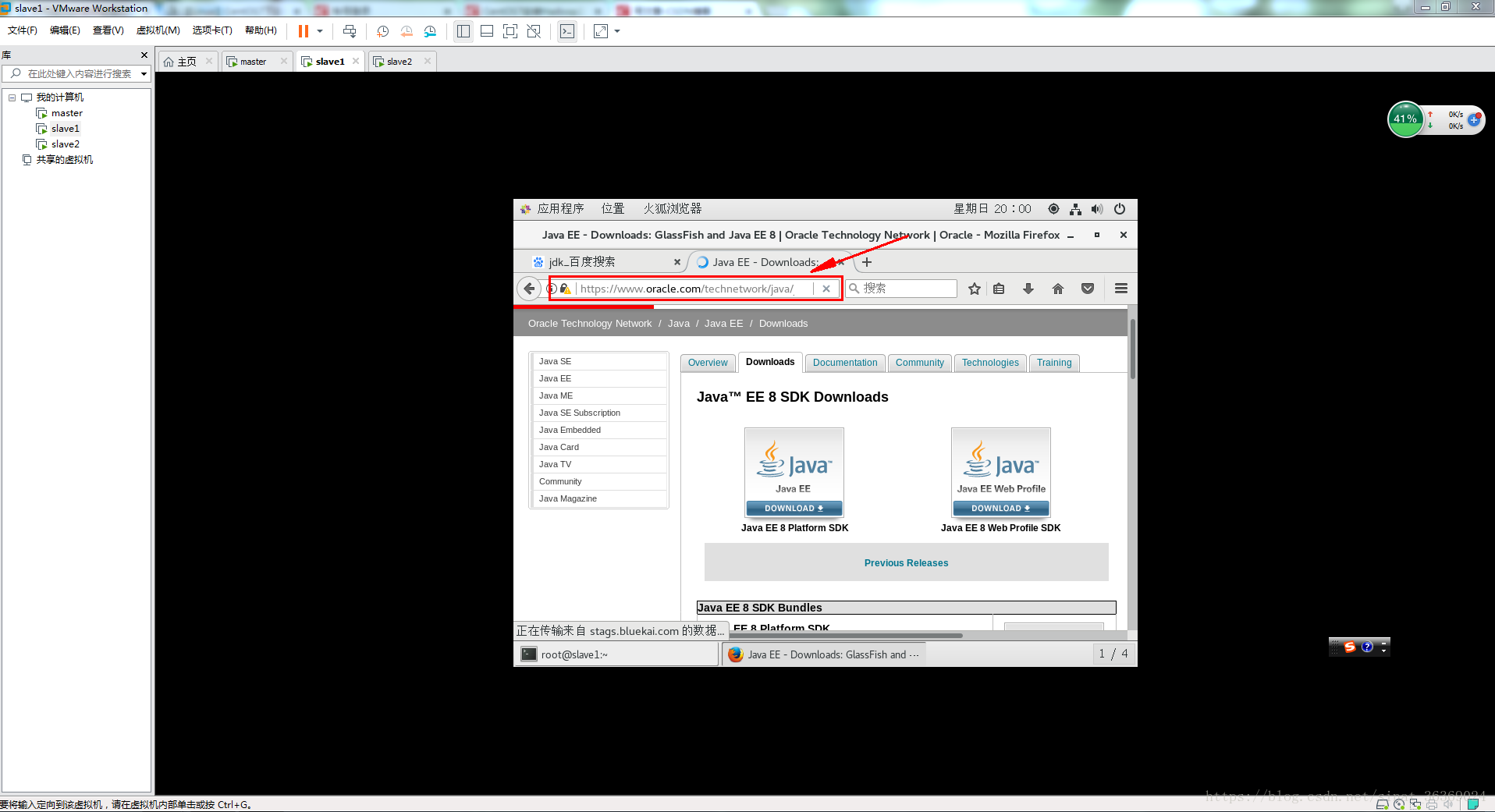

A.在虚拟机中借助自带的火狐浏览器,将jdk文件下载到虚拟机中
技术图片

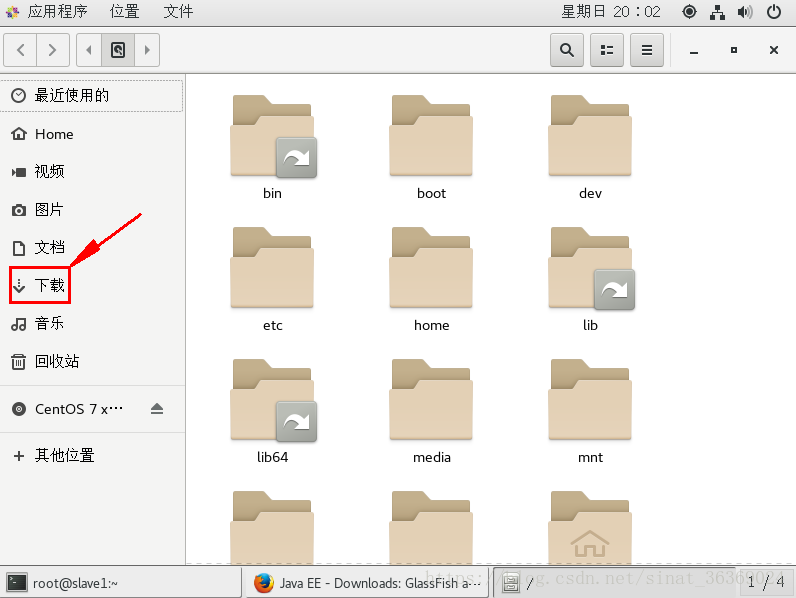

默认下载到Linux系统的下载文件中
技术图片

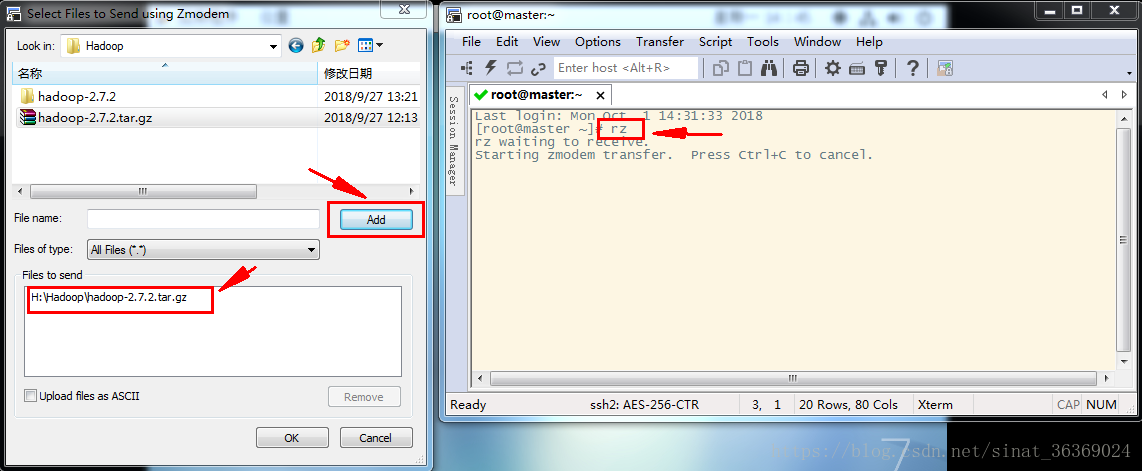

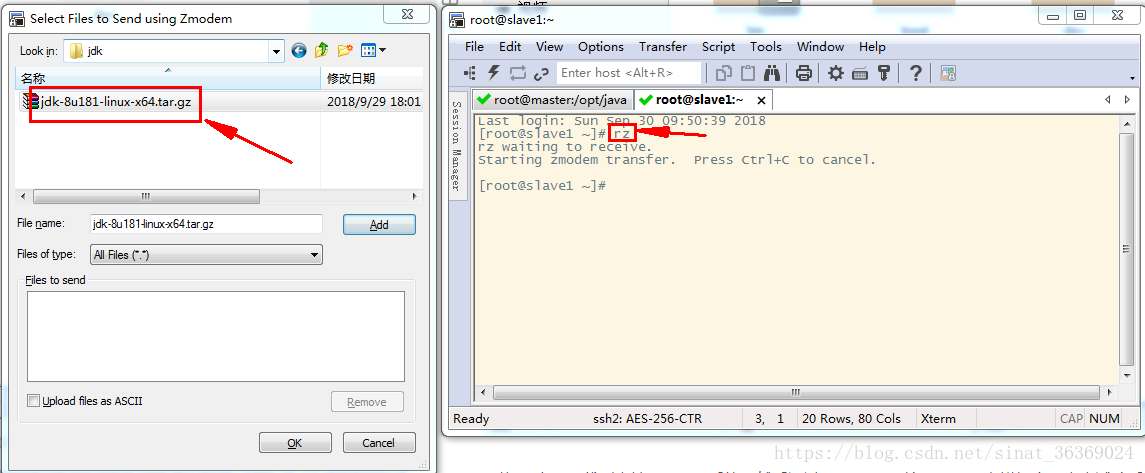

B.将jdk直接下载到本地windows系统,然后通过SecureCRT等工具导入虚拟机中,本次试验采用该法

[root@,master ~]# rz
rz waiting to receive.
Starting zmodem transfer.  Press Ctrl+C to cancel.
Transferring jdk-8u181-linux-x64.tar.gz...
  100%  181295 KB    36259 KB/sec    00:00:05       0 Errors

技术图片

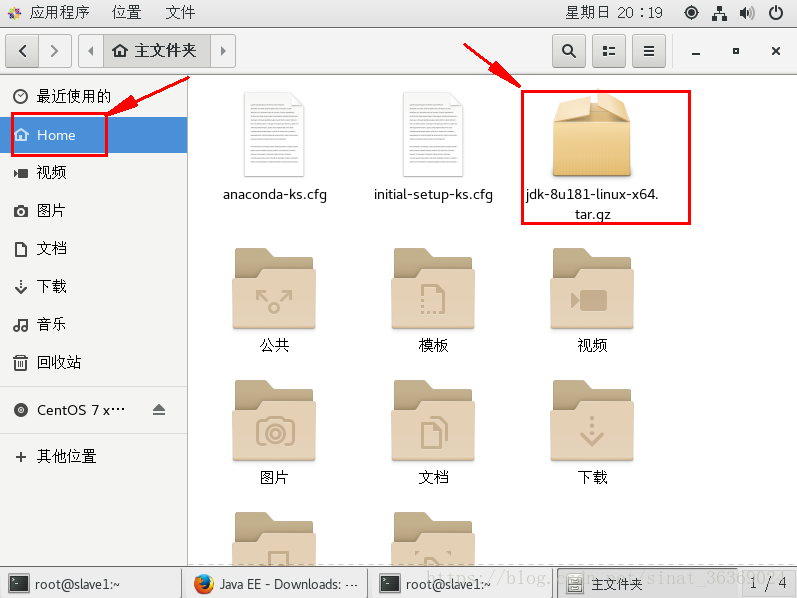

由于本机直接root用户登录,通过rz命令将jdk载入到/root/Home路径。
技术图片

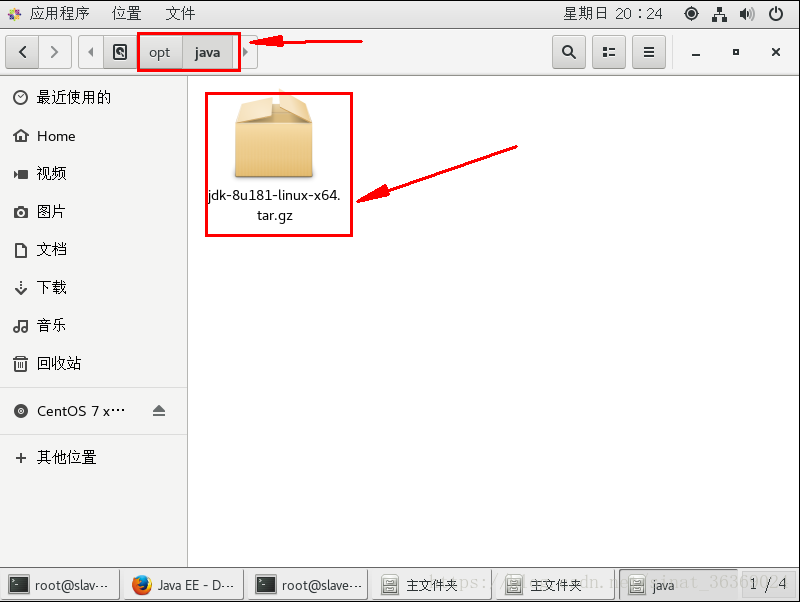

将idk安装包转移到系统文件中,可以通过makdir命令,也可以直接定位到安装文件然后手动转移并修改jdk路径,本次试验首先在opt文件下新建一个java文件,然后将jdk放入/opt/java路径下
技术图片
通过tar -zxvf jdk-8u181-linux-x64.tar.gz命令解压安装包

[root@master ~]# cd /opt/java
[root@master java]# tar -zxvf jdk-8u181-linux-x64.tar.gz

3.2.3 环境变量设置

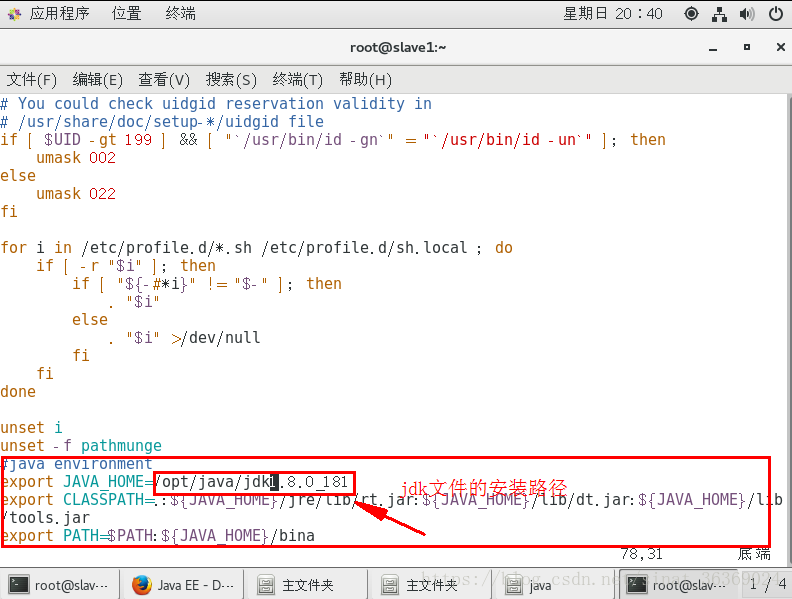

1)通过vi /etc/profile或者vim /etc/profile进入profile文件的编辑状态(vim相关编辑命令请自行百度),也可直接在Linux系统下直接进入/etc/profile路径进行操作。最后,将以下内容复制到profile文件的最后。

#java environment
export JAVA_HOME=/opt/java/jdk1.8.0_181
export CLASSPATH=.:${JAVA_HOME}/jre/lib/rt.jar:${JAVA_HOME}/lib/dt.jar:${JAVA_HOME}/lib/tools.jar
export PATH=$PATH:${JAVA_HOME}/bin

技术图片
2)输入source /etc/profile使得刚才的修改生效,同时java -version再次查看java是否已经完成安装

[root@master ~]# source /etc/profile
[root@master ~]# java -version
java version "1.8.0_181"
Java(TM) SE Runtime Environment (build 1.8.0_181-b13)
Java HotSpot(TM) 64-Bit Server VM (build 25.181-b13, mixed mode)

3.3 SSH免密登陆

3.3.1 准备工作

1)查看是否安装SSH,一般Linux系统默认安装

[root@master ~]# rpm -qa |grep ssh
openssh-clients-7.4p1-16.el7.x86_64
libssh2-1.4.3-10.el7_2.1.x86_64
openssh-7.4p1-16.el7.x86_64
openssh-server-7.4p1-16.el7.x86_64

2)借助vi /etc/host修改机器名和IP

master  192.168.31.237
slave1  192.168.31.238
slave2  192.168.31.239

3.3.2 设置免密登陆

1)生成公钥与私钥

[root@master ~]# ssh-keygen -t rsa
Generating public/private rsa key pair.
Enter file in which to save the key (/root/.ssh/id_rsa): y
Enter passphrase (empty for no passphrase):
Enter same passphrase again:
Your identification has been saved in y.
Your public key has been saved in y.pub.
The key fingerprint is:
SHA256:+cCJUbTOrw0ON9gjKK7D5rsdNRcWlrNFXxpZpDY2jM4 root@slave2
The key's randomart image is:
+---[RSA 2048]----+
|       +=. .++   |
|      .+.o+.=    |
|      .o=. X     |
|      .B+oo o    |
|     o..SE       |
|    ..oo +       |
|. ... + * o      |
|.+...  = *       |
|+*+.    o .      |
+----[SHA256]-----+
[root@master ~]#

2)合并公钥到authorized_keys文件,在master服务器,进入/root/.ssh目录,通过SSH命令合并

[root@master ~]# cd /root/.ssh
[root@master ~]# cat id_rsa.pub>> authorized_keys
[root@master ~]# ssh root@192.168.31.238 cat ~/.ssh/id_rsa.pub >> authorized_keys
[root@master ~]# ssh root@192.168.31.239 cat ~/.ssh/id_rsa.pub >> authorized_keys

3)把master服务器的authorized_keysknown_hosts复制到slave服务器的/root/.ssh目录。

scp -r /root/.ssh/authorized_keys root@192.168.31.238:/root/.ssh/
scp -r /root/.ssh/known_hosts   root@192.168.31.238:/root/.ssh/

scp -r /root/.ssh/authorized_keys root@192.168.31.239:/root/.ssh/
scp -r /root/.ssh/known_hosts  root@192.168.31.239:/root/.ssh/

4)验证是否可以免密登陆其他机器

[root@master ~]# ssh slave1
Last login: Mon Oct  1 16:43:06 2018
[root@slave1 ~]# ssh master
Last login: Mon Oct  1 16:43:58 2018 from slave1
[root@master ~]# ssh slave2
Last login: Mon Oct  1 16:43:33 2018

bug
如何解决虚拟机无法连接外网?

[root@master ~]# ifconfig
ens33: flags=4163<UP,BROADCAST,RUNNING,MULTICAST>  mtu 1500
# 未生成ip地址
        inet6 fe80::20c:29ff:fe72:641f   prefixlen 64  scopeid 0x20<link>
        ether 00:0c:29:72:64:1f  txqueuelen 1000  (Ethernet)
        RX packets 12335  bytes 1908583 (1.8 MiB)
        RX errors 0  dropped 868  overruns 0  frame 0
        TX packets 11  bytes 828 (828.0 B)
        TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0
lo: flags=73<UP,LOOPBACK,RUNNING>  mtu 65536
        inet 127.0.0.1  netmask 255.0.0.0
        inet6 ::1  prefixlen 128  scopeid 0x10<host>
        loop  txqueuelen 1000  (Local Loopback)
        RX packets 0  bytes 0 (0.0 B)
        RX errors 0  dropped 0  overruns 0  frame 0
        TX packets 0  bytes 0 (0.0 B)
        TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0
virbr0: flags=4099<UP,BROADCAST,MULTICAST>  mtu 1500
        inet 192.168.122.1  netmask 255.255.255.0  broadcast 192.168.122.255
        ether 52:54:00:cb:c7:a8  txqueuelen 1000  (Ethernet)
        RX packets 0  bytes 0 (0.0 B)
        RX errors 0  dropped 0  overruns 0  frame 0
        TX packets 0  bytes 0 (0.0 B)
        TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0

[root@master ~]# service network start
Restarting network (via systemctl):  Job for network.service failed because the control process exited with error code. See "systemctl status network.service" and "journalctl -xe" for details.
                                                           [失败]

[root@master ~]# systemctl status network.service
● network.service - LSB: Bring up/down networking
   Loaded: loaded (/etc/rc.d/init.d/network; bad; vendor preset: disabled)
   Active: failed (Result: exit-code) since 三 2018-12-05 16:59:04 CST; 1min 7s ago
     Docs: man:systemd-sysv-generator(8)
  Process: 4546 ExecStart=/etc/rc.d/init.d/network start (code=exited, status=1/FAILURE)
12月 05 16:59:04 master network[4546]: RTNETLINK answers: File exists
12月 05 16:59:04 master network[4546]: RTNETLINK answers: File exists
12月 05 16:59:04 master network[4546]: RTNETLINK answers: File exists
12月 05 16:59:04 master network[4546]: RTNETLINK answers: File exists
12月 05 16:59:04 master network[4546]: RTNETLINK answers: File exists
12月 05 16:59:04 master network[4546]: RTNETLINK answers: File exists
12月 05 16:59:04 master systemd[1]: network.service: control process exited, code...=1
12月 05 16:59:04 master systemd[1]: Failed to start LSB: Bring up/down networking.
12月 05 16:59:04 master systemd[1]: Unit network.service entered failed state.
12月 05 16:59:04 master systemd[1]: network.service failed.
Hint: Some lines were ellipsized, use -l to show in full.

[root@master ~]# tail -f /var/log/messages
Dec  5 16:59:04 master network: RTNETLINK answers: File exists
Dec  5 16:59:04 master network: RTNETLINK answers: File exists
Dec  5 16:59:04 master systemd: network.service: control process exited, code=exited status=1
Dec  5 16:59:04 master systemd: Failed to start LSB: Bring up/down networking.
Dec  5 16:59:04 master systemd: Unit network.service entered failed state.
Dec  5 16:59:04 master systemd: network.service failed.
Dec  5 17:00:01 master systemd: Started Session 10 of user root.
Dec  5 17:00:01 master systemd: Starting Session 10 of user root.
Dec  5 17:01:01 master systemd: Started Session 11 of user root.
Dec  5 17:01:01 master systemd: Starting Session 11 of user root.

[root@master ~]# cat /var/log/messages | grep network
Dec  5 14:09:20 master kernel: drop_monitor: Initializing network drop monitor service
Dec  5 14:09:43 master systemd: Starting Import network configuration from initramfs...
Dec  5 14:09:43 master systemd: Started Import network configuration from initramfs.
Dec  5 14:10:01 master systemd: Starting LSB: Bring up/down networking...
Dec  5 14:10:08 master network: 正在打开环回接口: [  确定  ]
Dec  5 14:10:09 master network: 正在打开接口 ens33: ERROR     : [/etc/sysconfig/network-scripts/ifup-eth] Error, some other host (70:85:C2:03:8E:AF) already uses address 192.168.31.237.
Dec  5 14:10:09 master /etc/sysconfig/network-scripts/ifup-eth: Error, some other host (70:85:C2:03:8E:AF) already uses address 192.168.31.237.
Dec  5 14:10:09 master network: [失败]
Dec  5 14:10:09 master systemd: network.service: control process exited, code=exited status=1
Dec  5 14:10:09 master systemd: Failed to start LSB: Bring up/down networking.
Dec  5 14:10:09 master systemd: Unit network.service entered failed state.
Dec  5 14:10:09 master systemd: network.service failed.
Dec  5 14:11:46 master pulseaudio: GetManagedObjects() failed: org.freedesktop.DBus.Error.NoReply: Did not receive a reply. Possible causes include: the remote application did not send a reply, the message bus security policy blocked the reply, the reply timeout expired, or the network connection was broken.

solution
解决方法依具体情况而定,大致分为以下几种:

# 01 修改ifcfg-ens33文件(网络上很多资料提示需要将ens33变更为eth0,其实大可不必)
[root@master ~]# cd /etc/sysconfig/network-scripts
[root@master network-scripts]# ls
ifcfg-ens33  ifdown-isdn      ifup          ifup-plip      ifup-tunnel
ifcfg-lo     ifdown-post      ifup-aliases  ifup-plusb     ifup-wireless
ifdown       ifdown-ppp       ifup-bnep     ifup-post      init.ipv6-global
ifdown-bnep  ifdown-routes    ifup-eth      ifup-ppp       network-functions
ifdown-eth   ifdown-sit       ifup-ib       ifup-routes    network-functions-ipv6
ifdown-ib    ifdown-Team      ifup-ippp     ifup-sit
ifdown-ippp  ifdown-TeamPort  ifup-ipv6     ifup-Team
ifdown-ipv6  ifdown-tunnel    ifup-isdn     ifup-TeamPort
[root@master network-scripts]# vi ifcfg-ens33
TYPE="Ethernet"
PROXY_METHOD="none"
BROWSER_ONLY="no"
#设置静态IP
BOOTPROTO="static"
DEFROUTE="yes"
IPV4_FAILURE_FATAL="no"
IPV6INIT="yes"
IPV6_AUTOCONF="yes"
IPV6_DEFROUTE="yes"
IPV6_FAILURE_FATAL="no"
IPV6_ADDR_GEN_MODE="stable-privacy"
NAME="ens33"
UUID="cecb46d8-4d6e-4678-b2f4-445b9f09c73d"
DEVICE="ens33"
#开机自启
ONBOOT="yes"
IPADDR=192.168.31.237
NETMASK=255.255.255.0
GATEWAY=192.168.31.1
DNS1=192.168.31.1

# 02 考虑到当前IP被占用的情况,设置新的静态IP地址,包括/etc/hosts和/etc/sysconfig/network-scripts/ifcfg-ens33
[root@master ~]# vi /etc/hostname
[root@master ~]# vi /etc/sysconfig/network-scripts/ifcfg-ens33
[root@master ~]# service network restart
Restarting network (via systemctl):                        [  确定  ]

# 03 关闭NetworkManager管理套件
[root@master ~]# systemctl stop NetworkManager
[root@master ~]# systemctl disable NetworkManager
Removed symlink /etc/systemd/system/multi-user.target.wants/NetworkManager.service.
Removed symlink /etc/systemd/system/dbus-org.freedesktop.NetworkManager.service.
Removed symlink /etc/systemd/system/dbus-org.freedesktop.nm-dispatcher.service.
[root@master ~]# systemctl restart network

# 通过上述方式最终成功解决
[root@master ~]# ifconfig
ens33: flags=4163<UP,BROADCAST,RUNNING,MULTICAST>  mtu 1500
        inet 192.168.31.237  netmask 255.255.255.0  broadcast 192.168.31.255
        inet6 fe80::20c:29ff:fe72:641f  prefixlen 64  scopeid 0x20<link>
        ether 00:0c:29:72:64:1f  txqueuelen 1000  (Ethernet)
        RX packets 341  bytes 32414 (31.6 KiB)
        RX errors 0  dropped 0  overruns 0  frame 0
        TX packets 61  bytes 7540 (7.3 KiB)
        TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0
lo: flags=73<UP,LOOPBACK,RUNNING>  mtu 65536
        inet 127.0.0.1  netmask 255.0.0.0
        inet6 ::1  prefixlen 128  scopeid 0x10<host>
        loop  txqueuelen 1000  (Local Loopback)
        RX packets 2  bytes 108 (108.0 B)
        RX errors 0  dropped 0  overruns 0  frame 0
        TX packets 2  bytes 108 (108.0 B)
        TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0
virbr0: flags=4099<UP,BROADCAST,MULTICAST>  mtu 1500
        inet 192.168.122.1  netmask 255.255.255.0  broadcast 192.168.122.255
        ether 52:54:00:cb:c7:a8  txqueuelen 1000  (Ethernet)
        RX packets 0  bytes 0 (0.0 B)
        RX errors 0  dropped 0  overruns 0  frame 0
        TX packets 0  bytes 0 (0.0 B)
        TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0

3.4 Hadoop2.7.2安装及集群配置

3.4.1 Hadoop安装

1)与jdk文件处理方式类似,导入并解压到/opt/Hadoop路径下
技术图片
技术图片
2)配置hadoop环境变量

[root@master ~]# vim /etc/profile
export HADOOP_HOME=/opt/hadoop/hadoop2.7.2
 export PATH=$PATH:$HADOOP_HOME/sbin:$HADOOP_HOME/bin
:x
[root@master ~]# source /etc/profile

3)验证是否完成安装。

[root@master ~]# hadoop version
Hadoop 2.7.2
Subversion https://git-wip-us.apache.org/repos/asf/hadoop.git -r b165c4fe8a74265c792ce23f546c64604acf0e41
Compiled by jenkins on 2016-01-26T00:08Z
Compiled with protoc 2.5.0
From source with checksum d0fda26633fa762bff87ec759ebe689c
This command was run using /opt/hadoop/hadoop-2.7.2/share/hadoop/common/hadoop-common-2.7.2.jar

3.4.2 伪分布式集群配置

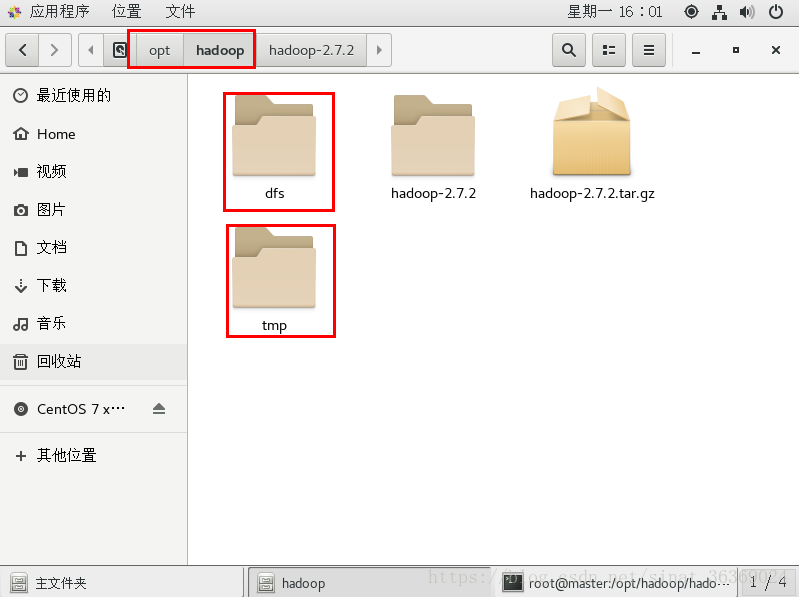

1)在/opt/hadoop目录下创建数据存放的文件夹,tmp、dfs、dfs/data、dfs/name
技术图片
2)进入hadoop配置文件目录。

[root@master ~]# cd /opt/hadoop/hadoop-2.7.2/etc/hadoop
[root@master hadoop]# ls
capacity-scheduler.xml      httpfs-env.sh            mapred-env.sh
configuration.xsl           httpfs-log4j.properties  mapred-queues.xml.template
container-executor.cfg      httpfs-signature.secret  mapred-site.xml.template
core-site.xml               httpfs-site.xml          slaves
hadoop-env.cmd              kms-acls.xml             ssl-client.xml.example
hadoop-env.sh               kms-env.sh               ssl-server.xml.example
hadoop-metrics2.properties  kms-log4j.properties     yarn-env.cmd
hadoop-metrics.properties   kms-site.xml             yarn-env.sh
hadoop-policy.xml           log4j.properties         yarn-site.xml
hdfs-site.xml               mapred-env.cmd

3)配置core-site.xml 文件

vi core-site.xml
<configuration>
    <property>
        <name>fs.default.name</name>
        <value>hdfs://master:9000</value>
    </property>
    <property>
        <name>hadoop.tmp.dir</name>
        <value>/opt/hadoop/tmp</value>
    </property>
    <property>
        <name>io.file.buffer.size</name>
        <value>131702</value>
    </property>
</configuration>

4)配置hdfs-site.xml文件

 vi hdfs-site.xml
<configuration>
    <property>
        <name>dfs.namenode.name.dir</name>
        <value>file:///opt/hadoop/dfs/name</value>
    </property>
    <property>
        <name>dfs.datanode.data.dir</name>
        <value>file:///opt/hadoop/dfs/data</value>
    </property>
    <property>
        <name>dfs.replication</name>
        <value>1</value>
    </property>
    <property>
        <name>dfs.namenode.secondary.http-address</name>
        <value>master:50090</value>
    </property>
    <property>
    <name>dfs.webhdfs.enabled</name>
    <value>true</value>
    </property>
</configuration>

5)配置 mapred-site.xml 文件

vi mapred-site.xml.template
<configuration>
<property>
        <name>mapreduce.framework.name</name>
        <value>yarn</value>
          <final>true</final>
    </property>
  <property>
     <name>mapreduce.jobtracker.http.address</name>
     <value>master:50030</value>
  </property>
    <property>
        <name>mapreduce.jobhistory.address</name>
        <value>master:10020</value>
    </property>
    <property>
        <name>mapreduce.jobhistory.webapp.address</name>
        <value>master:19888</value>
    </property>
    <property>
        <name>mapred.job.tracker</name>
        <value>http://master:9001</value>
    </property>
</configuration>

6)配置 yarn-site.xml 文件

vi yarn-site.xml
<configuration>
 <property>
        <name>yarn.nodemanager.aux-services</name>
        <value>mapreduce_shuffle</value>
    </property>
    <property>      <name>yarn.nodemanager.auxservices.mapreduce.shuffle.class</name>
        <value>org.apache.hadoop.mapred.ShuffleHandler</value>
    </property>
    <property>
        <name>yarn.resourcemanager.address</name>
        <value>master:8032</value>
    </property>
    <property>
       <name>yarn.resourcemanager.scheduler.address</name>
        <value>master:8030</value>
    </property>
    <property>
       <name>yarn.resourcemanager.resource-tracker.address</name>
        <value>master:8031</value>
    </property>
    <property>
        <name>yarn.resourcemanager.admin.address</name>
        <value>master:8033</value>
    </property>
    <property>
        <name>yarn.resourcemanager.webapp.address</name>
        <value>master:8088</value>
    </property>
     <property>
       <name>yarn.resourcemanager.hostname</name>
       <value>master</value>
</property>
    <property>
        <name>yarn.nodemanager.resource.memory-mb</name>
        <value>2048</value>
    </property>
</configuration>

7)配置hadoop-env.shyarn-env.shJAVA_HOME

[root@master hadoop]# vi hadoop-env.sh
[root@master hadoop]# vi yarn-env.sh

8)配置slaves,增加两个slave节点。

#删除默认的localhost
slave1
slave2

9)通过scp将master服务器上配置好的Hadoop复制到各个节点对应位置上。

[root@master hadoop]# scp -r /opt/hadoop  192.168.10.132:/opt/
[root@master hadoop]# scp -r /opt/hadoop  192.168.10.133:/opt/

3.4.3 启动hadoop

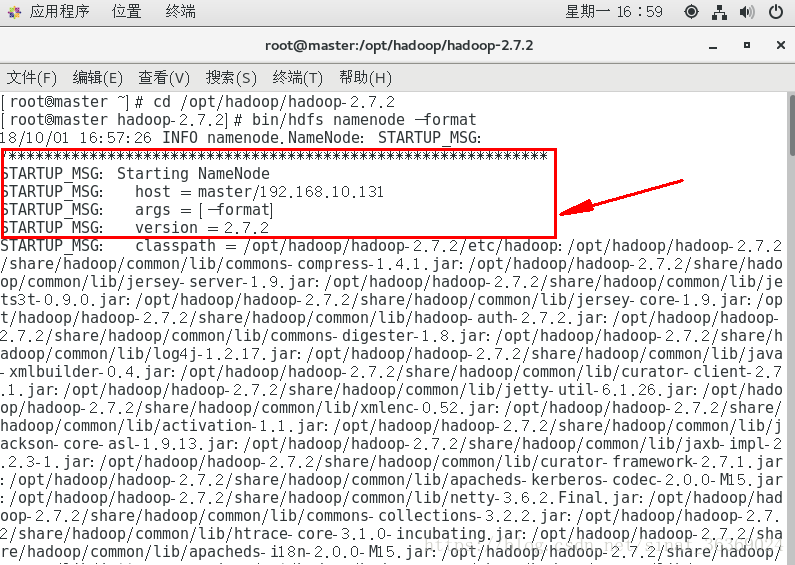

1)从master服务器上进行hadoop文件目录,并初始化

[root@master ~]# cd /opt/hadoop/hadoop-2.7.2
[root@master hadoop-2.7.2]# bin/hdfs namenode –format

技术图片
2)启动/终止命令

sbin/start-dfs.sh
sbin/start-yarn.sh
sbin/stop-dfs.sh
sbin/stop-yarn.sh

3)输入jps查看相关信息。

  1. master
[root@master hadoop-2.7.2]# jps
8976 Jps
8710 ResourceManager
8559 SecondaryNameNode
  1. slave
[root@slave1 ~]# jps
4945 Jps
3703 DataNode
4778 NodeManager

4)端口查看
技术图片
技术图片

3.5 Spark安装及环境配置

3.5.1 Scala安装

3.5.2 Spark安装

3.5.3 Spark启动

关闭/开启 防火墙。

# 开启防火墙
[root@master ~]# systemctl start firewalld.service
# 关闭防火墙
[root@master ~]# systemctl stop firewalld.service
# 开启开机启动
[root@master ~]# systemctl enable firewalld.service
# 关闭开机启动
[root@master ~]# systemctl disable firewalld.service
Removed symlink /etc/systemd/system/multi-user.target.wants/firewalld.service.
Removed symlink /etc/systemd/system/dbus-org.fedoraproject.FirewallD1.service.

启动Hadoop节点。

[root@master ~]# cd /opt/hadoop/hadoop-2.7.2/
[root@master hadoop-2.7.2]# sbin/start-all.sh
This script is Deprecated. Instead use start-dfs.sh and start-yarn.sh
Starting namenodes on [master]
master: starting namenode, logging to /opt/hadoop/hadoop-2.7.2/logs/hadoop-root-namenode-master.out
slave1: starting datanode, logging to /opt/hadoop/hadoop-2.7.2/logs/hadoop-root-datanode-slave1.out
slave2: starting datanode, logging to /opt/hadoop/hadoop-2.7.2/logs/hadoop-root-datanode-slave2.out
Starting secondary namenodes [master]
master: starting secondarynamenode, logging to /opt/hadoop/hadoop-2.7.2/logs/hadoop-root-secondarynamenode-master.out
starting yarn daemons
starting resourcemanager, logging to /opt/hadoop/hadoop-2.7.2/logs/yarn-root-resourcemanager-master.out
slave2: starting nodemanager, logging to /opt/hadoop/hadoop-2.7.2/logs/yarn-root-nodemanager-slave2.out
slave1: starting nodemanager, logging to /opt/hadoop/hadoop-2.7.2/logs/yarn-root-nodemanager-slave1.out
[root@master hadoop-2.7.2]# jps
3648 SecondaryNameNode
4099 Jps
3801 ResourceManager

启动Spark。

[root@master hadoop-2.7.2]# cd /opt/spark/spark-2.3.1-bin-hadoop2.7
[root@master spark-2.3.1-bin-hadoop2.7]# sbin/start-all.sh
starting org.apache.spark.deploy.master.Master, logging to /opt/spark/spark-2.3.1-bin-hadoop2.7/logs/spark-root-org.apache.spark.deploy.master.Master-1-master.out
slave1: starting org.apache.spark.deploy.worker.Worker, logging to /opt/spark/spark-2.3.1-bin-hadoop2.7/logs/spark-root-org.apache.spark.deploy.worker.Worker-1-slave1.out
slave2: starting org.apache.spark.deploy.worker.Worker, logging to /opt/spark/spark-2.3.1-bin-hadoop2.7/logs/spark-root-org.apache.spark.deploy.worker.Worker-1-slave2.out

Spark集群测试(master节点)。
技术图片

3.6 Zookeeper安装及环境配置

3.6.1 Zookeeper安装

安装文件解压到/opt/zookeeper路径下。

[root@master ~]# tar  -xvf   zookeeper-3.4.10.tar.gz
[root@master ~]# mv  zookeeper-3.4.10  /opt/zookeeper
[root@master ~]# mv  zookeeper-3.4.10  zookeeper3.4

zookeeper路径下创建数据文件和日志文件。

[root@master ~]# mkdir   /opt/zookeeper/data
[root@master ~]# mkdir   /opt/zookeeper/log
# 在/opt/zookeeper/data目录下创建myid文件
[root@master ~]# touch myid
[root@master ~]# vi myid
# 设定值为1
1

修改zoo.cfg文件。

[root@master ~]# cd /opt/zookeeper/zookeeper3.4/conf
# 创建zoo.cfg文件
[root@master conf]# cp zoo_sample.cfg zoo.cfg
[root@master conf]# vi zoo.cfg

具体修改如下所示:

# The number of milliseconds of each tick
tickTime=2000
# The number of ticks that the initial
# synchronization phase can take
initLimit=10
# The number of ticks that can pass between
# sending a request and getting an acknowledgement
syncLimit=5
# the directory where the snapshot is stored.
# do not use /tmp for storage, /tmp here is just
# example sakes.
#dataDir=/tmp/zookeeper
# the port at which the clients will connect
# 默认端口是2181,但本机端口被占用,遂变更为2381
clientPort=2381
# the maximum number of client connections.
# increase this if you need to handle more clients
#maxClientCnxns=60
#
# Be sure to read the maintenance section of the
# administrator guide before turning on autopurge.
#
# http://zookeeper.apache.org/doc/current/zookeeperAdmin.html#sc_maintenance
#
# The number of snapshots to retain in dataDir
#autopurge.snapRetainCount=3
# Purge task interval in hours
# Set to "0" to disable auto purge feature
#autopurge.purgeInterval=1
quorumListenOnAllIPs=ture
# 新增内容
dataDir=/opt/zookeeper/data
dataLogDir=/opt/zookeeper/log
server.1=master:2888:3888
server.2=slave1:2888:3888
server.3=slave2:2888:3888

Zookeeper传递给slave1slave2/opt/zookeeper/data路径下的myidzoo.cfg内容须保持一致。

[root@master conf]# scp -r /opt/zookeeper root@slave1:/opt
[root@master conf]# scp -r /opt/zookeeper root@slave2:/opt

3.6.2 Zookeeper环境配置

编辑环境变量。

[root@master ~]# vi /etc/profile

修改内容如下:

export  ZK_HOME=/opt/zookeeper/zookeeper3.4
PATH=$PATH:${JAVA_HOME}/bin:$HADOOP_HOME/sbin:$HADOOP_HOME/bin:${SCALA_HOME}/bin:${SPARK_HOME}/bin:${ZK_HOME}/bin:$PATH

使修改生效。

[root@master ~]# source /etc/profile

3.6.3 Zookeeper启动

完成Zookeeper的安装配置后,在每一台机器上启动。注:Zookeeper遵循选举制
slave1

[root@slave1 ~]# cd /opt/zookeeper/zookeeper3.4/bin
[root@slave1 bin]# ./zkServer.sh start
ZooKeeper JMX enabled by default
Using config: /opt/zookeeper/zookeeper3.4/bin/../conf/zoo.cfg
Starting zookeeper ... STARTED
[root@slave1 bin]# ./zkServer.sh status
ZooKeeper JMX enabled by default
Using config: /opt/zookeeper/zookeeper3.4/bin/../conf/zoo.cfg
Mode: leader

slave2

[root@slave2 ~]#  cd /opt/zookeeper/zookeeper3.4/bin
[root@slave2 bin]# ./zkServer.sh start
ZooKeeper JMX enabled by default
Using config: /opt/zookeeper/zookeeper3.4/bin/../conf/zoo.cfg
Starting zookeeper ... STARTED
[root@slave2 bin]# ./zkServer.sh status
ZooKeeper JMX enabled by default
Using config: /opt/zookeeper/zookeeper3.4/bin/../conf/zoo.cfg
Mode: follower

master

[root@master ~]# cd /opt/zookeeper/zookeeper3.4/bin
[root@master bin]# ./zkServer.sh start
ZooKeeper JMX enabled by default
Using config: /opt/zookeeper/zookeeper3.4/bin/../conf/zoo.cfg
Starting zookeeper ... already running as process 3944.
[root@master bin]# ./zkServer.sh status
ZooKeeper JMX enabled by default
Using config: /opt/zookeeper/zookeeper3.4/bin/../conf/zoo.cfg
Mode: follower

3.7 HBase安装及环境配置

3.7.1 HBase安装

将HBase安装包加载至/opt/HBase路径下,并将其解压到当前路径。

[root@master ~]# mkdir /opt/HBase
[root@master ~]# cd /opt/HBase
[root@master HBase]# rz
rz waiting to receive.
Starting zmodem transfer.  Press Ctrl+C to cancel.
Transferring hbase-2.0.2-bin.tar.gz...
  100%  150220 KB    10730 KB/sec    00:00:14       0 Errors
[root@master ~]# tar  -xvf   hbase-2.0.2-bin.tar.gz

3.7.2 配置文件修改

切换到/opt/hbase/hbase-2.0.2/conf路径。
技术图片
修改hbase-env.sh,在文件中添加以下配置。

export JAVA_HOME=/opt/java/jdk1.8.0_181
export HADOOP_HOME=/opt/hadoop/hadoop-2.7.2
export HBASE_HOME=/opt/HBase/hbase-2.0.2
export HBASE_CLASSPATH=/opt/hadoop/hadoop-2.7.2/etc/hadoop
export HBASE_PID_DIR=/root/hbase/pids
export HBASE_MANAGES_ZK=false

修改hbase-site.xml,在文件中添加以下配置。

<configuration>
<property>
 <name>hbase.rootdir</name>
 <value>hdfs://master:9000/hbase</value>
 <description>The directory shared byregion servers.</description>
</property>
 <!-- hbase端口 -->
<property>
 <name>hbase.zookeeper.property.clientPort</name>
 <value>2181</value>
</property>
<!-- 超时时间 -->
<property>
 <name>zookeeper.session.timeout</name>
 <value>120000</value>
</property>
<!--防止服务器时间不同步出错 -->
<property>
<name>hbase.master.maxclockskew</name>
<value>150000</value>
</property>
<!-- 集群主机配置 -->
<property>
 <name>hbase.zookeeper.quorum</name>
 <value>master,slave3,slave4</value>
</property>
<!--   路径存放 -->
<property>
 <name>hbase.tmp.dir</name>
 <value>/root/hbase/tmp</value>
</property>
<!-- true表示分布式 -->
<property>
 <name>hbase.cluster.distributed</name>
 <value>true</value>
</property>
  <!-- 指定master -->
  <property>
    <name>hbase.master</name>
    <value>master:60000</value>
  </property>
</configuration>

修改regionservers,指定hbase的主从。

master
slave1
slave2

将这些配置传输到其他机器上。

scp -r /opt/HBase root@slave1:/opt
scp -r /opt/HBase root@slave2:/opt

配置环境变量。

[root@master ~]# vi /etc/profile

配置文件内容如下所示:

export HBASE_HOME=/opt/HBase/hbase-2.0.2
export PATH=$PATH:${JAVA_HOME}/bin:$HADOOP_HOME/sbin:$HADOOP_HOME/bin:${SCALA_HOME}/bin:${SPARK_HOME}/bin:${ZK_HOME}/bin:${HBASE_HOME}/bin:$PATH

使配置文件生效。

[root@master ~]# source  /etc/profile

查看安装结果。

[root@master ~]# hbase version
SLF4J: Class path contains multiple SLF4J bindings.
SLF4J: Found binding in [jar:file:/opt/HBase/hbase-2.0.2/lib/slf4j-log4j12-1.7.25.jar!/org/slf4j/impl/StaticLoggerBinder.class]
SLF4J: Found binding in [jar:file:/opt/hadoop/hadoop-2.7.2/share/hadoop/common/lib/slf4j-log4j12-1.7.10.jar!/org/slf4j/impl/StaticLoggerBinder.class]
SLF4J: See http://www.slf4j.org/codes.html#multiple_bindings for an explanation.
SLF4J: Actual binding is of type [org.slf4j.impl.Log4jLoggerFactory]
HBase 2.0.2
Source code repository git://ve0524/home/stack/hbase.git revision=1cfab033e779df840d5612a85277f42a6a4e8172
Compiled by stack on Tue Aug 28 20:50:40 PDT 2018
From source with checksum 80b9ac6ea66f2b5cf6bc3ce886f3fc67

3.7.3 启动HBase

Hbase是基于hadoop提供的分布式文件系统的,所以启动Hbase之前,先确保hadoop在正常运行,另外Hbase还依赖于zookkeeper,本来我们可以用hbase自带的zookeeper,但是我们上面的配置启用的是我们自己的zookeeper集群,所以在启动hbase前,还要确保zokeeper已经正常运行。Hbase可以只在hadoop的某个namenode节点上安装,也可以在所有的hadoop节点上安装,但是启动的时候只需要在一个节点上启动就行了,本例中,我在master、slave1、slave2都安装了Hbase,启动的时候只需要在master上启动就OK。

[root@master ~]# cd /opt/HBase/hbase-2.0.2/bin
[root@master bin]# start-hbase.sh
SLF4J: Class path contains multiple SLF4J bindings.
SLF4J: Found binding in [jar:file:/opt/HBase/hbase-2.0.2/lib/slf4j-log4j12-1.7.25.jar!/org/slf4j/impl/StaticLoggerBinder.class]
SLF4J: Found binding in [jar:file:/opt/hadoop/hadoop-2.7.2/share/hadoop/common/lib/slf4j-log4j12-1.7.10.jar!/org/slf4j/impl/StaticLoggerBinder.class]
SLF4J: See http://www.slf4j.org/codes.html#multiple_bindings for an explanation.
SLF4J: Actual binding is of type [org.slf4j.impl.Log4jLoggerFactory]
running master, logging to /opt/HBase/hbase-2.0.2/logs/hbase-root-master-master.out
slave4: running regionserver, logging to /opt/HBase/hbase-2.0.2/logs/hbase-root-regionserver-slave4.out
slave3: running regionserver, logging to /opt/HBase/hbase-2.0.2/logs/hbase-root-regionserver-slave3.out

bug
SLF4J: Class path contains multiple SLF4J bindings.
SLF4J: Found binding in [jar:file:/opt/HBase/hbase-2.0.2/lib/slf4j-log4j12-1.7.25.jar!/org/slf4j/impl/StaticLoggerBinder.class]
SLF4J: Found binding in [jar:file:/opt/hadoop/hadoop-2.7.2/share/hadoop/common/lib/slf4j-log4j12-1.7.10.jar!/org/slf4j/impl/StaticLoggerBinder.class]
SLF4J: See http://www.slf4j.org/codes.html#multiple_bindings for an explanation.
SLF4J: Actual binding is of type [org.slf4j.impl.Log4jLoggerFactory]
solution
发生jar包冲突了,移除其中一个即可。
[root@master bin]# cd /opt/HBase/hbase-2.0.2/lib
[root@master lib]# rm slf4j-log4j12-1.7.25.jar
rm:是否删除普通文件 "slf4j-log4j12-1.7.25.jar"?yes
[root@master lib]# cd /opt/HBase/hbase-2.0.2/bin
[root@master bin]# start-hbase.sh
running master, logging to /opt/HBase/hbase-2.0.2/logs/hbase-root-master-master.out
slave3: running regionserver, logging to /opt/HBase/hbase-2.0.2/logs/hbase-root-regionserver-slave3.out
slave4: running regionserver, logging to /opt/HBase/hbase-2.0.2/logs/hbase-root-regionserver-slave4.out
[root@master bin]# jps
9027 HMaster
9141 Jps
3544 ResourceManager
3944 QuorumPeerMain
3849 Master
3387 SecondaryNameNode
3196 NameNode

状态信息查看,访问IP:16030或者16010
技术图片
此外也可以通过命令行查看状态。

# 切换路径
[root@master bin]# cd /opt/HBase/hbase-2.0.2/bin
# 进入hbase命令窗口
[root@master bin]# ./hbase  shell
HBase Shell
Use "help" to get list of supported commands.
Use "exit" to quit this interactive shell.
Version 2.0.2, r1cfab033e779df840d5612a85277f42a6a4e8172, Tue Aug 28 20:50:40 PDT 2018
Took 0.0268 seconds
# 状态查看
hbase(main):001:0> status
1 active master, 0 backup masters, 3 servers, 0 dead, 0.6667 average load
Took 1.2047 seconds
# 退出
hbase(main):002:0> exit

bug
打开webUI界面后,提示The RegionServer is initializing!信息。
solution

查看hdfs safe mode

[root@master bin]# hadoop dfsadmin -safemode get

退出hdfs safe mode

[root@master bin]# hadoop dfsadmin -safemode leave

3.8 Hive安装及环境配置

Hive可以选择只安装在master节点上,而不必每一台都部署。

3.8.1 mysql安装

由于mysql是Hive默认的元数据,所以需先行安装Mysql。

# 检查是否已安装mysql
[root@master ~]# rpm -qa | grep -i mysql
mysql-community-libs-5.6.42-2.el7.x86_64
mysql-community-server-5.6.42-2.el7.x86_64
mysql-community-release-el7-5.noarch
mysql-community-client-5.6.42-2.el7.x86_64
mysql-community-common-5.6.42-2.el7.x86_64
# 如果需要卸载
[root@master ~]# rpm -e --nodeps mysql-community-libs-5.6.42-2.el7.x86_64
[root@master ~]# rpm -e --nodeps mysql-community-server-5.6.42-2.el7.x86_64
[root@master ~]# rpm -e --nodeps mysql-community-release-el7-5.noarch
[root@master ~]# rpm -e --nodeps mysql-community-client-5.6.42-2.el7.x86_64
[root@master ~]# rpm -e --nodeps mysql-community-common-5.6.42-2.el7.x86_64
# 清理文件夹,必须通过该方式才能彻底卸载
[root@master ~]# find / -name mysql
/etc/selinux/targeted/active/modules/100/mysql
/etc/selinux/targeted/tmp/modules/100/mysql
/var/lib/mysql
/var/lib/mysql/mysql
/usr/lib64/mysql
/usr/share/mysql
/opt/hive/apache-hive-2.3.4-bin/scripts/metastore/upgrade/mysql
[root@master ~]# rm -rf /usr/share/mysql
[root@master ~]# rm -rf /var/lib/mysql
[root@master ~]# rm -rf /var/lib/mysql/mysql
# 安装mysql
[root@master ~]# rpm -qa | grep mysql
[root@master ~]# wget http://repo.mysql.com/mysql-community-release-el7-5.noarch.rpm
--2018-12-06 16:46:05--  http://repo.mysql.com/mysql-community-release-el7-5.noarch.rpm
正在解析主机 repo.mysql.com (repo.mysql.com)... 23.220.145.218
正在连接 repo.mysql.com (repo.mysql.com)|23.220.145.218|:80... 已连接。
已发出 HTTP 请求,正在等待回应... 200 OK
长度:6140 (6.0K) [application/x-redhat-package-manager]
正在保存至: “mysql-community-release-el7-5.noarch.rpm”

100%[===============================================================================================================================================================================================>] 6,140       --.-K/s 用时 0.003s

2018-12-06 16:46:06 (1.81 MB/s) - 已保存 “mysql-community-release-el7-5.noarch.rpm” [6140/6140])

[root@master ~]# sudo rpm -ivh mysql-community-release-el7-5.noarch.rpm
准备中...                          ################################# [100%]
正在升级/安装...
   1:mysql-community-release-el7-5    ################################# [100%]
[root@master ~]# sudo yum install mysql-server
已加载插件:fastestmirror, langpacks
Loading mirror speeds from cached hostfile
 * base: mirrors.aliyun.com
 * extras: mirrors.163.com
 * updates: mirrors.aliyun.com
base                                                                                                                                                                                                              | 3.6 kB  00:00:00
extras                                                                                                                                                                                                            | 3.4 kB  00:00:00
mysql-connectors-community                                                                                                                                                                                        | 2.5 kB  00:00:00
mysql-tools-community                                                                                                                                                                                             | 2.5 kB  00:00:00
mysql56-community                                                                                                                                                                                                 | 2.5 kB  00:00:00
updates                                                                                                                                                                                                           | 3.4 kB  00:00:00
(1/3): mysql-connectors-community/x86_64/primary_db                                                                                                                                                               |  29 kB  00:00:00
(2/3): mysql-tools-community/x86_64/primary_db                                                                                                                                                                    |  48 kB  00:00:00
(3/3): mysql56-community/x86_64/primary_db                                                                                                                                                                        | 209 kB  00:00:01
正在解决依赖关系
--> 正在检查事务
---> 软件包 mysql-community-server.x86_64.0.5.6.42-2.el7 将被 安装
--> 正在处理依赖关系 mysql-community-common(x86-64) = 5.6.42-2.el7,它被软件包 mysql-community-server-5.6.42-2.el7.x86_64 需要
--> 正在处理依赖关系 mysql-community-client(x86-64) >= 5.6.10,它被软件包 mysql-community-server-5.6.42-2.el7.x86_64 需要
--> 正在处理依赖关系 perl(DBI),它被软件包 mysql-community-server-5.6.42-2.el7.x86_64 需要
--> 正在检查事务
---> 软件包 mysql-community-client.x86_64.0.5.6.42-2.el7 将被 安装
--> 正在处理依赖关系 mysql-community-libs(x86-64) >= 5.6.10,它被软件包 mysql-community-client-5.6.42-2.el7.x86_64 需要
---> 软件包 mysql-community-common.x86_64.0.5.6.42-2.el7 将被 安装
---> 软件包 perl-DBI.x86_64.0.1.627-4.el7 将被 安装
--> 正在处理依赖关系 perl(RPC::PlServer) >= 0.2001,它被软件包 perl-DBI-1.627-4.el7.x86_64 需要
--> 正在处理依赖关系 perl(RPC::PlClient) >= 0.2000,它被软件包 perl-DBI-1.627-4.el7.x86_64 需要
--> 正在检查事务
---> 软件包 mariadb-libs.x86_64.1.5.5.56-2.el7 将被 取代
---> 软件包 mysql-community-libs.x86_64.0.5.6.42-2.el7 将被 舍弃
---> 软件包 perl-PlRPC.noarch.0.0.2020-14.el7 将被 安装
--> 正在处理依赖关系 perl(Net::Daemon) >= 0.13,它被软件包 perl-PlRPC-0.2020-14.el7.noarch 需要
--> 正在处理依赖关系 perl(Net::Daemon::Test),它被软件包 perl-PlRPC-0.2020-14.el7.noarch 需要
--> 正在处理依赖关系 perl(Net::Daemon::Log),它被软件包 perl-PlRPC-0.2020-14.el7.noarch 需要
--> 正在处理依赖关系 perl(Compress::Zlib),它被软件包 perl-PlRPC-0.2020-14.el7.noarch 需要
--> 正在检查事务
---> 软件包 perl-IO-Compress.noarch.0.2.061-2.el7 将被 安装
--> 正在处理依赖关系 perl(Compress::Raw::Zlib) >= 2.061,它被软件包 perl-IO-Compress-2.061-2.el7.noarch 需要
--> 正在处理依赖关系 perl(Compress::Raw::Bzip2) >= 2.061,它被软件包 perl-IO-Compress-2.061-2.el7.noarch 需要
---> 软件包 perl-Net-Daemon.noarch.0.0.48-5.el7 将被 安装
--> 正在检查事务
---> 软件包 perl-Compress-Raw-Bzip2.x86_64.0.2.061-3.el7 将被 安装
---> 软件包 perl-Compress-Raw-Zlib.x86_64.1.2.061-4.el7 将被 安装
--> 解决依赖关系完成

依赖关系解决

=========================================================================================================================================================================================================================================
 Package                                                         架构                                           版本                                                     源                                                         大小
=========================================================================================================================================================================================================================================
正在安装:
 mysql-community-libs                                            x86_64                                         5.6.42-2.el7                                             mysql56-community                                         2.0 M
      替换  mariadb-libs.x86_64 1:5.5.56-2.el7
 mysql-community-server                                          x86_64                                         5.6.42-2.el7                                             mysql56-community                                          59 M
为依赖而安装:
 mysql-community-client                                          x86_64                                         5.6.42-2.el7                                             mysql56-community                                          20 M
 mysql-community-common                                          x86_64                                         5.6.42-2.el7                                             mysql56-community                                         257 k
 perl-Compress-Raw-Bzip2                                         x86_64                                         2.061-3.el7                                              base                                                       32 k
 perl-Compress-Raw-Zlib                                          x86_64                                         1:2.061-4.el7                                            base                                                       57 k
 perl-DBI                                                        x86_64                                         1.627-4.el7                                              base                                                      802 k
 perl-IO-Compress                                                noarch                                         2.061-2.el7                                              base                                                      260 k
 perl-Net-Daemon                                                 noarch                                         0.48-5.el7                                               base                                                       51 k
 perl-PlRPC                                                      noarch                                         0.2020-14.el7                                            base                                                       36 k

事务概要
=========================================================================================================================================================================================================================================
安装  2 软件包 (+8 依赖软件包)

总下载量:82 M
Is this ok [y/d/N]: y
Downloading packages:
警告:/var/cache/yum/x86_64/7/mysql56-community/packages/mysql-community-common-5.6.42-2.el7.x86_64.rpm: 头V3 DSA/SHA1 Signature, 密钥 ID 5072e1f5: NOKEY                                              ] 231 kB/s | 259 kB  00:06:03 ETA
mysql-community-common-5.6.42-2.el7.x86_64.rpm 的公钥尚未安装
(1/10): mysql-community-common-5.6.42-2.el7.x86_64.rpm                                                                                                                                                            | 257 kB  00:00:01
(2/10): mysql-community-client-5.6.42-2.el7.x86_64.rpm                                                                                                                                                            |  20 MB  00:00:07
警告:/var/cache/yum/x86_64/7/base/packages/perl-Compress-Raw-Bzip2-2.061-3.el7.x86_64.rpm: 头V3 RSA/SHA256 Signature, 密钥 ID f4a80eb5: NOKEY                                                         ] 2.6 MB/s |  20 MB  00:00:23 ETA
perl-Compress-Raw-Bzip2-2.061-3.el7.x86_64.rpm 的公钥尚未安装
(3/10): perl-Compress-Raw-Bzip2-2.061-3.el7.x86_64.rpm                                                                                                                                                            |  32 kB  00:00:00
(4/10): perl-Compress-Raw-Zlib-2.061-4.el7.x86_64.rpm                                                                                                                                                             |  57 kB  00:00:00
(5/10): perl-IO-Compress-2.061-2.el7.noarch.rpm                                                                                                                                                                   | 260 kB  00:00:00
(6/10): perl-Net-Daemon-0.48-5.el7.noarch.rpm                                                                                                                                                                     |  51 kB  00:00:00
(7/10): perl-PlRPC-0.2020-14.el7.noarch.rpm                                                                                                                                                                       |  36 kB  00:00:00
(8/10): perl-DBI-1.627-4.el7.x86_64.rpm                                                                                                                                                                           | 802 kB  00:00:00
(9/10): mysql-community-libs-5.6.42-2.el7.x86_64.rpm                                                                                                                                                              | 2.0 MB  00:00:24
(10/10): mysql-community-server-5.6.42-2.el7.x86_64.rpm                                                                                                                                                           |  59 MB  00:02:21
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
总计                                                                                                                                                                                                     567 kB/s |  82 MB  00:02:28
从 file:/etc/pki/rpm-gpg/RPM-GPG-KEY-mysql 检索密钥
导入 GPG key 0x5072E1F5:
 用户ID     : "MySQL Release Engineering <mysql-build@oss.oracle.com>"
 指纹       : a4a9 4068 76fc bd3c 4567 70c8 8c71 8d3b 5072 e1f5
 软件包     : mysql-community-release-el7-5.noarch (installed)
 来自       : file:/etc/pki/rpm-gpg/RPM-GPG-KEY-mysql
是否继续?[y/N]:y
从 file:///etc/pki/rpm-gpg/RPM-GPG-KEY-CentOS-7 检索密钥
导入 GPG key 0xF4A80EB5:
 用户ID     : "CentOS-7 Key (CentOS 7 Official Signing Key) <security@centos.org>"
 指纹       : 6341 ab27 53d7 8a78 a7c2 7bb1 24c6 a8a7 f4a8 0eb5
 软件包     : centos-release-7-5.1804.el7.centos.x86_64 (@anaconda)
 来自       : /etc/pki/rpm-gpg/RPM-GPG-KEY-CentOS-7
是否继续?[y/N]:y
Running transaction check
Running transaction test
Transaction test succeeded
Running transaction
警告:RPM 数据库已被非 yum 程序修改。
** 发现 2 个已存在的 RPM 数据库问题, 'yum check' 输出如下:
icedtea-web-1.7.1-1.el7.x86_64 有缺少的需求 java-1.8.0-openjdk
jline-1.0-8.el7.noarch 有缺少的需求 java >= ('0', '1.5', None)
  正在安装    : mysql-community-common-5.6.42-2.el7.x86_64                                                                                                                                                                          1/11
  正在安装    : mysql-community-libs-5.6.42-2.el7.x86_64                                                                                                                                                                            2/11
  正在安装    : mysql-community-client-5.6.42-2.el7.x86_64                                                                                                                                                                          3/11
  正在安装    : perl-Compress-Raw-Bzip2-2.061-3.el7.x86_64                                                                                                                                                                          4/11
  正在安装    : 1:perl-Compress-Raw-Zlib-2.061-4.el7.x86_64                                                                                                                                                                         5/11
  正在安装    : perl-IO-Compress-2.061-2.el7.noarch                                                                                                                                                                                 6/11
  正在安装    : perl-Net-Daemon-0.48-5.el7.noarch                                                                                                                                                                                   7/11
  正在安装    : perl-PlRPC-0.2020-14.el7.noarch                                                                                                                                                                                     8/11
  正在安装    : perl-DBI-1.627-4.el7.x86_64                                                                                                                                                                                         9/11
  正在安装    : mysql-community-server-5.6.42-2.el7.x86_64                                                                                                                                                                         10/11
  正在删除    : 1:mariadb-libs-5.5.56-2.el7.x86_64                                                                                                                                                                                 11/11
warning: file /usr/lib64/mysql/plugin/mysql_clear_password.so: remove failed: No such file or directory
warning: file /usr/lib64/mysql/plugin/dialog.so: remove failed: No such file or directory
warning: file /usr/lib64/mysql/libmysqlclient.so.18.0.0: remove failed: No such file or directory
  验证中      : mysql-community-libs-5.6.42-2.el7.x86_64                                                                                                                                                                            1/11
  验证中      : mysql-community-common-5.6.42-2.el7.x86_64                                                                                                                                                                          2/11
  验证中      : perl-Net-Daemon-0.48-5.el7.noarch                                                                                                                                                                                   3/11
  验证中      : mysql-community-server-5.6.42-2.el7.x86_64                                                                                                                                                                          4/11
  验证中      : mysql-community-client-5.6.42-2.el7.x86_64                                                                                                                                                                          5/11
  验证中      : perl-IO-Compress-2.061-2.el7.noarch                                                                                                                                                                                 6/11
  验证中      : 1:perl-Compress-Raw-Zlib-2.061-4.el7.x86_64                                                                                                                                                                         7/11
  验证中      : perl-DBI-1.627-4.el7.x86_64                                                                                                                                                                                         8/11
  验证中      : perl-Compress-Raw-Bzip2-2.061-3.el7.x86_64                                                                                                                                                                          9/11
  验证中      : perl-PlRPC-0.2020-14.el7.noarch                                                                                                                                                                                    10/11
  验证中      : 1:mariadb-libs-5.5.56-2.el7.x86_64                                                                                                                                                                                 11/11

已安装:
  mysql-community-libs.x86_64 0:5.6.42-2.el7                                                                         mysql-community-server.x86_64 0:5.6.42-2.el7

作为依赖被安装:
  mysql-community-client.x86_64 0:5.6.42-2.el7     mysql-community-common.x86_64 0:5.6.42-2.el7     perl-Compress-Raw-Bzip2.x86_64 0:2.061-3.el7     perl-Compress-Raw-Zlib.x86_64 1:2.061-4.el7     perl-DBI.x86_64 0:1.627-4.el7
  perl-IO-Compress.noarch 0:2.061-2.el7            perl-Net-Daemon.noarch 0:0.48-5.el7              perl-PlRPC.noarch 0:0.2020-14.el7

替代:
  mariadb-libs.x86_64 1:5.5.56-2.el7

完毕!

启动并查看mysql服务状态。

# 启动服务
[root@master ~]# service mysqld start
Redirecting to /bin/systemctl start mysqld.service
# 查看mysql连接状态
[root@master ~]# service mysqld status
Redirecting to /bin/systemctl status mysqld.service
● mysqld.service - MySQL Server
   Loaded: loaded (/usr/lib/systemd/system/mysqld.service; enabled; vendor preset: disabled)
   Active: active (running) since 五 2018-11-16 20:01:52 CST; 44s ago
     Docs: man:mysqld(8)
           http://dev.mysql.com/doc/refman/en/using-systemd.html
  Process: 20743 ExecStartPre=/usr/bin/mysqld_pre_systemd (code=exited, status=0/SUCCESS)
 Main PID: 20766 (mysqld)
   Status: "SERVER_OPERATING"
    Tasks: 38
   CGroup: /system.slice/mysqld.service
           └─20766 /usr/sbin/mysqld
11月 16 20:01:45 master systemd[1]: Starting MySQL Server...
11月 16 20:01:52 master systemd[1]: Started MySQL Server.
# 设置免密登陆
[root@master ~]# mysqladmin -u root -p password ‘123456’
# 输入密码时候直接选择回车
Enter password:
Warning: Using a password on the command line interface can be insecure.
# 进入mysql
[root@master ~]# mysql -u root -p
Enter password:
Welcome to the MySQL monitor.  Commands end with ; or g.
Your MySQL connection id is 5
Server version: 5.6.42 MySQL Community Server (GPL)
Copyright (c) 2000, 2018, Oracle and/or its affiliates. All rights reserved.
Oracle is a registered trademark of Oracle Corporation and/or its
affiliates. Other names may be trademarks of their respective
owners.
Type 'help;' or 'h' for help. Type 'c' to clear the current input statement.
mysql> grant all privileges on . to ‘root’@’%’ identified by ‘123456’   # 授权法更改远程连接权限
    -> flush privileges  # 刷新
    -> exit  #退出

外部验证连接。
技术图片
当图标变绿时,则表明连接完成。
技术图片

3.8.2 Hive安装

将HBase安装包加载至/opt/hive路径下,并将其解压到当前路径。

[root@master ~]# mkdir /opt/hive
[root@master ~]# cd /opt/hive
[root@master HBase]# rz
rz waiting to receive.
Starting zmodem transfer.  Press Ctrl+C to cancel.
Transferring apache-hive-2.3.4-bin...
  100%  272180 KB    10820 KB/sec    00:00:25       0 Errors
[root@master ~]# tar  -xvf   apache-hive-2.3.4-bin

3.8.2 Hive环境配置

设置环境变量。

[root@master ~]# vi /etc/profile
export HIVE_HOME=/opt/hive/apache-hive-2.3.4-bin
export HIVE_CONF_DIR=${HIVE_HOME}/conf
export PATH=$PATH:${JAVA_HOME}/bin:$HADOOP_HOME/sbin:$HADOOP_HOME/bin:${SCALA_HOME}/bin:${SPARK_HOME}/bin:${HIVE_HOME}/bin:${ZK_HOME}/bin:${HBASE_HOME}/bin:$PATH
[root@master ~]# source /etc/profile

建立必需的文件夹。

# 建立root目录下需要的文件夹
[root@master ~]# mkdir /root/hive
[root@master ~]# mkdir /root/hive/warehouse
# hadoop下新建文件目录
[root@master ~]# $HADOOP_HOME/bin/hadoop fs -mkdir -p /root/hive/
[root@master ~]# $HADOOP_HOME/bin/hadoop fs -mkdir -p /root/hive/warehouse
# 为新建文件目录授权读写能力
[root@master ~]# $HADOOP_HOME/bin/hadoop fs -chmod 777 /root/hive/
[root@master ~]# $HADOOP_HOME/bin/hadoop fs -chmod 777 /root/hive/warehouse
# 检验创建状态
[root@master ~]# $HADOOP_HOME/bin/hadoop fs -ls /root/
[root@master ~]# $HADOOP_HOME/bin/hadoop fs -ls /root/hive/

修改hive-site.xml

# 创建hive-site.xml
[root@master ~]# cd /opt/hive/apache-hive-2.3.4-bin/conf
[root@master conf]# cp hive-default.xml.template hive-site.xml
[root@master conf]# vi  hive-site.xml

添加内容如下:

<!-- 指定HDFS中的hive仓库地址 -->
  <property>
    <name>hive.metastore.warehouse.dir</name>
    <value>/root/hive/warehouse</value>
  </property>
<property>
    <name>hive.exec.scratchdir</name>
    <value>/root/hive</value>
  </property>
  <!-- 该属性为空表示嵌入模式或本地模式,否则为远程模式 -->
  <property>
    <name>hive.metastore.uris</name>
    <value></value>
  </property>
<!-- 指定mysql的连接 -->
 <property>
        <name>javax.jdo.option.ConnectionURL</name>
        <value>jdbc:mysql://master:3306/hive?createDatabaseIfNotExist=true</value>
    </property>
<!-- 指定驱动类 -->
    <property>
        <name>javax.jdo.option.ConnectionDriverName</name>
        <value>com.mysql.jdbc.Driver</value>
    </property>
   <!-- 指定用户名 -->
    <property>
        <name>javax.jdo.option.ConnectionUserName</name>
        <value>root</value>
    </property>
    <!-- 指定密码 -->
    <property>
        <name>javax.jdo.option.ConnectionPassword</name>
        <value>123456</value>
    </property>
    <property>
   <name>hive.metastore.schema.verification</name>
   <value>false</value>
    <description>
    </description>
 </property>

将配置文件中所有的${system:java.io.tmpdir}更改为 /opt/hive/tmp (如果没有该文件则创建),并将此文件夹赋予读写权限,将${system:user.name}更改为 root

   <!-- 代码较长,需耐心查找,也可借助相关文本替代命令进行处理,仅展示部分 -->
  <property>
    <name>hive.exec.local.scratchdir</name>
    <value>/opt/hive/tmp/root</value>
    <description>Local scratch space for Hive jobs</description>
  </property>
  <property>
    <name>hive.downloaded.resources.dir</name>
    <value>/opt/hive/tmp/${hive.session.id}_resources</value>
    <description>Temporary local directory for added resources in the remote file system.</description>
  </property>

修改 hive-env.sh

[root@master ~]# cd /opt/hive/apache-hive-2.3.4-bin/conf
[root@master conf]# cp hive-env.sh.template hive-env.sh
[root@master conf]# vi hive-env.sh
# 添加以下内容
export  HADOOP_HOME=/opt/hadoop/hadoop-2.7.2
export  HIVE_CONF_DIR=/opt/hive/apache-hive-2.3.4-bin/conf
export  HIVE_AUX_JARS_PATH=/opt/hive/apache-hive-2.3.4-bin/lib

添加数据驱动包

首先从mysql官网下载对应的JDBC安装包。
技术图片
技术图片

[root@master ~]# cd /opt/hive/apache-hive-2.3.4-bin/lib
# 下载mysql 的 jdbc连接驱动jar包,放到hive的lib目录下
[root@master lib]# rz
rz waiting to receive.
Starting zmodem transfer.  Press Ctrl+C to cancel.
Transferring mysql-connector-java-5.1.47-bin.jar...
  100%     983 KB     983 KB/sec    00:00:01       0 Errors

3.8.2 Hive启动

# 切换到hive文件目录
[root@master lib]# cd /opt/hive/apache-hive-2.3.4-bin/bin
[root@master bin]# pwd
/opt/hive/apache-hive-2.3.4-bin/bin
# 初始化hive
[root@master bin]# schematool -dbType mysql -initSchema
SLF4J: Class path contains multiple SLF4J bindings.
SLF4J: Found binding in [jar:file:/opt/hive/apache-hive-2.3.4-bin/lib/log4j-slf4j-impl-2.6.2.jar!/org/slf4j/impl/StaticLoggerBinder.class]
SLF4J: Found binding in [jar:file:/opt/hadoop/hadoop-2.7.2/share/hadoop/common/lib/slf4j-log4j12-1.7.10.jar!/org/slf4j/impl/StaticLoggerBinder.class]
SLF4J: See http://www.slf4j.org/codes.html#multiple_bindings for an explanation.
SLF4J: Actual binding is of type [org.apache.logging.slf4j.Log4jLoggerFactory]
Metastore connection URL:        jdbc:mysql://master:3306/hive?createDatabaseIfNotExist=true
Metastore Connection Driver :    com.mysql.jdbc.Driver
Metastore connection User:       root
org.apache.hadoop.hive.metastore.HiveMetaException: Failed to get schema version.
Underlying cause: java.sql.SQLException : Access denied for user 'root'@'master' (using password: YES)
SQL Error code: 1045
Use --verbose for detailed stacktrace.
*** schemaTool failed ***

bug01
发生jar包冲突。
SLF4J: Class path contains multiple SLF4J bindings.
SLF4J: Found binding in [jar:file:/opt/hive/apache-hive-2.3.4-bin/lib/log4j-slf4j-impl-2.6.2.jar!/org/slf4j/impl/StaticLoggerBinder.class]
SLF4J: Found binding in [jar:file:/opt/hadoop/hadoop-2.7.2/share/hadoop/common/lib/slf4j-log4j12-
solution
[root@master bin]# rm /opt/hive/apache-hive-2.3.4-bin/lib/log4j-slf4j-impl-2.6.2.jar
rm:是否删除普通文件 "/opt/hive/apache-hive-2.3.4-bin/lib/log4j-slf4j-impl-2.6.2.jar"?y
bug02
用户权限不足。
org.apache.hadoop.hive.metastore.HiveMetaException: Failed to get schema version.
Underlying cause: java.sql.SQLException : Access denied for user ‘root‘@‘master‘ (using password: YES)
SQL Error code: 1045
solution
[root@master bin]# mysql -u root -p
Enter password:
Welcome to the MySQL monitor. Commands end with ; or g.
Your MySQL connection id is 5
Server version: 5.6.42 MySQL Community Server (GPL)
Copyright (c) 2000, 2018, Oracle and/or its affiliates. All rights reserved.
Oracle is a registered trademark of Oracle Corporation and/or its
affiliates. Other names may be trademarks of their respective
owners.
Type ‘help;‘ or ‘h‘ for help. Type ‘c‘ to clear the current input statement.
mysql> use mysql;
Reading table information for completion of table and column names
You can turn off this feature to get a quicker startup with -A
Database changed
mysql> select host,user from user;
+-----------+------+
| host | user |
+-----------+------+
| % | root |
| 127.0.0.1 | root |
| ::1 | root |
| localhost | |
| master | |
| master | root |
+-----------+------+
6 rows in set (0.00 sec)
mysql> show grants for root;
ERROR 1290 (HY000): The MySQL server is running with the --skip-grant-tables option so it cannot execute this statement
mysql> flush privileges;
Query OK, 0 rows affected (0.06 sec)
mysql> show grants for root;
+--------------------------------------------------------------------------------------------------------------------------------+
| Grants for root@% |
+--------------------------------------------------------------------------------------------------------------------------------+
| GRANT ALL PRIVILEGES ON . TO ‘root‘@‘%‘ IDENTIFIED BY PASSWORD ‘*6BB4837EB74329105EE4568DDA7DC67ED2CA2AD9‘ WITH GRANT OPTION |
+--------------------------------------------------------------------------------------------------------------------------------+
1 row in set (0.00 sec)
mysql> grant all privileges on *.* to ‘root‘@‘%‘ identified by ‘123456‘ with grant option;
Query OK, 0 rows affected (0.01 sec)
mysql> flush privileges;
Query OK, 0 rows affected (0.01 sec)

以上是关于Spark集群框架搭建VM15+CentOS7+Hadoop+Scala+Spark+Zookeeper+HBase+Hive的主要内容,如果未能解决你的问题,请参考以下文章

H01_Linux系统中搭建Hadoop和Spark集群

在Docker下搭建Spark+HDFS集群

Spark集群搭建记录 | 云计算[CentOS7] | Scala Maven项目访问Spark实现单词计数

Centos7 搭建单机Spark分布式集群

03. 搭建Spark集群(CentOS7+Spark2.1.1+Hadoop2.8.0)

动手搭建docker并在docker容器中建spark集群
