本篇文章是在上一篇文章opencv联合dlib人脸识别例子 的基础上做了一个实时视频人脸识别功能。

原理是利用opencv实时提取视频中的视频流,然后进入人脸检测步骤,步骤类似上篇文章。

本篇文章中的程序是在VMware虚拟机下运行的,比较卡,加入人脸识别环节导致视频很不流畅。不过本文章中的代码依旧是一个视频人脸识别的典型思路的例子。

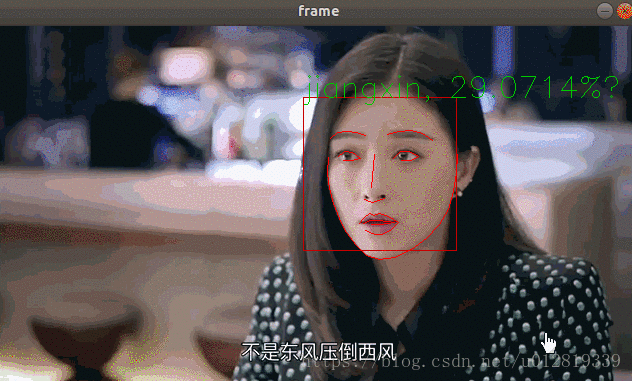

人脸识别效果图

工程项目目录:

linux安装好opencv和dlib后,解压工程代码到linux环境下,进入目录执行make,执行./t11 hls_faces huanlesong.mp4 即可运行本例子

点击 这里 下载本文章工程源代码。点击无效请访问 https://download.csdn.net/download/u012819339/10667176


代码以及详细解释


#include <dlib/image_processing/frontal_face_detector.h>
#include <dlib/image_processing/render_face_detections.h>
#include <dlib/image_processing.h>
#include <dlib/gui_widgets.h>
#include <dlib/image_io.h>
#include <dlib/opencv.h>
#include <dlib/dnn.h>
#include <dlib/data_io.h>
#include <dlib/clustering.h>
#include <dlib/string.h>

#include <opencv2/highgui/highgui.hpp>
#include <opencv2/core/core.hpp>
#include <opencv2/opencv.hpp>
#include <opencv2/imgproc/imgproc.hpp>

#include <iostream>
#include <vector>
#include <ctime>
#include <string>
#include <map>
#include <sstream>

#ifdef __cplusplus
extern "C"
#endif

#include <stdlib.h>
#include <string.h>
#include <unistd.h>
#include <dirent.h>

#ifdef __cplusplus

#endif

//由于dlib和opencv中有相当一部分类同名,故不能同时对它们使用using namespace,否则会出现一些莫名其妙的问题
//且dlib库和标准std库中的类发生冲突,如map,string 类等等
using namespace std;
using namespace cv;
//using namespace dlib;

void getFiles(std::string path, std::map<std::string, std::string> &files);
void line_one_face_detections(cv::Mat img, std::vector<dlib::full_object_detection> fs);

//定义好一堆模板别名,以供后续方便使用
template <template <int,template<typename>class,int,typename> class block, int N, template<typename>class BN, typename SUBNET>
using residual = dlib::add_prev1<block<N,BN,1,dlib::tag1<SUBNET>>>;

template <template <int,template<typename>class,int,typename> class block, int N, template<typename>class BN, typename SUBNET>
using residual_down = dlib::add_prev2<dlib::avg_pool<2,2,2,2,dlib::skip1<dlib::tag2<block<N,BN,2,dlib::tag1<SUBNET>>>>>>;

template <int N, template <typename> class BN, int stride, typename SUBNET>
using block  = BN<dlib::con<N,3,3,1,1,dlib::relu<BN<dlib::con<N,3,3,stride,stride,SUBNET>>>>>;

template <int N, typename SUBNET> using ares      = dlib::relu<residual<block,N,dlib::affine,SUBNET>>;
template <int N, typename SUBNET> using ares_down = dlib::relu<residual_down<block,N,dlib::affine,SUBNET>>;

template <typename SUBNET> using alevel0 = ares_down<256,SUBNET>;
template <typename SUBNET> using alevel1 = ares<256,ares<256,ares_down<256,SUBNET>>>;
template <typename SUBNET> using alevel2 = ares<128,ares<128,ares_down<128,SUBNET>>>;
template <typename SUBNET> using alevel3 = ares<64,ares<64,ares<64,ares_down<64,SUBNET>>>>;
template <typename SUBNET> using alevel4 = ares<32,ares<32,ares<32,SUBNET>>>;

using anet_type = dlib::loss_metric<dlib::fc_no_bias<128,dlib::avg_pool_everything<
                            alevel0<
                            alevel1<
                            alevel2<
                            alevel3<
                            alevel4<
                            dlib::max_pool<3,3,2,2,dlib::relu<dlib::affine<dlib::con<32,7,7,2,2,
                            dlib::input_rgb_image_sized<150>
                            >>>>>>>>>>>>;




/*
识别视频中的某一帧图像中是不是有库里的某个人
方法:
统计出库文件夹中所有人的图片的face_descriptors,然后计算出当前图片中的人脸face_descriptors,二者之间距离小于0.6则视为同一个人
./t11 hls_faces huanlesong.mp4
*/

int main(int argc, char *argv[])

    time_t start_t, end_t;
    if(argc != 3)

        std::cout<< "you should specified a dir and a video stream!"<<std::endl;
        return 0;

    time(&start_t);
    std::map<string, string> files;
    getFiles(argv[1], files);

    if(files.empty())

        std::cout<< "No pic files found in "<< argv[1] <<std::endl;
        return 0;


    //加载训练好的级联分类器,利用haar级联分类器快速找出人脸区域,然后交给dlib检测人脸部位
    cv::CascadeClassifier faceDetector("haarcascade_frontalface_alt2.xml");
    //cv::CascadeClassifier faceDetector("./output/cascade.xml");
    if(faceDetector.empty())

        std::cout << "face detector is empty!" <<std::endl;
        return 0;


    //加载人脸形状探测器
    dlib::shape_predictor sp;
    dlib::deserialize("./shape_predictor_68_face_landmarks.dat") >> sp;

    //加载负责人脸识别的DNN
    anet_type net;
    dlib::deserialize("dlib_face_recognition_resnet_model_v1.dat") >> net;

    //人脸描述符库, face_descriptor ---> name
    map<dlib::matrix<float,0,1>, string> fdlib;

    for(map<string, string>::iterator it = files.begin(); it != files.end(); it++  )

        std::cout << "filename:" << it->second << " filepath:" <<it->first<<std::endl;

        cv::Mat frame = cv::imread(it->first);
        cv::Mat src;
        cv::cvtColor(frame, src, CV_BGR2GRAY);
        dlib::array2d<dlib::bgr_pixel> dimg;
        dlib::assign_image(dimg, dlib::cv_image<uchar>(src));

        //haar级联分类器探测人脸区域,获取一系列人脸所在区域
        std::vector<cv::Rect> objects;
        std::vector<dlib::rectangle> dets;
        faceDetector.detectMultiScale(src, objects);
        for (int i = 0; i < objects.size(); i++)

            //cv::rectangle(frame, objects[i], CV_RGB(200,0,0));
            dlib::rectangle r(objects[i].x, objects[i].y, objects[i].x + objects[i].width, objects[i].y + objects[i].height);
            dets.push_back(r);  //正常情况下应该只检测到一副面容


        if (dets.size() == 0)
            continue;

        std::vector<dlib::matrix<dlib::rgb_pixel>> faces;
        std::vector<dlib::full_object_detection> shapes;
        for(int i = 0; i < dets.size(); i++)

            dlib::full_object_detection shape = sp(dimg, dets[i]); //获取指定一个区域的人脸形状
            shapes.push_back(shape);

            dlib::matrix<dlib::rgb_pixel> face_chip;
            dlib::extract_image_chip(dimg, dlib::get_face_chip_details(shape,150,0.25), face_chip);

            faces.push_back(move(face_chip));


        if (faces.size() == 0)

            cout << "No faces found in " << it->second<<endl;
            continue;


        std::vector<dlib::matrix<float,0,1>> face_descriptors = net(faces);

        for(std::vector<dlib::matrix<float,0,1>>::iterator iter = face_descriptors.begin(); iter != face_descriptors.end(); iter++ )

            fdlib.insert(pair<dlib::matrix<float,0,1>, string>(*iter, it->second));




    time(&end_t);
    std::cout << "ok, all pic in lib had been keep on. use time:"<< end_t - start_t << " s" <<std::endl;


    //加载视频
    VideoCapture capture(argv[2]);
    while(true)

        //加载待检测的图片
        cv::Mat frame;
        capture >> frame;
        if (frame.empty())
            break;

        cv::Mat src;
        cv::cvtColor(frame, src, CV_BGR2GRAY);
        dlib::array2d<dlib::bgr_pixel> dimg;
        dlib::assign_image(dimg, dlib::cv_image<uchar>(src));

        //haar级联分类器探测人脸区域,获取一系列人脸所在区域
        std::vector<cv::Rect> objects;
        std::vector<dlib::rectangle> dets;
        faceDetector.detectMultiScale(src, objects);
        for (int i = 0; i < objects.size(); i++)

            cv::rectangle(frame, objects[i], CV_RGB(200,0,0));
            dlib::rectangle r(objects[i].x, objects[i].y, objects[i].x + objects[i].width, objects[i].y + objects[i].height);
            dets.push_back(r);  //正常情况下应该只检测到一副面容


        if (dets.size() == 0)

            continue;


        std::vector<dlib::matrix<dlib::rgb_pixel>> faces;
        std::vector<dlib::full_object_detection> shapes;
        for(int i = 0; i < dets.size(); i++)

            dlib::full_object_detection shape = sp(dimg, dets[i]); //获取指定一个区域的人脸形状
            shapes.push_back(shape);

            dlib::matrix<dlib::rgb_pixel> face_chip;
            dlib::extract_image_chip(dimg, dlib::get_face_chip_details(shape,150,0.25), face_chip);

            faces.push_back(move(face_chip));

        if (faces.size() == 0)

            continue;

        line_one_face_detections(frame, shapes);

        std::vector<dlib::matrix<float,0,1>> face_descriptors = net(faces);

        //遍历库,查找相似图像
        float min_distance = 0.7;
        std::string similar_name = "unknown";
        for(map<dlib::matrix<float,0,1>, string>::iterator it=fdlib.begin(); it != fdlib.end(); it++ )

            float distance = length(it->first - face_descriptors[0]);
            if( distance < 0.5 )  //应该计算一个最近值

                if( distance <= min_distance)

                    min_distance = distance;
                    similar_name = it->second;




        if(min_distance < 0.5)

            float similarity = (0.5 - min_distance) * 100 / 0.5;
            stringstream strStream;
            strStream << similar_name << ", " << similarity << '%' << endl;
            string s = strStream.str();
            cv::Point org(objects[0].x, objects[0].y);
            cv::putText(frame, s, org, cv::FONT_HERSHEY_SIMPLEX, 1.0, CV_RGB(0, 200, 0));



        cv::imshow("frame", frame);
        //等待10ms,如果从键盘输入的是q、Q、或者是Esc键,则退出
        int key = cv::waitKey(5);
        if (key == 'q' || key == 'Q' || key == 27)
            break;

    return 0;




void getFiles(string path, map<string, string> &files)

    DIR *dir;
    struct dirent *ptr;
    char base[1000];

    if(path[path.length()-1] != '/')
        path = path + "/";

    if((dir = opendir(path.c_str())) == NULL)

        cout<<"open the dir: "<< path <<"error!" <<endl;
        return;


    while((ptr=readdir(dir)) !=NULL )

        ///current dir OR parrent dir
        if(strcmp(ptr->d_name,".")==0 || strcmp(ptr->d_name,"..")==0)
            continue;
        else if(ptr->d_type == 8) //file

            string fn(ptr->d_name);
            string name;
            name = fn.substr(0, fn.find_last_of("."));

            string p = path + string(ptr->d_name);
            files.insert(pair<string, string>(p, name));

        else if(ptr->d_type == 10)    ///link file

        else if(ptr->d_type == 4)    ///dir



    closedir(dir);
    return ;



void line_one_face_detections(cv::Mat img, std::vector<dlib::full_object_detection> fs)

    int i, j;

    for(j=0; j<fs.size(); j++)

        cv::Point p1, p2;

        for(i = 0; i<67; i++)

            // 下巴到脸颊 0 ~ 16
            //左边眉毛 17 ~ 21
            //右边眉毛 21 ~ 26
            //鼻梁     27 ~ 30
            //鼻孔        31 ~ 35
            //左眼        36 ~ 41
            //右眼        42 ~ 47
            //嘴唇外圈  48 ~ 59
            //嘴唇内圈  59 ~ 67
            switch(i)

                case 16:
                case 21:
                case 26:
                case 30:
                case 35:
                case 41:
                case 47:
                case 59:
                    i++;
                    break;
                default:
                    break;


            p1.x = fs[j].part(i).x();
            p1.y = fs[j].part(i).y();
            p2.x = fs[j].part(i+1).x();
            p2.y = fs[j].part(i+1).y();
            cv::line(img, p1, p2, cv::Scalar(0,0,255), 1);
