opencv提取论文中曲线坐标重新拟合绘制

Posted 2022-03-12 BHY_

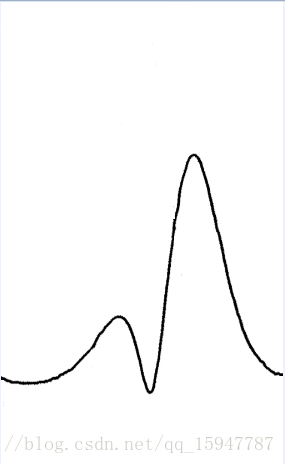

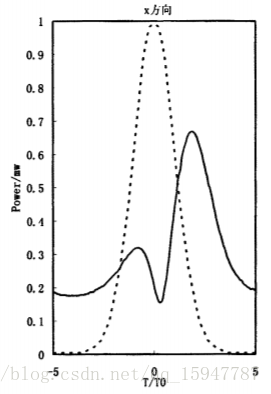

                              原图                                      剪切出并处理的曲线

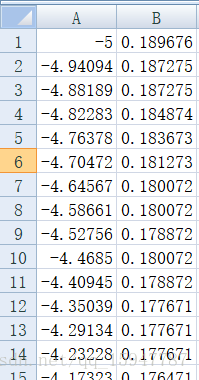

导出到csv格式

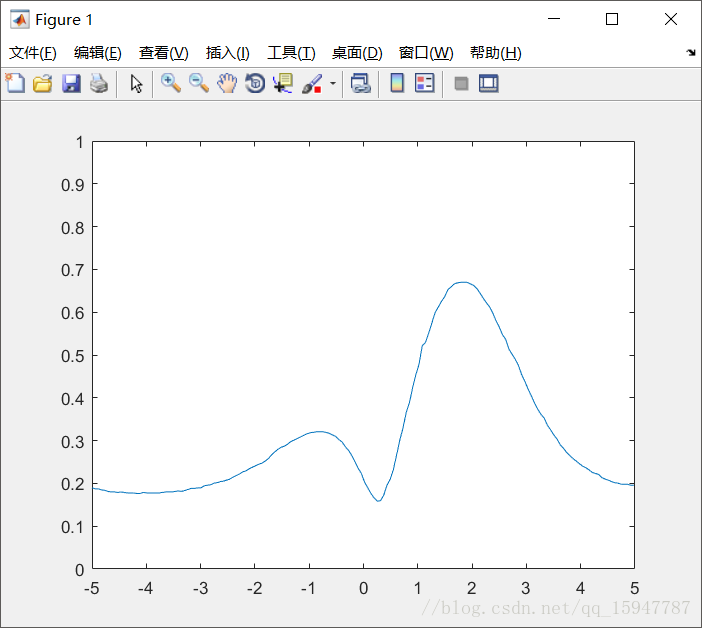

最后在matlab中进行拟合或者直接绘制，或者平滑绘制

opencv代码

#include <opencv2/opencv.hpp>
#include <iostream>
#include <fstream>

using namespace cv;
using namespace std;

void main()

	vector<Point2f> pt;
	vector<Point2f> pt2;
	string str;

	cout << "图片名：" << endl;
	cin >> str;

	Mat img = imread(str, 0);

	if (img.empty())return;

	Mat bin;
	threshold(img, bin, 128, 255, CV_THRESH_BINARY);

	for (int j = 0; j < bin.cols; j++)

		for (int i = 0; i < bin.rows; i++)


			uchar pixel = bin.at<uchar>(i,j);
			if (pixel == 0)

				pt.push_back(Point2f(i, j));//以左下为原点
				break;

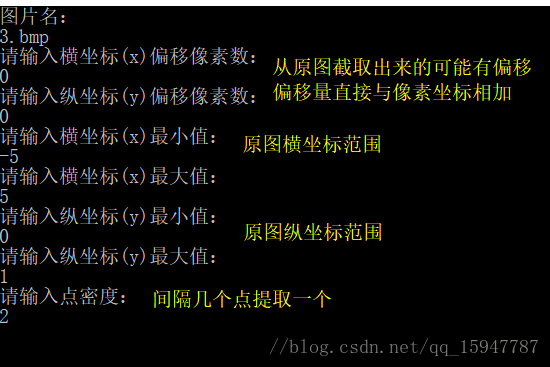

	//用户调整部分
	float offsetx = 0;
	float offsety = 0;
	float xmin = 0, xmax = 1, ymin = 0, ymax = 1;
	int ptmd = 0;//点输出密度
	cout << "请输入横坐标(x)偏移像素数：" << endl;
	cin >> offsetx;
	cout << "请输入纵坐标(y)偏移像素数：" << endl;
	cin >> offsety;
	cout << "请输入横坐标(x)最小值：" << endl;
	cin >> xmin;
	cout << "请输入横坐标(x)最大值：" << endl;
	cin >> xmax;
	cout << "请输入纵坐标(y)最小值：" << endl;
	cin >> ymin;
	cout << "请输入纵坐标(y)最大值：" << endl;
	cin >> ymax;
	cout << "请输入点密度：" << endl;
	cin >> ptmd;

	if (ymax <= ymin || xmax <= xmin)

		cout << "参数有错误" << endl;
		return;


	for (int i = 0; i < pt.size(); i++)

		Point2f newpt;
		newpt.x = pt[i].y;
		newpt.y = bin.rows - pt[i].x - 1;
		newpt.x = (xmax - xmin) * (newpt.x + offsetx) / bin.cols + xmin;
		newpt.y = (ymax - ymin) * (newpt.y + offsety) / bin.rows + ymin;
		pt2.push_back(newpt);

	cout << "计算结束,输出数据" << endl;

	//csv文件写入部分
	ofstream oFile;  //定义文件输出流

	oFile.open("坐标.csv", ios::out | ios::trunc);    //打开要输出的文件     这样就很容易的输出一个需要的excel 文件
	//输出保存数据
	for (int i = 0; i < pt2.size() ;i++)

		oFile << pt2[i].x <<","<< pt2[i].y << endl;
		i+= ptmd;


matlab提取输出坐标

M = csvread('坐标.csv');
x = M(:,1)';
y = M(:,2)';

下载 https://download.csdn.net/download/qq_15947787/10300429
