dubbo-spring-boot-actuator 提供 Production-Ready 特性：

健康检查
控制断点
外部化配置

GitHub https://github.com/apache/incubator-dubbo-spring-boot-project/tree/master/dubbo-spring-boot-actuator#health-checks

版本


目前，dubbo-spring-boot-actuator将支持Spring Boot 2.x和1.x两个版本：

0.2.x是Spring Boot 2.x的主流发行版

0.1.x是用于维护Spring Boot 1.x的旧版本

与Maven整合

您可以通过向pom.xml添加以下依赖项，将最新的dubbo-spring-boot-actuator引入到您的项目中,

<dependency>
    <groupId>com.alibaba.boot</groupId>
    <artifactId>dubbo-spring-boot-actuator</artifactId>
    <version>0.2.0</version>
</dependency>



技术图片

还依赖

<!-- dubbo actuator 依赖spring boot actuator -->
<dependency>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-actuator</artifactId>
</dependency>



技术图片

如果您的项目无法解决依赖关系，请尝试添加以下存储库：

<repositories>
    <repository>
        <id>sonatype-nexus-snapshots</id>
        <url>https://oss.sonatype.org/content/repositories/snapshots</url>
        <releases>
            <enabled>false</enabled>
        </releases>
        <snapshots>
            <enabled>true</enabled>
        </snapshots>
    </repository>
</repositories>



技术图片

健康检查

dubbo-spring-boot-actuator支持标准的Spring Boot健康指示器作为生产就绪特性，它将聚合到Spring Boot的健康中，并在运行MVC (Spring Web MVC)和JMX (Java管理扩展)的HealthEndpoint上导出(如果它们都可用的话)。

Web端点：/health

假设Spring Boot Web应用程序未指定management.server.port，您可以通过Web Client访问http://localhost:8080/actuator/health，你可以可以专门为访问端点设置端口号，通过management.server.port设置。获得JSON格式的响应，如下所示：

{
  "status": "UP",
  "dubbo": {
    "status": "UP",
    "memory": {
      "source": "management.health.dubbo.status.defaults",
      "status": {
        "level": "OK",
        "message": "max:3641M,total:383M,used:92M,free:291M",
        "description": null
      }
    },
    "load": {
      "source": "management.health.dubbo.status.extras",
      "status": {
        "level": "OK",
        "message": "load:1.73583984375,cpu:8",
        "description": null
      }
    },
    "threadpool": {
      "source": "management.health.dubbo.status.extras",
      "status": {
        "level": "OK",
        "message": "Pool status:OK, max:200, core:200, largest:0, active:0, task:0, service port: 12345",
        "description": null
      }
    },
    "server": {
      "source": "dubbo@ProtocolConfig.getStatus()",
      "status": {
        "level": "OK",
        "message": "/192.168.1.103:12345(clients:0)",
        "description": null
      }
    }
  }
  // ignore others
}
技术图片

在上面的例子中，内存，负载，线程池和服务器是Dubbo的内置StatusCheckers。 Dubbo允许应用程序扩展StatusChecker的SPI。

默认，内存和负载将添加到Dubbo的HealthIndicator中，它可以被外部化配置StatusChecker的默认值覆盖。

JMX端点：健康

Health是一个JMX (Java管理扩展)端点，具有ObjectName org.springframework.boot:type=Endpoint,name=Health，它可以由JMX代理管理，例如。JDK工具:jconsole等等。

内置StatusCheckers

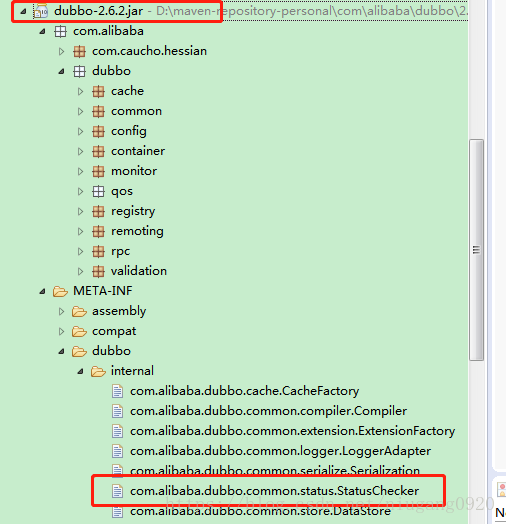

META-INF /dubbo/internal/com.alibaba.dubbo.common.status.StatusChecker声明内置StatusCheckers如下：

技术图片技术图片?

memory=com.alibaba.dubbo.common.status.support.MemoryStatusChecker
load=com.alibaba.dubbo.common.status.support.LoadStatusChecker
spring=com.alibaba.dubbo.config.spring.status.SpringStatusChecker
datasource=com.alibaba.dubbo.config.spring.status.DataSourceStatusChecker
server=com.alibaba.dubbo.rpc.protocol.dubbo.status.ServerStatusChecker
threadpool=com.alibaba.dubbo.rpc.protocol.dubbo.status.ThreadPoolStatusChecker
registry=com.alibaba.dubbo.registry.status.RegistryStatusChecker
技术图片

作为StatusChecker名称的属性键可以是外部化配置中的management.health.dubbo.status.*的有效值。

端点

Actuator端点dubbo支持Actuator端点：

IDEnabledHTTP URIHTTP MethodDescriptionContent Type
dubbo true /actuator/dubbo GET Exposes Dubbo‘s meta data application/json
dubbo-properties true /actuator/dubbo/properties GET Exposes all Dubbo‘s Properties application/json
dubbo-services false /dubbo/services GET Exposes all Dubbo‘s ServiceBean application/json
dubbo-references false /actuator/dubbo/references GET Exposes all Dubbo‘s ReferenceBean application/json
dubbo-configs true /actuator/dubbo/configs GET Exposes all Dubbo‘s *Config application/json
dubbo-shutdown false /actuator/dubbo/shutdown POST Shutdown Dubbo services application/json

技术图片技术图片?

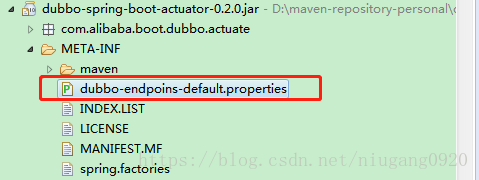

# Dubbo Endpoints Default Properties is loaded by @PropertySource with low order,
# those values of properties can be override by higher PropertySource
# @see DubboEndpointsAutoConfiguration

# Set enabled for Dubbo Endpoints
management.endpoint.dubbo.enabled = true
management.endpoint.dubbo-shutdown.enabled = false
management.endpoint.dubbo-configs.enabled = true
management.endpoint.dubbo-services.enabled = false
management.endpoint.dubbo-references.enabled = false
management.endpoint.dubbo-properties.enabled = true

# "management.endpoints.web.base-path" should not be configured in this file

# Re-defines path-mapping of Dubbo Web Endpoints
management.endpoints.web.path-mapping.dubbo-shutdown = dubbo/shutdown
management.endpoints.web.path-mapping.dubbo-configs = dubbo/configs
management.endpoints.web.path-mapping.dubbo-services = dubbo/services
management.endpoints.web.path-mapping.dubbo-references = dubbo/references
management.endpoints.web.path-mapping.dubbo-properties = dubbo/properties
技术图片

Web端点

/actuator/dubbo


/dubbo暴露了Dubbo的元数据：

{
  "timestamp": 1516623290166,
  "versions": {
    "dubbo-spring-boot": "0.2.0"
    "dubbo": "2.6.2"
  },
  "urls": {
    "dubbo": "https://github.com/alibaba/dubbo",
    "google-group": "http://groups.google.com/group/dubbo",
    "github": "https://github.com/dubbo/dubbo-spring-boot-project",
    "issues": "https://github.com/dubbo/dubbo-spring-boot-project/issues",
    "git": "https://github.com/dubbo/dubbo-spring-boot-project.git"
  }
}
技术图片

/actuator/dubbo/properties

/actuator/dubbo/properties从Spring Boot外化配置（a.k.a PropertySources）公开所有Dubbo的属性：

{
  "dubbo.application.id": "dubbo-provider-demo",
  "dubbo.application.name": "dubbo-provider-demo",
  "dubbo.application.qos-enable": "false",
  "dubbo.application.qos-port": "33333",
  "dubbo.protocol.id": "dubbo",
  "dubbo.protocol.name": "dubbo",
  "dubbo.protocol.port": "12345",
  "dubbo.registry.address": "N/A",
  "dubbo.registry.id": "my-registry",
  "dubbo.scan.basePackages": "com.alibaba.boot.dubbo.demo.provider.service"
}
技术图片

JSON的结构是简单的Key-Value格式，键是属性名称，值是属性值。

/actuator/dubbo/services

/actuator/dubbo/services公开在Spring ApplicationContext中通过<dubbo：service />或@Service声明的所有Dubbo的ServiceBean

{
  "ServiceBean@com.alibaba.boot.dubbo.demo.api.DemoService#defaultDemoService": {
    "accesslog": null,
    "actives": null,
    "cache": null,
    "callbacks": null,
    "class": "com.alibaba.dubbo.config.spring.ServiceBean",
    "cluster": null,
    "connections": null,
    "delay": null,
    "document": null,
    "executes": null,
    "export": null,
    "exported": true,
    "filter": "",
    "generic": "false",
    "group": null,
    "id": "com.alibaba.boot.dubbo.demo.api.DemoService",
    "interface": "com.alibaba.boot.dubbo.demo.api.DemoService",
    "interfaceClass": "com.alibaba.boot.dubbo.demo.api.DemoService",
    "layer": null,
    "listener": "",
    "loadbalance": null,
    "local": null,
    "merger": null,
    "mock": null,
    "onconnect": null,
    "ondisconnect": null,
    "owner": null,
    "path": "com.alibaba.boot.dubbo.demo.api.DemoService",
    "proxy": null,
    "retries": null,
    "scope": null,
    "sent": null,
    "stub": null,
    "timeout": null,
    "token": null,
    "unexported": false,
    "uniqueServiceName": "com.alibaba.boot.dubbo.demo.api.DemoService:1.0.0",
    "validation": null,
    "version": "1.0.0",
    "warmup": null,
    "weight": null,
    "serviceClass": "com.alibaba.boot.dubbo.demo.provider.service.DefaultDemoService"
  }
}
技术图片

关键是ServiceBean的Bean名称，ServiceBean的属性组成值。

/actuator/dubbo/references

/actuator/dubbo/references公开所有通过@Reference on Field或Method声明的Dubbo的ReferenceBean：

{
  "private com.alibaba.boot.dubbo.demo.api.DemoService com.alibaba.boot.dubbo.demo.consumer.controller.DemoConsumerController.demoService": {
    "actives": null,
    "cache": null,
    "callbacks": null,
    "class": "com.alibaba.dubbo.config.spring.ReferenceBean",
    "client": null,
    "cluster": null,
    "connections": null,
    "filter": "",
    "generic": null,
    "group": null,
    "id": "com.alibaba.boot.dubbo.demo.api.DemoService",
    "interface": "com.alibaba.boot.dubbo.demo.api.DemoService",
    "interfaceClass": "com.alibaba.boot.dubbo.demo.api.DemoService",
    "layer": null,
    "lazy": null,
    "listener": "",
    "loadbalance": null,
    "local": null,
    "merger": null,
    "mock": null,
    "objectType": "com.alibaba.boot.dubbo.demo.api.DemoService",
    "onconnect": null,
    "ondisconnect": null,
    "owner": null,
    "protocol": null,
    "proxy": null,
    "reconnect": null,
    "retries": null,
    "scope": null,
    "sent": null,
    "singleton": true,
    "sticky": null,
    "stub": null,
    "stubevent": null,
    "timeout": null,
    "uniqueServiceName": "com.alibaba.boot.dubbo.demo.api.DemoService:1.0.0",
    "url": "dubbo://localhost:12345",
    "validation": null,
    "version": "1.0.0",
    "invoker": {
      "class": "com.alibaba.dubbo.common.bytecode.proxy0"
    }
  }
}
技术图片

关键是@Reference Field或Method的字符串表示，ReferenceBean的属性组成值。

/actuator/dubbo/configs

actuator / dubbo / configs暴露所有Dubbo的* Config：

{
  "ApplicationConfig": {
    "dubbo-consumer-demo": {
      "architecture": null,
      "class": "com.alibaba.dubbo.config.ApplicationConfig",
      "compiler": null,
      "dumpDirectory": null,
      "environment": null,
      "id": "dubbo-consumer-demo",
      "logger": null,
      "name": "dubbo-consumer-demo",
      "organization": null,
      "owner": null,
      "version": null
    }
  },
  "ConsumerConfig": {

  },
  "MethodConfig": {

  },
  "ModuleConfig": {

  },
  "MonitorConfig": {

  },
  "ProtocolConfig": {
    "dubbo": {
      "accepts": null,
      "accesslog": null,
      "buffer": null,
      "charset": null,
      "class": "com.alibaba.dubbo.config.ProtocolConfig",
      "client": null,
      "codec": null,
      "contextpath": null,
      "dispatcher": null,
      "dispather": null,
      "exchanger": null,
      "heartbeat": null,
      "host": null,
      "id": "dubbo",
      "iothreads": null,
      "name": "dubbo",
      "networker": null,
      "path": null,
      "payload": null,
      "port": 12345,
      "prompt": null,
      "queues": null,
      "serialization": null,
      "server": null,
      "status": null,
      "telnet": null,
      "threadpool": null,
      "threads": null,
      "transporter": null
    }
  },
  "ProviderConfig": {

  },
  "ReferenceConfig": {

  },
  "RegistryConfig": {

  },
  "ServiceConfig": {

  }
}
技术图片

关键是Dubbo *Config类的简单名称，值是*Config bean的名称属性映射。

/actuator/dubbo/shutdown

/ actuator / dubbo / shutdown关闭Dubbo的组件，包括注册表，协议，服务和引用：

{
    "shutdown.count": {
        "registries": 0,
        "protocols": 1,
        "services": 0,
        "references": 1
    }
}
技术图片

“shutdown.count”表示Dubbo组件的关闭计数，该值表示已关闭的组件数。

外部化配置

默认的StatusChecker

   management.health.dubbo.status.defaults是用于设置StatusCheckers名称的属性名称，其值允许为多个值，例如

management.health.dubbo.status.defaults = registry,memory,load
技术图片

默认值

默认值是

management.health.dubbo.status.defaults = memory,load
技术图片

StatusChecker额外功能

management.health.dubbo.status.extras用于覆盖[StatusChecker的默认值]，多个值由逗号分隔：

management.health.dubbo.status.extras = load,threadpool
技术图片

健康检查已启用

management.health.dubbo.enabled是一个启用配置来打开或关闭运行状况检查功能，其默认值为true。

如果您要禁用运行状况检查，则应将management.health.dubbo.enabled应用于false：

management.health.dubbo.enabled = false
技术图片

端点启用

Dubbo Spring Boot提供执行器端点，但其中一些是禁用的。 如果您要启用它们，请将以下属性添加到外部配置中：

# Enables Dubbo All Endpoints
management.endpoint.dubbo.enabled = true
management.endpoint.dubbo-shutdown.enabled = true
management.endpoint.dubbo-configs.enabled = true
management.endpoint.dubbo-services.enabled = true
management.endpoint.dubbo-references.enabled = true
management.endpoint.dubbo-properties.enabled = true
技术图片
