iOS 下拉菜单 FFDropDownMenu自定义下拉菜单样式实战-b

Posted 2020-08-09

Demo地址:
https://github.com/chenfanfang/CollectionsOfExample
FFDropDownMenu框架地址:
https://github.com/chenfanfang/FFDropDownMenu

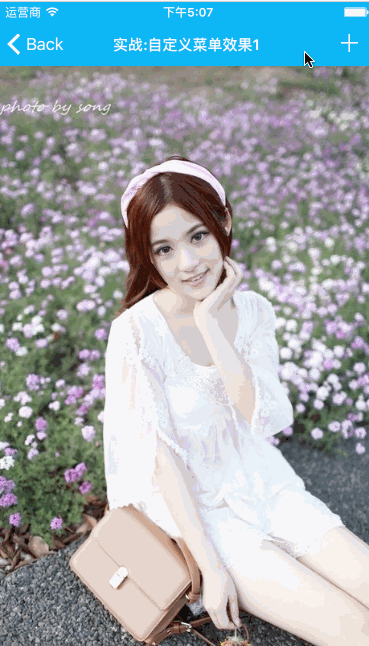

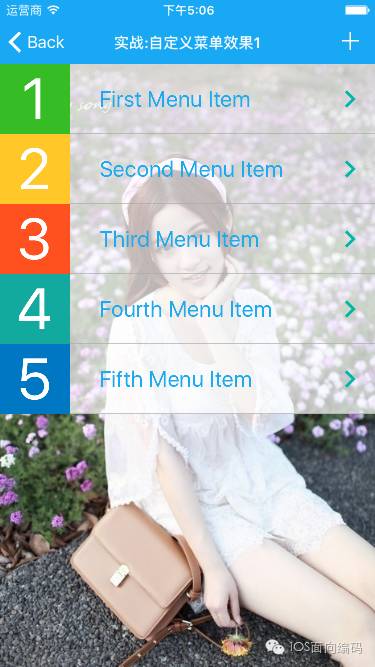

老样子，先附上两张效果图



---

• 首先自定义一个继承于FFDropDownMenuBasedModel的菜单模型
  .h文件

#import <FFDropDownMenuBasedModel.h>
@interface FFDropDownCustomMenuStyle1Model : FFDropDownMenuBasedModel
/** 主标题的背景颜色 */
@property (nonatomic, strong) UIColor *mainTitleBgColor;
/** 主标题 */
@property (nonatomic, copy) NSString *mainTitle;
/** 副标题 */
@property (nonatomic, copy) NSString *subTitle;
//菜单模型创建的属性用于自定义菜单cell，所以需要什么属性，自己定义

@end

.m文件

#import "FFDropDownCustomMenuStyle1Model.h"
@implementation FFDropDownCustomMenuStyle1Model
@end

---

• 其次自定义一个继承于FFDropDownMenuBasedCell的cell

FFDropDownCustomMenuStyle1Cell.h

#import <FFDropDownMenuView.h>
/**
 *  自定义菜单效果1 菜单 cell
 */
@interface FFDropDownCustomMenuStyle1Cell : FFDropDownMenuBasedCell
@end

FFDropDownCustomMenuStyle1Cell.m

#import "FFDropDownCustomMenuStyle1Cell.h"
//model
#import "FFDropDownCustomMenuStyle1Model.h"
@interface FFDropDownCustomMenuStyle1Cell ()
@property (weak, nonatomic) IBOutlet UILabel *mainTitle_Label;
@property (weak, nonatomic) IBOutlet UILabel *subTitle_Label;
@[email protected] FFDropDownCustomMenuStyle1Cell
- (void)setMenuModel:(id)menuModel {
    _menuModel = menuModel;
    //在这里将模型转成自定义的模型
    FFDropDownCustomMenuStyle1Model *realModel = (FFDropDownCustomMenuStyle1Model *)menuModel;
    self.mainTitle_Label.backgroundColor = realModel.mainTitleBgColor;
    self.mainTitle_Label.text = realModel.mainTitle;
    self.subTitle_Label.text = realModel.subTitle;
}
@end

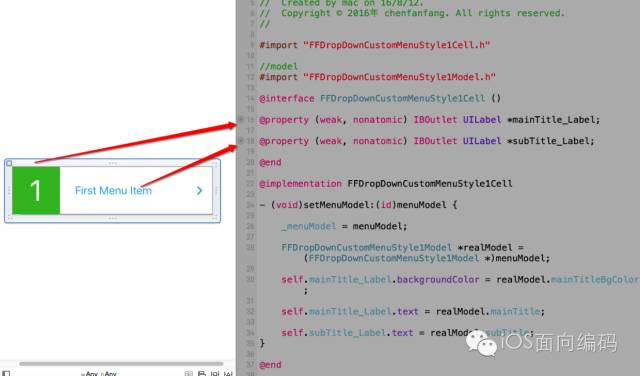

cell的xib布局图如下


---

• 最后就可以创建下拉菜单了

#import "FFDropDownCustomMenuStyle1VC.h"
//controller
#import "FFDropDownMenuNextPageVC.h"
//view
#import <FFDropDownMenuView.h>
//model
#import "FFDropDownCustomMenuStyle1Model.h"
@interface FFDropDownCustomMenuStyle1VC ()
/** 下拉菜单 */
@property (nonatomic, strong) FFDropDownMenuView *dropDownMenu;
@[email protected] FFDropDownCustomMenuStyle1VC
- (void)viewDidLoad {
    [super viewDidLoad];
    [self createDropdownMenu];
    [self setupNav];
}
- (void)createDropdownMenu {
    NSArray *menuModelsArr = [self getDropDownMenuModelsArray];
    self.dropDownMenu = [FFDropDownMenuView new];
    //设置动画效果,可以根据项目需求设置自己所需要的动画效果
    self.dropDownMenu.menuAnimateType = FFDropDownMenuViewAnimateType_FallFromTop;
    //若不需要灰色透明蒙板，下面的两个透明度可以设置为0     self.dropDownMenu.bgColorbeginAlpha = 0;
    self.dropDownMenu.bgColorEndAlpha = 0;
    //设置下拉菜单的宽度为整个屏幕的宽度     self.dropDownMenu.menuWidth = [UIScreen mainScreen].bounds.size.width;
    //设置菜单距离屏幕右边的边距为0     self.dropDownMenu.menuRightMargin = 0;
    //取消菜单圆角效果     self.dropDownMenu.menuCornerRadius = 0;
    //隐藏三角形     self.dropDownMenu.triangleSize = CGSizeZero;
    self.dropDownMenu.eachMenuItemHeight = 70;
    self.dropDownMenu.menuModelsArray = menuModelsArr;
    self.dropDownMenu.cellClassName = @"FFDropDownCustomMenuStyle1Cell.xib";
    self.dropDownMenu.menuItemBackgroundColor = FFColor(255, 255, 255, 0.7);
    [self.dropDownMenu setup]; }
/** 获取下拉菜单模型数组 */
- (NSArray *)getDropDownMenuModelsArray {
    __weak typeof(self)weakSelf = self;
    FFDropDownCustomMenuStyle1Model *menuModel1 = [FFDropDownCustomMenuStyle1Model new];
    menuModel1.mainTitleBgColor = FFColor(54, 188, 37, 1);
    menuModel1.mainTitle = @"1";
    menuModel1.subTitle = @"First Menu Item";
    menuModel1.menuBlock = ^ {
        FFDropDownMenuNextPageVC *vc = [FFDropDownMenuNextPageVC new];
        vc.navigationItem.title = @"First Menu Item";
        [weakSelf.navigationController pushViewController:vc animated:YES];
    };
    FFDropDownCustomMenuStyle1Model *menuModel2 = [FFDropDownCustomMenuStyle1Model new];
    menuModel2.mainTitleBgColor = FFColor(255, 199, 40, 1);
    menuModel2.mainTitle = @"2";
    menuModel2.subTitle = @"Second Menu Item";
    menuModel2.menuBlock = ^ {
        FFDropDownMenuNextPageVC *vc = [FFDropDownMenuNextPageVC new];
        vc.navigationItem.title = @"Second Menu Item";
        [weakSelf.navigationController pushViewController:vc animated:YES];
    };
    FFDropDownCustomMenuStyle1Model *menuModel3 = [FFDropDownCustomMenuStyle1Model new];
    menuModel3.mainTitleBgColor = FFColor(255, 81, 31, 1);
    menuModel3.mainTitle = @"3";
    menuModel3.subTitle = @"Third Menu Item";
    menuModel3.menuBlock = ^ {
        FFDropDownMenuNextPageVC *vc = [FFDropDownMenuNextPageVC new];
        vc.navigationItem.title = @"Facebook";
        [weakSelf.navigationController pushViewController:vc animated:YES];
    };
    FFDropDownCustomMenuStyle1Model *menuModel4 = [FFDropDownCustomMenuStyle1Model new];
    menuModel4.mainTitleBgColor = FFColor(18, 170, 158, 1);
    menuModel4.mainTitle = @"4";
    menuModel4.subTitle = @"Fourth Menu Item";
    menuModel4.menuBlock = ^ {
        FFDropDownMenuNextPageVC *vc = [FFDropDownMenuNextPageVC new];
        vc.navigationItem.title = @"Facebook";
        [weakSelf.navigationController pushViewController:vc animated:YES];
    };
    FFDropDownCustomMenuStyle1Model *menuModel5 = [FFDropDownCustomMenuStyle1Model new];
    menuModel5.mainTitleBgColor = FFColor(0, 119, 195, 1);
    menuModel5.mainTitle = @"5";
    menuModel5.subTitle = @"Fifth Menu Item";
    menuModel5.menuBlock = ^ {
        FFDropDownMenuNextPageVC *vc = [FFDropDownMenuNextPageVC new];
        vc.navigationItem.title = @"Facebook";
        [weakSelf.navigationController pushViewController:vc animated:YES];
    };
    NSArray *menuModelArr = @[menuModel1,menuModel2,menuModel3,menuModel4,menuModel5];
    return menuModelArr;
}
/** 初始化导航栏 */
- (void)setupNav {
    self.navigationItem.rightBarButtonItem = [[UIBarButtonItem alloc] initWithBarButtonSystemItem:UIBarButtonSystemItemAdd target:self.dropDownMenu action:@selector(showMenu)];
    self.navigationItem.title = @"实战:自定义菜单效果1";
}
@end
