微信扫码登录实现

Posted 2023-02-14

第三方微信登录功能

• ​​一、准备工作​​
• ​​二、微信登录后端开发​​

• ​​2.1 添加配置​​
• ​​2.2 创建常量类，创建ConstantPropertiesUtil.java常量类​​
• ​​2.3 创建controller​​
• ​​2.4 测试​​

• ​​三、获取微信扫描人的信息​​

• ​​3.1 测试回调是否可用​​
• ​​3.2 添加依赖​​
• ​​3.3 添加httpclient工具类​​
• ​​3.4 创建回调controller方法​​
• ​​3.5 前端显示扫描人信息​​

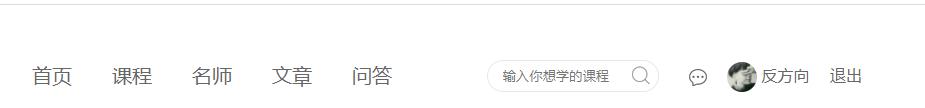

• ​​3.6 登录之后的前端显示效果​​

一、准备工作

​​https://open.weixin.qq.com​​​ 1、注册
2、邮箱激活
3、完善开发者资料
4、开发者资质认证
准备营业执照，1-2个工作日审批、300元
5、创建网站应用
提交审核，7个工作日审批

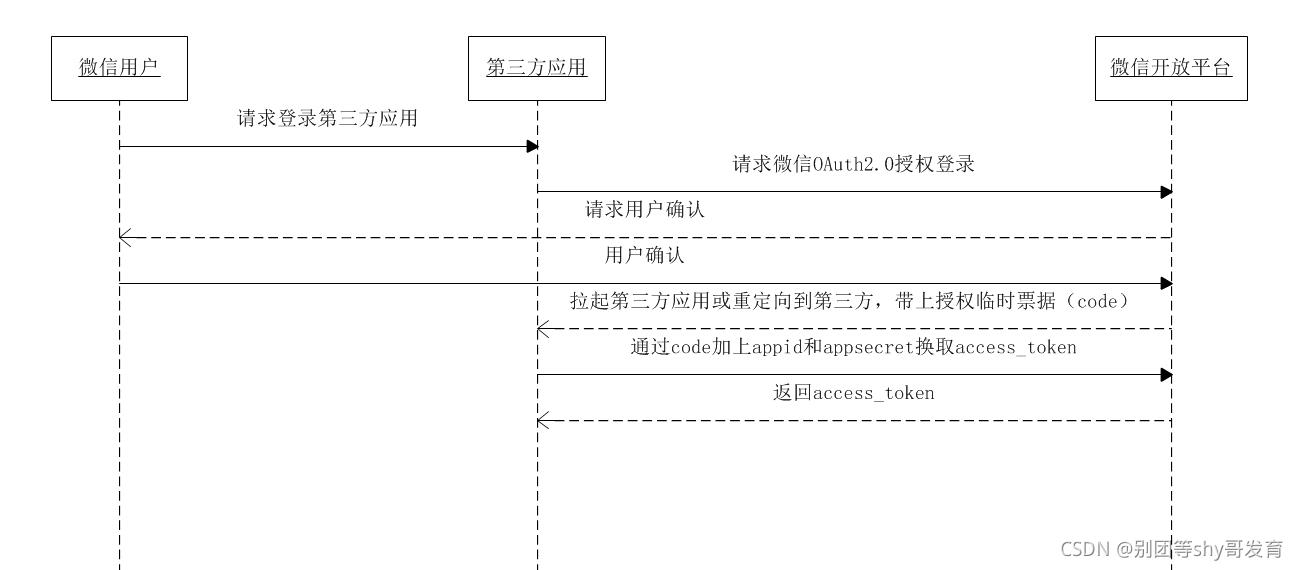

6、熟悉微信登录流程
参考文档：​​​https://open.weixin.qq.com/cgi-bin/showdocument?action=dir_list&t=resource/res_list&verify=1&id=open1419316505&token=e547653f995d8f402704d5cb2945177dc8aa4e7e&lang=zh_CN​​​ 获取access_token时序图

注意：个人开发者是不能申请的，必须要有营业执照，如果实在用不了的话，考虑使用微信公众平台，我下面是用了别人的appid和密钥。

二、微信登录后端开发

2.1 添加配置

application.properties配置文件：

# 微信开放平台 appid
wx.open.app_id=你的appid
# 微信开放平台 appsecret
wx.open.app_secret=你的appsecret
# 微信开放平台 重定向url
wx.open.redirect_url=http://你的服务器名称/api/ucenter/wx/callback

2.2 创建常量类，创建ConstantPropertiesUtil.java常量类

import org.springframework.beans.factory.InitializingBean;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.stereotype.Component;

/**
 * 读取微信登录的相关配置
 */
@Component
public class ConstantWxUtils implements InitializingBean
    @Value("$wx.open.app_id")
    private String appId;

    @Value("$wx.open.app_secret")
    private String appSecret;

    @Value("$wx.open.redirect_url")
    private String redirectUrl;

    public static String WX_OPEN_APP_ID;
    public static String WX_OPEN_APP_SECRET;
    public static String WX_OPEN_REDIRECT_URL;

    @Override
    public void afterPropertiesSet() throws Exception
        WX_OPEN_APP_ID = appId;
        WX_OPEN_APP_SECRET = appSecret;
        WX_OPEN_REDIRECT_URL = redirectUrl;


2.3 创建controller

WxApiController

import com.atguigu.commonutils.JwtUtils;
import com.atguigu.educenter.entity.UcenterMember;
import com.atguigu.educenter.service.UcenterMemberService;
import com.atguigu.educenter.utils.ConstantWxUtils;
import com.atguigu.educenter.utils.HttpClientUtils;
import com.atguigu.servicebase.exceptionhandler.GuliException;
import com.google.gson.Gson;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.CrossOrigin;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RequestMapping;

import java.io.UnsupportedEncodingException;
import java.net.URLEncoder;
import java.util.HashMap;

@Controller //只是请求地址  不需要返回数据  不用RestController
@RequestMapping("/api/ucenter/wx")
@CrossOrigin
public class WxApiController

    //1、生成微信扫描的二维码
    @GetMapping("login")
    public String getWxCode()
        //固定地址，后面拼接参数
        // 微信开放平台授权baseUrl %s相当于?占位符
        String baseUrl = "https://open.weixin.qq.com/connect/qrconnect" +
                "?appid=%s" +
                "&redirect_uri=%s" +
                "&response_type=code" +
                "&scope=snsapi_login" +
                "&state=%s" +
                "#wechat_redirect";
        //对redirect_url进行URLEncoder编码
        String redirect_url=ConstantWxUtils.WX_OPEN_REDIRECT_URL;
        try
            redirect_url = URLEncoder.encode(redirect_url, "utf-8");
         catch (UnsupportedEncodingException e)
            e.printStackTrace();

        //设置%s里面的值
        String url = String.format(baseUrl,
                ConstantWxUtils.WX_OPEN_APP_ID,
                redirect_url,
                "atguigu"
        );
        //重定向到请求微信地址里面
        return "redirect:"+url;


授权url参数说明

参数	是否必须	说明
appid	是	应用唯一标识
redirect_uri	是	请使用urlEncode对链接进行处理
response_type	是	填code
scope	是	应用授权作用域，拥有多个作用域用逗号（,）分隔，网页应用目前仅填写snsapi_login
state	是	用于保持请求和回调的状态，授权请求后原样带回给第三方。该参数可用于防止csrf攻击（跨站请求伪造攻击），建议第三方带上该参数，可设置为简单的随机数加session进行校验

2.4 测试

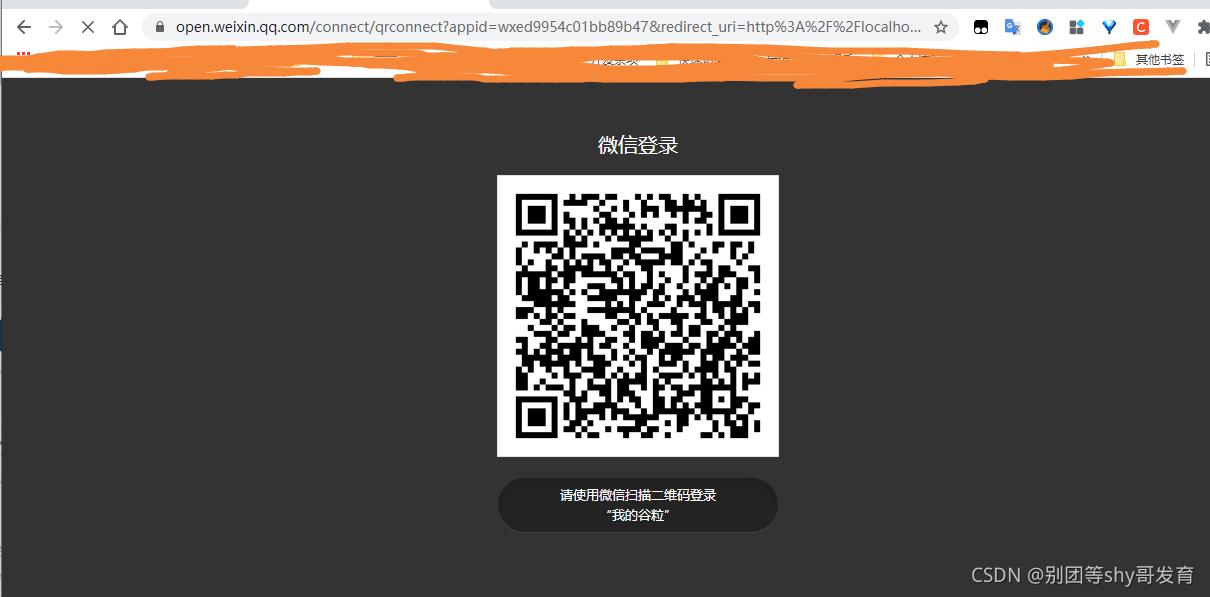

访问：​​http://localhost:8160/api/ucenter/wx/login​​

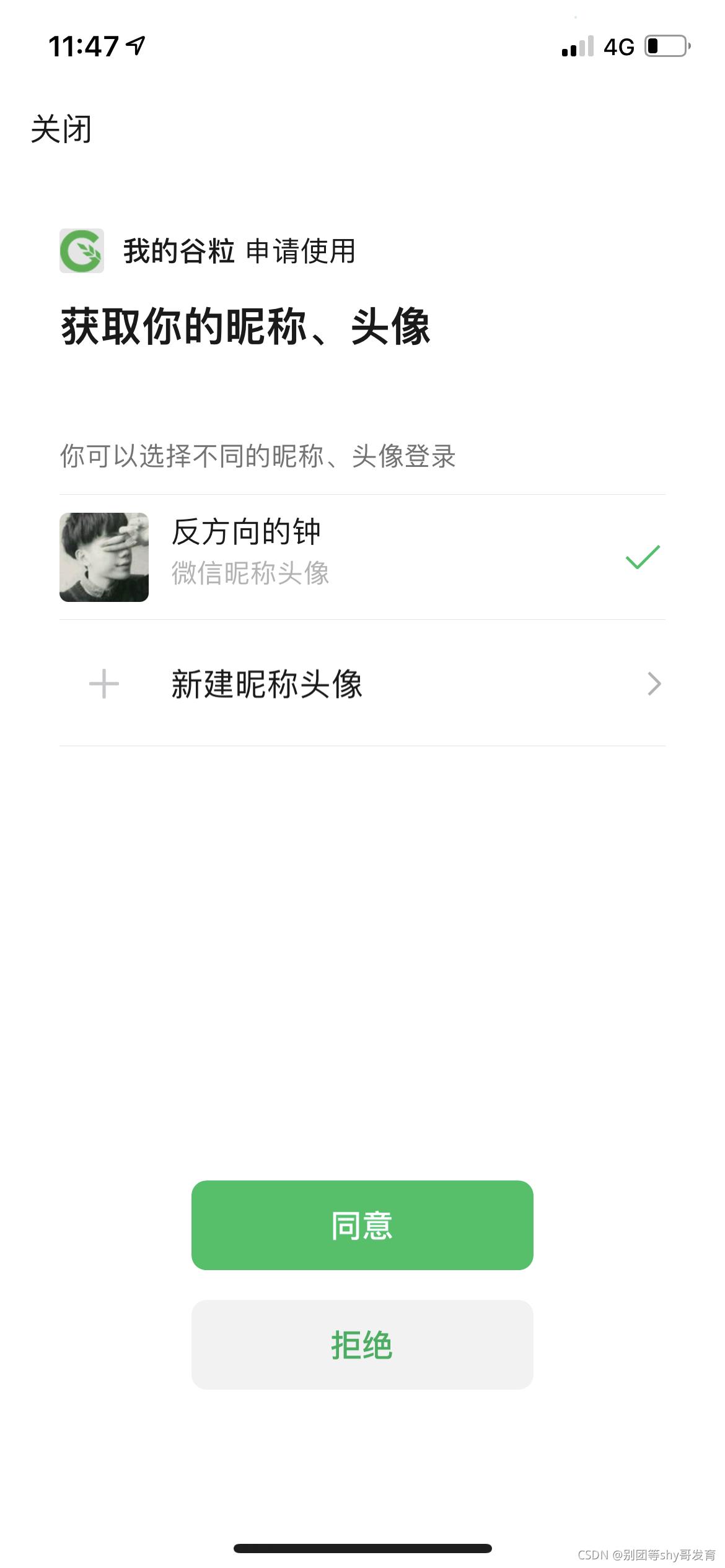

手机扫描二维码之后的界面如下

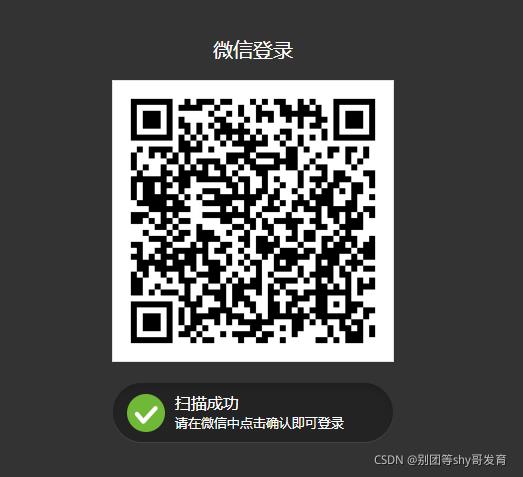

网页上面也会显示

三、获取微信扫描人的信息

3.1 测试回调是否可用

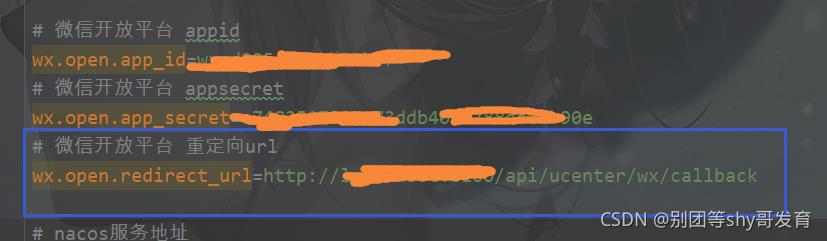

回调的url我们在登录的controller中已经制定了，如下图

扫描之后，执行本地的callback方法，在callback获取两个值，在跳转的时候传递过来。

state:原样传递

code:类似于手机验证码，随机唯一的值(临时票据)

//2、获取扫描人信息，添加数据
    @GetMapping("callback")
    public String callback(String code,String state)
        //得到授权临时票据code
    System.out.println("code = " + code);
    System.out.println("state = " + state);

3.2 添加依赖

这里没指定版本是因为我已经在父项目中指定过了，我开发的是微服务项目，你根据自己情况。

<!--httpclient-->
<dependency>
    <groupId>org.apache.httpcomponents</groupId>
    <artifactId>httpclient</artifactId>
</dependency>
<!--commons-io-->
<dependency>
    <groupId>commons-io</groupId>
    <artifactId>commons-io</artifactId>
</dependency>
<!--gson-->
<dependency>
    <groupId>com.google.code.gson</groupId>
    <artifactId>gson</artifactId>
</dependency>

3.3 添加httpclient工具类

httpclient主要是通过java代码的方式也可以实现和浏览器访问一样的效果。我们主要用这个去调用微信官方提供的接口。

import org.apache.commons.io.IOUtils;
import org.apache.commons.lang.StringUtils;
import org.apache.http.Consts;
import org.apache.http.HttpEntity;
import org.apache.http.HttpResponse;
import org.apache.http.NameValuePair;
import org.apache.http.client.HttpClient;
import org.apache.http.client.config.RequestConfig;
import org.apache.http.client.config.RequestConfig.Builder;
import org.apache.http.client.entity.UrlEncodedFormEntity;
import org.apache.http.client.methods.HttpGet;
import org.apache.http.client.methods.HttpPost;
import org.apache.http.conn.ConnectTimeoutException;
import org.apache.http.conn.ssl.SSLConnectionSocketFactory;
import org.apache.http.conn.ssl.SSLContextBuilder;
import org.apache.http.conn.ssl.TrustStrategy;
import org.apache.http.conn.ssl.X509HostnameVerifier;
import org.apache.http.entity.ContentType;
import org.apache.http.entity.StringEntity;
import org.apache.http.impl.client.CloseableHttpClient;
import org.apache.http.impl.client.HttpClients;
import org.apache.http.impl.conn.PoolingHttpClientConnectionManager;
import org.apache.http.message.BasicNameValuePair;

import javax.net.ssl.SSLContext;
import javax.net.ssl.SSLException;
import javax.net.ssl.SSLSession;
import javax.net.ssl.SSLSocket;
import java.io.IOException;
import java.net.SocketTimeoutException;
import java.security.GeneralSecurityException;
import java.security.cert.CertificateException;
import java.security.cert.X509Certificate;
import java.util.ArrayList;
import java.util.List;
import java.util.Map;
import java.util.Map.Entry;
import java.util.Set;

/**
 *  依赖的jar包有：commons-lang-2.6.jar、httpclient-4.3.2.jar、httpcore-4.3.1.jar、commons-io-2.4.jar
 * @author zhaoyb
 *
 */
public class HttpClientUtils

  public static final int connTimeout=10000;
  public static final int readTimeout=10000;
  public static final String charset="UTF-8";
  private static HttpClient client = null;

  static
    PoolingHttpClientConnectionManager cm = new PoolingHttpClientConnectionManager();
    cm.setMaxTotal(128);
    cm.setDefaultMaxPerRoute(128);
    client = HttpClients.custom().setConnectionManager(cm).build();


  public static String postParameters(String url, String parameterStr) throws ConnectTimeoutException, SocketTimeoutException, Exception
    return post(url,parameterStr,"application/x-www-form-urlencoded",charset,connTimeout,readTimeout);


  public static String postParameters(String url, String parameterStr,String charset, Integer connTimeout, Integer readTimeout) throws ConnectTimeoutException, SocketTimeoutException, Exception
    return post(url,parameterStr,"application/x-www-form-urlencoded",charset,connTimeout,readTimeout);


  public static String postParameters(String url, Map<String, String> params) throws ConnectTimeoutException,
      SocketTimeoutException, Exception
    return postForm(url, params, null, connTimeout, readTimeout);


  public static String postParameters(String url, Map<String, String> params, Integer connTimeout,Integer readTimeout) throws ConnectTimeoutException,
      SocketTimeoutException, Exception
    return postForm(url, params, null, connTimeout, readTimeout);


  public static String get(String url) throws Exception
    return get(url, charset, null, null);


  public static String get(String url, String charset) throws Exception
    return get(url, charset, connTimeout, readTimeout);


  /**
   * 发送一个 Post 请求, 使用指定的字符集编码.
   *
   * @param url
   * @param body RequestBody
   * @param mimeType 例如 application/xml "application/x-www-form-urlencoded" a=1&b=2&c=3
   * @param charset 编码
   * @param connTimeout 建立链接超时时间,毫秒.
   * @param readTimeout 响应超时时间,毫秒.
   * @return ResponseBody, 使用指定的字符集编码.
   * @throws ConnectTimeoutException 建立链接超时异常
   * @throws SocketTimeoutException  响应超时
   * @throws Exception
   */
  public static String post(String url, String body, String mimeType,String charset, Integer connTimeout, Integer readTimeout)
      throws ConnectTimeoutException, SocketTimeoutException, Exception
    HttpClient client = null;
    HttpPost post = new HttpPost(url);
    String result = "";
    try
      if (StringUtils.isNotBlank(body))
        HttpEntity entity = new StringEntity(body, ContentType.create(mimeType, charset));
        post.setEntity(entity);

      // 设置参数
      Builder customReqConf = RequestConfig.custom();
      if (connTimeout != null)
        customReqConf.setConnectTimeout(connTimeout);

      if (readTimeout != null)
        customReqConf.setSocketTimeout(readTimeout);

      post.setConfig(customReqConf.build());

      HttpResponse res;
      if (url.startsWith("https"))
        // 执行 Https 请求.
        client = createSSLInsecureClient();
        res = client.execute(post);
       else
        // 执行 Http 请求.
        client = HttpClientUtils.client;
        res = client.execute(post);

      result = IOUtils.toString(res.getEntity().getContent(), charset);
     finally
      post.releaseConnection();
      if (url.startsWith("https") && client != null&& client instanceof CloseableHttpClient)
        ((CloseableHttpClient) client).close();


    return result;



  /**
   * 提交form表单
   *
   * @param url
   * @param params
   * @param connTimeout
   * @param readTimeout
   * @return
   * @throws ConnectTimeoutException
   * @throws SocketTimeoutException
   * @throws Exception
   */
  public static String postForm(String url, Map<String, String> params, Map<String, String> headers, Integer connTimeout,Integer readTimeout) throws ConnectTimeoutException,
      SocketTimeoutException, Exception

    HttpClient client = null;
    HttpPost post = new HttpPost(url);
    try
      if (params != null && !params.isEmpty())
        List<NameValuePair> formParams = new ArrayList<NameValuePair>();
        Set<Entry<String, String>> entrySet = params.entrySet();
        for (Entry<String, String> entry : entrySet)
          formParams.add(new BasicNameValuePair(entry.getKey(), entry.getValue()));

        UrlEncodedFormEntity entity = new UrlEncodedFormEntity(formParams, Consts.UTF_8);
        post.setEntity(entity);


      if (headers != null && !headers.isEmpty())
        for (Entry<String, String> entry : headers.entrySet())
          post.addHeader(entry.getKey(), entry.getValue());


      // 设置参数
      Builder customReqConf = RequestConfig.custom();
      if (connTimeout != null)
        customReqConf.setConnectTimeout(connTimeout);

      if (readTimeout != null)
        customReqConf.setSocketTimeout(readTimeout);

      post.setConfig(customReqConf.build());
      HttpResponse res = null;
      if (url.startsWith("https"))
        // 执行 Https 请求.
        client = createSSLInsecureClient();
        res = client.execute(post);
       else
        // 执行 Http 请求.
        client = HttpClientUtils.client;
        res = client.execute(post);

      return IOUtils.toString(res.getEntity().getContent(), "UTF-8");
     finally
      post.releaseConnection();
      if (url.startsWith("https") && client != null
          && client instanceof CloseableHttpClient)
        ((CloseableHttpClient) client).close();







  /**
   * 发送一个 GET 请求
   *
   * @param url
   * @param charset
   * @param connTimeout  建立链接超时时间,毫秒.
   * @param readTimeout  响应超时时间,毫秒.
   * @return
   * @throws ConnectTimeoutException   建立链接超时
   * @throws SocketTimeoutException   响应超时
   * @throws Exception
   */
  public static String get(String url, String charset, Integer connTimeout,Integer readTimeout)
      throws ConnectTimeoutException,SocketTimeoutException, Exception

    HttpClient client = null;
    HttpGet get = new HttpGet(url);
    String result = "";
    try
      // 设置参数
      Builder customReqConf = RequestConfig.custom();
      if (connTimeout != null)
        customReqConf.setConnectTimeout(connTimeout);

      if (readTimeout != null)
        customReqConf.setSocketTimeout(readTimeout);

      get.setConfig(customReqConf.build());

      HttpResponse res = null;

      if (url.startsWith("https"))
        // 执行 Https 请求.
        client = createSSLInsecureClient();
        res = client.execute(get);
       else
        // 执行 Http 请求.
        client = HttpClientUtils.client;
        res = client.execute(get);


      result = IOUtils.toString(res.getEntity().getContent(), charset);
     finally
      get.releaseConnection();
      if (url.startsWith("https") && client != null && client instanceof CloseableHttpClient)
        ((CloseableHttpClient) client).close();


    return result;



  /**
   * 从 response 里获取 charset
   *
   * @param ressponse
   * @return
   */
  @SuppressWarnings("unused")
  private static String getCharsetFromResponse(HttpResponse ressponse)
    // Content-Type:text/html; charset=GBK
    if (ressponse.getEntity() != null  && ressponse.getEntity().getContentType() != null && ressponse.getEntity().getContentType().getValue() != null)
      String contentType = ressponse.getEntity().getContentType().getValue();
      if (contentType.contains("charset="))
        return contentType.substring(contentType.indexOf("charset=") + 8);


    return null;




  /**
   * 创建 SSL连接
   * @return
   * @throws GeneralSecurityException
   */
  private static CloseableHttpClient createSSLInsecureClient() throws GeneralSecurityException
    try
      SSLContext sslContext = new SSLContextBuilder().loadTrustMaterial(null, new TrustStrategy()
        public boolean isTrusted(X509Certificate[] chain,String authType) throws CertificateException
          return true;

      ).build();

      SSLConnectionSocketFactory sslsf = new SSLConnectionSocketFactory(sslContext, new X509HostnameVerifier()

        @Override
        public boolean verify(String arg0, SSLSession arg1)
          return true;


        @Override
        public void verify(String host, SSLSocket ssl)
            throws IOException


        @Override
        public void verify(String host, X509Certificate cert)
            throws SSLException


        @Override
        public void verify(String host, String[] cns,
                   String[] subjectAlts) throws SSLException


      );

      return HttpClients.custom().setSSLSocketFactory(sslsf).build();

     catch (GeneralSecurityException e)
      throw e;



  public static void main(String[] args)
    try
      String str= post("https://localhost:443/ssl/test.shtml","name=12&page=34","application/x-www-form-urlencoded", "UTF-8", 10000, 10000);
      //String str= get("https://localhost:443/ssl/test.shtml?name=12&page=34","GBK");
            /*Map<String,String> map = new HashMap<String,String>();
            map.put("name", "111");
            map.put("page", "222");
            String str= postForm("https://localhost:443/ssl/test.shtml",map,null, 10000, 10000);*/
      System.out.println(str);
     catch (ConnectTimeoutException e)
      // TODO Auto-generated catch block
      e.printStackTrace();
     catch (SocketTimeoutException e)
      // TODO Auto-generated catch block
      e.printStackTrace();
     catch (Exception e)
      // TODO Auto-generated catch block
      e.printStackTrace();



3.4 创建回调controller方法

1、回调的时候大致的想法就是拿着上面扫描登录获取到的code值，请求微信提供的地址​​https://api.weixin.qq.com/sns/oauth2/access_token?appid=APPID&secret=SECRET&code=CODE&grant_type=authorization_code​​​获取到两个值​​access_token​​​和​​openid​​​ 这块参考微信官网文档​​https://developers.weixin.qq.com/doc/oplatform/Website_App/WeChat_Login/Wechat_Login.html​​ 2、然后拿着上面获取到的​​access_token​​和​​openid​​，再去请求微信提供的地址​​https://api.weixin.qq.com/sns/userinfo?access_token=%s&openid=%s​​，%s是我的占位符，你根据自己情况修改，到这里就可以获取到微信扫描人的信息了，比如微信昵称、微信头像、openid等等。
在WxApiController.java中添加如下方法

@Autowired
    private UcenterMemberService memberService;

    //2、获取扫描人信息，添加数据
    @GetMapping("callback")
    public String callback(String code,String state)
        try
            //1、获取到code值，临时票据，类似于验证码
            //2、拿着code去请求微信固定的地址，得到两个值 access_token和openid
            String baseAccessTokenUrl = "https://api.weixin.qq.com/sns/oauth2/access_token" +
                    "?appid=%s" +
                    "&secret=%s" +
                    "&code=%s" +
                    "&grant_type=authorization_code";
            //拼接三个参数:id 密钥和code值
            String accessTokenUrl = String.format(baseAccessTokenUrl,
                    ConstantWxUtils.WX_OPEN_APP_ID,
                    ConstantWxUtils.WX_OPEN_APP_SECRET,
                    code
            );
            //请求这个拼接好的地址，得到两个值 access_token和openid
            //使用httpclient发送请求，得到返回结果
            String accessTokenInfo = HttpClientUtils.get(accessTokenUrl);
//            System.out.println("accessTokenInfo:"+accessTokenInfo);
            //从accessTokenInfo字符串里面获取access_token和openid两个值
            //把accessTokenInfo字符串转换成map集合，根据Map里面的key获取对应值
            //使用json转换工具 Gson
            Gson gson=new Gson();
            HashMap mapAccessToken = gson.fromJson(accessTokenInfo, HashMap.class);
            String access_token = (String) mapAccessToken.get("access_token");
            String openid = (String) mapAccessToken.get("openid");

            //把扫码人信息添加到数据库里面
            //判断数据库里面是否存在相同的微信信息，根据openid判断
            UcenterMember member = memberService.getOpenIdMember(openid);
            if(member ==null)  //member是空，表示表里面没有相同的微信数据，进行添加

                //3、拿着得到的access_token和openid，再去请求微信提供的固定地址，获取扫码人的信息
                //访问微信的资源服务器，获取用户信息
                String baseUserInfoUrl = "https://api.weixin.qq.com/sns/userinfo" +
                        "?access_token=%s" +
                        "&openid=%s";
                String userInfoUrl= String.format(
                        baseUserInfoUrl,
                        access_token,
                        openid
                );
                //发送请求
                String userInfo = HttpClientUtils.get(userInfoUrl);
//            System.out.println("userInfo:"+userInfo);
                //获取返回userInfo中的用户信息(扫码人信息)
                HashMap userInfoMap = gson.fromJson(userInfo, HashMap.class);
                String nickname = (String) userInfoMap.get("nickname"); //昵称
                String headimgurl = (String) userInfoMap.get("headimgurl"); //头像

                member=new UcenterMember();
                member.setOpenid(openid);
                member.setNickname(nickname);
                member.setAvatar(headimgurl);
                memberService.save(member); //添加

            //使用jwt根据member对象生成token字符串
            String jwtToken = JwtUtils.getJwtToken(member.getId(), member.getNickname());
            //最后  返回首页面,通过路径传递token字符串
            return "redirect:http://localhost:3000?token="+jwtToken;
         catch (Exception e)
            throw new GuliException(20001,"登录失败");



  上面还做了个判断，如果是第一次登录，则将信息添加到数据库中。

3.5 前端显示扫描人信息

  这里其实后端开发人员的工作已经基本做完了，但是如果想在前端显示的话，我们最好还是根据微信信息使用​​jwt​​​,生成token字符串，把token字符串通过路径传递到首页面。
上一步的代码已经包含了这一步。

//使用jwt根据member对象生成token字符串
            String jwtToken = JwtUtils.getJwtToken(member.getId(), member.getNickname());
            //最后  返回首页面,通过路径传递token字符串
            return "redirect:http://localhost:3000?token="+jwtToken;

3.6 登录之后的前端显示效果

  前端代码我就不放出来了，你根据自己需要实现自己想要的效果就行，我登录之后通过回调最后登录到了首页面，并在右上方显示信息(头像、昵称等等)。
