畅购商城用户注册以及整合JWT

Posted 2022-11-10

1. 用户注册
1. 接口
POST ​​http://localhost:10010/web-service/user/register​​

"mobile":"13612345677",
"password":"1234",
"username":"jack3",
"code":"3919"

1. 后端
1. 保存前需要再次进行服务端校验

1. 用户名是否注册
2. 手机号是否注册
3. 验证码是否失效
4. 验证码是否错误
2. 密码需要使用 BCrypt进行加密
3. 步骤一：修改UserService接口，添加register方法
/**
 * 用户注册
* @param user
 * @return
 */
public boolean register(User user) ;
1. 步骤二：完善UserServiceImpl实现类
@Override
public boolean register(User user)
    //密码加密
    String newPassword = BCrypt.hashpw(user.getPassword());
    user.setPassword(newPassword);
    //处理数据
    user.setCreatedAt(new Date());
    user.setUpdatedAt(user.getCreatedAt());
    int insert = baseMapper.insert(user);
    return insert == 1;

1. 步骤三：修改UserController，添加register方法
/**
 * 用户注册
 * @param user
 * @return
 */
@PostMapping("/register")
public BaseResult  register(@RequestBody User user)
    //服务端校验
    User findUser = userService.findByUsername(user.getUsername());
    if(findUser != null)
        return BaseResult.error("用户名已经存在");

    findUser = userService.findByMobile(user.getMobile());
    if(findUser != null)
        return BaseResult.error("电话号码已经存在");

    //验证码
    String code = stringRedisTemplate.opsForValue().get("sms_register" + user.getMobile());
    //删除redis中的验证码
    stringRedisTemplate.delete("sms_register" + user.getMobile());
    if(code == null)
        return BaseResult.error("验证码失效");

    if(!code.equals(user.getCode()))
        return BaseResult.error("验证码不正确");

    //注册
    boolean register = userService.register(user);
    if(register)
        return BaseResult.ok("注册成功");

    return BaseResult.error("注册失败");

1. 日期处理（可选）
1. 编写 DateMetaObjectHandler 用于处理“创建时间”和“修改日期”
package com.czxy.changgou4.handler;
import com.baomidou.mybatisplus.core.handlers.MetaObjectHandler;
import org.apache.ibatis.reflection.MetaObject;
import org.springframework.stereotype.Component;
import java.util.Date;
/**
 * @author 桐叔
 * @email [e-mail]
 */
@Component
public class DateMetaObjectHandler implements MetaObjectHandler
@Override
    public void insertFill(MetaObject metaObject)
        this.setFieldValByName("createdAt", new Date(), metaObject);
        this.setFieldValByName("updatedAt", new Date(), metaObject);

@Override
    public void updateFill(MetaObject metaObject)
        this.setFieldValByName("updatedAt", new Date(), metaObject);


1. 完善User JavaBean，设置填充方式
@TableField(value="created_at",fill = FieldFill.INSERT)
private Date createdAt;
@TableField(value="updated_at",fill = FieldFill.INSERT_UPDATE)
private Date updatedAt;
1. 前端
1. 步骤一：修改 api.js ，添加注册函数
//注册
  register : ( user )=>
return axios.post(/web-service/user/register, user )

1. 步骤二：处理表单，验证码input绑定数据，提交按钮绑定事件
<li class="checkcode">
<label for="">验证码：</label>
<input type="text"  name="checkcode"  v-model="user.code" />
<button  :disabled="btnDisabled" @click.prevent="sendSmsFn" >
                发送验证码<span v-show="btnDisabled">seconds秒</span>
</button>
<p :class="userMsg.smsData.code == 1 ? success : error">userMsg.smsData.message </p>
</li>
<li>
<label for=""> </label>
<input type="checkbox" class="chb" checked="checked" /> 我已阅读并同意《用户注册协议》
</li>
<li>
<label for=""> </label>
<input type="submit" value="" @click.prevent="registerFn" class="login_btn" />
</li>

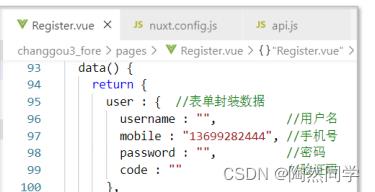

1. 步骤三：完善data区域的user数据



user :   //表单封装数据
        username : "",          //用户名
        mobile : "13699282444", //手机号
        password : "",          //密码
        code : ""               //验证码
      ,

1. 步骤四：编写registerFn函数

async registerFn()
let  data  = await this.$request.register( this.user )
if( data.code == 20000)
//成功
this.$router.push(/login)
       else
//失败--与发送验证码使用一个位置显示错误信息
this.userMsg.smsData = data





1. 整合JWT

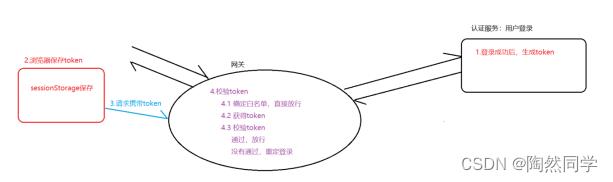

1. 整合分析

1. 生成token：在用户登录成功，根据用户的登录信息，生成登录标识token，并返回给浏览器。
2. 使用token：完善ajax请求，在请求之前添加请求头，设置token
3. 校验token：在网关中编写过滤器，进行请求进行拦截，并校验token。
4. 白名单：在白名单中的请求，是不需要token可以直接访问的。

1. 生成Token

5. 用户登录成功，生成token，并将token响应给浏览器。（认证服务 AuthService）

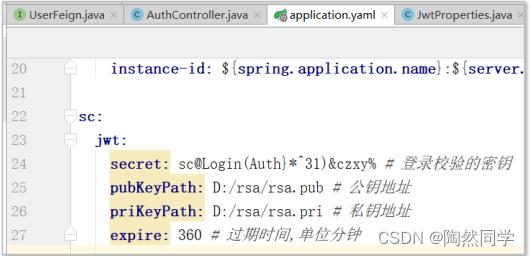

6. 步骤一：查看 application.yml文件，确定 jwt配置信息

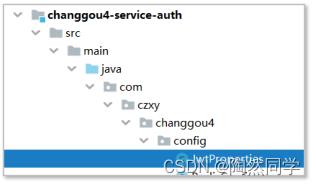

1. 步骤二：创建JwtProperties文件，用于加载sc.jwt配置信息

package com.czxy.changgou4.config;
import com.czxy.changgou4.utils.RsaUtils;
import lombok.Data;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.boot.context.properties.ConfigurationProperties;
import org.springframework.stereotype.Component;
import javax.annotation.PostConstruct;
import java.io.File;
import java.security.PrivateKey;
import java.security.PublicKey;
/**
 * @author 桐叔
 * @email [e-mail]
 */
@Data
@ConfigurationProperties(prefix = "sc.jwt")
@Component
public class JwtProperties
    private String secret; // 密钥
    private String pubKeyPath;// 公钥
    private String priKeyPath;// 私钥
    private int expire;// token过期时间
    private PublicKey publicKey; // 公钥
    private PrivateKey privateKey; // 私钥
    private static final Logger logger = LoggerFactory.getLogger(JwtProperties.class);
@PostConstruct
    public void init()
        try
            File pubFile = new File(this.pubKeyPath);
            File priFile = new File(this.priKeyPath);
            if( !pubFile.exists() || !priFile.exists())
                RsaUtils.generateKey( this.pubKeyPath ,this.priKeyPath , this.secret);

            this.publicKey = RsaUtils.getPublicKey( this.pubKeyPath );
            this.privateKey = RsaUtils.getPrivateKey( this.priKeyPath );
         catch (Exception e)
            throw new RuntimeException(e.getMessage());



1. 步骤三：修改AuthController，注入JwtProperties，并使用JwtUtils生成token
package com.czxy.changgou4.controller;
/**
 * @author 桐叔
 * @email [e-mail]
 */
import com.czxy.changgou4.config.JwtProperties;
import com.czxy.changgou4.domain.AuthUser;
import com.czxy.changgou4.service.AuthService;
import com.czxy.changgou4.utils.JwtUtils;
import com.czxy.changgou4.vo.BaseResult;
import org.springframework.data.redis.core.StringRedisTemplate;
import org.springframework.web.bind.annotation.PostMapping;
import org.springframework.web.bind.annotation.RequestBody;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;
import javax.annotation.Resource;
/**
 * Created by liangtong.
 */
@RestController
@RequestMapping("/auth")
public class AuthController
@Resource
    private AuthService authService;
@Resource
    private StringRedisTemplate stringRedisTemplate;
@Resource
    private JwtProperties jwtProperties;
@PostMapping("/login")
    public BaseResult login(@RequestBody AuthUser user)
        //校验验证码--使用后删除
        String redisCode = stringRedisTemplate.opsForValue().get( "login" + user.getUsername() );
        stringRedisTemplate.delete( "login" + user.getUsername() );
        if(redisCode == null)
            return BaseResult.error("验证码无效");

        if(! redisCode.equalsIgnoreCase(user.getCode()))
            return BaseResult.error("验证码错误");

        //登录
        AuthUser loginUser = authService.login(user);
        if(loginUser != null )
            //生成Token
            String token = JwtUtils.generateToken(loginUser, jwtProperties.getExpire(), jwtProperties.getPrivateKey());
            return BaseResult.ok("登录成功").append("loginUser",loginUser).append("token", token);
         else
            return BaseResult.error("用户名或密码不匹配");



1. 使用token

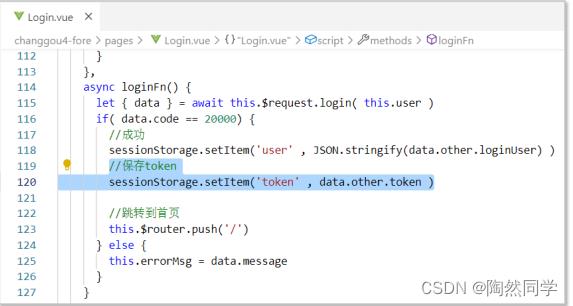

1. 步骤一：登录成功后保存token，修改 Login.vue页面

async loginFn()
let  data  = await this.$request.login( this.user )
if( data.code == 20000)
//成功
        sessionStorage.setItem(user , JSON.stringify(data.other.loginUser) )
//保存token
        sessionStorage.setItem(token , data.other.token )
//跳转到首页
this.$router.push(/)
       else
this.errorMsg = data.message

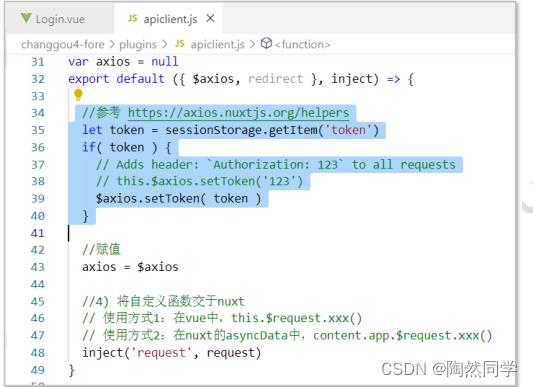

1. 步骤二：请求是自动携带token，修改apiclient.js，将token添加到请求头

//参考 https://axios.nuxtjs.org/helpers
let token = sessionStorage.getItem(token)
if( token )
// Adds header: `Authorization: 123` to all requests
// this.$axios.setToken(123)
    $axios.setToken( token )

1. 步骤三：检查 nuxt.conf.js，插件模式改成“client”

1. 否则抛异常“sessionStorage is not defined”
  plugins: [
     src: ~plugins/apiclient.js, mode: client
  ],

1. 校验token

1. token的校验在网关项目处完成
2. 步骤一：修改application.yml添加jwt配置

#自定义内容

sc:

  jwt:

    secret: sc@Login(Auth*^31)&czxy% # 登录校验的密钥

    pubKeyPath: D:/rsa/rsa.pub # 公钥地址

    priKeyPath: D:/rsa/rsa.pri # 私钥地址

    expire: 360 # 过期时间,单位分钟

1. 步骤二：创建 JwtProperties，用于加载配置文件

package com.czxy.changgou4.config;
import com.czxy.changgou4.utils.RsaUtils;
import lombok.Data;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.boot.context.properties.ConfigurationProperties;
import org.springframework.stereotype.Component;
import javax.annotation.PostConstruct;
import java.io.File;
import java.security.PrivateKey;
import java.security.PublicKey;
/**
 * @author 桐叔
 * @email [e-mail]
 */
@Data
@ConfigurationProperties(prefix = "sc.jwt")
public class JwtProperties
    private String secret; // 密钥
    private String pubKeyPath;// 公钥
    private String priKeyPath;// 私钥
    private int expire;// token过期时间
    private PublicKey publicKey; // 公钥
    private PrivateKey privateKey; // 私钥
    private static final Logger logger = LoggerFactory.getLogger(JwtProperties.class);
@PostConstruct
    public void init()
        try
            File pubFile = new File(this.pubKeyPath);
            File priFile = new File(this.priKeyPath);
            if( !pubFile.exists() || !priFile.exists())
                RsaUtils.generateKey( this.pubKeyPath ,this.priKeyPath , this.secret);

            this.publicKey = RsaUtils.getPublicKey( this.pubKeyPath );
            this.privateKey = RsaUtils.getPrivateKey( this.priKeyPath );
         catch (Exception e)
            throw new RuntimeException(e.getMessage());

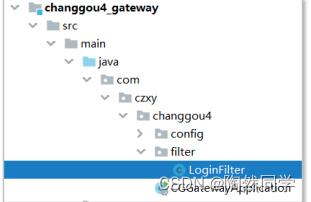

1. 步骤三：编写过滤器，对所有路径进行拦截

package com.czxy.changgou4.filter;
import com.czxy.changgou4.config.FilterProperties;
import com.czxy.changgou4.config.JwtProperties;
import com.czxy.changgou4.pojo.User;
import com.czxy.changgou4.utils.JwtUtils;
import com.czxy.changgou4.utils.RsaUtils;
import org.springframework.boot.context.properties.EnableConfigurationProperties;
import org.springframework.cloud.gateway.filter.GatewayFilterChain;
import org.springframework.cloud.gateway.filter.GlobalFilter;
import org.springframework.core.Ordered;
import org.springframework.core.io.buffer.DataBuffer;
import org.springframework.http.HttpStatus;
import org.springframework.http.server.reactive.ServerHttpRequest;
import org.springframework.http.server.reactive.ServerHttpResponse;
import org.springframework.stereotype.Component;
import org.springframework.web.server.ServerWebExchange;
import reactor.core.publisher.Flux;
import reactor.core.publisher.Mono;
import javax.annotation.Resource;
import java.nio.charset.StandardCharsets;
/**
 * @author 桐叔
 * @email [e-mail]
 */
@Component
public class LoginFilter implements GlobalFilter, Ordered
@Resource
    private JwtProperties jwtProperties;
@Override
    public Mono<Void> filter(ServerWebExchange exchange, GatewayFilterChain chain)
        //1 获得请求路径
        ServerHttpRequest request = exchange.getRequest();
        String path = request.getURI().getPath();
        System.out.println(path);
        //2 白名单放行
        //3 获得token
        String token = request.getHeaders().getFirst("Authorization");
        //4 校验token
        try
            JwtUtils.getObjectFromToken(token, RsaUtils.getPublicKey(jwtProperties.getPubKeyPath()), User.class);
            return chain.filter(exchange);
         catch (Exception e)
            ServerHttpResponse response = exchange.getResponse();
            response.setStatusCode(HttpStatus.UNAUTHORIZED);
            response.getHeaders().add("Content-Type","application/json;charset=UTF-8");
            DataBuffer wrap = response.bufferFactory().wrap("没有权限".getBytes(StandardCharsets.UTF_8));
            return exchange.getResponse().writeWith(Flux.just(wrap));


@Override
    public int getOrder()
        return 1;

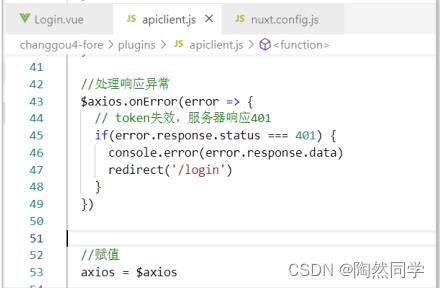

1. 步骤四：修改前端 apiclient.js 文件，用于处理401异常

//处理响应异常
  $axios.onError(error =>
// token失效，服务器响应401
if(error.response.status === 401)
      console.error(error.response.data)
      redirect(/login)

  )

1. api.js 完整代码

var axios = null
export default ( $axios, redirect, process , inject) =>
//参考 https://axios.nuxtjs.org/helpers
let token = sessionStorage.getItem(token)
if( token )
// Adds header: `Authorization: 123` to all requests
// this.$axios.setToken(123)
    $axios.setToken( token )

//处理响应异常
  $axios.onError(error =>
// token失效，服务器响应401
if(error.response.status === 401)
      console.error(error.response.data)
      redirect(/login)

  )
//赋值
  axios = $axios
//4) 将自定义函数交于nuxt
// 使用方式1：在vue中，this.$request.xxx()
// 使用方式2：在nuxt的asyncData中，content.app.$request.xxx()
  inject(request, request)

1. 白名单

1. 不需要拦截的资源都配置到yml文件中，在过滤器直接放行
2. 步骤一：修改application.yml文件

#自定义内容

sc:
  jwt:
    secret: sc@Login(Auth*^31)&czxy% # 登录校验的密钥
    pubKeyPath: D:/rsa/rsa.pub # 公钥地址
    priKeyPath: D:/rsa/rsa.pri # 私钥地址
    expire: 360 # 过期时间,单位分钟

  filter:

    allowPaths:



- /checkusername
      - /checkmobile
      - /sms
      - /register
      - /login
 - /verifycode
      - /categorys
      - /news
      - /brands
      - /specifications
      - /search
      - /goods
      - /comments
- swagger
 - /api-docs

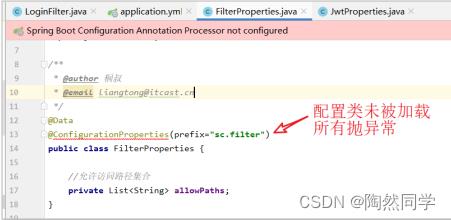

1. 步骤二：创建FilterProperties配置文件，用于存放允许放行的路径

package com.czxy.changgou4.config;
import lombok.Data;
import org.springframework.boot.context.properties.ConfigurationProperties;
import java.util.List;
/**
 * @author 桐叔
 * @email [e-mail]
 */
@Data
@ConfigurationProperties(prefix="sc.filter")
public class FilterProperties
    //允许访问路径集合
    private List<String> allowPaths;

1. 步骤三：修改 LoginFilter，放行名单中配置的路径

package com.czxy.changgou4.filter;
import com.czxy.changgou4.config.FilterProperties;
import com.czxy.changgou4.config.JwtProperties;
import com.czxy.changgou4.pojo.User;
import com.czxy.changgou4.utils.JwtUtils;
import com.czxy.changgou4.utils.RsaUtils;
import org.springframework.boot.context.properties.EnableConfigurationProperties;
import org.springframework.cloud.gateway.filter.GatewayFilterChain;
import org.springframework.cloud.gateway.filter.GlobalFilter;
import org.springframework.core.Ordered;
import org.springframework.core.io.buffer.DataBuffer;
import org.springframework.http.HttpStatus;
import org.springframework.http.server.reactive.ServerHttpRequest;
import org.springframework.http.server.reactive.ServerHttpResponse;
import org.springframework.stereotype.Component;
import org.springframework.web.server.ServerWebExchange;
import reactor.core.publisher.Flux;
import reactor.core.publisher.Mono;
import javax.annotation.Resource;
import java.nio.charset.StandardCharsets;
/**
 * @author 桐叔
 * @email [e-mail]
 */
@Component
//2.1 加载JWT配置类
@EnableConfigurationProperties(FilterProperties.class )       //加载配置类
public class LoginFilter implements GlobalFilter, Ordered
@Resource
    private FilterProperties filterProperties;
@Resource
    private JwtProperties jwtProperties;
@Override
    public Mono<Void> filter(ServerWebExchange exchange, GatewayFilterChain chain)
        //1 获得请求路径
        ServerHttpRequest request = exchange.getRequest();
        String path = request.getURI().getPath();
        System.out.println(path);
        //2 白名单放行
        for (String allowPath  : filterProperties.getAllowPaths())
            //判断包含
            if(path.contains(allowPath))
                return chain.filter(exchange);


        //3 获得token
        String token = request.getHeaders().getFirst("Authorization");
        //4 校验token
        try
            JwtUtils.getObjectFromToken(token, RsaUtils.getPublicKey(jwtProperties.getPubKeyPath()), User.class);
            return chain.filter(exchange);
         catch (Exception e)
            ServerHttpResponse response = exchange.getResponse();
            response.setStatusCode(HttpStatus.UNAUTHORIZED);
            response.getHeaders().add("Content-Type","application/json;charset=UTF-8");
            DataBuffer wrap = response.bufferFactory().wrap("没有权限".getBytes(StandardCharsets.UTF_8));
            return exchange.getResponse().writeWith(Flux.just(wrap));


@Override
    public int getOrder()
        return 1;
