AutowiredAnnotationBeanPostProcessor是实现@Autowired的关键,它本身是在何时添加到sping容器中的?
xml方式
在使用xml方式开发的过程中,我们程序入口一般是ClassPathXmlApplicationContext
public void test() throws Exception
ClassPathXmlApplicationContext applicationContext = new ClassPathXmlApplicationContext("spring-test.xml");
Student student = (Student)applicationContext.getBean("student");
System.out.println(student.getUsername()+" "+student.getPassword());

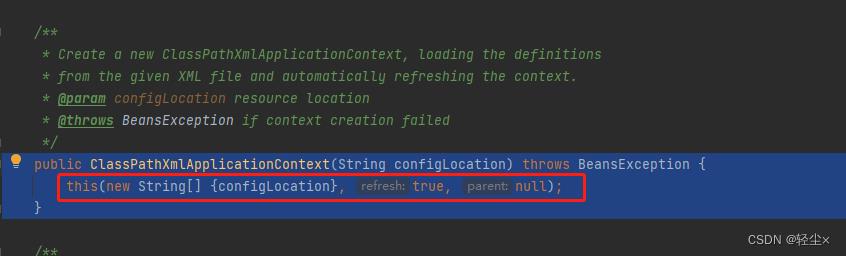

创建ClassPathXmlApplicationContext时,会调用this构造函数

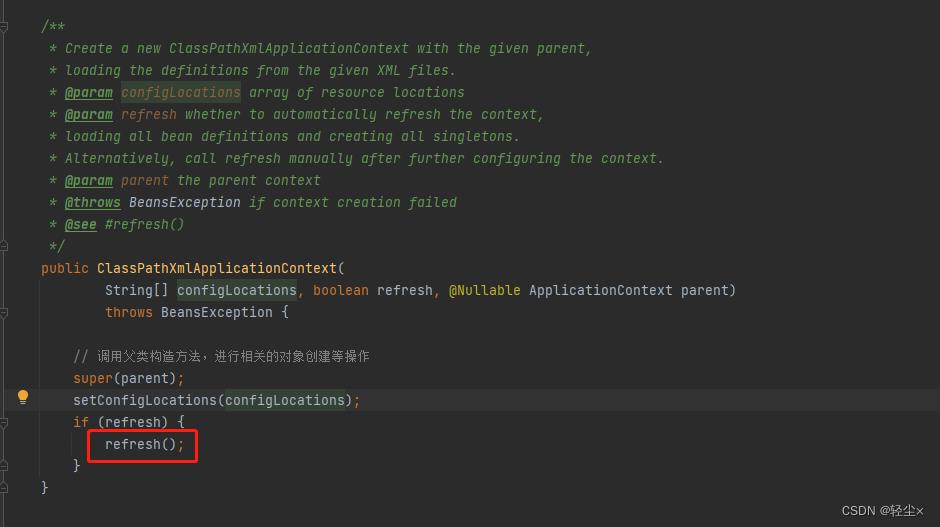

在构造函数中调用父类构造函数,完成一些属性的加载,以及配置文件路径的解析工作,然后进入正题——refresh()

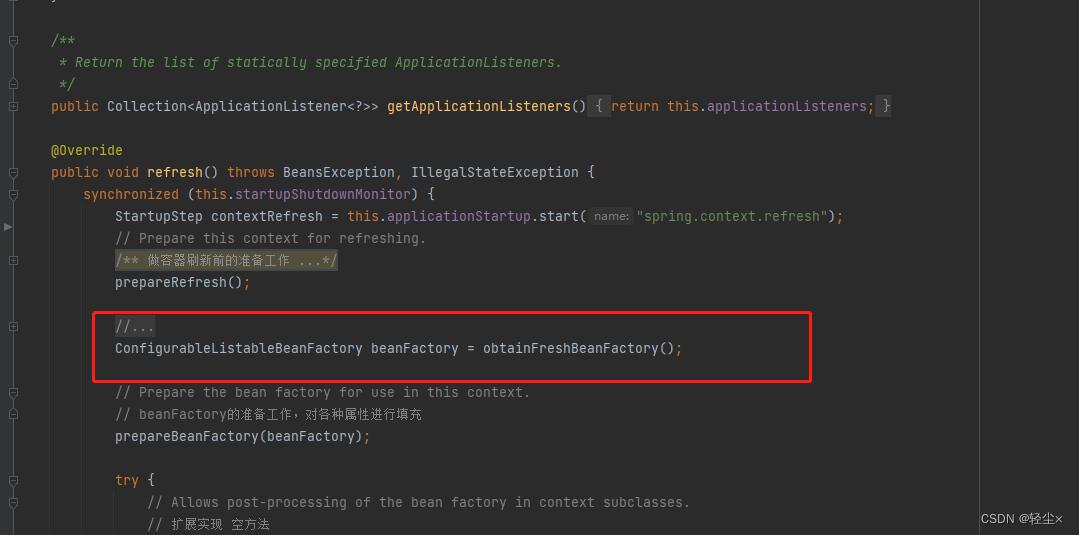

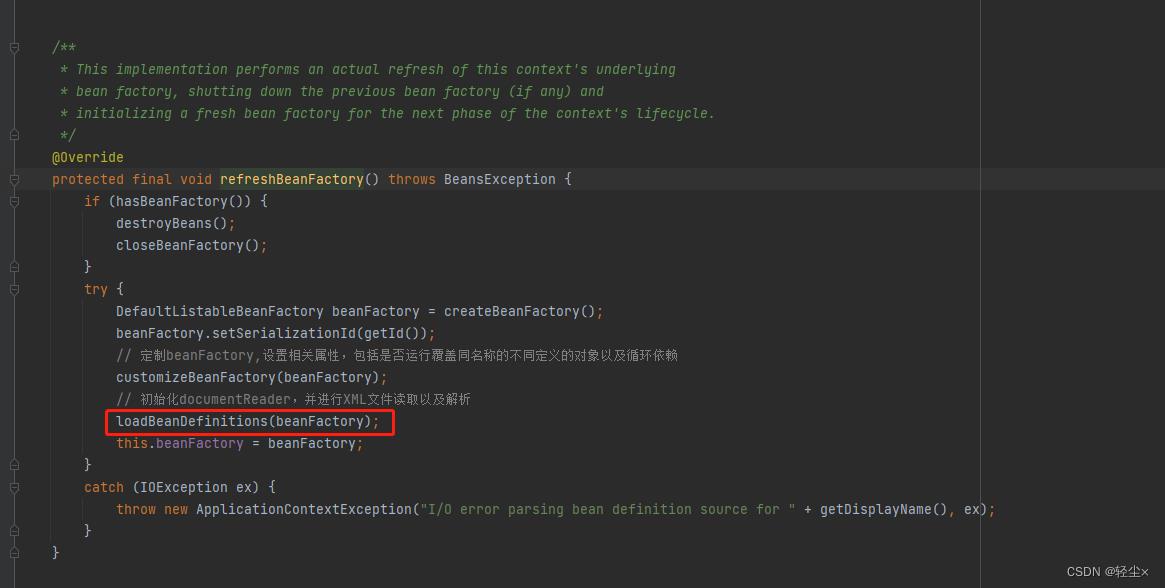

在核心的refresh()方法中,有一个步骤是创建BeanFactory

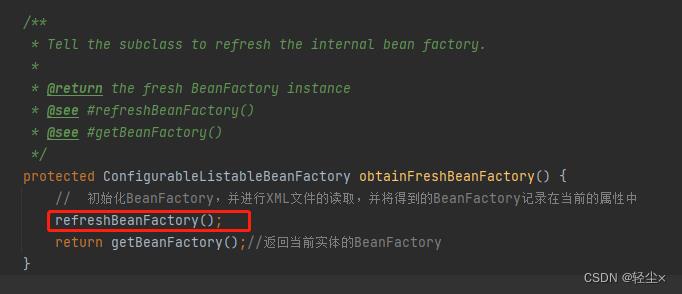

创建BeanFactory后,它顺带把我们的xml配置文件也给解析了

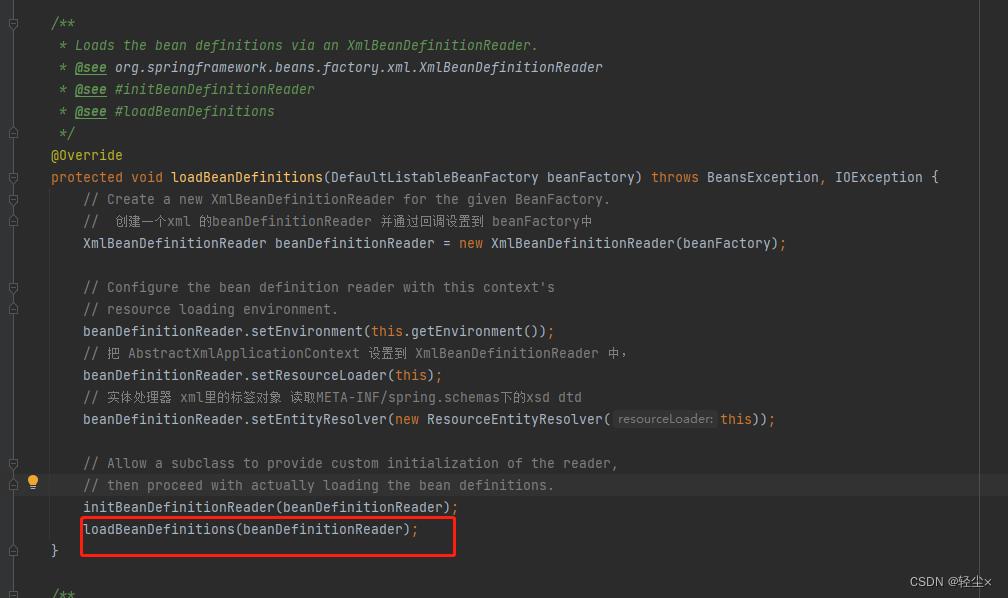

创建 BeanFactory,然后 loadBeanDefinitions
loadBeanDefinitions的过程比较复杂,有兴趣的可以去逐行degbug源码,这里就贴几个关键步骤

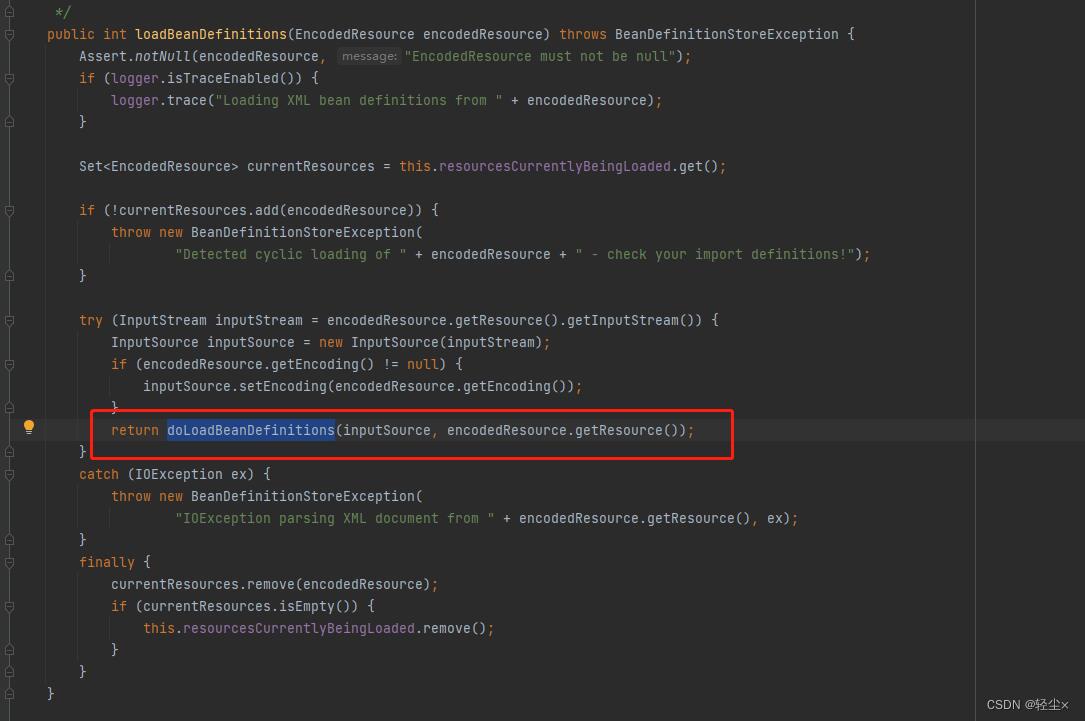

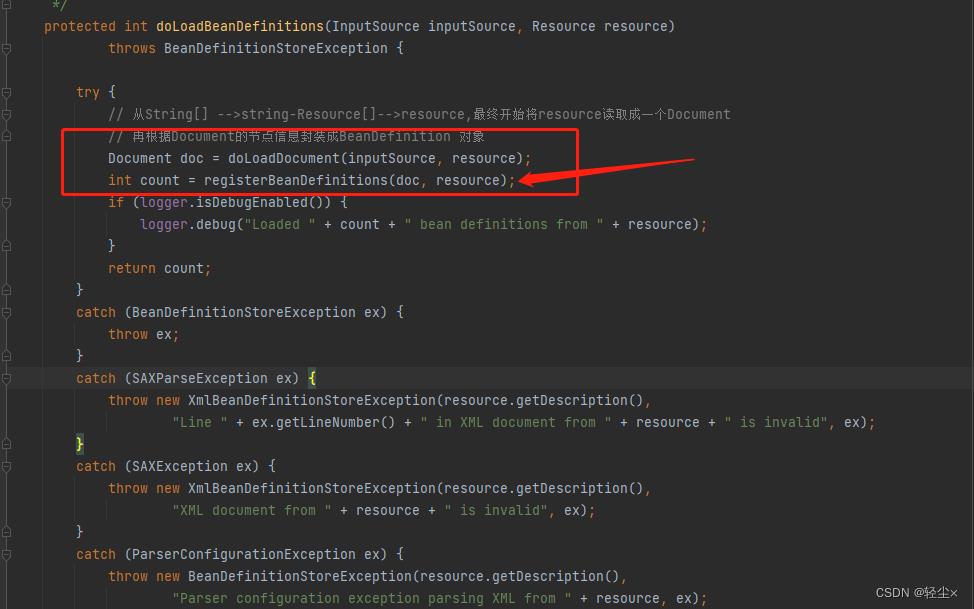

几个相同名称的loadBeanDefinitions调来调去,最好调到了真正干活的doLoadBeanDefinitions

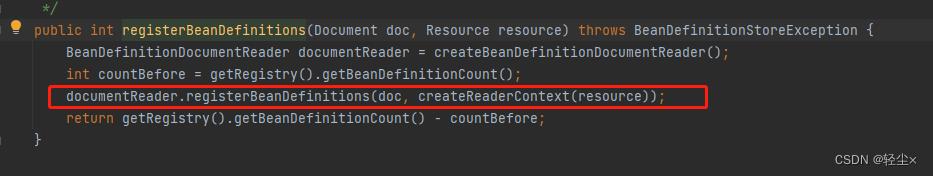

loadBeanDefinitions并不是这次关注的焦点,doLoadBeanDefinitions的细节也就不用深究了,重要的是在doLoadBeanDefinitions完成后,还只是得到了一个Document得对象,还不是我们要的bean定义信息,即BeanDefinition,所以继续进行了一个叫registerBeanDefinitions的步骤
在这个registerBeanDefinitions的过程中,九曲十八弯

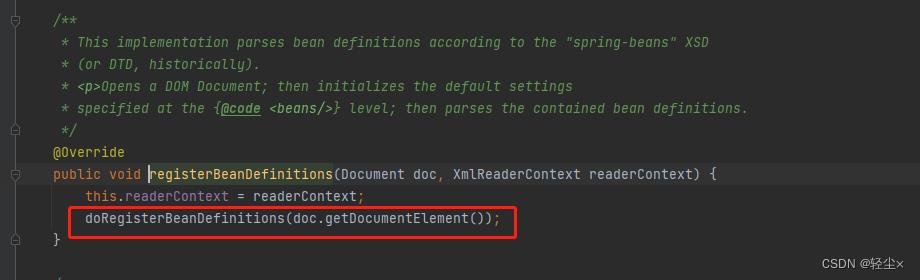

也是调do开头的方法进行真正的干活

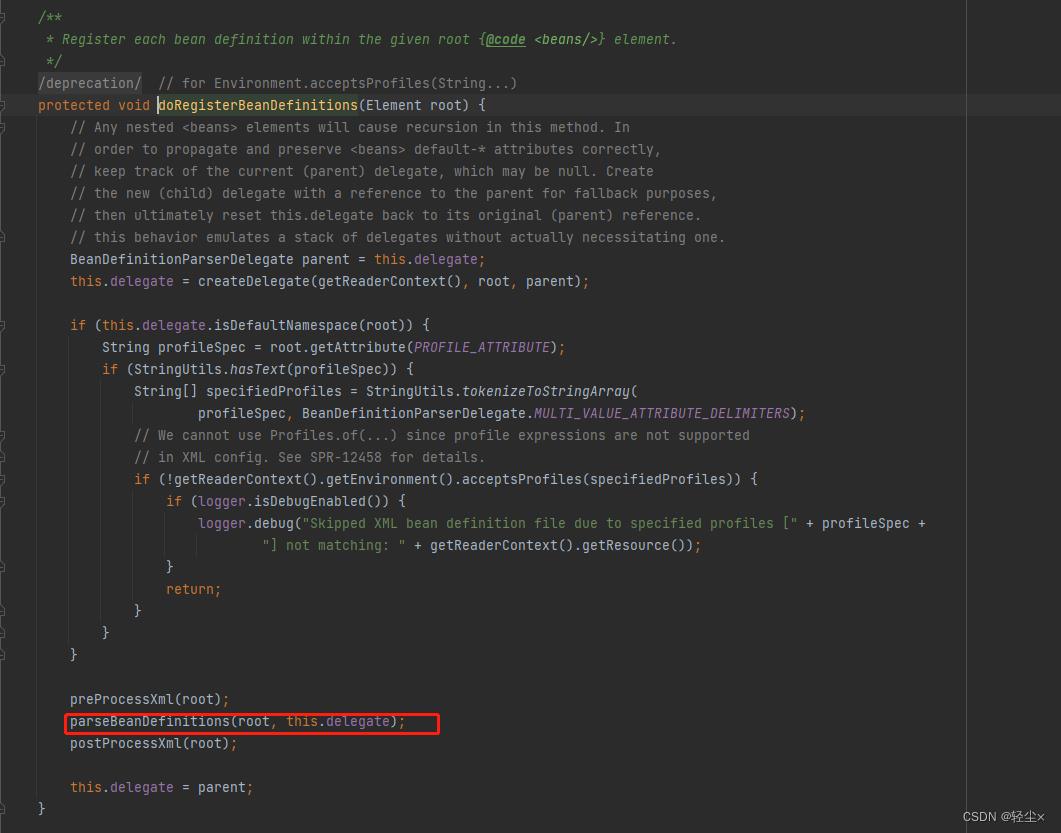

开始解析前面的Document了

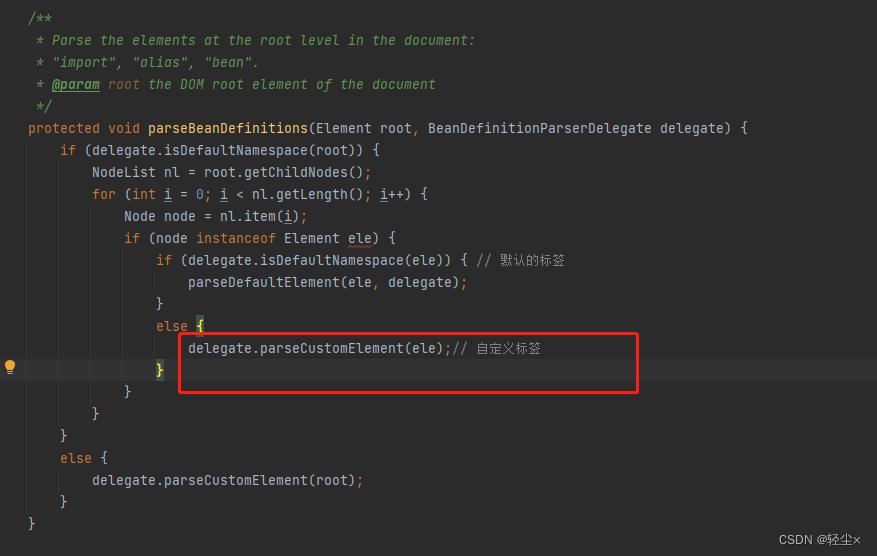

解析的标签分两种类型,一种是DefaultElement,一种是CustomElement

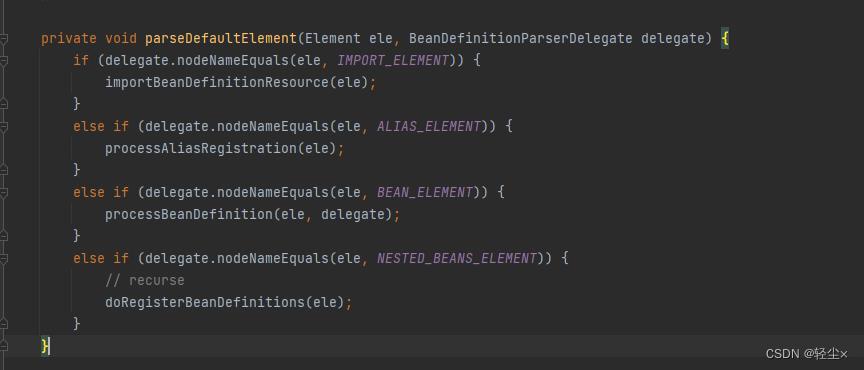

扯个题外话,什么是DefaultElement,这四个就是了,分别是import、alias、bean、beans,换句话说,除了这四个,其他的都是CustomElement

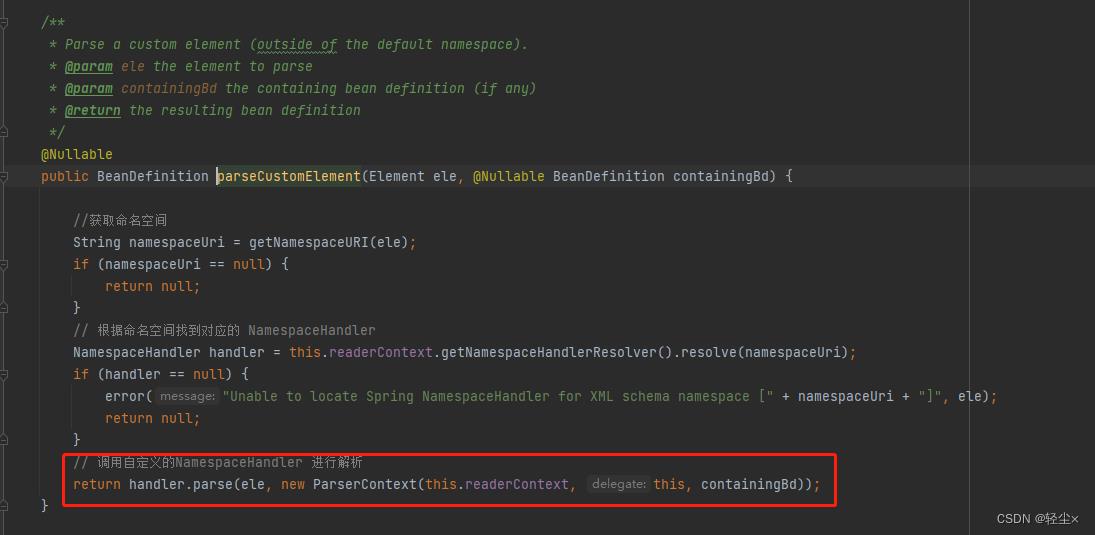

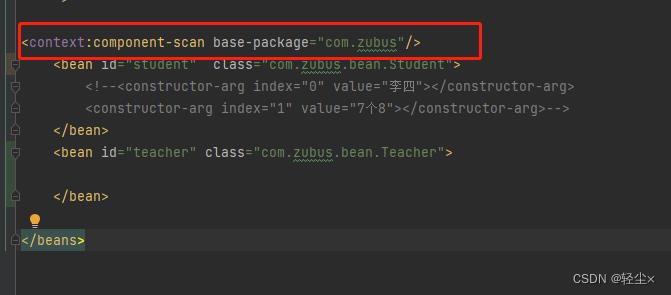

在我的测试环境中,第一个标签是context,自然就是走parseCustomElement
那就继续解析吧

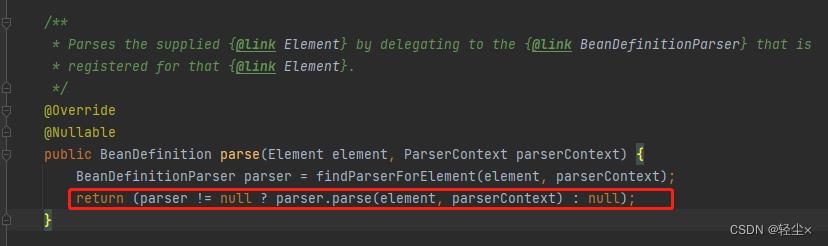

调到NamespaceHandlerSupport的parse方法

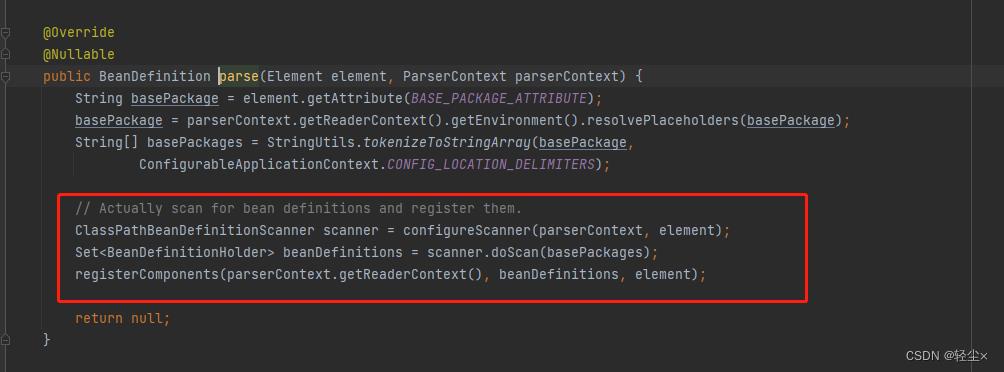

再往下走的又是ComponentScanBeanDefinitionParser的parse方法,终于到头了,把标签解析并封装成了BeanDefinitionHolder,而后又有一个动作registerComponents

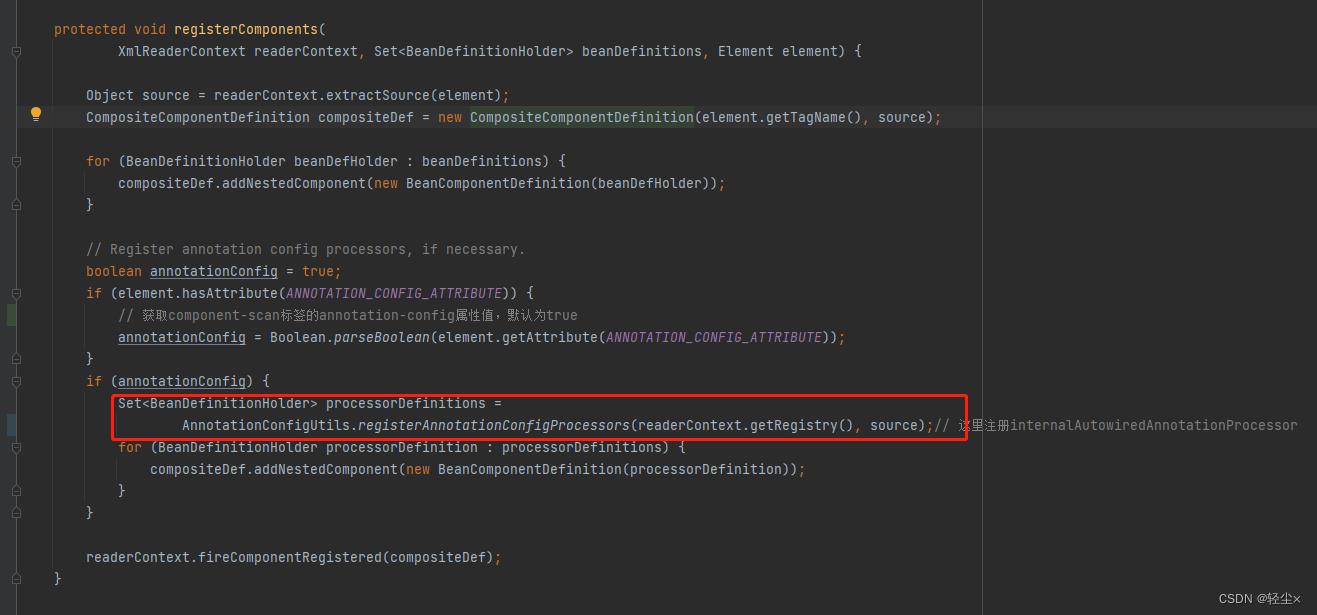

就是这个不起眼的小动作,registerComponents,里面蕴含玄机

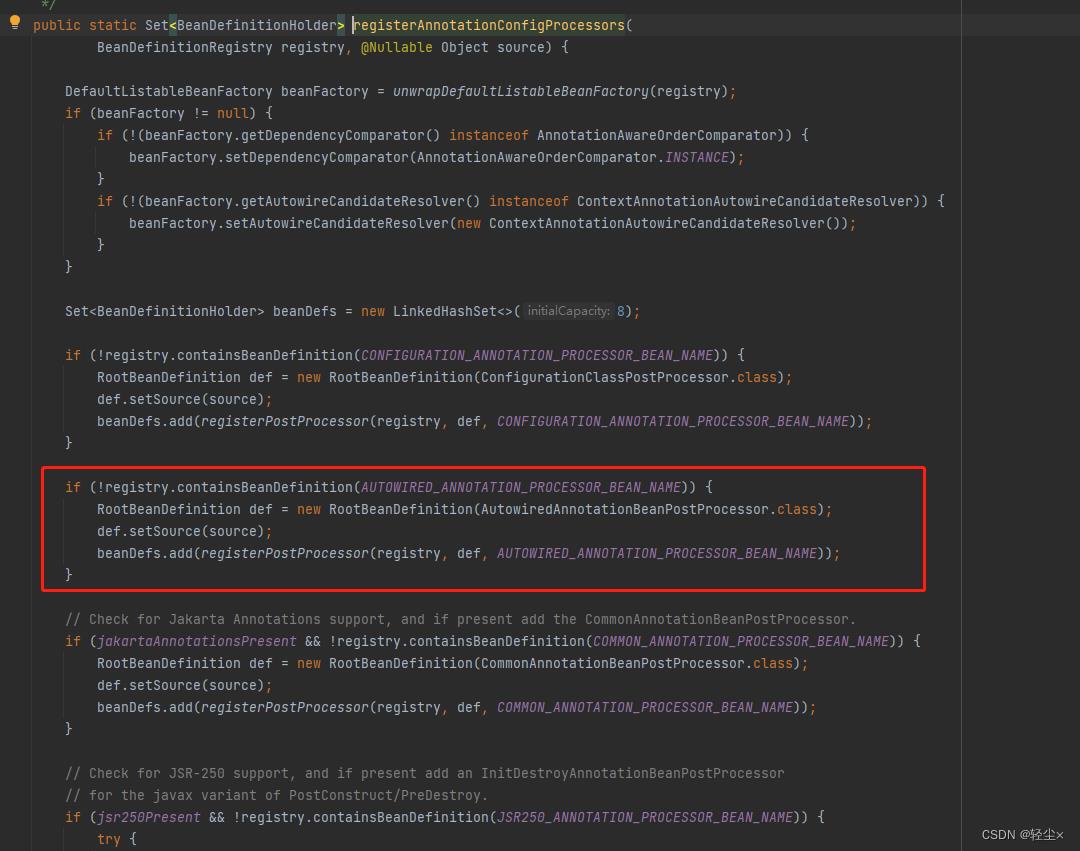

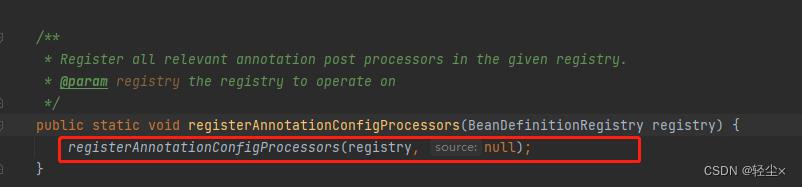

在这里面执行了一个AnnotationConfigUtils.registerAnnotationConfigProcessors,就是在这里完成了AutowiredAnnotationBeanPostProcessor的注册
总而言之,简而言之,就是在创建容器后,loadBeanDefinitions时注册的。
注解方式
同样整一个测试方法,即这次new的是AnnotationConfigApplicationContext 而不是上面的ClassPathXmlApplicationContext
public void test()
AnnotationConfigApplicationContext ac = new AnnotationConfigApplicationContext("com.zubus.bean");
BeforeInstantiation bean = ac.getBean(BeforeInstantiation.class);
bean.doSomeThing();

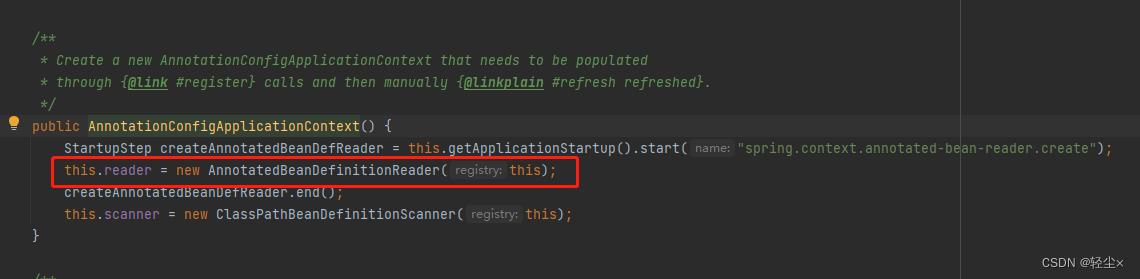

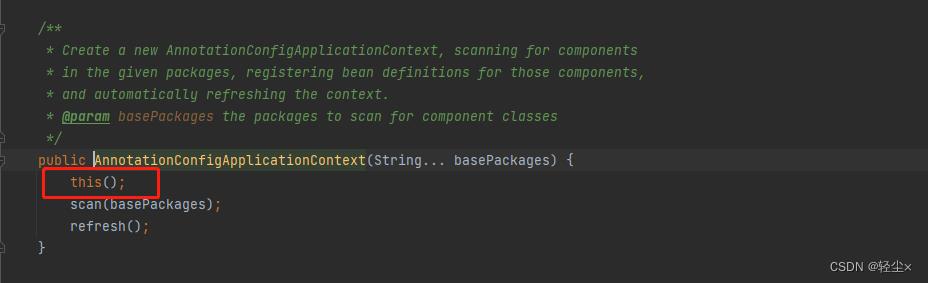

走的是不同的路线,进this()

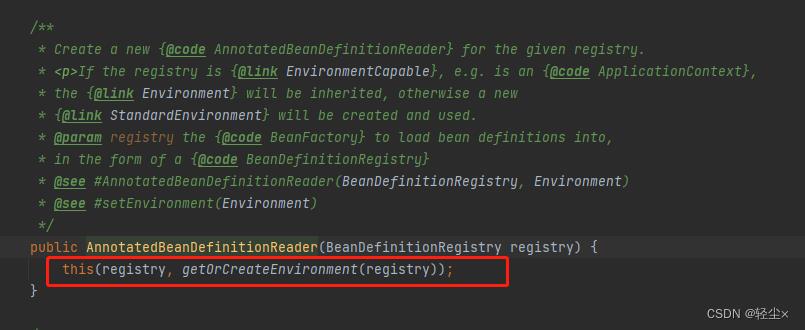

里面会new一个AnnotatedBeanDefinitionReader

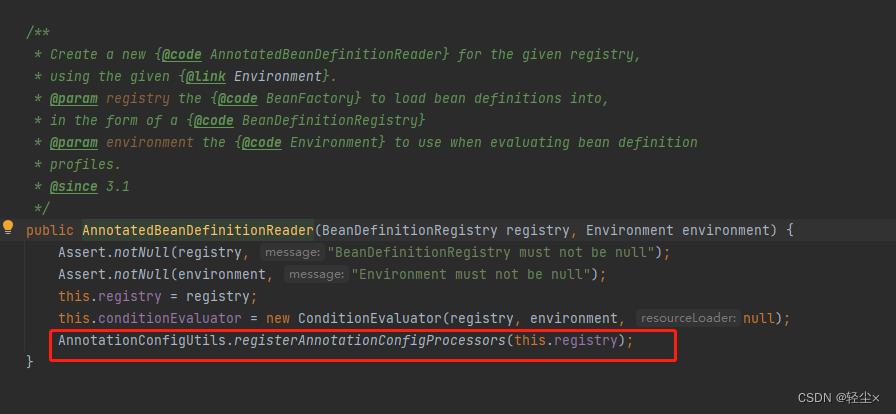

new AnnotatedBeanDefinitionReader()的过程中有个熟悉的身影
AnnotationConfigUtils.registerAnnotationConfigProcessors(this.registry);
是不是和上面的xml解析后的registerComponents里的一模一样
没错,正是在下
至此,两种开发模式下的AutowiredAnnotationBeanPostProcessor注册时机我们已经掌握了
这里仅仅是注册,后续就是再分析它是在哪没创建成对象的
再后续就是分析它是在哪里被调用执行了
请看下回分解~
