#yyds干货盘点# springboot整合Oauth2,GateWay实现网关登录授权验证

Posted 2021-12-22 灰太狼_cxh

tags:

篇首语：本文由小常识网(cha138.com)小编为大家整理，主要介绍了#yyds干货盘点# springboot整合Oauth2,GateWay实现网关登录授权验证相关的知识，希望对你有一定的参考价值。

springboot整合Oauth2,GateWay实现登录授权验证。在Spring cloud Oauth2的密码模式使用JWT方式实现登录验证授权基础上进行修改。

1.代码实现

oauth2-service, oauth2-client服务代码不做改动，这部分代码可以查看#yyds干货盘点# Spring cloud Oauth2的密码模式使用JWT方式实现登录验证授权

1新增oauth2-gateway网关服务

添加依赖

<dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-gateway</artifactId>
            <version>3.0.4</version>
        </dependency>
        <!--服务注册/发现中心依赖-->
        <dependency>
            <groupId>com.alibaba.cloud</groupId>
            <artifactId>spring-cloud-starter-alibaba-nacos-discovery</artifactId>
        </dependency>
        <!--服务的配置中心依赖-->
        <dependency>
            <groupId>com.alibaba.cloud</groupId>
            <artifactId>spring-cloud-starter-alibaba-nacos-config</artifactId>
        </dependency>
        <!--fegin组件-->
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-openfeign</artifactId>
            <version>3.0.2</version>
        </dependency>
        <!-- Feign Client for loadBalancing -->
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-loadbalancer</artifactId>
            <version>3.0.2</version>
        </dependency>
        <!--客户端负载均衡loadbalancer-->
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-loadbalancer</artifactId>
        </dependency>

yml配置

server:
  port: 8101
spring:
  application:
    name: oauth2-gateway #服务名
  profiles:
    active: dev #环境设置
  cloud:
    gateway:
      routes:
        # 透传服务
        - id: oauth2-server #设置路由id(理论上是可以随便写的)
          uri: lb://oauth2-server  #设置路由的url lb://nacos服务注册名称
          predicates:
            - Path=/server-api/** #路径匹配规则
          filters:
            - StripPrefix=1
        - id: oauth2-client
          uri: lb://oauth2-client
          predicates:
            - Path=/client-api/**
          filters:
            - StripPrefix=1

跨域配置

@Configuration
public class CorsConfig
    @Bean
    public CorsWebFilter corsFilter()
        CorsConfiguration config = new CorsConfiguration();
        config.addAllowedMethod("*");
        config.addAllowedOrigin("*");
        config.addAllowedHeader("*");
        UrlBasedCorsConfigurationSource source = new UrlBasedCorsConfigurationSource(new PathPatternParser());
        source.registerCorsConfiguration("/**", config);
        return new CorsWebFilter(source);

2新增oauth2-web前端页面服务

可以参考#yyds干货盘点# springboot整合thymeleaf

添加依赖

<dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-thymeleaf</artifactId>
        </dependency>
        <!--服务注册-->
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-alibaba-nacos-discovery</artifactId>
            <version>0.2.1.RELEASE</version>
        </dependency>
        <!--服务调用-->
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-openfeign</artifactId>
        </dependency>
        <dependency>
            <groupId>com.squareup.okhttp3</groupId>
            <artifactId>okhttp</artifactId>
            <version>3.14.2</version>
        </dependency>
        <dependency>
            <groupId>io.jsonwebtoken</groupId>
            <artifactId>jjwt</artifactId>
            <version>0.9.1</version>
        </dependency>

yml配置

server:
  port: 8102
spring:
  application:
    name: oauth2-web #服务名
  thymeleaf: # 模板引擎
    mode: html
    encoding: utf-8
    cache: false  # 禁用缓存
  cloud:
    nacos:
      discovery:
        server-addr: 127.0.0.1:8848 #nacos服务注册

控制层实现登录验证请求，把请求发送到网关服务，网关服务在通过路由匹配到授权服务验证，获取授权成功后再去资源客户端获取数据信息。

@Controller
public class IndexController
    @Autowired
    private Base64Util base64Util;
    @RequestMapping("/test")
    public String hello(Model model)
        model.addAttribute("msg", "springboot集成thymeleaf");
        return "test";

    @RequestMapping("/login")
    public String login(Model model)
        return "login";

    @RequestMapping("/loginSubmit")
    public String loginSubmit(Model model, String username, String password)
        model.addAttribute("username", username);
        OkHttpClient httpClient = new OkHttpClient();
        String clientId = "oauth2-client";
        String clientSecret = "oauth2-secret-8888";
        String tokenUrl = "http://localhost:8101/server-api/oauth/token";
        //获取token
        RequestBody body = new FormBody.Builder()
                .add("grant_type", "password")
                .add("username", username)
                .add("password",password)
                .add("scope", "all")
                .build();
        String str = clientId + ":" + clientSecret;
        String authorization = base64Util.encode(str);
        Request request = new Request.Builder()
                .url(tokenUrl)
                .post(body)
                .addHeader("Authorization", "Basic " + authorization)
                .build();
        String accessToken = null;
        try
            Response response = httpClient.newCall(request).execute();
            String result = response.body().string();
            ObjectMapper objectMapper = new ObjectMapper();
            Map tokenMap = objectMapper.readValue(result,Map.class);
            if(tokenMap.containsKey("error"))
                model.addAttribute("error", tokenMap.get(   "error_description"));
                return "login";

            accessToken = tokenMap.get("access_token").toString();
            Claims claims = Jwts.parser()
                    .setSigningKey("dev".getBytes(StandardCharsets.UTF_8))
                    .parseClaimsJws(accessToken)
                    .getBody();
            String userName = claims.get("user_name").toString();
            model.addAttribute("username", userName);
            model.addAttribute("accessToken", result);
         catch (Exception e)
            e.printStackTrace();

        //发起客户端请求
        String url = "http://localhost:8101/client-api/oauth2-client/get";
         authorization = accessToken;
         request = new Request.Builder()
                .url(url)
                 .get()
                .addHeader("Authorization", "bearer " + authorization)
                .build();
        try
            Response response = httpClient.newCall(request).execute();
            String result = response.body().string();
            model.addAttribute("content", result);
         catch (Exception e)
            e.printStackTrace();

        return "index";

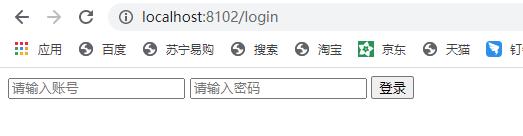

前端登录页面

<!DOCTYPE html>
<html xmlns:th="http://www.thymeleaf.org">
<head>
    <meta charset="UTF-8">
    <title>标题</title>
</head>
<body>
<form action="/loginSubmit" method="post">
    <input type="text" placeholder="请输入账号" name="username"/>
    <input type="text" placeholder="请输入密码" name="password"/>
    <div style="color:red" th:text="$error" th:if="$error"/>
    <button type="submit"> 登录 </button>
</form>
</body>
</html>

登录成功页面

<!DOCTYPE html>
<html xmlns:th="http://www.thymeleaf.org">
<head>
    <meta charset="UTF-8">
    <title>标题</title>
</head>
<body>
欢迎：<span th:text="$username"></span></br>
token：<span th:text="$accessToken"></span></br>
客户端信息：<span th:text="$content"></span></br>
</body>
</html>

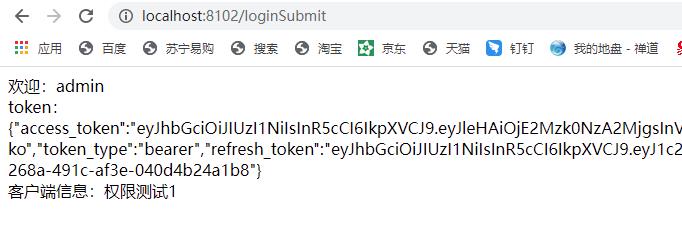

2.实现效果

使用nacos作为注册中心，先启动nacos,再启动oauth2-service, oauth2-client, oauth2-gateway, oauth2-web服务

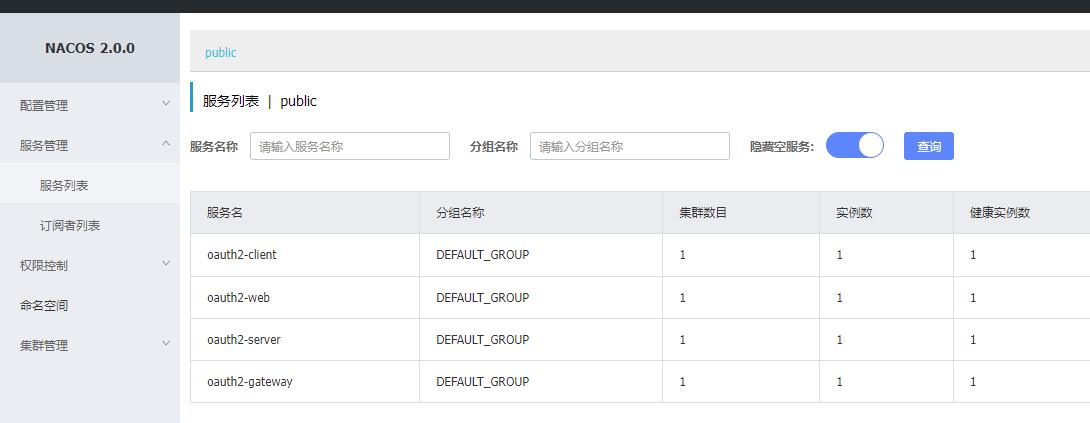

浏览器打开http://localhost:8848/nacos可以查看注册的服务
