Android悬浮窗原理解析(Window)[源码]
Posted qwangxiao
tags:
篇首语：本文由小常识网(cha138.com)小编为大家整理，主要介绍了Android悬浮窗原理解析(Window)[源码]相关的知识，希望对你有一定的参考价值。
悬浮窗，在大多数应用中还是很少见的，目前我们接触到的悬浮窗，差不多都是一些系统级的应用软件，例如：360安全卫士，腾讯手机管家等；在某些服务行业如金融，餐饮等，也会在应用中添加悬浮窗，例如：美团的偷红包，博闻金融快捷联系等。但两种悬浮窗还是有区别的：
- 系统悬浮窗：所有界面都会展示，包括主屏、锁屏
- 应用悬浮窗：只在应用Activity中展示。
一、窗口Window
在了解悬浮窗之前，首先我们需要认识一下android窗口Window。Android Framework将窗口分为三个类型：
- 应用窗口：所谓应用窗口指的就是该窗口对应一个Activity，因此，要创建应用窗口就必须在Activity中完成了。
- 子窗口：所谓子窗口指的是必须依附在某个父窗口之上，比如PopWindow，Dialog。
- 系统窗口：所谓系统窗口指的是由系统进程创建，不依赖于任何应用或者不依附在任何父窗口之上，如：Toast,来电窗口等。

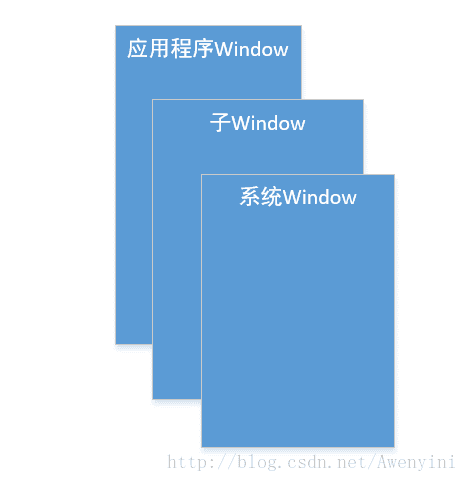

Framework定义了三种窗口类型，这三种类型定义在WindowManager的内部类LayoutParams中，WindowManager将这三种类型 进行了细化，把每一种类型都用一个int常量来表示，这些常量代表窗口所在的层，WindowManagerService在进行窗口叠加的时候，会按照常量的大小分配不同的层，常量值越大，代表位置越靠上面，所以我们可以猜想一下，应用程序Window的层值常量要小于子Window的层值常量，子Window的层值常量要小于系统Window的层值常量。Window的层级关系如下所示。
- 应用窗口：层级范围是1~99
- 子窗口：层级范围是1000~1999
- 系统窗口：层级范围是2000~2999
1.各级别type值在WindowManager中的定义分别为：
i.应用窗口（1~99）
//第一个应用窗口
public static final int FIRST_APPLICATION_WINDOW = 1;
//所有程序窗口的base窗口，其他应用程序窗口都显示在它上面
public static final int TYPE_BASE_APPLICATION = 1;
//所有Activity的窗口，只能配合Activity在当前APP使用
public static final int TYPE_APPLICATION = 2;
//目标应用窗口未启动之前的那个窗口
public static final int TYPE_APPLICATION_STARTING = 3;
//最后一个应用窗口
public static final int LAST_APPLICATION_WINDOW = 99;ii.子窗口（1000~1999）
//第一个子窗口
public static final int FIRST_SUB_WINDOW = 1000;
// 面板窗口，显示于宿主窗口的上层,只能配合Activity在当前APP使用
public static final int TYPE_APPLICATION_PANEL = FIRST_SUB_WINDOW;
// 媒体窗口（例如视频），显示于宿主窗口下层
public static final int TYPE_APPLICATION_MEDIA = FIRST_SUB_WINDOW+1;
// 应用程序窗口的子面板，只能配合Activity在当前APP使用(PopupWindow默认就是这个Type)
public static final int TYPE_APPLICATION_SUB_PANEL = FIRST_SUB_WINDOW+2;
//对话框窗口,只能配合Activity在当前APP使用
public static final int TYPE_APPLICATION_ATTACHED_DIALOG = FIRST_SUB_WINDOW+3;
//
public static final int TYPE_APPLICATION_MEDIA_OVERLAY = FIRST_SUB_WINDOW+4;
//最后一个子窗口
public static final int LAST_SUB_WINDOW = 1999;iii.系统窗口（2000~2999）
//系统窗口，非应用程序创建
public static final int FIRST_SYSTEM_WINDOW = 2000;
//状态栏，只能有一个状态栏，位于屏幕顶端，其他窗口都位于它下方
public static final int TYPE_STATUS_BAR = FIRST_SYSTEM_WINDOW;
//搜索栏，只能有一个搜索栏，位于屏幕上方
public static final int TYPE_SEARCH_BAR = FIRST_SYSTEM_WINDOW+1;
//
//电话窗口，它用于电话交互（特别是呼入），置于所有应用程序之上，状态栏之下,属于悬浮窗(并且给一个Activity的话按下HOME键会出现看不到桌面上的图标异常情况)
public static final int TYPE_PHONE = FIRST_SYSTEM_WINDOW+2;
//
//系统警告提示窗口，出现在应用程序窗口之上,属于悬浮窗, 但是会被禁止
public static final int TYPE_SYSTEM_ALERT = FIRST_SYSTEM_WINDOW+3;
//
//信息窗口，用于显示Toast, 不属于悬浮窗, 但有悬浮窗的功能, 缺点是在Android2.3上无法接收点击事件
public static final int TYPE_TOAST = FIRST_SYSTEM_WINDOW+5;
//
public static final int TYPE_KEYGUARD = FIRST_SYSTEM_WINDOW+4;
//锁屏窗口
public static final int TYPE_KEYGUARD = FIRST_SYSTEM_WINDOW+4;
//系统顶层窗口，显示在其他一切内容之上，此窗口不能获得输入焦点，否则影响锁屏
public static final int TYPE_SYSTEM_OVERLAY = FIRST_SYSTEM_WINDOW+6;
//电话优先，当锁屏时显示，此窗口不能获得输入焦点，否则影响锁屏
public static final int TYPE_PRIORITY_PHONE = FIRST_SYSTEM_WINDOW+7;
//系统对话框窗口
public static final int TYPE_SYSTEM_DIALOG = FIRST_SYSTEM_WINDOW+8;
//锁屏时显示的对话框
public static final int TYPE_KEYGUARD_DIALOG = FIRST_SYSTEM_WINDOW+9;
//系统内部错误提示，显示在任何窗口之上
public static final int TYPE_SYSTEM_ERROR = FIRST_SYSTEM_WINDOW+10;
//内部输入法窗口，显示于普通UI之上，应用程序可重新布局以免被此窗口覆盖
public static final int TYPE_INPUT_METHOD = FIRST_SYSTEM_WINDOW+11;
//内部输入法对话框，显示于当前输入法窗口之上
public static final int TYPE_INPUT_METHOD_DIALOG= FIRST_SYSTEM_WINDOW+12;
//墙纸窗口
public static final int TYPE_WALLPAPER = FIRST_SYSTEM_WINDOW+13;
//状态栏的滑动面板
public static final int TYPE_STATUS_BAR_PANEL = FIRST_SYSTEM_WINDOW+14;
//安全系统覆盖窗口，这些窗户必须不带输入焦点，否则会干扰键盘
public static final int TYPE_SECURE_SYSTEM_OVERLAY = FIRST_SYSTEM_WINDOW+15;
//最后一个系统窗口
public static final int LAST_SYSTEM_WINDOW = 2999;2.窗口flags显示属性在WindowManager中也有定义：
//窗口特征标记
public int flags;
//当该window对用户可见的时候，允许锁屏
public static final int FLAG_ALLOW_LOCK_WHILE_SCREEN_ON = 0x00000001;
//窗口后面的所有内容都变暗
public static final int FLAG_DIM_BEHIND = 0x00000002;
//Flag：窗口后面的所有内容都变模糊
public static final int FLAG_BLUR_BEHIND = 0x00000004;
//窗口不能获得焦点
public static final int FLAG_NOT_FOCUSABLE = 0x00000008;
//窗口不接受触摸屏事件
public static final int FLAG_NOT_TOUCHABLE = 0x00000010;
//即使在该window在可获得焦点情况下，允许该窗口之外的点击事件传递到当前窗口后面的的窗口去
public static final int FLAG_NOT_TOUCH_MODAL = 0x00000020;
//当手机处于睡眠状态时，如果屏幕被按下，那么该window将第一个收到触摸事件
public static final int FLAG_TOUCHABLE_WHEN_WAKING = 0x00000040;
//当该window对用户可见时，屏幕出于常亮状态
public static final int FLAG_KEEP_SCREEN_ON = 0x00000080;
//：让window占满整个手机屏幕，不留任何边界
public static final int FLAG_LAYOUT_IN_SCREEN = 0x00000100;
//允许窗口超出整个手机屏幕
public static final int FLAG_LAYOUT_NO_LIMITS = 0x00000200;
//window全屏显示
public static final int FLAG_FULLSCREEN = 0x00000400;
//恢复window非全屏显示
public static final int FLAG_FORCE_NOT_FULLSCREEN = 0x00000800;
//开启窗口抖动
public static final int FLAG_DITHER = 0x00001000;
//安全内容窗口，该窗口显示时不允许截屏
public static final int FLAG_SECURE = 0x00002000;
//锁屏时显示该窗口
public static final int FLAG_SHOW_WHEN_LOCKED = 0x00080000;
//系统的墙纸显示在该窗口之后
public static final int FLAG_SHOW_WALLPAPER = 0x00100000;
//当window被显示的时候，系统将把它当做一个用户活动事件，以点亮手机屏幕
public static final int FLAG_TURN_SCREEN_ON = 0x00200000;
//该窗口显示，消失键盘
public static final int FLAG_DISMISS_KEYGUARD = 0x00400000;
//当该window在可以接受触摸屏情况下，让因在该window之外，而发送到后面的window的触摸屏可以支持split touch
public static final int FLAG_SPLIT_TOUCH = 0x00800000;
//对该window进行硬件加速，该flag必须在Activity或Dialog的Content View之前进行设置
public static final int FLAG_HARDWARE_ACCELERATED = 0x01000000;
//让window占满整个手机屏幕，不留任何边界
public static final int FLAG_LAYOUT_IN_OVERSCAN = 0x02000000;
//透明状态栏
public static final int FLAG_TRANSLUCENT_STATUS = 0x04000000;
//透明导航栏
3.添加View到Window的流程代码：
contactView = new ContactView(mContext);
if (layoutParams == null) www.yongshiyule178.com {
layoutParams = new WindowManager.LayoutParams();
layoutParams.width = contactView.width;
layoutParams.height = contactView.height;
layoutParams.x += ScreenSizeUtil.getScreenWidth(www.078881.cn );
layoutParams.y += ScreenSizeUtil.getScreenHeight(www.345608.cn/) - ScreenSizeUtil.dp2px(150);
layoutParams.gravity = www.taohuayuan178.com Gravity.TOP | Gravity.LEFT;
if (Build.VERSION.SDK_INT > 18 && Build.VERSION.SDK_INT < www.feifanyule.cn 23) {
layoutParams.type = WindowManager.LayoutParams.TYPE_TOAST;//Type设置
} else {
layoutParams.type = WindowManager.LayoutParams.TYPE_APPLICATION;
}
layoutParams.flags = WindowManager.LayoutParams.FLAG_NOT_FOCUSABLE | WindowManager.LayoutParams.FLAG_NOT_TOUCH_MODAL;//Flags设置,窗口属性
layoutParams.format = PixelFormat.RGBA_8888;
悬浮窗添加原理：View添加到Window源码解析
Window在Android系统中十分重要，其Activity，Dialog的创建都离不开Window.具体Activity，Dialog是怎么添加到Window上的，详情如：
Activity的加载流程;
Dialog加载绘制流程
二、两种悬浮窗
在前言中已说到，悬浮窗在app中，分为两种：系统级别和应用级别。其中系统级别可以在任何界面展示，包括主屏、锁屏（看需要），应用级别只在应用中展示。通过上面对Window的认识，我们可以知道实现方式：
- 系统级别可以通过type设置为：TYPE_TOAST、TYPE_PHONE、TYPE_SYSTEM_ALERT；
- 应用级别可以通过type设置为：TYPE_APPLICATION、TYPE_APPLICATION_ATTACHED_DIALOG；
悬浮窗添加流程：
WindowManager.addView -> ViewRootImpl.setView -> WindowSession.addToDisplay(AIDL进行IPC) -> WindowManagerService.addWindow() -> ViewRootImpl.setView
1.系统悬浮窗
对于系统级别的悬浮窗来说，不同的设置，不同的Android版本，需要权限和交互都不同。通过阅读源码android4.4知：
android 7.1.1的addWindow方法为：
public int addWindow(Session session, IWindow client, int seq,
WindowManager.LayoutParams attrs, int viewVisibility, int displayId,
Rect outContentInsets, InputChannel outInputChannel) {
int[] appOp = new int[1];
int res = mPolicy.checkAddPermission(attrs, appOp);
if (res != WindowManagerGlobal.ADD_OKAY) {
return res;
}
......
final int type = attrs.type;
......
} else if (type == TYPE_TOAST) {//android 7.1.1 添加代码（其他版本无）
// Apps targeting SDK above N MR1 cannot arbitrary add toast windows.
addToastWindowRequiresToken = doesAddToastWindowRequireToken(attrs.packageName,
callingUid, attachedWindow);
if (addToastWindowRequiresToken && token.windowType != TYPE_TOAST) {
Slog.w(TAG_WM, "Attempted to add a toast window with bad token "
+ attrs.token + ". Aborting.");
return WindowManagerGlobal.ADD_BAD_APP_TOKEN;
}
}....
synchronized(mWindowMap) {
......
mPolicy.adjustWindowParamsLw(win.mAttrs);
权限检查checkAddPermission(www.tiaotiaoylzc.com)方法：
//权限检查
@Override
public int checkAddPermission(WindowManager.www.chaoyueyule.com LayoutParams attrs, int[] outAppOp) {
int type = attrs.type;
outAppOp[0] = AppOpsManager.OP_NONE;
if (type < WindowManager.LayoutParams.FIRST_SYSTEM_WINDOW
|| type > WindowManager.LayoutParams.LAST_SYSTEM_WINDOW) {
return WindowManagerGlobal.ADD_OKAY;
}
String permission = null;
switch (type) {
case TYPE_TOAST:
// XXX right now the app process has complete control over
// this... should introduce www.00534.cn a token to let the system
// monitor/control what they are doing.
break;
case TYPE_DREAM:
case TYPE_INPUT_METHOD:
case TYPE_WALLPAPER:
case TYPE_PRIVATE_PRESENTATION:
// The window manager www.dongfan178.com will check these.
break;
case TYPE_PHONE:
case TYPE_PRIORITY_PHONE:
case TYPE_SYSTEM_ALERT:
case TYPE_SYSTEM_ERROR:
case TYPE_SYSTEM_OVERLAY:
permission = android.Manifest.permission.SYSTEM_ALERT_WINDOW;
outAppOp[0] = AppOpsManager.OP_SYSTEM_ALERT_WINDOW;
break;
default:
permission = android.Manifest.permission.INTERNAL_SYSTEM_WINDOW;
}
if (permission != null) {
if (mContext.checkCallingOrSelfPermission(permission)
!= PackageManager.PERMISSION_GRANTED) {
return WindowManagerGlobal.ADD_PERMISSION_DENIED;
}
}
return WindowManagerGlobal.ADD_OKAY;
window的flags属性添加adjustWindowParamsLw()方法
//window的flags属性添加
//Android 2.0 - 2.3.7 PhoneWindowManager
public void adjustWindowParamsLw(WindowManager.LayoutParams attrs) {
switch (attrs.type) {
case TYPE_SYSTEM_OVERLAY:
case TYPE_SECURE_SYSTEM_OVERLAY:
case TYPE_TOAST:
// These types of windows can‘t receive input events.
attrs.flags |= WindowManager.LayoutParams.FLAG_NOT_FOCUSABLE
| WindowManager.LayoutParams.FLAG_NOT_TOUCHABLE;
break;
}
}
//Android 4.0.1 - 4.3.1 PhoneWindowManager
public void adjustWindowParamsLw(WindowManager.LayoutParams attrs) {
switch (attrs.type) {
case TYPE_SYSTEM_OVERLAY:
case TYPE_SECURE_SYSTEM_OVERLAY:
case TYPE_TOAST:
// These types of windows can‘t receive input events.
attrs.flags |= WindowManager.LayoutParams.FLAG_NOT_FOCUSABLE
| WindowManager.LayoutParams.FLAG_NOT_TOUCHABLE;
attrs.flags &= ~WindowManager.LayoutParams.FLAG_WATCH_OUTSIDE_TOUCH;
break;
}
}
//Android 4.4 PhoneWindowManager
@Override
public void adjustWindowParamsLw(WindowManager.LayoutParams attrs) {
switch (attrs.type) {
case TYPE_SYSTEM_OVERLAY:
case TYPE_SECURE_SYSTEM_OVERLAY:
// These types of windows can‘t receive input events.
attrs.flags |= WindowManager.LayoutParams.FLAG_NOT_FOCUSABLE
| WindowManager.LayoutParams.FLAG_NOT_TOUCHABLE;
attrs.flags &= ~WindowManager.LayoutParams.FLAG_WATCH_OUTSIDE_TOUCH;
由上可知：
- Type为TYPE_TOAST：版本低于android4.4的，不能接受触摸事件，无法操作；版本高于Android 7.1.1的无法添加悬浮窗
- Type为TYPE_PHONE：所有android版本都需要权限，版本低于android6.0的manifest中添加权限android.Manifest.permission.SYSTEM_ALERT_WINDOW即可，高于andorid6.0的需要判断权限且手动添加。
- Type为TYPE_SYSTEM_ALERT：同TYPE_PHONE
所以系统级别的悬浮窗，android不同版本需要特别处理。
2.应用悬浮窗
对于应用悬浮窗来说，android版本对其影响不大。
- Type为TYPE_APPLICATION：只要Activity建立了，就可以添加。
- Type为TYPE_APPLICATION_ATTACHED_DIALOG：需要在Activity获取焦点，并且用户可操作时才可添加。
三、悬浮窗的实现
悬浮窗添加比较简单,主要是由WindowManager接口的实现类WindowManagerImpl进行操作，WindowManager接口又继承至ViewManager,其中主要方法为：
public void addView(View view, ViewGroup.LayoutParams params);//添加View到Window
public void updateViewLayout(View view, ViewGroup.LayoutParams params);//更新View在Window中的位置
public void removeView(View view);//删除View- 1
- 2
- 3
主要实现代码：
public class ContactWindowUtil {
private ContactView contactView;
private View dialogView;
private WindowManager windowManager;
private WindowManager.LayoutParams layoutParams;
private WindowManager.LayoutParams dialogParams;
private Context mContext;
private ContactWindowListener mListener;
private ValueAnimator valueAnimator;
private int direction;
private final int LEFT = 0;
private final int RIGHT = 1;
public interface ContactWindowListener {
void onDataCallBack(String str);
}
public void setDialogListener(ContactWindowListener listener) {
mListener = listener;
}
//私有化构造函数
public ContactWindowUtil(Context context) {
mContext = context;
windowManager = (WindowManager) mContext.getSystemService(Context.WINDOW_SERVICE);
// windowManager = (WindowManager) FloatWindowApp.getAppContext().getSystemService(Context.WINDOW_SERVICE);
}
public void showContactView() {
hideContactView();
contactView = new ContactView(mContext);
if (layoutParams == null) {
layoutParams = new WindowManager.LayoutParams();
layoutParams.width = contactView.width;
layoutParams.height = contactView.height;
layoutParams.x += ScreenSizeUtil.getScreenWidth();
layoutParams.y += ScreenSizeUtil.getScreenHeight() - ScreenSizeUtil.dp2px(150);
layoutParams.gravity = Gravity.TOP | Gravity.LEFT;
if (Build.VERSION.SDK_INT > 18 && Build.VERSION.SDK_INT < 23) {
layoutParams.type = WindowManager.LayoutParams.TYPE_TOAST;
} else {
layoutParams.type = WindowManager.LayoutParams.TYPE_APPLICATION;
}
layoutParams.flags = WindowManager.LayoutParams.FLAG_NOT_FOCUSABLE | WindowManager.LayoutParams.FLAG_NOT_TOUCH_MODAL;
layoutParams.format = PixelFormat.RGBA_8888;
}
contactView.setOnTouchListener(touchListener);
contactView.setOnClickListener(new View.OnClickListener() {
@Override
public void onClick(View view) {
showContactDialog();
}
});
windowManager.addView(contactView, layoutParams);
}
/**
* 显示联系弹框
*/
private void showContactDialog() {
hideDialogView();
if (dialogParams == null) {
dialogParams = new WindowManager.LayoutParams();
dialogParams.width = WindowManager.LayoutParams.MATCH_PARENT;
dialogParams.height = WindowManager.LayoutParams.MATCH_PARENT;
dialogParams.gravity = Gravity.CENTER;
if (Build.VERSION.SDK_INT > 18 && Build.VERSION.SDK_INT < 25){
dialogParams.type = WindowManager.LayoutParams.TYPE_TOAST;
} else {
dialogParams.type = WindowManager.LayoutParams.TYPE_APPLICATION_ATTACHED_DIALOG;
}
dialogParams.flags = WindowManager.LayoutParams.FLAG_LAYOUT_IN_SCREEN
| WindowManager.LayoutParams.FLAG_FULLSCREEN;
dialogParams.format = PixelFormat.RGBA_8888;
}
LayoutInflater layoutInflater = (LayoutInflater) mContext.getSystemService(Context.LAYOUT_INFLATER_SERVICE);
dialogView = layoutInflater.inflate(R.layout.window_contact, null);
TextView okTv = dialogView.findViewById(R.id.mOkTv);
TextView cancleTv = dialogView.findViewById(R.id.mCancleTv);
final TextView contentTv = dialogView.findViewById(R.id.mContentTv);
contentTv.setText(String.format("您确认拨打%s客服电话吗", "4008-111-222"));
cancleTv.setOnClickListener(new View.OnClickListener() {
@Override
public void onClick(View view) {
hideDialogView();
}
});
okTv.setOnClickListener(new View.OnClickListener() {
@Override
public void onClick(View view) {
hideDialogView();
mListener.onDataCallBack("");
}
});
dialogView.setOnClickListener(new View.OnClickListener() {
@Override
public void onClick(View view) {
hideDialogView();
}
});
windowManager.addView(dialogView, dialogParams);
}
public void hideAllView() {
hideContactView();
hideDialogView();
}
public void hideContactView() {
if (contactView != null) {
windowManager.removeView(contactView);
contactView = null;
stopAnim();
}
}
public void hideDialogView() {
if (dialogView != null) {
windowManager.removeView(dialogView);
dialogView = null;
}
}
View.OnTouchListener touchListener = new View.OnTouchListener() {
float startX;
float startY;
float moveX;
float moveY;
@Override
public boolean onTouch(View v, MotionEvent event) {
switch (event.getAction()) {
case MotionEvent.ACTION_DOWN:
startX = event.getRawX();
startY = event.getRawY();
moveX = event.getRawX();
moveY = event.getRawY();
break;
case MotionEvent.ACTION_MOVE:
float x = event.getRawX() - moveX;
float y = event.getRawY() - moveY;
//计算偏移量，刷新视图
layoutParams.x += x;
layoutParams.y += y;
windowManager.updateViewLayout(contactView, layoutParams);
moveX = event.getRawX();
moveY = event.getRawY();
break;
case MotionEvent.ACTION_UP:
//判断松手时View的横坐标是靠近屏幕哪一侧，将View移动到依靠屏幕
float endX = event.getRawX();
float endY = event.getRawY();
if (endX < ScreenSizeUtil.getScreenWidth() / 2) {
direction = LEFT;
endX = 0;
} else {
direction = RIGHT;
endX = ScreenSizeUtil.getScreenWidth() - contactView.width;
}
if(moveX != startX){
starAnim((int) moveX, (int) endX,direction);
}
//如果初始落点与松手落点的坐标差值超过5个像素，则拦截该点击事件
//否则继续传递，将事件交给OnClickListener函数处理
if (Math.abs(startX - moveX) > 5) {
return true;
}
break;
}
return false;
}
};
private void starAnim(int startX, int endX,final int direction) {
if (valueAnimator != null) {
valueAnimator.cancel();
valueAnimator = null;
}
valueAnimator = ValueAnimator.ofInt(startX, endX);
valueAnimator.setDuration(500);
valueAnimator.setRepeatCount(0);
valueAnimator.addUpdateListener(new ValueAnimator.AnimatorUpdateListener() {
@Override
public void onAnimationUpdate(ValueAnimator animation) {
if(direction == LEFT){
layoutParams.x = (int) animation.getAnimatedValue()-contactView.width/2;
}else{
layoutParams.x = (int) animation.getAnimatedValue();
}
if (contactView != null) {
windowManager.updateViewLayout(contactView, layoutParams);
}
}
});
valueAnimator.setInterpolator(new LinearInterpolator());
valueAnimator.start();
}
private void stopAnim() {
if (valueAnimator != null) {
valueAnimator.cancel();
valueAnimator = null;
悬浮窗源码:https://github.com/awenzeng/FloatWindowDemo
四、注意
1.应用悬浮窗WindowManager的获取环境必须是Activity环境，系统悬浮窗可以Activity环境，也可以是全局的环境。如：
windowManager = (WindowManager) mContext.getSystemService(Context.WINDOW_SERVICE);
// windowManager = (WindowManager) FloatWindowApp.getAppContext().getSystemService(Context.WINDOW_SERVICE);- 1
- 2
2.应用级别悬浮窗也可以通过系统级别的方式实现，主要控制一下显示与隐藏就好。但如果只在应用中展示悬浮窗，建议使用应用级别，那样会省去许多不必要的麻烦。
3.系统级别Type为TYPE_PHONE、TYPE_SYSTEM_ALERT是权限判断及设置代码：
/**
* 请求用户给予悬浮窗的权限
*/
public void askForPermission() {
if (!Settings.canDrawOverlays(this)) {
Toast.makeText(TestFloatWinActivity.this, "当前无权限，请授权！", Toast.LENGTH_SHORT).show();
Intent intent = new Intent(Settings.ACTION_MANAGE_OVERLAY_PERMISSION,
Uri.parse("package:" + getPackageName()));
startActivityForResult(intent, OVERLAY_PERMISSION_REQ_CODE);
} else {
startService(floatWinIntent);
}
} 以上是关于Android悬浮窗原理解析(Window)[源码]的主要内容，如果未能解决你的问题，请参考以下文章
Android 使用WindowManager实现悬浮窗及源码解析
Android高级UI开源框架进阶解密附Loading图表菜单日历图片文本弹窗悬浮窗状态栏导航布局等经典框架源码解析
android课程表控件悬浮窗Todo应用MVP框架Kotlin完整项目源码
