HibernateTools实现pojo类 数据库schma mapping映射的相互转换

Posted 2020-11-19 小鹰展翅

核心

利用HibernateTools，从POJO类，Mapping映射文件，数据库表有其中的一项，就能生成其他两项。

概述

在使用Hibernate开发系统持久层时，按照一般开发流程



1、分析业务

2、获得系统实体类

3、写Hibernate的mapping映射文件

4、根据映射文件，生成数据库表



    以上这几步是Hibernate开发的起始。根据开发习惯的不同，有些项目组可能会先写POJO类，有的项目可能会先设计数据库，有的项目组可能先写映射文件，其实完成其中的一项时，类结构或者表结构就可以确定了。

既然已经能确定结构了，完全可以使用工具来代替手工完成剩余的工作。

前提

    安装Eclipse插件HibernateTools，eclipse插件安装百度下教程非常多，建议采用copy安装或者link安装，再有就是HibernateTools的版本对应着特定的Eclipse版本，所以安装前请先检查自己的eclipse版本。



   然后建立项目，本文建立的是Dynamic Web Project，采用了mysql数据库，建立项目后，引入mysql的驱动jar，引入Hibernate（本文用了4.3.5版本）的包，即lib下required文件夹中所有jar



   安装完了插件，首先利用tool生成Hibernate配置文件，项目右键-->new，安装完HibernateTools后，多了4种类型的文件，选择第一种：

根据使用的数据库，填入必须的属性：

生成hibernate.cfg.xml的代码：

<span style="font-family:KaiTi_GB2312;font-size:18px;"><?xml version="1.0" encoding="utf-8"?>
<!DOCTYPE hibernate-configuration PUBLIC
"-//Hibernate/Hibernate Configuration DTD 3.0//EN"
"http://www.hibernate.org/dtd/hibernate-configuration-3.0.dtd">
<hibernate-configuration>
    <session-factory>
        <property name="hibernate.bytecode.use_reflection_optimizer">false</property>
        <property name="hibernate.connection.driver_class">com.mysql.jdbc.Driver</property>
        <property name="hibernate.connection.password">123456</property>
        <property name="hibernate.connection.url">jdbc:mysql://localhost:3306/test</property>
        <property name="hibernate.connection.username">root</property>
        <property name="hibernate.dialect">org.hibernate.dialect.MySQLDialect</property>
        <property name="hibernate.search.autoregister_listeners">false</property>


    </session-factory>
</hibernate-configuration></span>

相互转换



接下可以进入正题了，本文分别从三项中的每一项入手，生成其他两项。

思路一：由POJO类生成mapping映射文件和DDL

POJO类的代码写起来非常方便，因此首先介绍这种方法，个人认为这种方法效率最高。首先建立两个POJO类

package org.hibernate.test;


public class Student implements java.io.Serializable {

    private int id;
    private String name;

    public Student() {
    }

    public Student(int id) {
        this.id = id;
    }

    public Student(int id, String name) {
        this.id = id;
        this.name = name;
    }

    public int getId() {
        return this.id;
    }

    public void setId(int id) {
        this.id = id;
    }

    public String getName() {
        return this.name;
    }

    public void setName(String name) {
        this.name = name;
    }

}

package org.hibernate.test;


import java.util.ArrayList;
import java.util.List;


public class Class implements java.io.Serializable {

    private int id;
    private String name;
    private List students = new ArrayList(0);

    public Class() {
    }

    public Class(int id) {
        this.id = id;
    }

    public Class(int id, String name, List students) {
        this.id = id;
        this.name = name;
        this.students = students;
    }

    public int getId() {
        return this.id;
    }

    public void setId(int id) {
        this.id = id;
    }

    public String getName() {
        return this.name;
    }

    public void setName(String name) {
        this.name = name;
    }

    public List getStudents() {
        return this.students;
    }

    public void setStudents(List students) {
        this.students = students;
    }

}

接下来一步一步生成另外两项，首先项目右键-->new,选择Hibernate下面的第四项，建立mapping映射文件，根据已存在的POJO类，生成Mapping文件

添加两个已经存在的POJO类

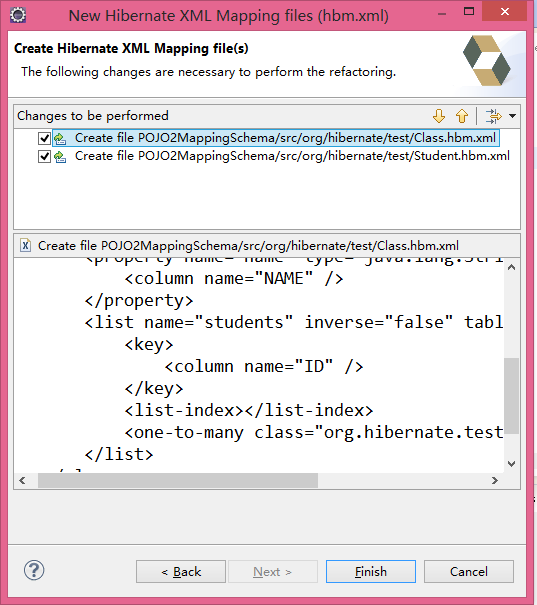

下一步，可以预先查看生成的hbm.xml文件，有特殊要求的可以再生成的文件基础上稍作修改。

生成代码：

<span style="font-family:KaiTi_GB2312;font-size:18px;"><?xml version="1.0"?>
<!DOCTYPE hibernate-mapping PUBLIC "-//Hibernate/Hibernate Mapping DTD 3.0//EN"
"http://www.hibernate.org/dtd/hibernate-mapping-3.0.dtd">
<!-- Generated 2014-5-30 21:29:20 by Hibernate Tools 4.0.0 -->
<hibernate-mapping>
    <class name="org.hibernate.test.Student" table="STUDENT">
        <id name="id" type="int">
            <column name="ID" />
            <generator class="assigned"></generator>
        </id>
        <property name="name" type="java.lang.String">
            <column name="NAME" />
        </property>
    </class>
</hibernate-mapping></span>

<span style="font-family:KaiTi_GB2312;font-size:18px;"><?xml version="1.0"?>
<!DOCTYPE hibernate-mapping PUBLIC "-//Hibernate/Hibernate Mapping DTD 3.0//EN"
"http://www.hibernate.org/dtd/hibernate-mapping-3.0.dtd">
<!-- Generated 2014-5-30 21:29:20 by Hibernate Tools 4.0.0 -->
<hibernate-mapping>
    <class name="org.hibernate.test.Class" table="CLASS">
        <id name="id" type="int">
            <column name="ID" />
            <generator class="assigned"></generator>
        </id>
        <property name="name" type="java.lang.String">
            <column name="NAME" />
        </property>
        <list name="students" inverse="false" table="STUDENT" lazy="true">
            <key>
                <column name="ID" />
            </key>
            <list-index>
                <column name="idx" />
            </list-index>
            <one-to-many class="org.hibernate.test.Student" />
        </list>
    </class>
</hibernate-mapping></span>

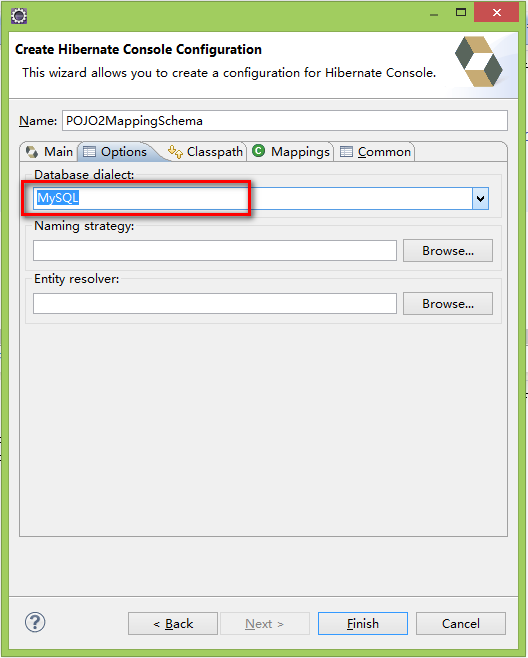

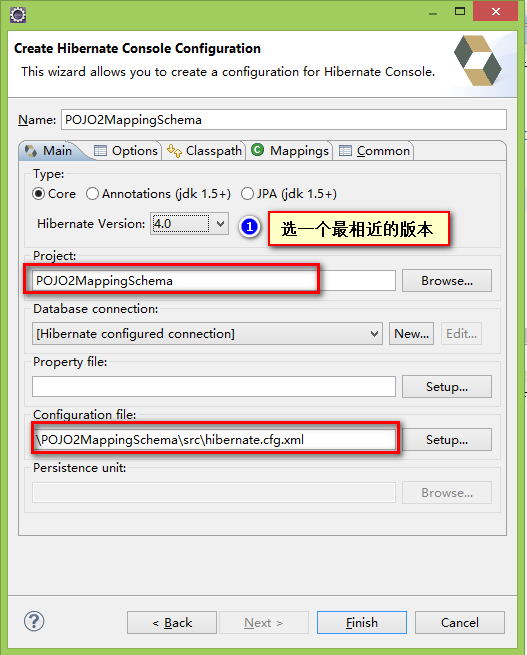

mapping映射文件生成了，接下来生成ddl，项目右键-->new，选择Hibernate Console  Configuration

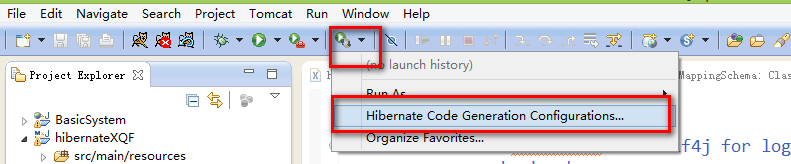

选择好对应的项后，finish，然后需要在工具栏添加Hibernate code Generation，Windows-->Customer Perspective

然后工具栏多了一个很像运行按钮的图标，单击下拉按钮，选第二项

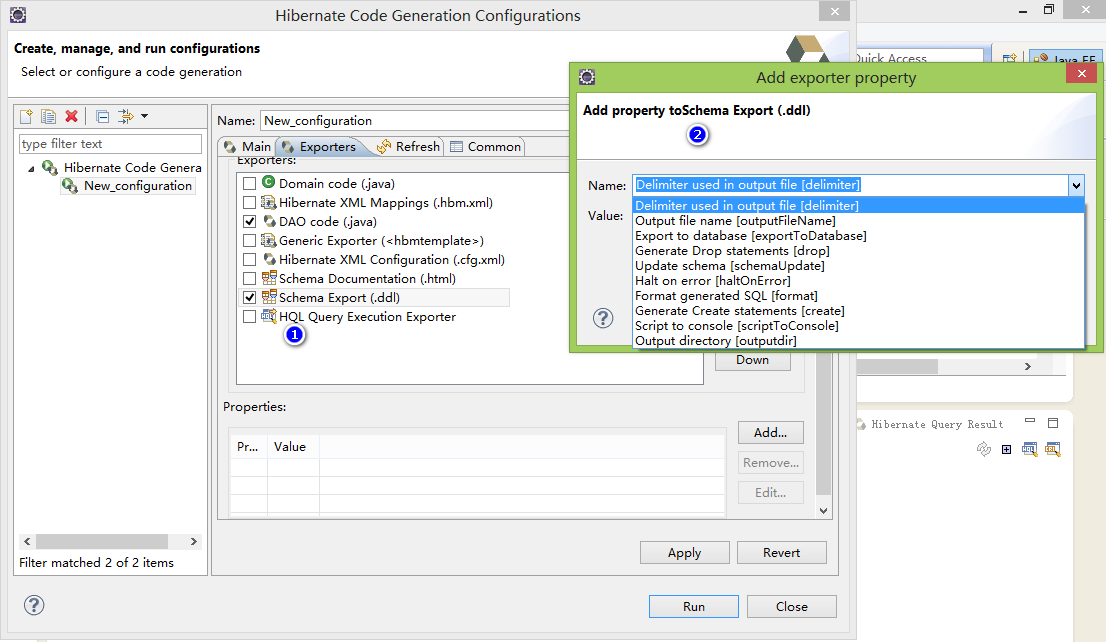

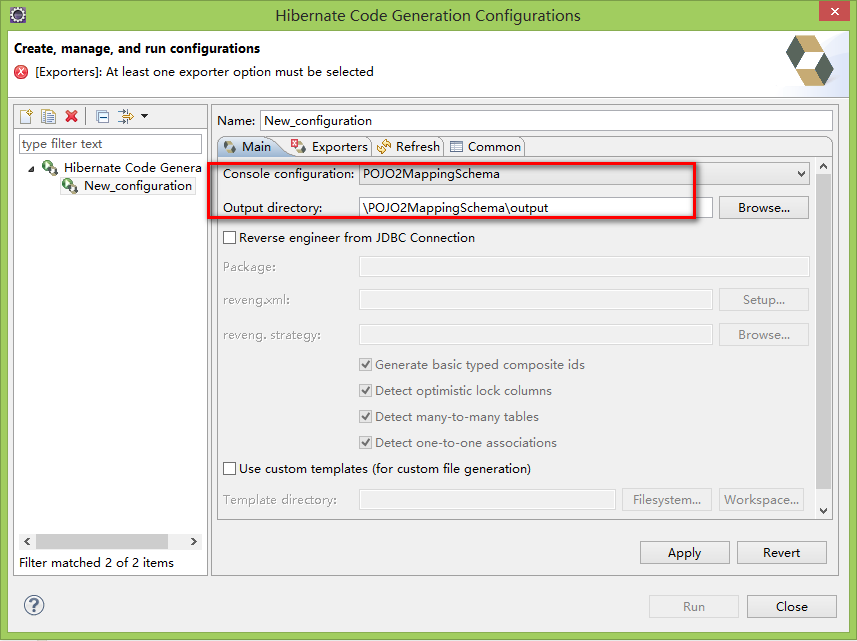

单击Exporters选项卡，可以看到HibernateTools工具能导出和生成的项很多，可以根据配置有针对性的选择自己想要的项，这里我们勾选Schema Export，然后单击图标1下面的Properties的Add，后出现图标2所示的窗体

选择第二项，这就是要生成我们想要的ddl，如图，当然上图还勾选了DAO Code，生成了操作试题的DAO代码（HibernateTools确实很贴心）

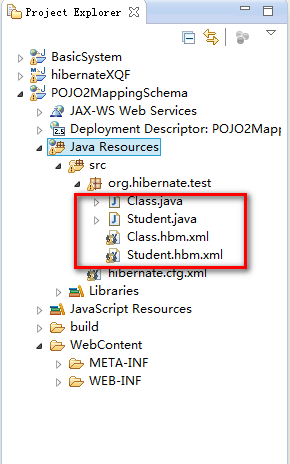

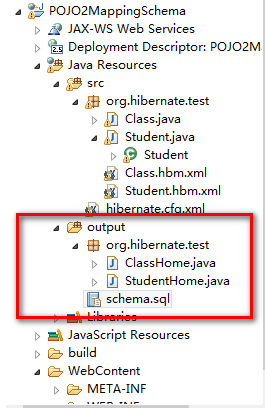

这是生成后的图片

ddl的建表语句：

<span style="font-family:KaiTi_GB2312;font-size:18px;">create table CLASS (ID integer not null, NAME varchar(255), primary key (ID));
create table STUDENT (ID integer not null, NAME varchar(255), idx integer, primary key (ID));
alter table STUDENT add index FKBACA0E1BE081A5FD (ID), add constraint FKBACA0E1BE081A5FD foreign key (ID) references CLASS (ID);
</span>

DAO代码如下：

<span style="font-family:KaiTi_GB2312;font-size:18px;">package org.hibernate.test;

// Generated 2014-5-30 23:18:05 by Hibernate Tools 4.0.0

import java.util.List;
import javax.naming.InitialContext;
import org.apache.commons.logging.Log;
import org.apache.commons.logging.LogFactory;
import org.hibernate.LockMode;
import org.hibernate.SessionFactory;
import org.hibernate.criterion.Example;

/**
 * Home object for domain model class Class.
 * @see org.hibernate.test.Class
 * @author Hibernate Tools
 */
public class ClassHome {

    private static final Log log = LogFactory.getLog(ClassHome.class);

    private final SessionFactory sessionFactory = getSessionFactory();

    protected SessionFactory getSessionFactory() {
        try {
            return (SessionFactory) new InitialContext()
                    .lookup("SessionFactory");
        } catch (Exception e) {
            log.error("Could not locate SessionFactory in JNDI", e);
            throw new IllegalStateException(
                    "Could not locate SessionFactory in JNDI");
        }
    }

    public void persist(Class transientInstance) {
        log.debug("persisting Class instance");
        try {
            sessionFactory.getCurrentSession().persist(transientInstance);
            log.debug("persist successful");
        } catch (RuntimeException re) {
            log.error("persist failed", re);
            throw re;
        }
    }

    public void attachDirty(Class instance) {
        log.debug("attaching dirty Class instance");
        try {
            sessionFactory.getCurrentSession().saveOrUpdate(instance);
            log.debug("attach successful");
        } catch (RuntimeException re) {
            log.error("attach failed", re);
            throw re;
        }
    }

    public void attachClean(Class instance) {
        log.debug("attaching clean Class instance");
        try {
            sessionFactory.getCurrentSession().lock(instance, LockMode.NONE);
            log.debug("attach successful");
        } catch (RuntimeException re) {
            log.error("attach failed", re);
            throw re;
        }
    }

    public void delete(Class persistentInstance) {
        log.debug("deleting Class instance");
        try {
            sessionFactory.getCurrentSession().delete(persistentInstance);
            log.debug("delete successful");
        } catch (RuntimeException re) {
            log.error("delete failed", re);
            throw re;
        }
    }

    public Class merge(Class detachedInstance) {
        log.debug("merging Class instance");
        try {
            Class result = (Class) sessionFactory.getCurrentSession().merge(
                    detachedInstance);
            log.debug("merge successful");
            return result;
        } catch (RuntimeException re) {
            log.error("merge failed", re);
            throw re;
        }
    }

    public Class findById(int id) {
        log.debug("getting Class instance with id: " + id);
        try {
            Class instance = (Class) sessionFactory.getCurrentSession().get(
                    "org.hibernate.test.Class", id);
            if (instance == null) {
                log.debug("get successful, no instance found");
            } else {
                log.debug("get successful, instance found");
            }
            return instance;
        } catch (RuntimeException re) {
            log.error("get failed", re);
            throw re;
        }
    }

    public List findByExample(Class instance) {
        log.debug("finding Class instance by example");
        try {
            List results = sessionFactory.getCurrentSession()
                    .createCriteria("org.hibernate.test.Class")
                    .add(Example.create(instance)).list();
            log.debug("find by example successful, result size: "
                    + results.size());
            return results;
        } catch (RuntimeException re) {
            log.error("find by example failed", re);
            throw re;
        }
    }
}</span>

到此，我们就由POJO类，生成了hbm.xml文件和DDL





思路二：由hbm.xml生成POJO类和DDL...

虽然可以实现，但个人觉着先设计数据库，然后再生成类不符合Hibernate的面对对象持久化的思维方式。好了，还是说步骤吧，首先在test数据库建立两张表，分别为course表和teacher表

[sql] view plain copy
-- ----------------------------
-- Table structure for course
-- ----------------------------
DROP TABLE IF EXISTS `course`;
CREATE TABLE `course` (
  `id` int(11) NOT NULL,
  `name` varchar(255) DEFAULT NULL,
  PRIMARY KEY (`id`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8;

-- ----------------------------
-- Table structure for teacher
-- ----------------------------
DROP TABLE IF EXISTS `teacher`;
CREATE TABLE `teacher` (
  `id` int(11) NOT NULL,
  `name` varchar(255) DEFAULT NULL,
  PRIMARY KEY (`id`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8;

建好表后，在eclipse项目上右键-->new,如下图，选择框中的第三项，这个reveng.xml文件用于配置 选择要生成POJO类的数据库表。

选择上篇博客中创建的Console configuration项，点Database schema框下的refresh，之后可以看到test数据库，单击就出现了course和teacher表，全选后点击Include,之后点finish，如下图

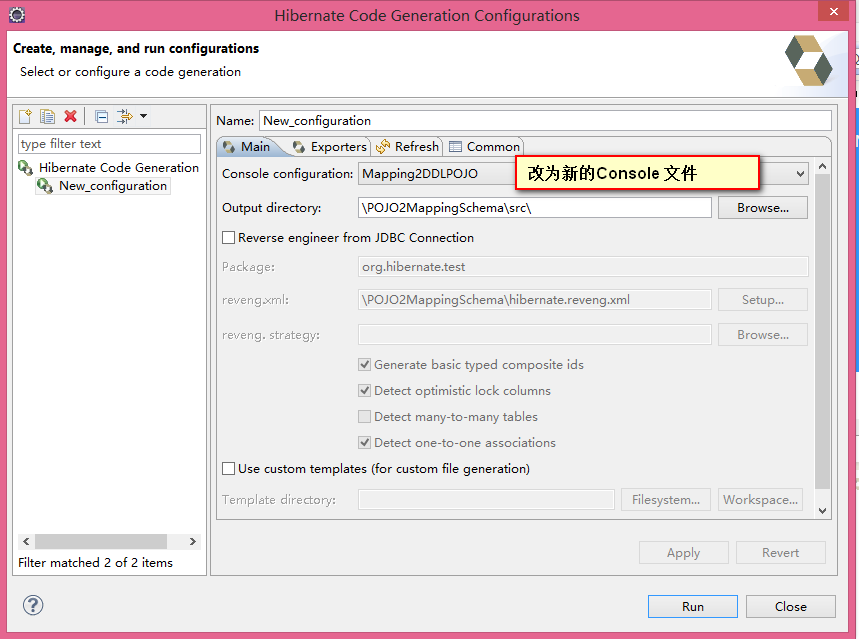

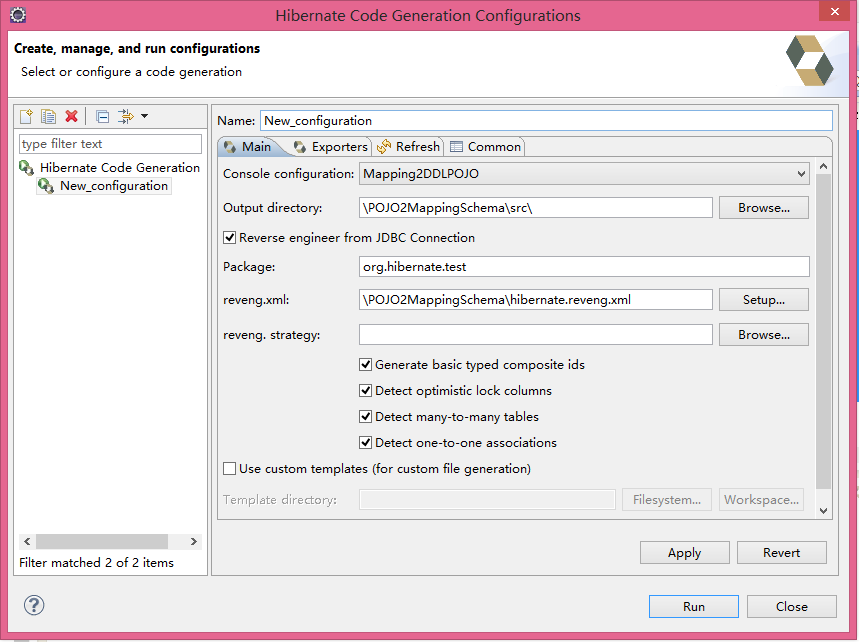

再来到Hibernate Code Generation Configuration窗体，首先配置下Output directory输出目录，在尽挨着的复选框打上勾，然后在package栏写上生成文件要输出到哪个包，并选择刚配置好的reveng.xml文件

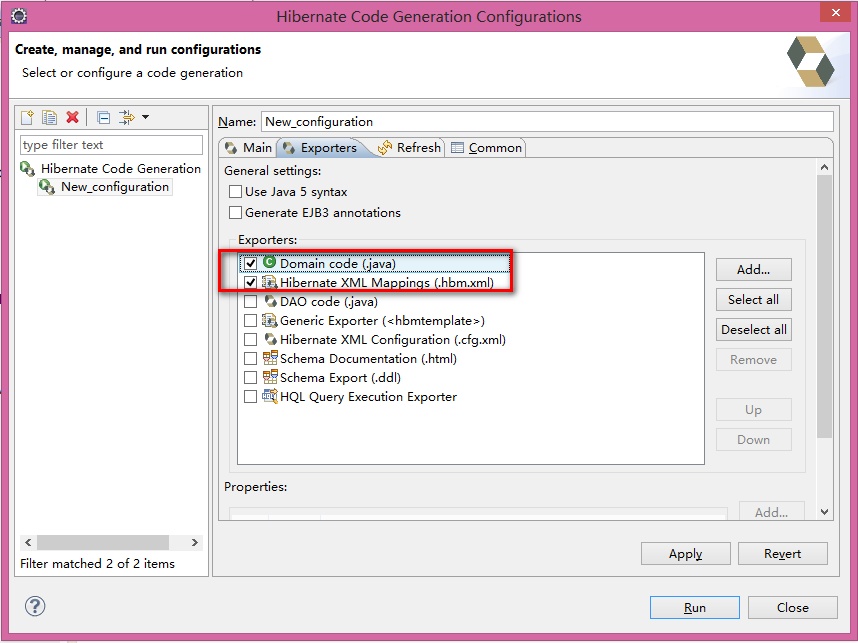

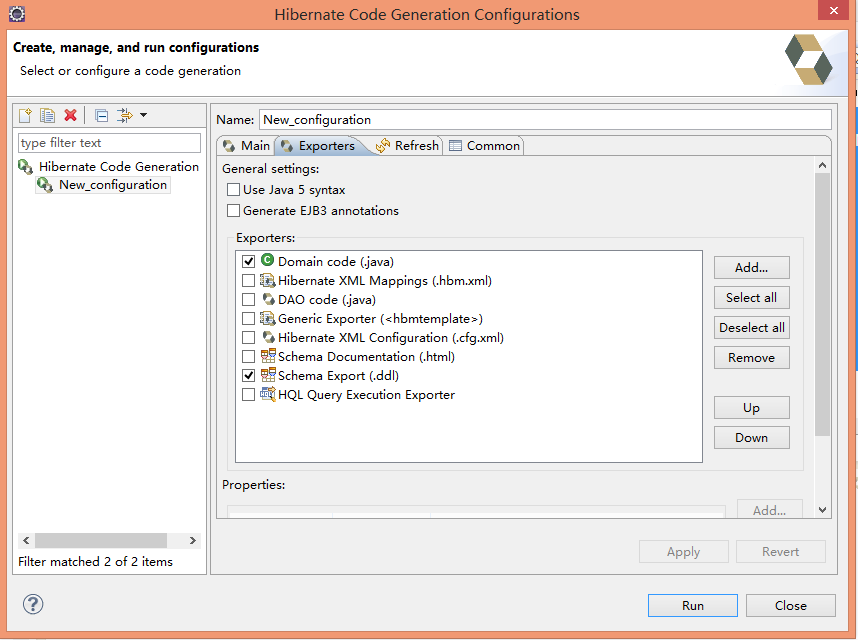

配置要输出的项，这里选定前两项，生成.java和.hbm.xml，就是我们想要的POJO类和Mapping映射文件。之后点击run就好了。

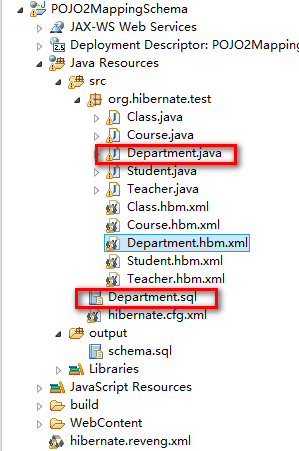

结果如下图：

生成的Mapping映射文件的代码

<?xml version="1.0"?>
<!DOCTYPE hibernate-mapping PUBLIC "-//Hibernate/Hibernate Mapping DTD 3.0//EN"
"http://www.hibernate.org/dtd/hibernate-mapping-3.0.dtd">
<!-- Generated 2014-5-31 11:19:19 by Hibernate Tools 4.0.0 -->
<hibernate-mapping>
    <class name="org.hibernate.test.Course" table="course" catalog="test">
        <id name="id" type="int">
            <column name="id" />
            <generator class="assigned" />
        </id>
        <many-to-one name="teacher" class="org.hibernate.test.Teacher" fetch="select">
            <column name="teacherId" not-null="true" />
        </many-to-one>
        <property name="name" type="string">
            <column name="name" />
        </property>
    </class>
</hibernate-mapping>

<?xml version="1.0"?>
<!DOCTYPE hibernate-mapping PUBLIC "-//Hibernate/Hibernate Mapping DTD 3.0//EN"
"http://www.hibernate.org/dtd/hibernate-mapping-3.0.dtd">
<!-- Generated 2014-5-31 11:19:19 by Hibernate Tools 4.0.0 -->
<hibernate-mapping>
    <class name="org.hibernate.test.Teacher" table="teacher" catalog="test">
        <id name="id" type="int">
            <column name="id" />
            <generator class="assigned" />
        </id>
        <property name="name" type="string">
            <column name="name" />
        </property>
        <set name="courses" table="course" inverse="true" lazy="true" fetch="select">
            <key>
                <column name="teacherId" not-null="true" />
            </key>
            <one-to-many class="org.hibernate.test.Course" />
        </set>
    </class>
</hibernate-mapping>

生成的POJO类：

package org.hibernate.test;

// Generated 2014-5-31 11:19:19 by Hibernate Tools 4.0.0

/**
 * Course generated by hbm2java
 */
public class Course implements java.io.Serializable {

    private int id;
    private Teacher teacher;
    private String name;

    public Course() {
    }

    public Course(int id, Teacher teacher) {
        this.id = id;
        this.teacher = teacher;
    }

    public Course(int id, Teacher teacher, String name) {
        this.id = id;
        this.teacher = teacher;
        this.name = name;
    }

    public int getId() {
        return this.id;
    }

    public void setId(int id) {
        this.id = id;
    }

    public Teacher getTeacher() {
        return this.teacher;
    }

    public void setTeacher(Teacher teacher) {
        this.teacher = teacher;
    }

    public String getName() {
        return this.name;
    }

    public void setName(String name) {
        this.name = name;
    }

}

package org.hibernate.test;

// Generated 2014-5-31 11:19:19 by Hibernate Tools 4.0.0

import java.util.HashSet;
import java.util.Set;

/**
 * Teacher generated by hbm2java
 */
public class Teacher implements java.io.Serializable {

    private int id;
    private String name;
    private Set courses = new HashSet(0);

    public Teacher() {
    }

    public Teacher(int id) {
        this.id = id;
    }

    public Teacher(int id, String name, Set courses) {
        this.id = id;
        this.name = name;
        this.courses = courses;
    }

    public int getId() {
        return this.id;
    }

    public void setId(int id) {
        this.id = id;
    }

    public String getName() {
        return this.name;
    }

    public void setName(String name) {
        this.name = name;
    }

    public Set getCourses() {
        return this.courses;
    }

    public void setCourses(Set courses) {
        this.courses = courses;
    }

}

到此我们就完成了由数据库表生成POJO类和Mapping映射文件的过程

思路三：由数据库表（或DDL）生成POJO类和hbm.xml

首先，新建一个Mapping文件，这里在项目中建立Department.hbm.xml。

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE hibernate-mapping PUBLIC "-//Hibernate/Hibernate Mapping DTD 3.0//EN" "http://hibernate.sourceforge.net/hibernate-mapping-3.0.dtd" >
<hibernate-mapping>
    <class name="org.hibernate.test.Department" table="DEPARTMENT">
        <id name="id" type="int">
            <column name="ID" />
            <generator class="increment"></generator>
        </id>
        <property name="name" type="java.lang.String">
            <column name="NAME" />
        </property>
    </class>
</hibernate-mapping>

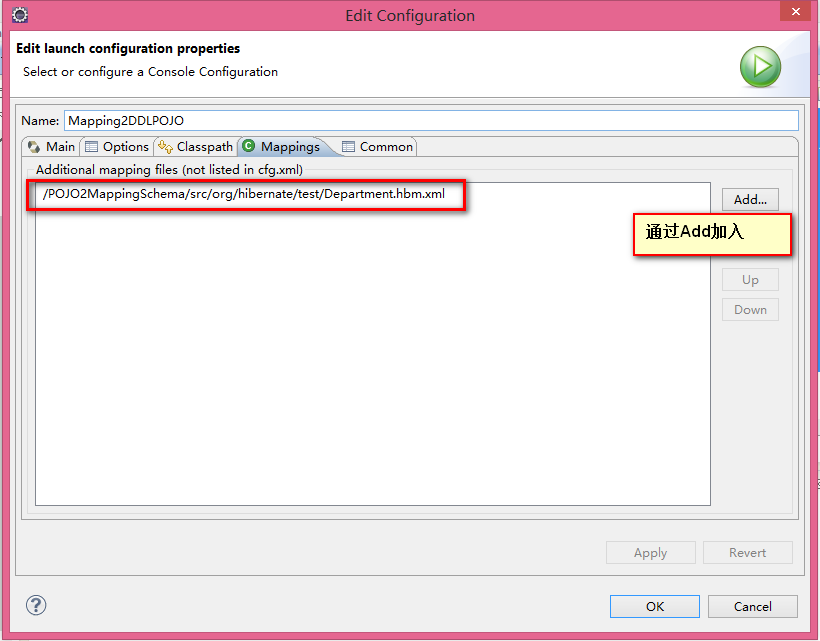

接下来建一个新的Console Configuration文件，基本配置和上文中配置的过程一样，最关键的是加入mapping文件。

接下来，改下Hibernate Code Generation Configuration就好了，首选选择新配置的Console Configuration文件

接下来选择要生成的Schema和.Java文件，然后run就可以了。

最终结果如图：

生成的DDL代码为

[sql] view plain copy
create table DEPARTMENT (ID integer not null, NAME varchar(255), primary key (ID));</span>

POJO类：

package org.hibernate.test;

// Generated 2014-5-31 16:23:27 by Hibernate Tools 4.0.0

/**
 * Department generated by hbm2java
 */
public class Department implements java.io.Serializable {

    private int id;
    private String name;

    public Department() {
    }

    public Department(String name) {
        this.name = name;
    }

    public int getId() {
        return this.id;
    }

    public void setId(int id) {
        this.id = id;
    }

    public String getName() {
        return this.name;
    }

    public void setName(String name) {
        this.name = name;
    }

}

好了，至此POJO类，Mapping文件和数据库表相互转化就都介绍完了，当然这是借助eclipse的插件实现的，熟悉使用ant的朋友也可以借助ant脚本来实现，具体的教程去google吧。这里推荐下HibernateTools的官方教程，包含了eclipse插件和ant脚本两种实现方式，非常全面。



以上是关于HibernateTools实现pojo类 数据库schma mapping映射的相互转换的主要内容，如果未能解决你的问题，请参考以下文章

利用HibernateTools从数据库表生成带注解的POJO

Hibernate Eclipse 插件

Eclipse中通过Hibernate Tools插件实现从数据库逆向生成Hibernate带注解的实体类

图书管理系统( ( JSP + JDBC + Servlet ) )实现-04: 建立数据库的实体类（pojo）

有啥方法可以实现以下 JSON pojo 类以及如何将数据传递到列表？

SSH框架中POJO层， Dao层，Service层， Action层的功能理解
